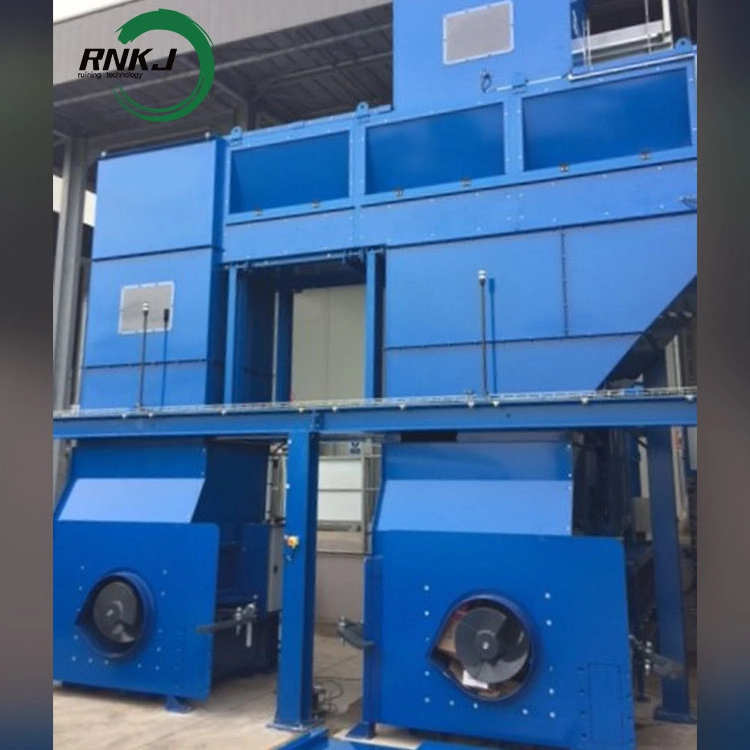

Spiral Waste Compaction Station

The Spiral Waste Compaction Station is an efficient, environmentally friendly, and low-maintenance waste treatment equipment. It achieves waste reduction, dehydration, and storage integration through the spiral propulsion and compression technology. It is widely used in municipal sanitation, commercial complexes, industrial parks, and communities, etc. Its core advantages lie in its continuous operation capability, low energy consumption, strong anti-tangling ability, and full enclosure without secondary pollution. It is one of the ideal alternatives to traditional hydraulic compression stations.

Product Advantage

High compression ratio: up to 1:3 to 1:5, significantly reducing the volume of waste.

Continuous operation: No need for batch processing, can receive and process waste continuously for 24 hours, with strong processing capacity.

Strong crushing ability: The spiral blades can crush small furniture, wooden boards, cartons and other large pieces of waste, adapting to complex waste compositions.

Fully enclosed design: No odor leakage, filtrate collection, eliminating secondary pollution.

Low noise operation: Motor and reducer drive, low noise, superior to hydraulic compression stations.

Low carbon and energy-saving: Low energy consumption, meeting the needs of medium-sized stations.

Simple structure: Few moving parts, no wear-prone components, reduced failure rate.

Easy replacement of wear parts: Adopting modular design, can be quickly replaced.

High automation level: PLC control, one-click start, supports unmanned operation.

Comprehensive safety protection: Equipped with overload protection, threshold protection, emergency stop and other multiple safety devices.

 Core Component

External structure system: main frame, sealed container, discharge port, and evacuation door

Function: Provide structural support, prevent odor diffusion and leakage of leachate

Spiral compression system: Spiral shaft, spiral blades, compression section

Function: Core compression unit, generating thrust and compressive force

Transmission system: Motor, coupling, bearing housing

Function: Drive the screw to rotate and provide torque

Dehydration drainage system: Screen, collecting basin, drainage pipe, sewage pump

Function: Separate and discharge the leachate generated during the compression process

Lubrication system: Automatic lubrication pump, oil pipe, oil nozzle

Function: Reduces wear on screws and bearings, prolongs lifespan

Electrical control system: PLC control cabinet, touch screen, sensors, safety switches

Functions: Automatic/manual control, fault diagnosis, safety protection

Odor removal system: Activated carbon adsorption, spray device

Function: Remove odors, improve working environment

 Product Parameters

Working Principle

The Spiral Waste Compaction Station is based on the principle of spiral mechanics. It generates axial thrust and radial squeezing force through rotating spiral blades to achieve continuous compression and dehydration of waste:

During the feeding stage: Waste is fed into the compaction chamber through an artificial discharge port, conveyor belt or hopper. It can handle various materials such as household waste, food waste, and industrial solid waste.

During the crushing and compaction stage: The spiral shaft rotates at a low speed, and the blades shear and crush the waste and push it forward. In the compression section, a high-pressure zone is formed, compressing the volume of the waste.

During the dehydration stage: During the compression process, the moisture in the waste is discharged through the screen of the chamber or the drainage system, reducing the moisture content by 30%-50% and reducing the risk of leachate pollution.

During the storage and discharge stage: The compressed waste is pushed to the storage chamber. When the set capacity is reached, the compressed waste is discharged through the hydraulic auxiliary system to the transfer vehicle, completing the collection cycle.

Application Scope

Urban community: Small mobile station, suitable for residential areas

Commercial center: Medium-sized fixed station, handling mixed waste from shopping malls and office buildings, can be connected to small collection vehicles

Industrial park: Large heavy-duty station, handling industrial solid waste, requires a crushing function and strong dehydration system

Garbage transfer station: As a front-end compression device, improving transfer efficiency and reducing transportation costs

Rural areas: Mobile station, suitable for decentralized collection mode, can be flexibly allocated

The RNKJ Spiral Waste Compaction Station is a new generation of highly efficient and environmentally friendly waste treatment equipment. Relying on the core technology of spiral compression, the compression ratio of waste is increased, enabling rapid reduction in volume and dehydration, effectively reducing the frequency of collection and transportation costs. The equipment adopts a fully enclosed structure and integrates odor removal and leachate collection systems, completely eliminating the problems of odor leakage and sewage seepage. It provides an efficient and reliable solution for waste reduction. With the increasing environmental protection requirements and continuous technological upgrades, the Spiral Waste Compaction Station will play an important role in the waste treatment industry.

We are an established equipment manufacturer equipped with state-of-the-art production facilities, including CNC laser cutting machines, CNC bending machines and machining centers. These ensure our products’ superior quality and exquisite finish.

We accommodate custom design requirements based on drawings, backed by a robust technical team and skilled welding professionals. We look forward to cooperating with you.
