Hopper Trash compression station has a large capacity and suitable size. It can receive garbage collected in different ways, such as garbage transported by manual carts, tricycles, small dump trucks, etc. It can also process garbage in the form of garbage cans, garbage bags, etc., providing a centralized collection point for scattered garbage.
Product Advantage
Hopper Trash compression station adopts the most advanced PLC microcomputer control system, which is easy to operate, has remote control operation, automatic compression function and high compression ratio.RNKJ offers a wide range of waste compactors to meet your specific waste needs. SMART technology makes it possible. To receive messages automatically when it is time for emptying, which optimizes availability and saves you money. Each waste compactor can be programmed individually for different locations, such as megastore, supermarkets, shopping malls, market places, hospitals, restaurants, agricultural or food industries.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Video
Product Operate Guide
The first step is to dump the car removable garbage truck (hook-arm garbage truck) into the parking space of the garbage transfer station, unload the empty horizontal mobile garbage compression and transfer box, the second step is to collect the filled garbage tricycles and carts from all over the world to enter the garbage transfer station, and then the garbage can be dumped directly into the hopper of the horizontal mobile garbage compression and transfer station, and the third step is that the horizontal mobile garbage compression and transfer station will be able to complete the compression of the garbage. The third step is that after the horizontal mobile waste compression and transfer station finishes compressing the garbage, the signal light will be issued when the compression tank is full, and the garbage compressor equipment will stop compressing the garbage automatically, and finally the car chassis will be dumped into the garbage station's parking space, and then the garbage compressor's equipment chassis can be hooked up and the garbage can be transported to the garbage disposal site.
Successful Cases

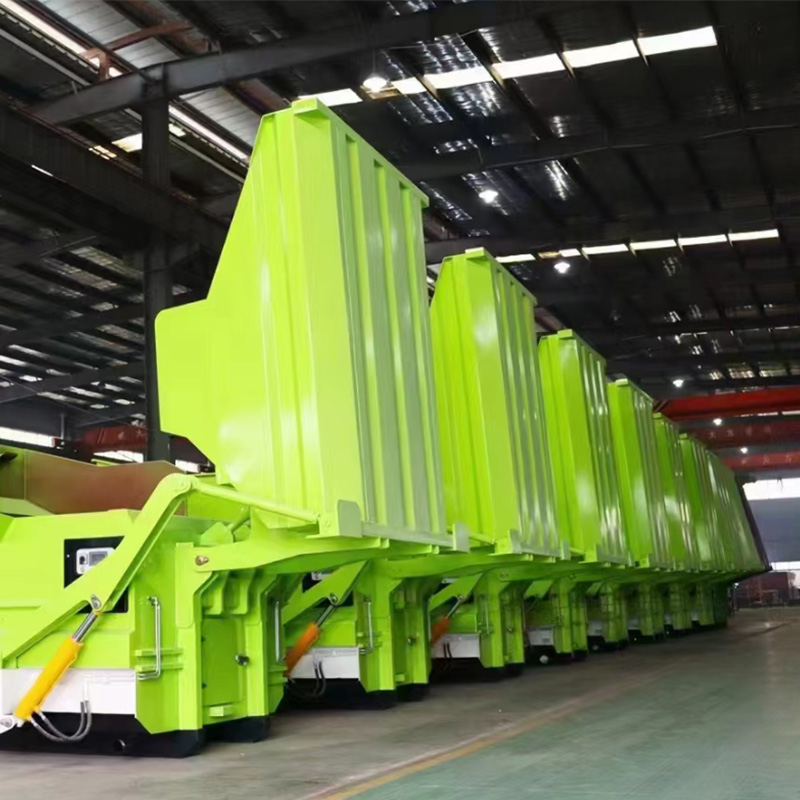

Our Factory
