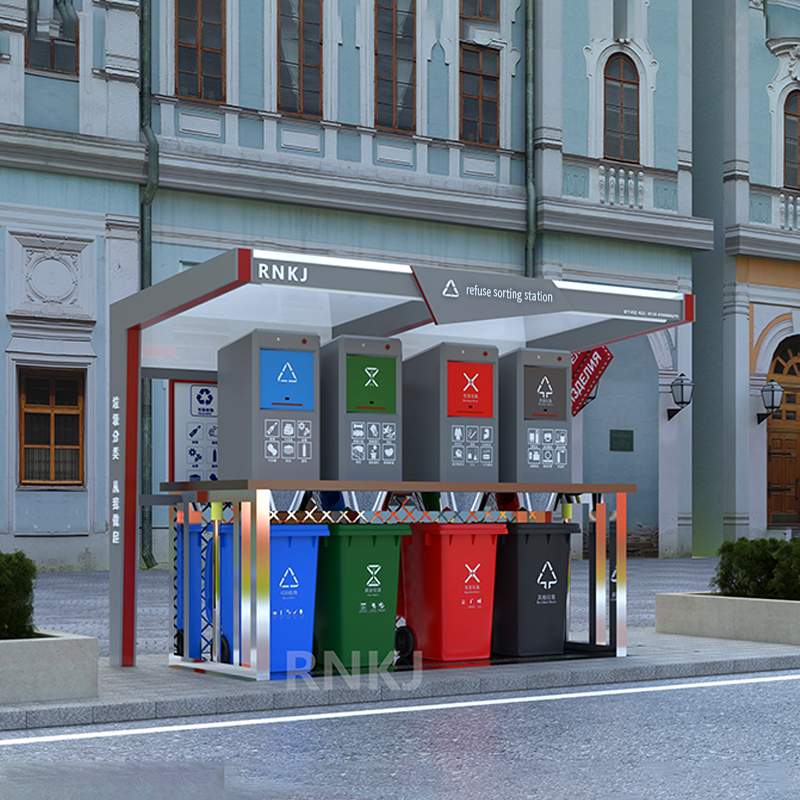

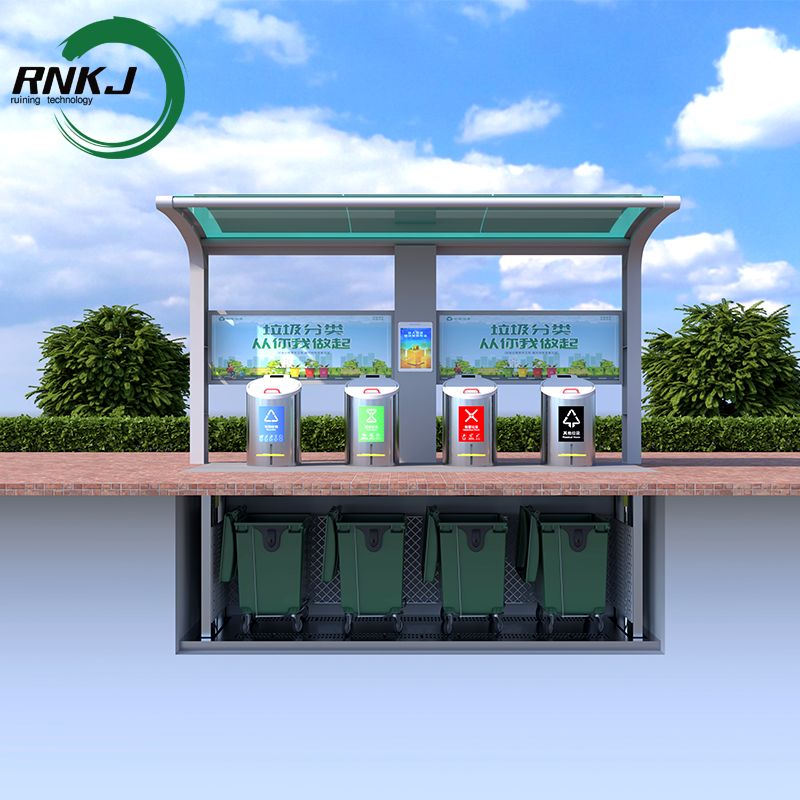

The Underground Waste Collect system is an integrated and intelligent garbage treatment facility. By setting up classification storage units in underground space, it can achieve source classification, closed storage and efficient collection and transportation of garbage. The Underground Waste Collect system combines environmental protection concepts with modern information technology and is suitable for urban areas with high environmental requirements and tight land resources.
Product Advantage
The Underground Waste Collect system is equipped with multiple independent closed boxes (such as recyclables, kitchen waste, hazardous waste, other garbage, etc.), each of which is equipped with a weighing sensor and overflow monitoring device. Classification delivery ports are set up on the ground, with clear garbage category labels. Fully underground closed storage completely solves the problems of mosquito and fly breeding and odor nuisance caused by open-air stacking of traditional garbage bins. Accurate classification reduces energy consumption in subsequent processing links.
Underground Waste Collect system is a modernized, closed-loop solution for garbage disposal. It achieves the "disposal - transportation - processing" of household waste through a network of underground pipelines, intelligent collection devices, and centralized processing stations, enabling the entire process to operate automatically and in a sealed manner. Its core objective is to replace traditional ground garbage collection points and transfer stations, addressing issues such as pollution, space occupation, and low efficiency in the urban garbage collection process. It is a key infrastructure for improving urban environmental quality and promoting garbage classification and resource utilization.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Equipment Configuration

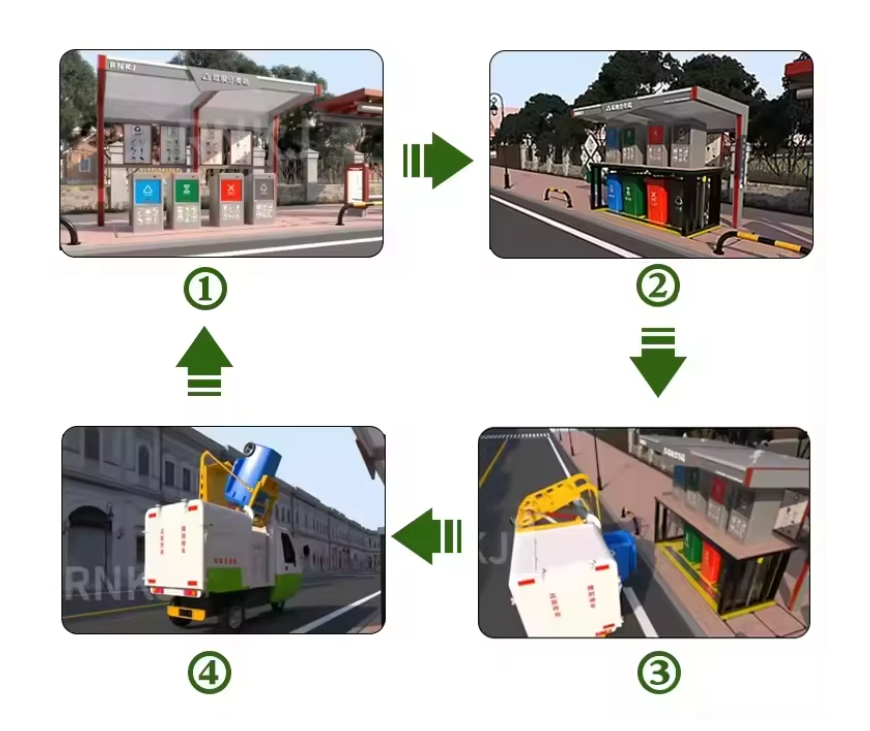

Run Process
The feeding ports (Model A/B) are labeled according to hazardous waste, recyclable waste, food waste (wet waste), and other waste (dry waste), so that residents can sort waste according to the labeling; when the garbage cans are full of garbage, the hydraulic system is activated, and the lifting platform is smoothly lifted up to the bottom of the garbage cans and the ground level, and then manually drags out the full garbage cans, directly unloading the garbage into the garbage collection truck, and then placing the empty barrels The empty bin is then placed in the original bin position.
Landing effect
Lift effect
Transit effect
Product Operate Guide
1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Core working principle
Classification: Residents/users place their household waste according to the guidelines into the sealed disposal stations set on the ground (the disposal stations correspond to kitchen waste, recyclables, other waste, etc.). After disposal, the disposal stations automatically seal the openings to prevent odors from escaping.
Storage and Trigger: The garbage is temporarily stored in the storage bins at the bottom of the disposal stations. When the preset capacity is reached, the system automatically activates the negative pressure fan.
Pipeline Transportation: The negative pressure fan creates a stable negative pressure in the pipeline. Under the drive of the air flow, the garbage is transported through anti-corrosion pipes to the central collection station. The pipeline is designed with a specific slope, and the air flow washes it, preventing garbage from depositing and blocking.
Centralized Processing: After reaching the central collection station, the garbage is separated from the air flow by the separation device and falls into the corresponding classified storage bins.
Transit and Resource Utilization: The collected garbage is transported by dedicated sealed vehicles to the waste incineration plant, landfill, or resource processing center.
Feature Of Underground Waste Collect System
1.High environmental friendliness
The entire process is carried out in a sealed manner, with no exposed garbage, which avoids contamination of the soil and groundwater by leachate, and reduces the breeding of mosquitoes and the spread of bacteria.
The odor and dust are strictly controlled. The odor control system of the central collection station can reduce the odor concentration to below the national second-level standard, improving the living environment.
The exhaust emissions and noise pollution from garbage transportation vehicles are also reduced.
2. High space utilization rate
No need for ground garbage transfer stations or large garbage collection points, thus releasing land resources in the city's core areas.
The disposal stations are small in size and can be flexibly set up in residential areas or corners of commercial districts without affecting the landscape design.
3. High-efficiency Automation
The automation level is high, eliminating the need for manual sorting and frequent transportation, thereby reducing the labor intensity of sanitation workers and lowering labor costs.
4. Facilitating Waste Sorting
The disposal stations are pre-equipped with classification discharge ports, and the central collection stations simultaneously store the sorted waste. This approach guides residents to sort the waste from the source, and simplifies the sorting process at the back end, thereby improving the accuracy of sorting.
Our Factory
As a manufacturer of environmental protection machinery, our company has efficiently operated production lines, a professional team of workers, perfect product quality system and global delivery capacity, and has passed the international ISO quality management system certification. We are serious and responsible for our products, and our company is committed to becoming a manufacturer for global users.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
