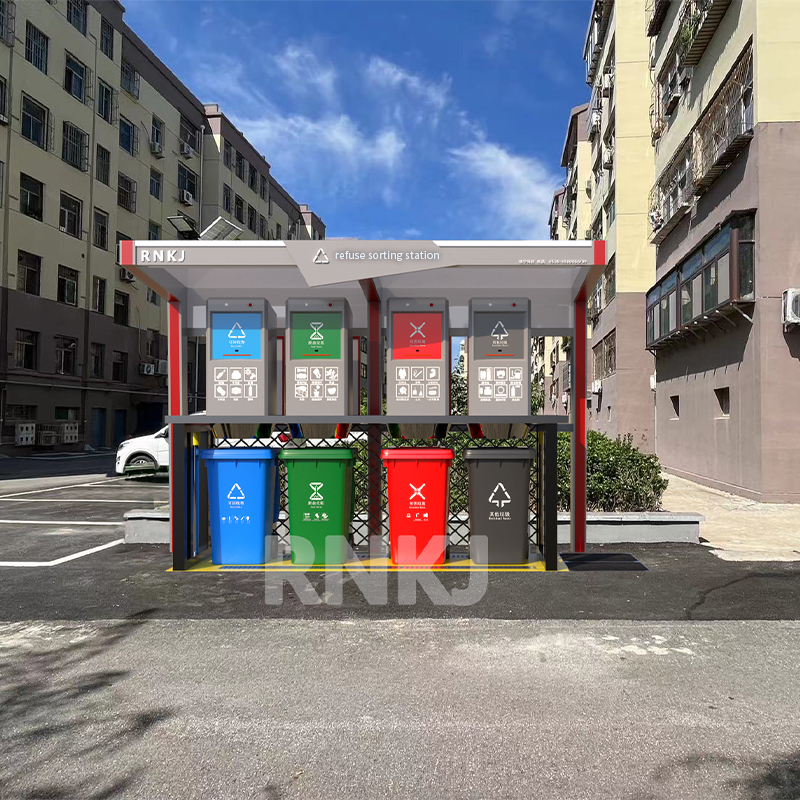

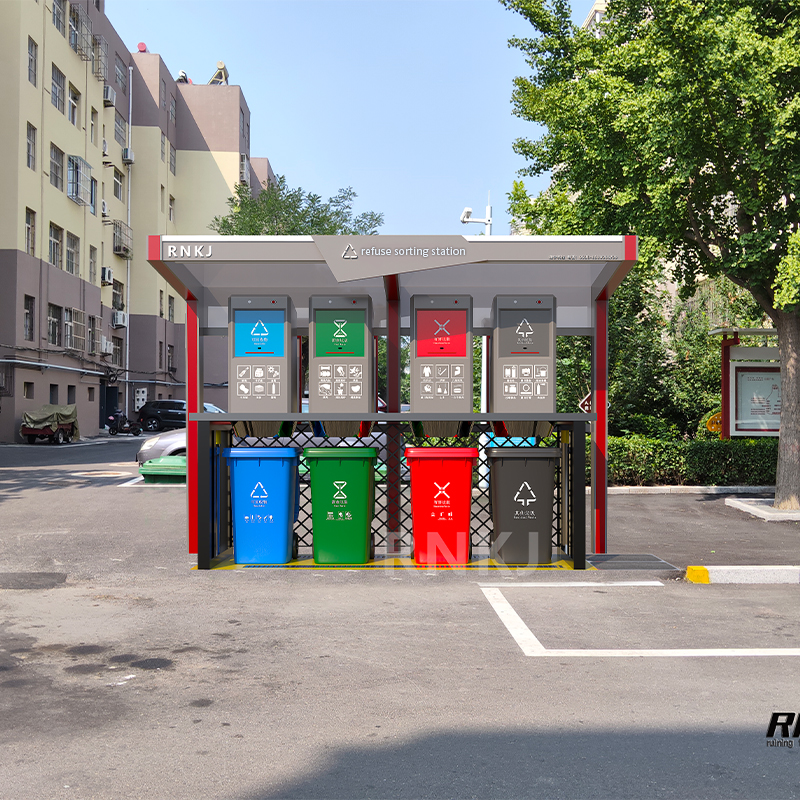

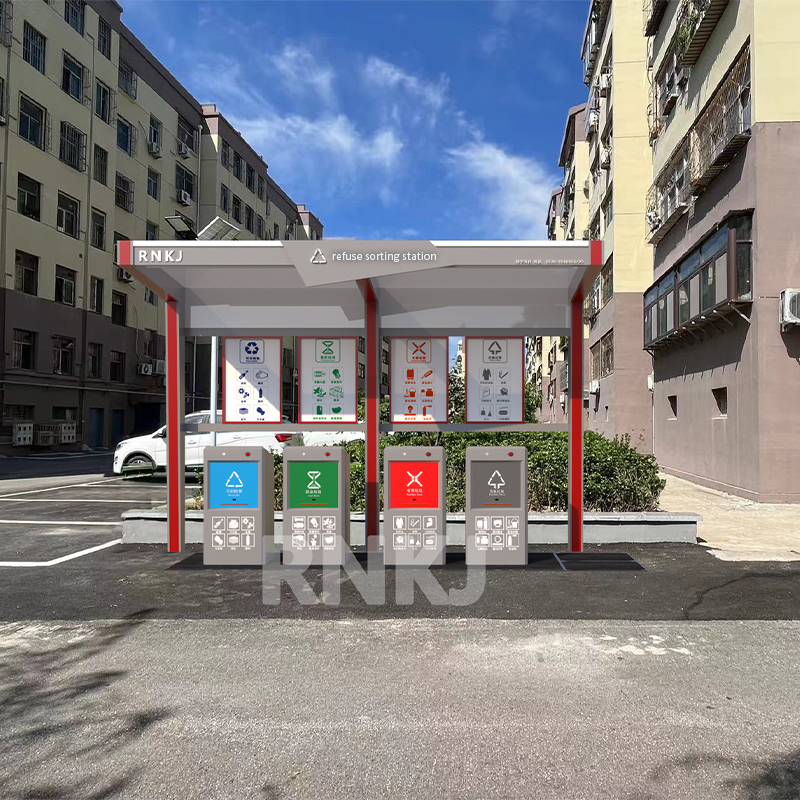

The appearance design of the Underground Waste Collection Storage System is usually beautiful and elegant, blending with the surrounding environment. It not only meets the needs of garbage collection, but also enhances the image of the city.
Product Advantage
Optimizing the visual senses: Outdoor adaptability, small footprint on the ground, saving space on the ground, can match the surrounding environment, collecting garbage on the ground, eliminating visual pollution and beautifying the environment.
Cost saving: Durable equipment, low failure rate, long service life, high efficiency, low labor and late use costs;
Good closure:Fully enclosed odor is not easy to spread, inhibit mosquitoes and flies, to avoid picking up the reverse pickup, to prevent secondary pollution.
Highly Intelligent: Utilizing Internet+ technology, it is equipped with automatic overflow device, temperature control device, video monitoring, automatic or foot pedal or swipe card induction lid opening and so on.
Environmentally friendly: Various types of energy sources, such as environmentally friendly solar energy, wind energy, and so on.
Highly adaptable, can be used in conjunction with most existing collection systems; several times the volume of traditional waste collection, high degree of automation.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Video
Features
Material and appearance:
Garbage sorting bins are usually made of high-quality engineering materials, such as high-quality electrolytic galvanized sheet with a thickness of ≥ 1.0mm, which is characterized by durability, lightweight and flexibility.On the surface treatment, outdoor plastic powder high-temperature electrostatic spraying is used, and the surface coating is sturdy, not easy to peel off, and has strong UV resistance and weather resistance.
Functionality:
The garbage sorting bin is designed with clear classification labels, such as recyclable materials, hazardous waste, and other waste, to facilitate users to dispose of them correctly.
Applicability and environmental friendliness:
Garbage sorting bins are suitable for collecting waste or handling raw materials in various public places, greatly improving work efficiency.
Color and identification:
The box identification adopts UV resistant, wear-resistant, and sandwich printed garbage signs, with diverse colors and a brightness that can maintain for more than 3 years.

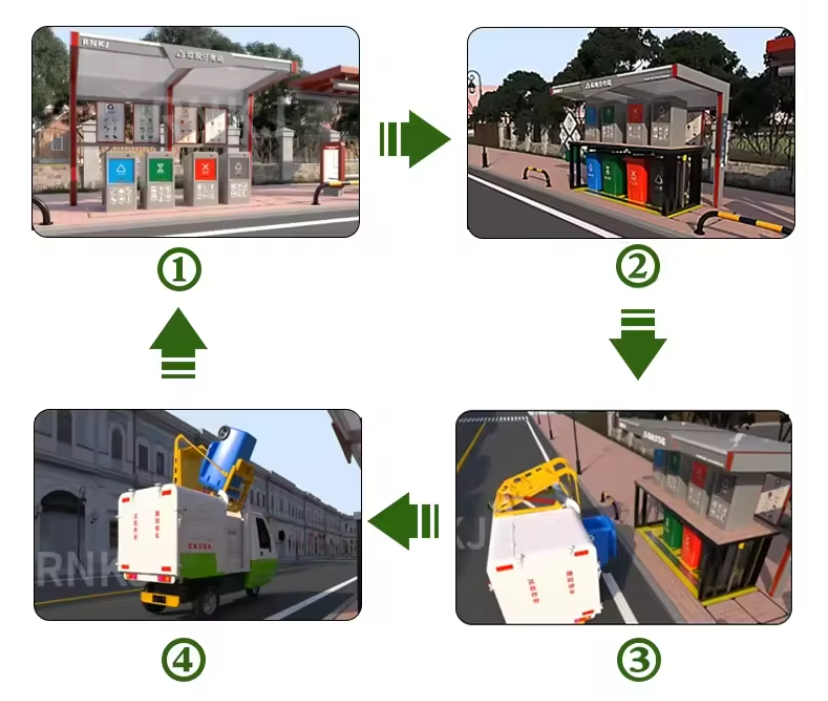

Product Operate Guide
1. Activate the hydraulic system when the trash can is full.
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3. Manually hauling out full trash cans and unloading trash directly into trash collection trucks.
4. Place empty cans in their original trash can locations.
Product Effects
Lifting mode
Landing mode
