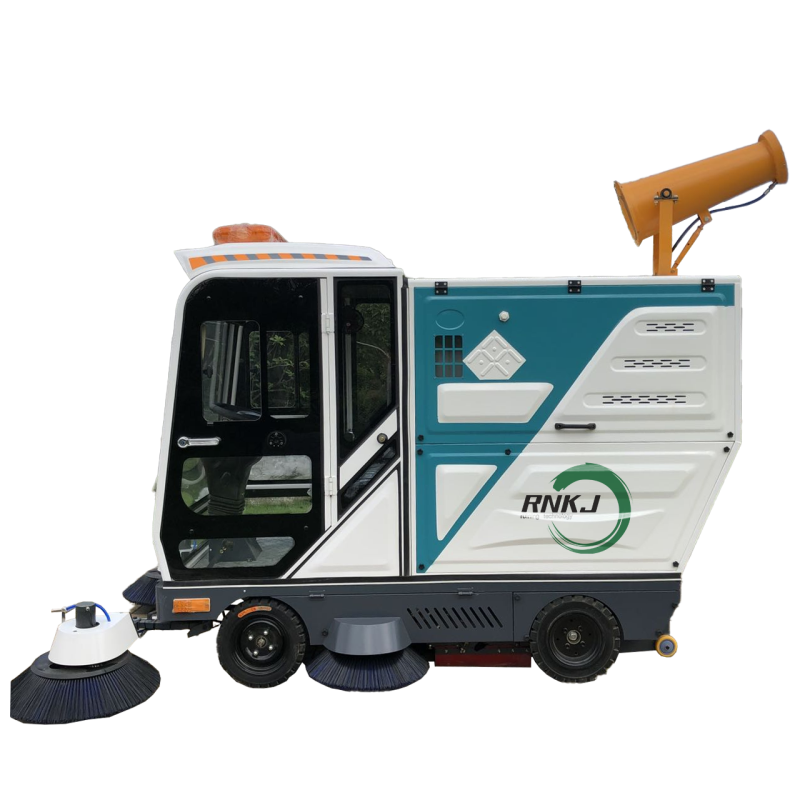

4 wheel road sweeper is a ground cleaning equipment with a four-wheel design. With its stable structure, powerful performance and wide adaptability, it has become the first choice for large public places, industrial scenes and high-end cleaning needs.
Product Advantage
Appearance:
1. The 4 wheel road sweeper is made of sheet metal steel, which is stamped in one piece, has good firmness, is resistant to collision, and is not easy to deform or damage. The front tempered glass is clear and durable.
2. The 4-wheel road sweeper adopts automotive electrophoretic paint, which is impact-resistant and has good adhesion and corrosion resistance.
3. The appearance structure is reasonable and practical, and can be used in winter and summer. In summer, the machine interior is equipped with a skylight, a fan, and the left and right doors can be freely disassembled, and the rear window is ventilated freely. It has the effects of ventilation, cooling, and sunshade. In winter, a closed cab is used, which has good sealing and warmth.
Configuration:
1. The 4-wheel road sweeper is equipped with LED headlights and rear tail operation safety warning lights, making night cleaning brighter and safer; front water spray device, hydraulic shock absorption, front and rear solid anti-puncture tires;
2. Built-in reversing image and speakers (USB can be plugged in to play music and advertisements);
Standard high-power dual fans, dual filters, and dual dust vibrators, super suction allows cleaning without dust;
3. Rear high-pressure flushing, which can be continuously flushed for nearly 30 minutes;
4. The upper fog cannon disinfection tool can be continuously fired for nearly 1 hour;
5. Three types of fire-fighting equipment are placed below to make cleaning safer; hair dryers and tool kits are provided to make dust cleaning more convenient;
6. 400 catties large-capacity water tank, durable, solves the trouble of frequent water addition;
Performance:
1. The rear axle drive of the 4-wheel road sweeper has dual disc brakes with anti-lock, strong power, good climbing performance, three-speed transmission, free use, and more convenient work. Automatic dust vibration is adopted to solve the trouble of frequent manual dust vibration during cleaning.
2. Constant temperature controller, durable, automatic overload protection system for safer cleaning.
3. Car-mounted parking to prevent the vehicle from sliding down the slope.
4. High-strength wear-resistant edge brush, bricks, sand, stones, dust, sweep away.
5. High-pressure flushing instructions: 10-meter high-pressure hose automatic hose reel + handheld high-pressure gun + four types of water broom nozzles + front waterway spray start-stop control valve + 400-jin special plastic water tank. There are fire water filling port + water tank cleaning port + water tank sewage outlet.
6. The effective water sweeping width is 4 meters, the single-tank water sweeping area is 80,000 square meters, and the single-tank continuous flushing time is at least 30 minutes.
7. Adjustable working pressure (electric) 50-150BAR, maximum flow 15L/min.
Technical Parameters
Product Parameters | |||
Cleaning width | 2300mm | Traveling speed | 0-12km/h |
Main brush width | 800mm | Power source | 48V |
Working efficiency | 15000-20000m2/h | Travel speed | 0-12km/h |
Trash bin capacity | 240L | Vacuum filter square | 10m² |
Traveling motor | 2200W | Weight | 1500KG |
Roller brush motor | 1000W | Dimensions | 3300*2300*2050mm |
Side brush motor | 4*100W | Electric pump pressure | 150BAR |
Side brush diameter | Front 700*2,rear 600*2 | Continuous flushing time | 30min |
Water tank | 400 catties largecapacity water tank | Single tank water sweeping area | 80,000m² |
Battery capacity | 48V150Ah-200Ah{optional} | ||
Standard configuration: dual fans, dual filters, dual vibration dust cleaning; | |||
Optional: add electric high-pressure cleaning; add fog cannon; add fire-fighting equipment (4 pieces) | |||
Constant temperature controller, durable, automatic overload protection system, safer cleaning.
High-pressure flushing instructions: automatic hose reel for 10-meter high-pressure hose + hand held high-pressure gun + four types of water broom nozzles + front water jet start and stop control valve +400-jin special plastic water tank.
There are fire water filling port + water tank cleaning port + water tank drain port.
Comes with a hair dryer and tool kit for easier dust removal.
Three types of firefighting equipment are placed below to make cleaning safer.
Scrubber Series Parameters
Tell me your needs and recommend a more suitable solution for you.
Optional Charger And Plug
For any other chargers and plugs, please contact us.
Cleaning Objects
Can clean up more kinds of garbage or objects.
Application Cases
Applicable scenarios

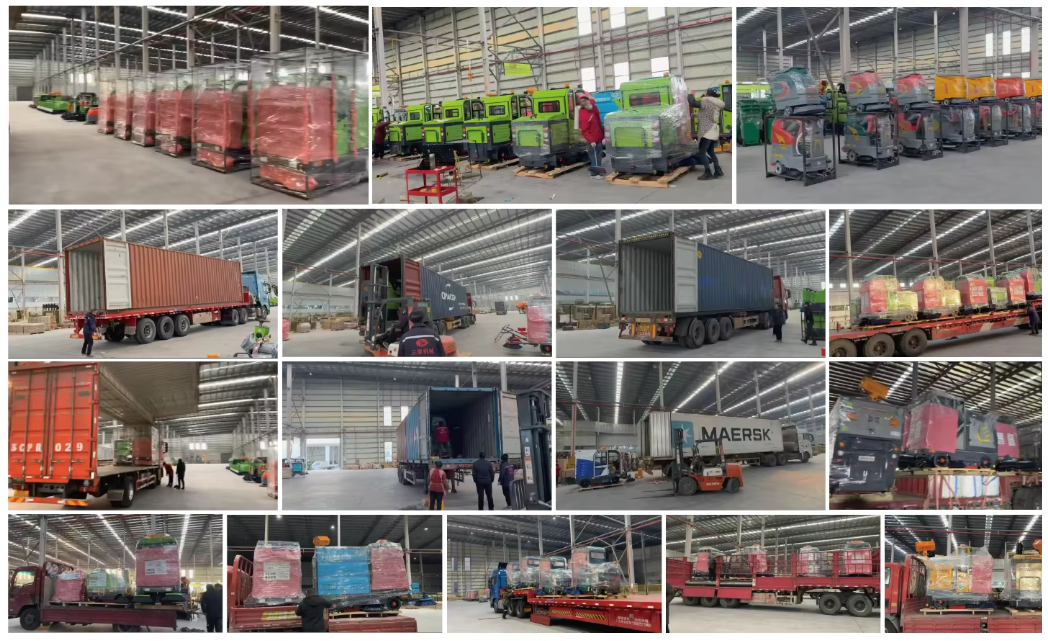

Packing and delivery
FAQ
Q: Are you the manufacturer?
A: Yes, of course. We are the manufacturer. Welcome you to visit our factory.
Q: What should I consider when I choose an industrial sweeper?
A: 1.What the main type of garbage you wanted clean?
2.How many square meters is the cleaning area?
Q: How do you control your product quality ?
A: Firstly, our cleaning equipment is in strict accordance with the ISO quality and CE system requirement. Secondly, each procedure is designated by a particular person. Thirdly, we have a professional QC team.
Q: What is warranty of products ?
A: All of products with one year guarantee, any problem within one year, we will send new replaceable parts for free (except wearing parts).
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: What is your delivery time?
A: 7-20 days (according to the total quantity).
