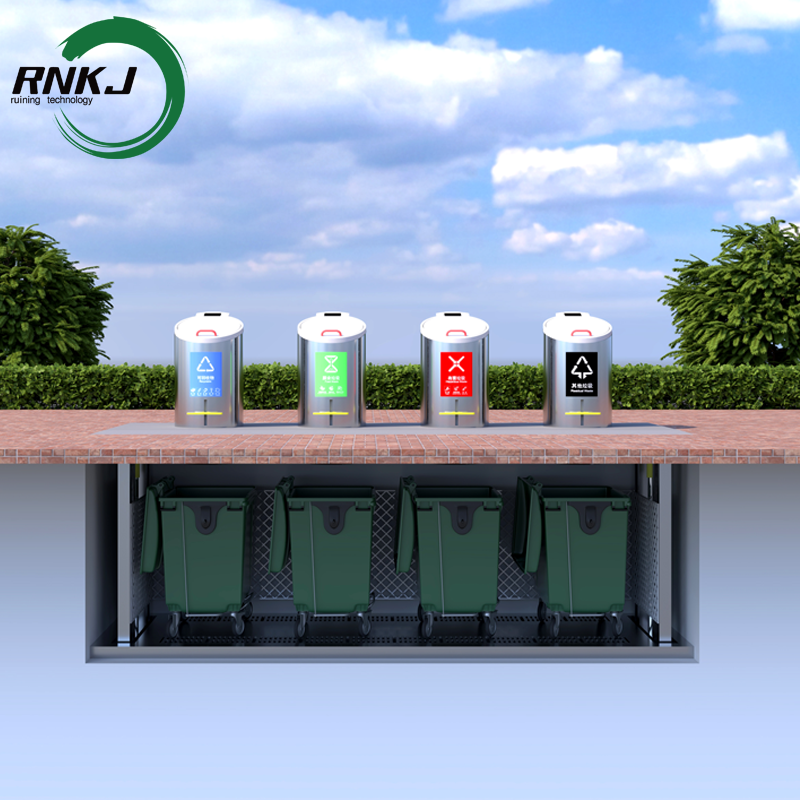

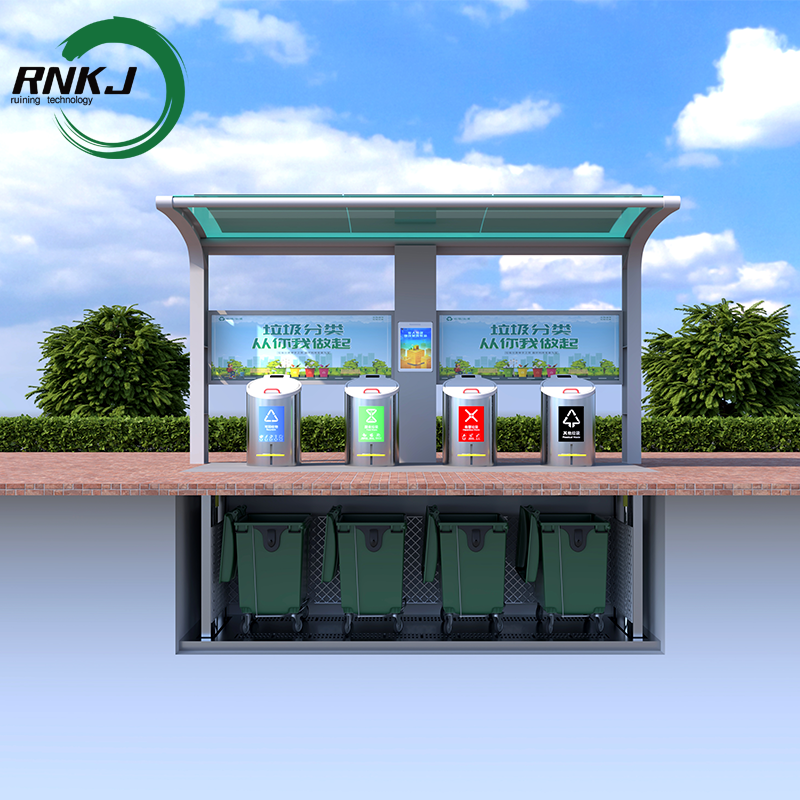

Underground waste sorting system structure includes sorting kiosk, garbage feeding port device, lifting platform, power unit, sewage system, deodorization system, pit foundation, etc. Its advantage is that the garbage cans are all dropped into the ground, which is well hidden and effectively reduces the visual pollution, and secondly, the garbage is easy to dump, with less odor, and the garbage volume can be selected according to the customer's needs, such as 1100L/660L/240L. Trash cans, 4 or 6 barrels can be used. Various layouts. The new intelligent landscape buried garbage classification collection station, according to the
harmful garbage, recyclable garbage, food waste (wet garbage), other garbage (dry garbage), for the classification of garbage collection, mainly applicable to: parks and scenic spots, residential districts,hospitals, schools and so on.
Product Advantage
1.Collection mode
The Underground waste sorting system improves environmental hygiene while enhancing the overall image of the city, which is different from the garbage sorting service station or garbage kiosk on the ground, i.e., it adopts the environmentally friendly underground sorting collection mode.
2.Optional pitches
According to the customer's demand, it can choose various modes of feeding port, such as garbage classification feeding port, barrel turning device, large garbage opening device, etc., which is convenient for garbage collection vehicles and cleaning personnel to dump garbage; garbage enters into the feeding port and falls into the underground garbage collection station directly, and the fully closed structure reduces odor leakage, mosquitoes and flies, and the pollution of the environment.
3.Deodorization system
After the opening of the feeding port, dumping of garbage and the
opening of the upper cover of the lifting platform, deodorizing liquid is sprayed underneath the upper cover of the platform to remove the odor generated during the transfer of garbage, which greatly improves the situation both visually and perceptually.
4.Noise mitigation
The landscape buried trash compactor station is also equipped with a rubber protective mat on the feeding port to minimize the noise caused by collision.
Product Parameters
Model number | ZFDM-2404 | ZFDM-2406 | ZFDM-6604 |
Size of Kiosk (mm) | 4200*1600*2630 | 5580*1600*2630 | 6400*2300*3000 |
Size of Pit (mm) | 4130*1280*2280 | 5510*1280*2280 | 6220*1920*2680 |
Number of Feeding Ports | 4 | 6 | 4 |
Capacity (L) | 960L (4 barrels) | 1440L (6 barrels) | 2640L (660L per barrel) |
Weight (KG) | 2980 | 3450 | 4950 |
Lift Height (mm) | 1320 | 1320 | 1700 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 |
Voltage | 220V 50HZ / Customized | 220V 50HZ / Customized | 220V 50HZ / Customized |
Opening Mode | sensor | sensor | sensor |
Sewage Pump Power(kw) | 1.1 | 1.1 | 1.1 |
Lift Weight(T) | 2.8 | 3.5 | 5.5 |
Product Uses
Underground waste sorting system mainly applicable to: parks and scenic spots, residential districts,hospitals, schools and so on.
Video
Run Process
The feeding ports (Model A/B) are labeled according to hazardous waste, recyclable waste, food waste (wet waste), and other waste (dry waste), so that residents can sort waste according to the labeling; when the garbage cans are full of garbage, the hydraulic system is activated, and the lifting platform is smoothly lifted up to the bottom of the garbage cans and the ground level, and then manually drags out the full garbage
cans, directly unloading the garbage into the garbage collection truck, and then placing the empty barrels The empty bin is then placed in the original bin position.
Landing effect

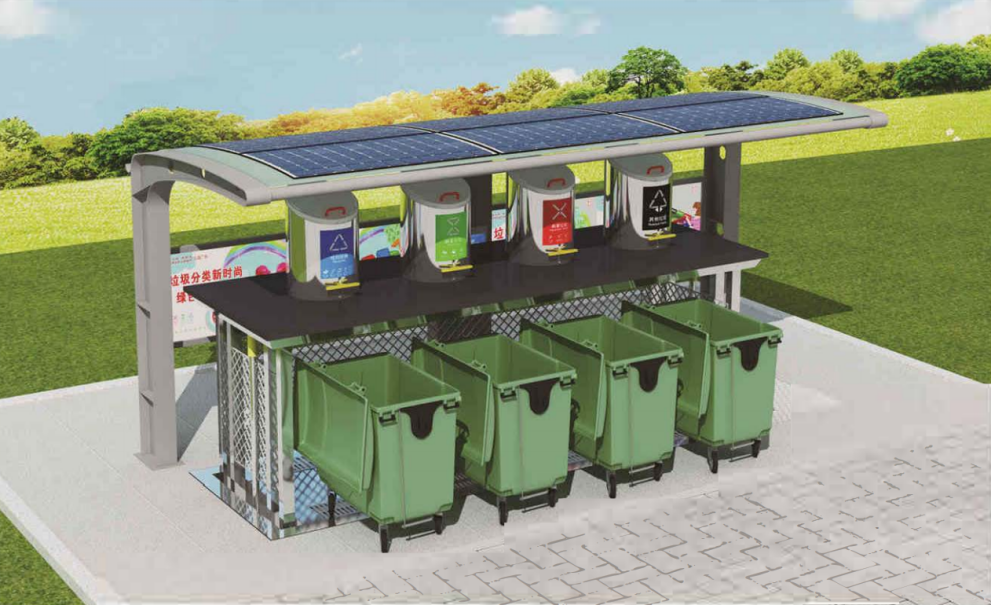

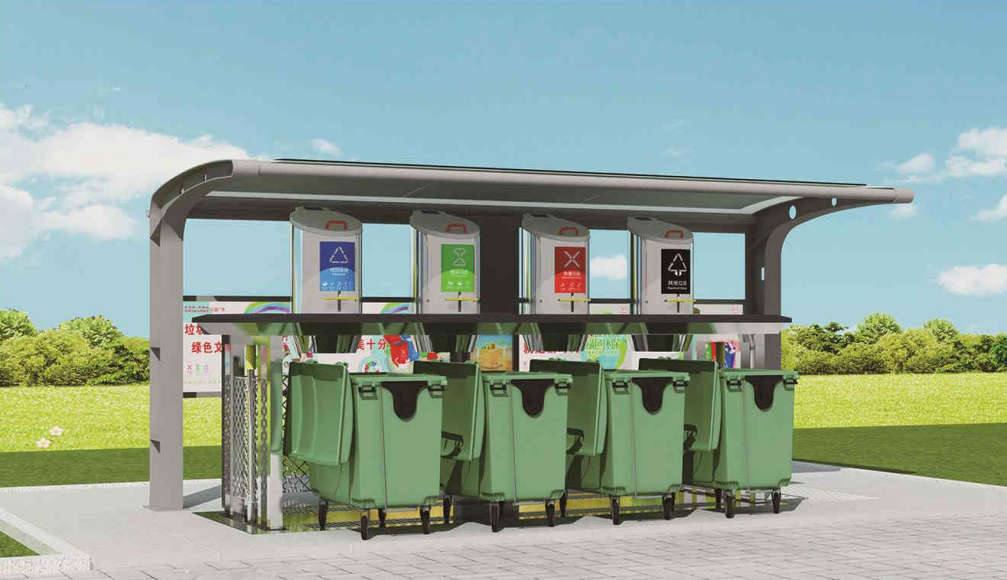

Lift effect
Transit effect
Product Features
The Underground waste sorting system integrates the classification, collection and transportation links, and realizes the "environmentally friendly, efficiency-first, intelligent and controllable" urban garbage management. It is an important technical means to solve the urban garbage problem and improve the city's governance capabilities. It has broad application prospects, especially in the process of building smart cities and ecological cities.
