Landscape Underground garbage compactor is an environmentally friendly equipment used to treat domestic garbage. It can achieve efficient storage and transportation of garbage by compressing and reducing the volume of garbage. Landscape Underground garbage compactor compresses the garbage poured into the equipment into high-density blocks or cakes through the pressure generated by hydraulic system or mechanical device.
Product AdvantageThe Landscape Underground Garbage Compactor is a fully enclosed, buried, landscape-integrated solid waste compression, storage and transfer equipment, specially designed for concealed garbage disposal in urban public spaces. Different from traditional above-ground garbage bins and open-air transfer stations, the whole compaction host, storage bin and transmission mechanism are installed underground, with only the feeding port and landscape-style ground cover exposed to the ground, realizing the integration of garbage treatment and environmental landscaping. It takes mechanical compression as the core working mode, and realizes high-volume reduction, sealed storage and odor control of domestic waste, which is a key device for modern intelligent sanitation and urban beautification.
Technical ParametersModel | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Core Product StructureThe product adopts an integrated underground box structure, which is mainly composed of the following core components:
Underground Main Compactor Body: Fully welded high-strength structural steel box, used as the main load-bearing and compression chamber, with overall anti-seepage and anti-corrosion design.
Hydraulic Compression System: Including oil cylinder, hydraulic station, solenoid valve group and pipeline, providing stable thrust for garbage compression.
Garbage Storage Bin: Sealed inner cavity for storing compressed garbage, with large effective volume and anti-leakage structure.
Lifting & Discharging Mechanism: Hydraulic lifting support, used to lift the whole machine out of the ground when transferring garbage, facilitating garbage truck docking and discharging.
Feeding Port & Landscape Cover: Ground-level feeding inlet, matched with greening cover, decorative cover or lawn-type cover to realize landscape integration.
Electric Control System: PLC automatic control cabinet, with manual / automatic dual mode, supporting operation delay, overload protection, fault self-diagnosis.
Deodorization & Sewage Collection System: Built-in sewage diversion tank, filter layer and optional deodorization interface to avoid odor overflow and sewage seepage.
Product Effects

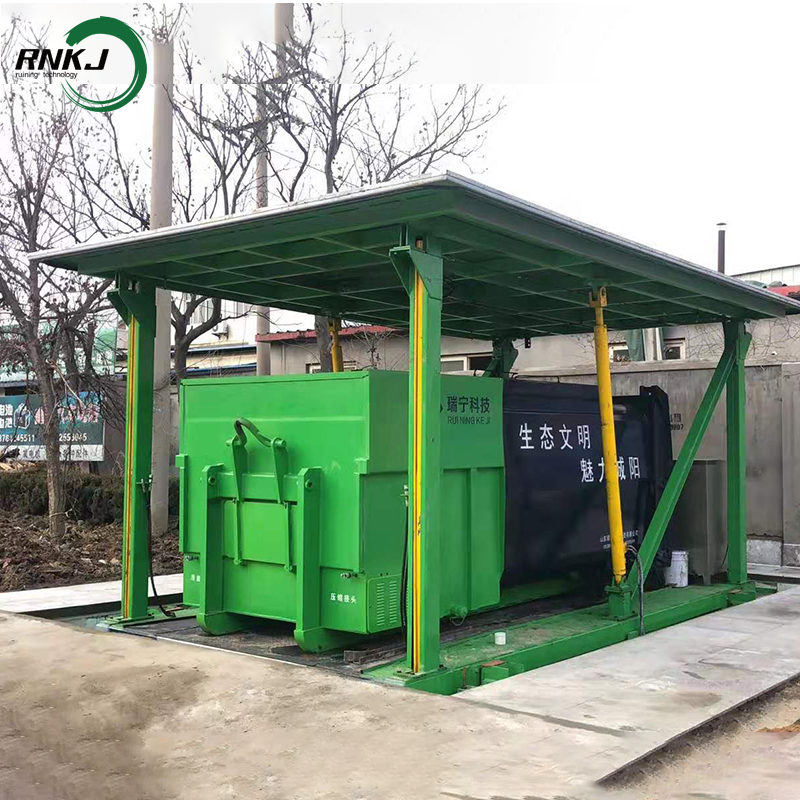

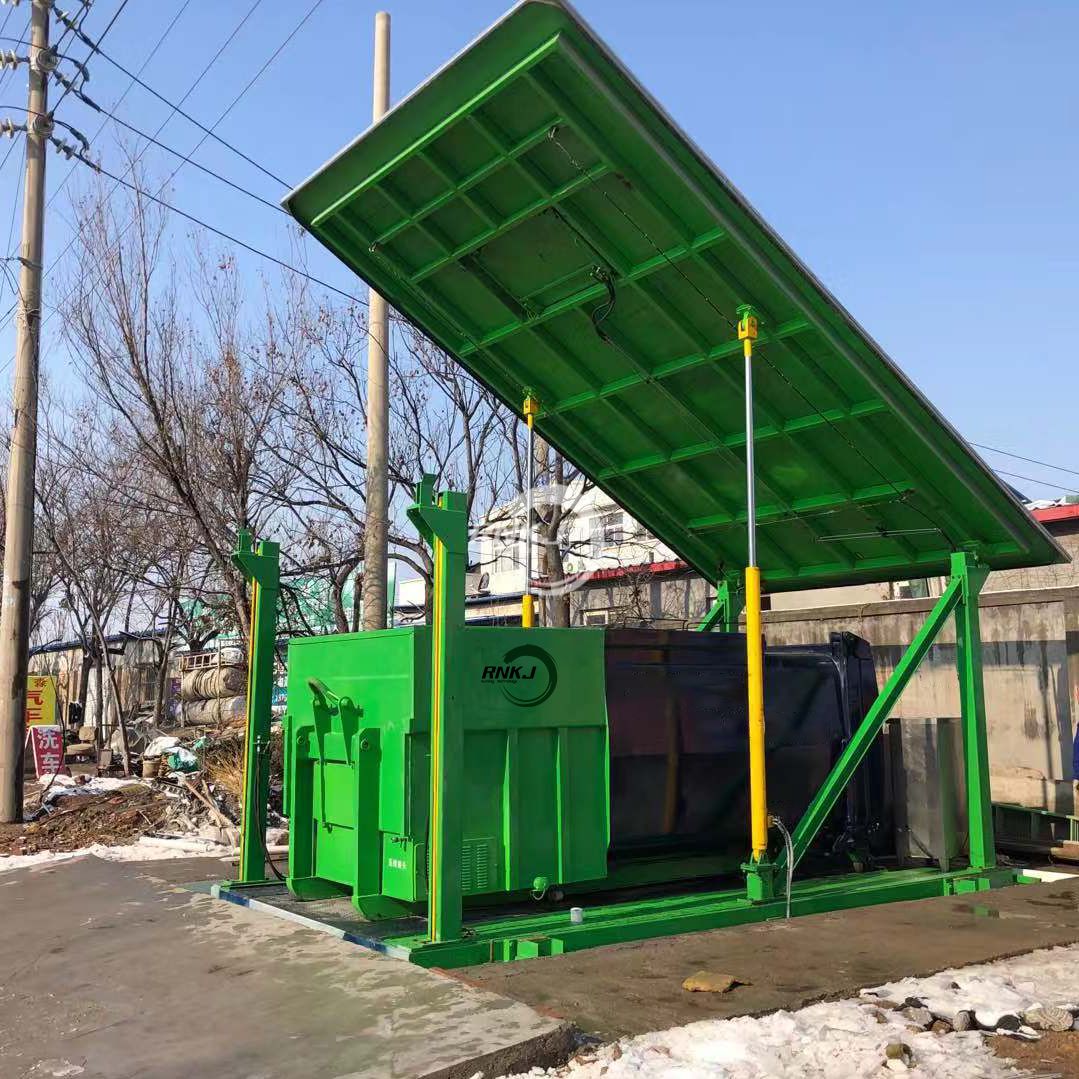

Lifting mode
Landing mode
Product Video
Main Technical SpecificationsInstallation Form: Fully underground buried type, landscape ground cover
Compression Mode: Horizontal hydraulic compression
Compression Ratio: 1:4 ~ 1:6，depending on garbage composition
Effective Storage Volume: 6m³, 8m³, 10m³, 12m³, 15m³ (customizable)
Compacted density: 750 kg/m³
Motor Power: 11 kW – 15 kW
Cycle Time: Single compression 45s
Lifting Height: 1570mm
Operating Environment: -20℃ ~ +60℃
Box Material: Q235B / Q345B high-strength steel plate, thickness 6mm – 10mm
Working PrincipleGarbage Input: Users put domestic garbage into the underground compactor through the ground feeding port.
Automatic Compression: After the garbage reaches a certain amount, the hydraulic compression head pushes forward horizontally or vertically to compress the loose garbage, reducing its volume by 4:1 to 6:1.
Sealed Storage: The compressed garbage is stored in the underground sealed bin, which is isolated from the outside air to inhibit odor and mosquitoes.
Full Load Prompt: When the storage bin is full, the electric control system sends out light or remote alarm.

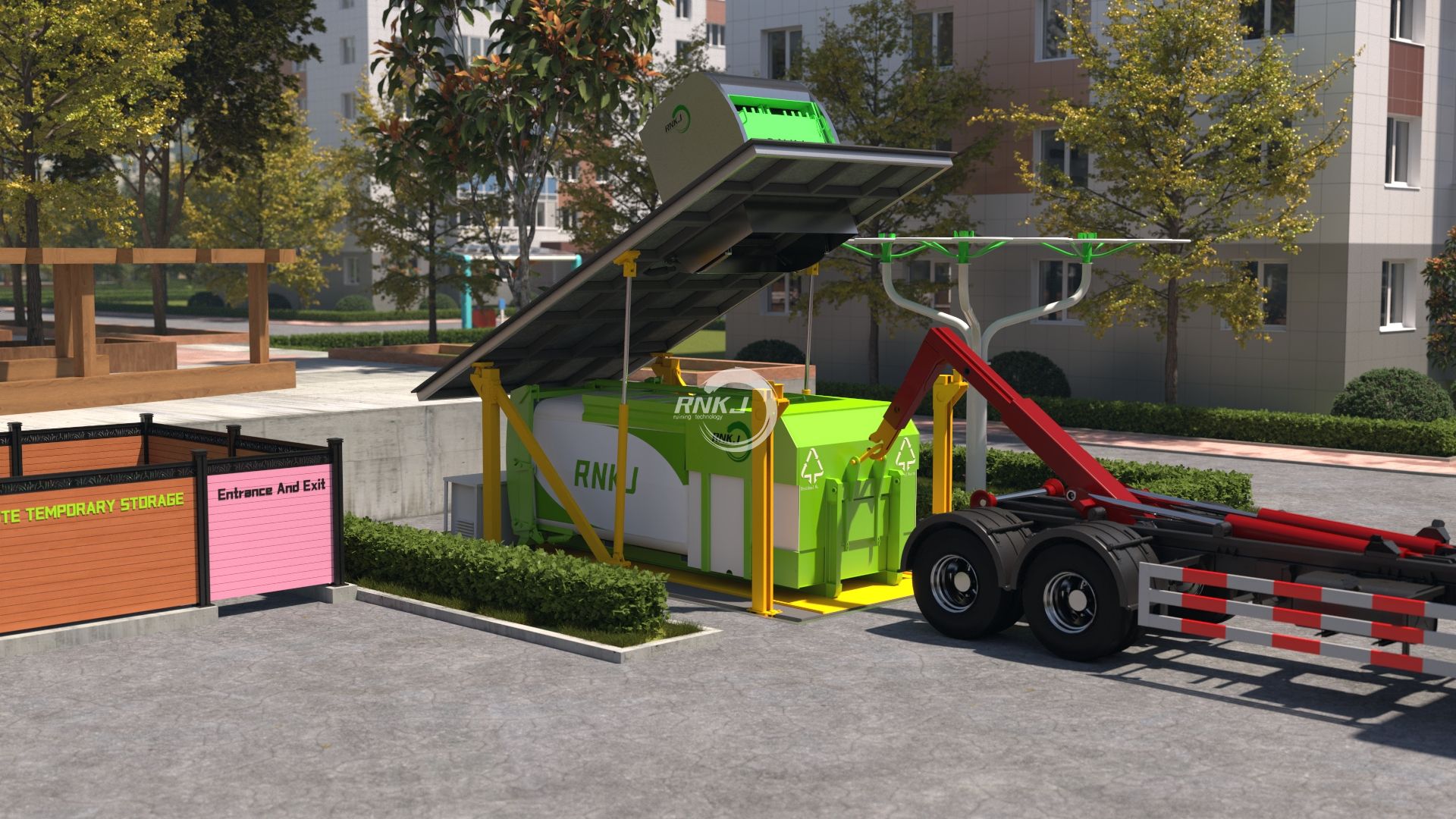

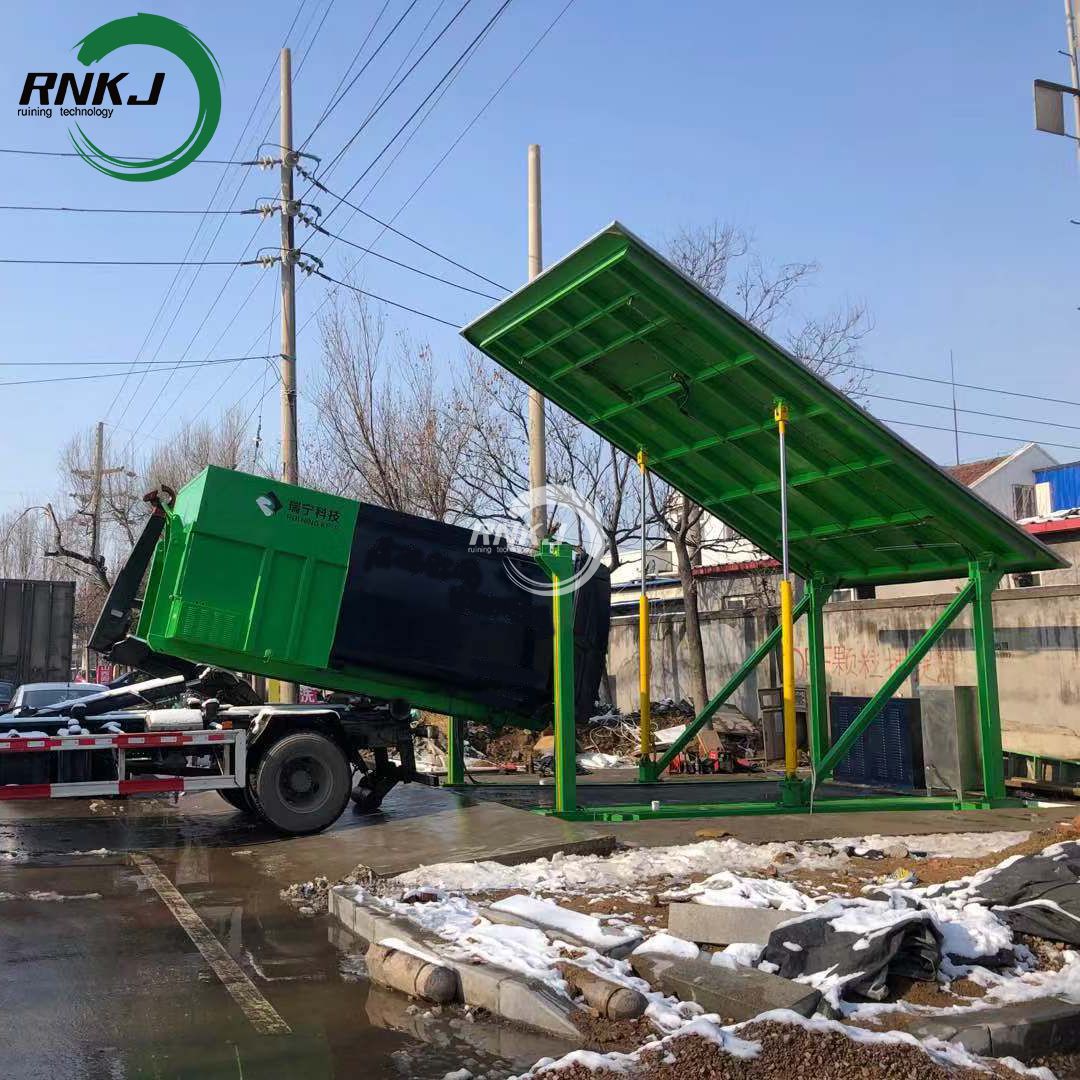

Discharging & Transfer: The sanitation vehicle starts the lifting mechanism, the whole compactor body rises to the ground, and the compressed garbage block is pushed into the garbage transfer vehicle to complete one operation cycle.
