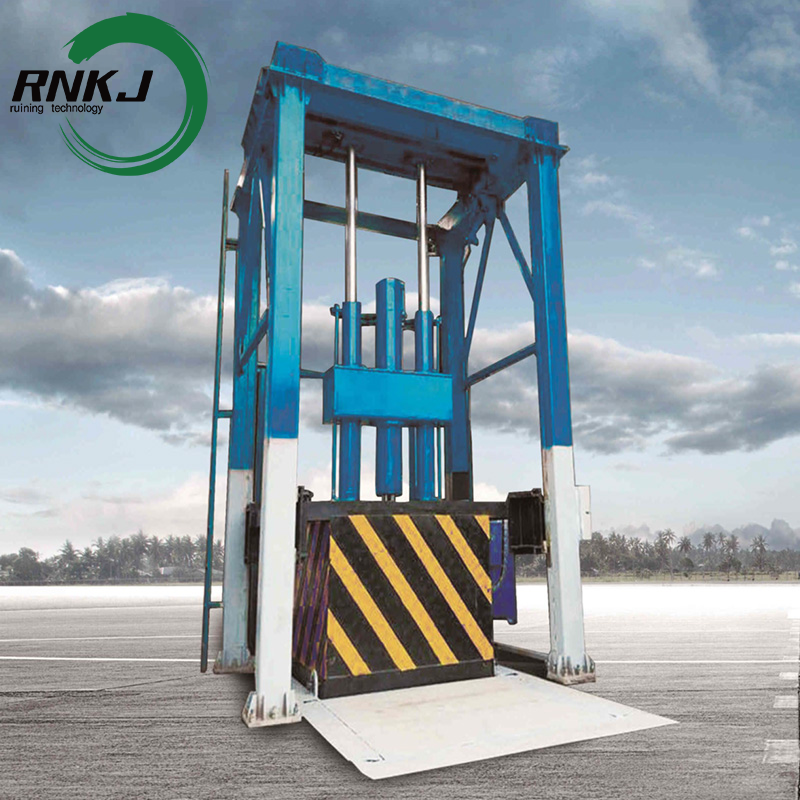

Vertical Trash Compacting Station is a product developed by our company according to the specific situation of domestic sanitation industry, drawing on the advanced technology and process of garbage disposal at home and abroad. It mainly consists of frame, cylinder support, press head, trash box assembly, hydraulic system, electrical control and operating system. This equipment can strongly compress the loose garbage and send the garbage into the garbage transfer truck as a block after dewatering and reducing the capacity, which greatly improves the efficiency of garbage transfer and reduces the transportation cost, and has considerable social and economic benefits.
Product Advantage
Vertical Trash Compacting Station adopts a three-dimensional design to compress the garbage into a relatively small space, greatly reducing the ground area occupied by the garbage treatment plant. The supporting vehicle is a rear-mounted closed vehicle with a small vehicle size, small turning radius, and small area required for maneuvering. It is suitable for installation in crowded urban areas or places with small spaces. The compression box is usually installed in the pit. When the cleaner dumps the garbage, he can control the slope of the dumping vehicle at will, so that the garbage dumping can be completed in one go without manual unloading. Using advanced technology and vertical compression methods, the garbage can be compressed to a smaller volume, and the garbage is compressed into blocks.
Technical Parameters
Compression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Hydraulic four-post lifting |
Product Uses
Vertical Trash Compacting Station are mainly used for centralized compression of domestic waste in densely populated areas such as urban communities, commercial areas, schools, and hospitals.
Run Process
Sanitation workers will be near the refuse transfer station of domestic garbage centralized to the transfer station, the loose garbage poured into the vertical garbage compressor compression bin, the pressure head in the hydraulic thrust, the use of vertical compression will be extruded into a block of garbage, after a number of times, "dump a compression again and again dumping" process, loose garbage will be compressed into a tight After several times of "dumping a compression and dumping" process, the loose garbage will be compressed into a tight block, the residual sewage in the domestic garbage will be extruded out, and the extruded sewage will flow into the sewage well through the reserved drainage port of the pit; the equipment compresses a box of garbage into two pieces, and a piece of garbage will be compressed into shape and pushed into the storage bin by the shoveling device, the device continues to compress the other piece of garbage, and when the next piece of garbage is compressed into shape, it will be lifted up the compressed box body to be docked with the garbage transfer vehicle the shoveling device will push the compressed garbage blocks to the Push shovel device will push the compressed garbage block to the closed garbage transfer vehicle box, so as to complete a compression launching operation cycle; and then transferred by the garbage transfer vehicle to the treatment plant (field) for processing.
This completes a round of garbage transfer work.
Product Style
|
|
Product Features
The main body of the vertical garbage compactor runs vertically, and the ground area occupied is usually 8~20 square meters (only 1/2~1/3 of the horizontal compressor).
Underground design: The compression box can be embedded in the ground, leaving only the operating surface on the ground, further saving space and beautifying the environment (such as old residential areas, scenic spots and other areas with high landscape requirements).
Applicable scenarios: city centers, areas with tight land resources or narrow streets. The compression process is completed in a closed box or pit, equipped with a sealed door and leak-proof design to effectively curb the spread of odor, mosquito and fly breeding and sewage leakage.
Supporting deodorization and sewage treatment: Some equipment integrates negative pressure ventilation, biological deodorization devices and leachate collection systems, which meet environmental protection standards and reduce the impact on the surrounding environment.
