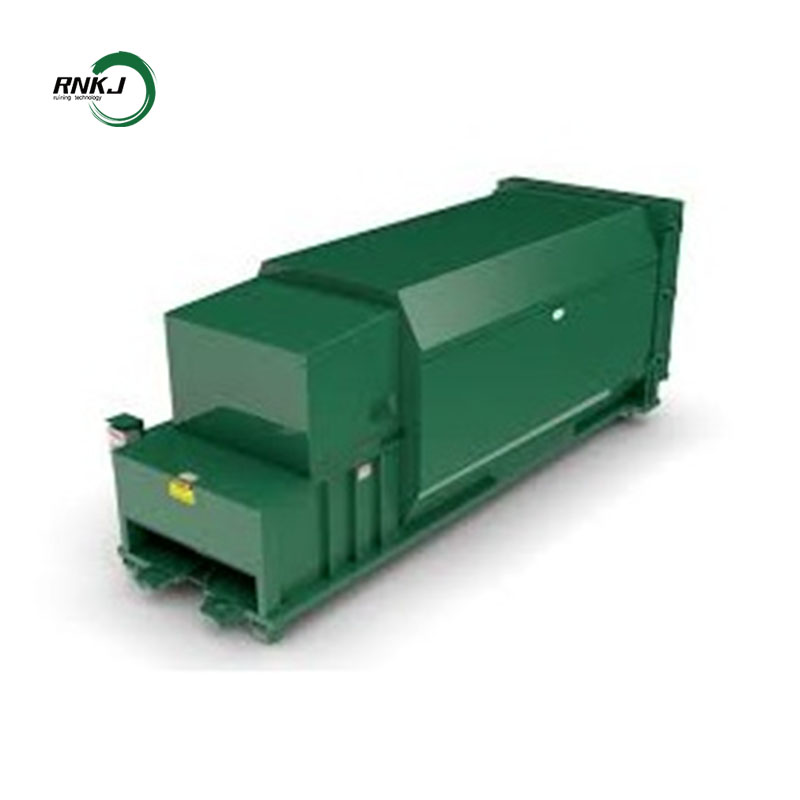

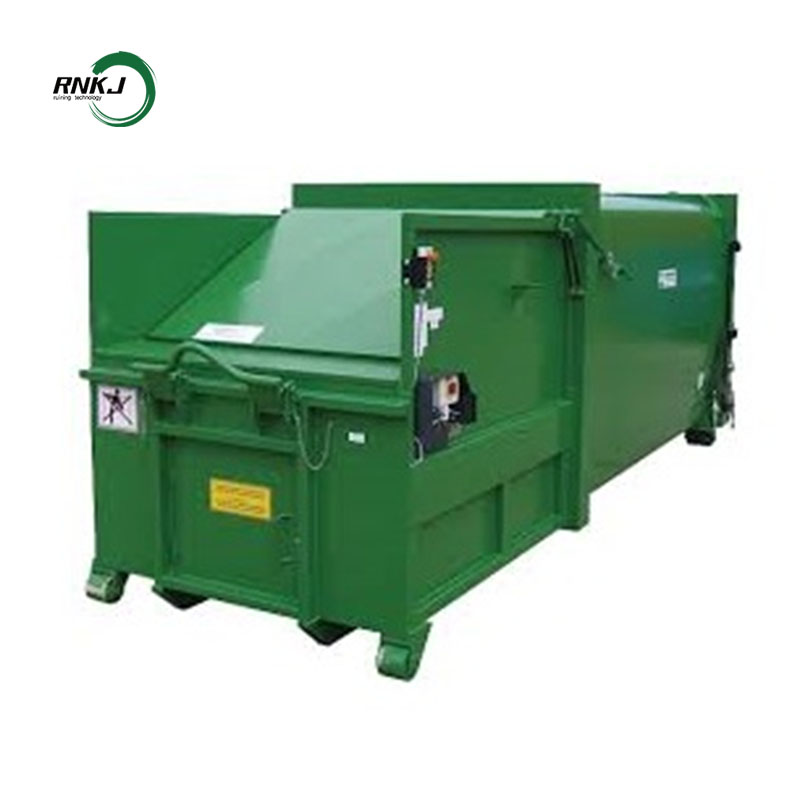

Universal Waste Compactor is a multifunctional device suitable for a variety of garbage types and scenarios. Its core advantages lie in its strong compatibility, flexible scene adaptation, and low overall cost. It is especially suitable for scenarios with complex garbage types and diversified processing needs.
Product Advantage
Universal Waste Compactor are widely compatible with all types of garbage, and are highly applicable and suitable for multiple types of garbage. They can handle household garbage (kitchen waste, paper, plastic bottles), commercial garbage (packaging materials, fabrics), industrial waste (light metals, foam), biomass garbage (garden branches and leaves, crop straw), etc., without the need to replace equipment for specific types of garbage.
Product Parameters
Performance Parameters | |
Compression: | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg, 5500kg, 6080kg, 6580kg, |
Power supply | Local working voltage |
Operation mode: | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Universal Waste Compactor is a device that compresses garbage through mechanical or hydraulic power. Its core purpose is to reduce the volume of garbage, lower processing costs, and improve environmental sanitation levels. It is widely used in municipal sanitation, commercial, industrial and other fields.
Universal Waste Compactor of Features
Universal Waste Compactor of universal garbage compactors lies in "one machine for multiple uses, suitable for all scenarios". By being compatible with multiple types of garbage and flexible deployment capabilities, it solves the pain points of various types of garbage and changing processing requirements in small and medium-sized scenarios. For users with limited budgets who need to balance efficiency and environmental protection (such as community properties, small businesses, and township sanitation departments), this type of equipment is a very cost-effective choice.
Our Advantages
1.Reasonable Design
The compression head is on the upper side of the tank to avoid liquid backflow and ensure that the cylinder and compression head are not corroded by sewage immersion, and thus ensure that the tank is clean.
Sewage collection box is equipped to prevent sewage leakage. Sewage can be discharged directly through sewage pump or transported with the tank for disposal.
2.Small Footprint
The compactor takes less floor space and is flexible to move and change sites.
3.Muitiple Choices
Muitiple choices of garbage drop-off point are available, including hoppers, flipping buckets, etc. Customers can choose the most suitable pattern.
