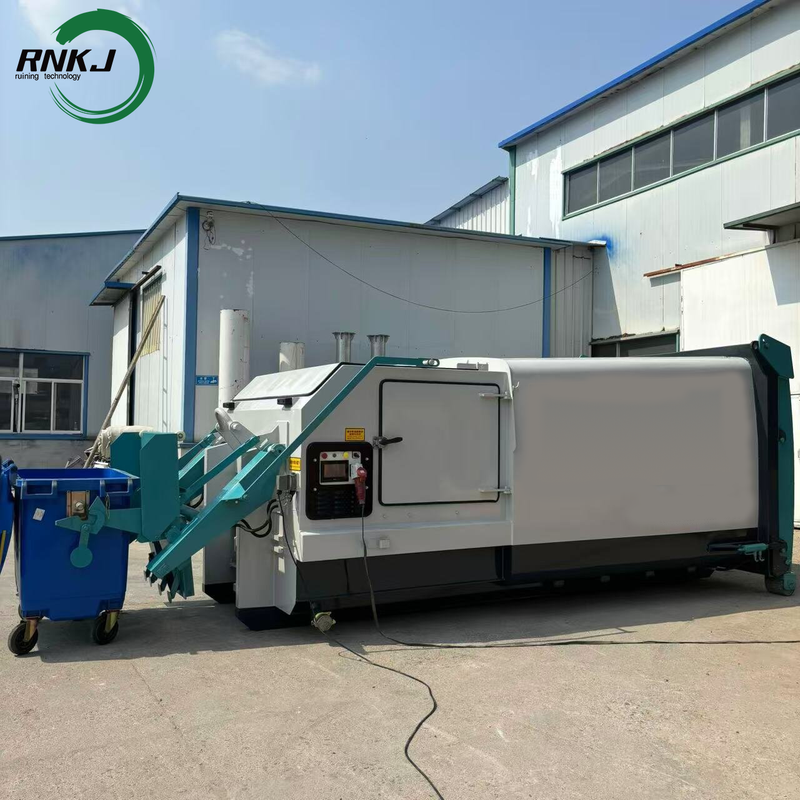

Bucket Garbage Compactor is a mechanical device used for compressing garbage to reduce its volume and enhance the efficiency of transportation and processing. It is commonly employed in commercial, industrial or large community settings.
Product Advantage

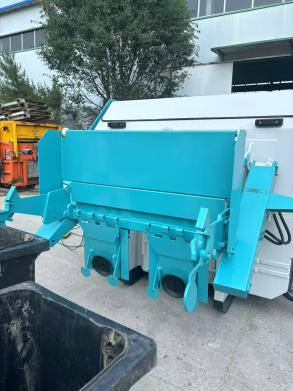

The bucket tipping device of the Bucket garbage compactor can automatically hook, lift, and tip the garbage can, pour the garbage into the garbage compactor, and then put the garbage can back to its original place, without the need for manual dumping of garbage, saving a lot of manpower. For example, the bucket tipping device of the compression garbage truck can automatically dump the garbage, improving work efficiency. Through the compaction function, the air in the garbage can be discharged, greatly reducing the volume of the garbage. When the Bucket garbage compactor is working, the compression plate of the compressor applies pressure to the garbage. After mechanical compression, the volume of the garbage is significantly reduced, which is convenient for subsequent transportation and processing.
Basic Structure and Working Principle
Design form: The shape is similar to a large container, with a built-in hydraulic or mechanical compression device.
Compression mechanism: The garbage is compressed to a smaller volume by the pressure plate, reducing the space occupation.
Operation method: After the trash bin is flipped to deposit the garbage, it automatically compresses, or it can be used in conjunction with a garbage truck.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Practical Application Case
Suitable for various application scenarios

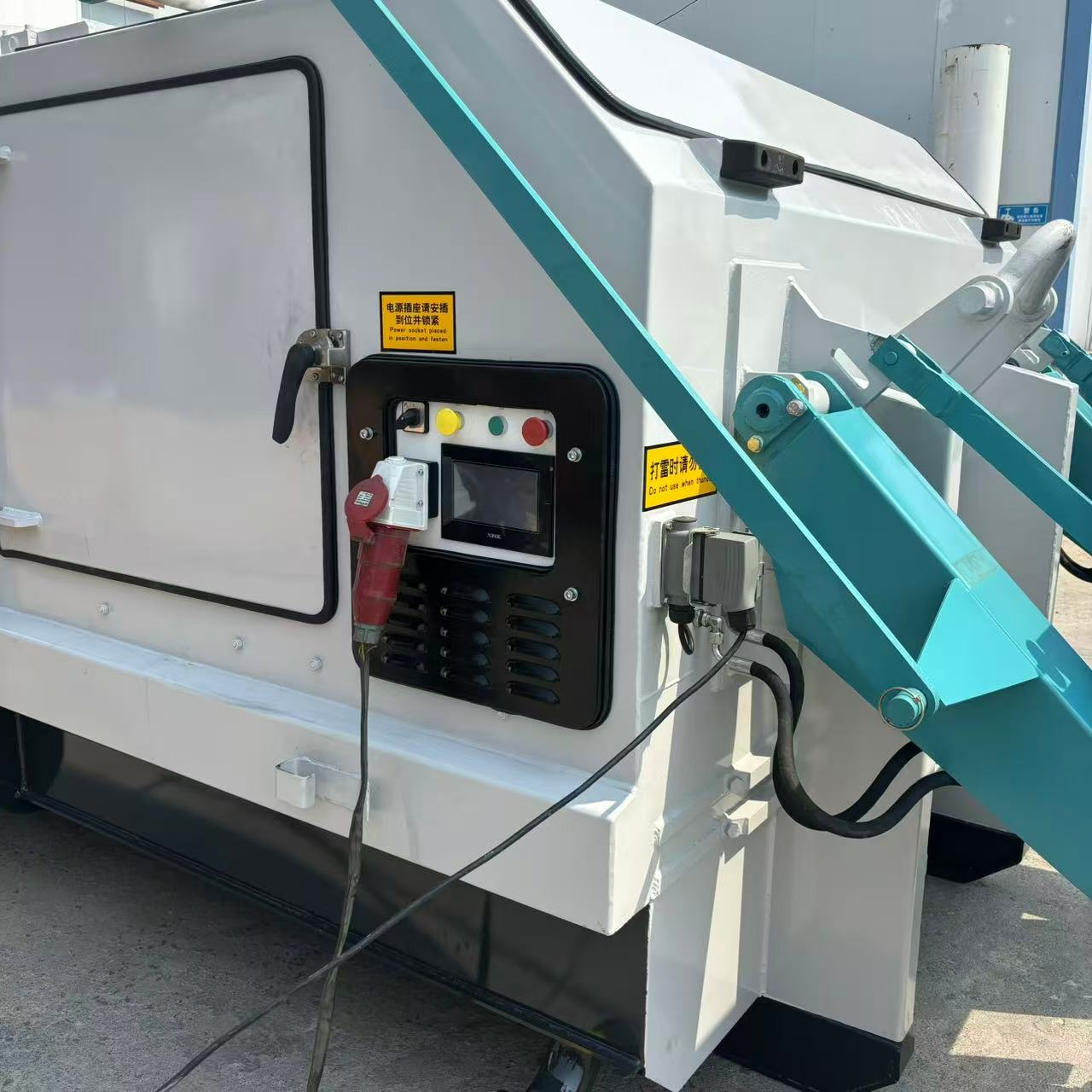

Our Bucket Garbage compactor adopts the most advanced PLC microcomputer control system,with remote control operation,automatic compression function, high compression ratio.
Commercial areas: shopping malls, restaurants, hotels, etc. where a large amount of solid waste is generated.
Industrial sectors: factories, warehouses, where packaging waste or production waste needs to be handled.
Public facilities: airports, schools, hospitals, etc. where efficient waste management is required.
Feature
Space optimization: Significantly reduces garbage volume, lowers collection frequency and costs.
Health improvement: Sealed design reduces odors and pest breeding.
Environmental benefits: Reduces landfill volume through compression. Some models support classified compression.
High compression ratio: Through hydraulic or mechanical systems, the volume of garbage is compressed to 1/3 to 1/5 of its original size, significantly reducing the frequency of collection.
Quick processing: The single compression cycle only takes 45 seconds, making it suitable for scenarios with frequent garbage disposal.
One-click operation: Simplifies the process, reduces the need for manual intervention, and enhances security.
Sealed and leak-proof: The fully enclosed structure prevents odors and liquid leakage, reduces the breeding of pests and bacteria, and complies with hygiene and environmental protection standards.
Classification compatibility: Supports classification and compression of recyclables, organic waste, etc., contributing to sustainable development.
Industrial-grade material: Made of high-strength steel with anti-corrosion coating, it is resistant to impact and corrosion, and can last for over 10 years.
Product Details
Rational Design
The compression head is on the upper side of the tank to avoid liquid back flow and ensure that the cylinder and compression head are not corroded by sewage immersion,and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage. Sewage can be dis-charged directly through sewage pump or transported with the tank for disposal.
Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer,we are able to caters to our customers needs in every way, such as color,capacity,dimensions,voltage etc.
Good Performance
The system adopts high strength steel as main frame to ensure its long service life.And it has high compression rate and short cycle time to ensure high efficiency.
Multiple Choices
Multiple choices of garbage drop-off point are available,including hoppers,flipping buckets, etc.Customers can choose the most suitable pattern.
Productive Capacity
We have a professional team and the strength of the factory to support customization. Including type, volume, height, color and other requirements, free custom logo.
Core value of the Bucket Garbage Compactor
Space revolution, cost reduction
By adopting high-strength hydraulic compression technology, the volume of garbage is reduced by over 70%, significantly lowering the frequency of collection and logistics costs.
Suitable for commercial centers, factories, hospitals and other scenarios with high-density garbage output, it solves the problem of garbage polluting the environment.
Intelligent management, hassle-free and efficient
Optional IoT sensors can be equipped to monitor the filling volume and compression status in real time, automatically send out collection reminders, and eliminate the risk of overflow.
One-click operation design enables employees to use it safely without the need for professional training.
Environmental compliance, hygiene improvement
Fully sealed and leak-proof structure, preventing the spread of odors and the breeding of disease vectors, in line with hygiene standards.
Supports classified compression, meeting the requirements of carbon neutrality policies.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
