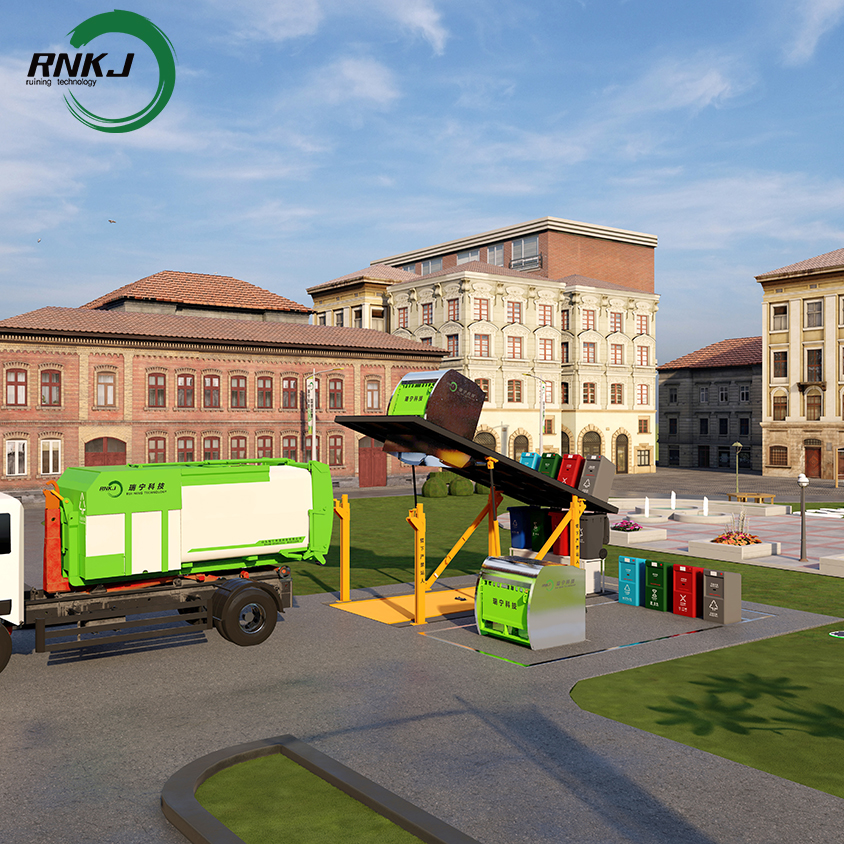

Landscape Underground waste compactor is a type of garbage disposal equipment installed underground. It reduces the volume of garbage through mechanical squeezing. It has the characteristics of saving ground space, improving the environmental landscape, and reducing the spread of odor.
Product Advantage
Landscape Underground waste compactor place most of the equipment underground, leaving only a small operating opening on the ground, which can effectively save ground space and allow the ground to be used for other purposes, such as greening and parking. This is especially important for urban areas with tight land resources, such as commercial areas and residential areas. Because the main body of the equipment is hidden underground, it will not affect the overall beauty of the surrounding environment like traditional above-ground garbage disposal facilities. It is more integrated with the surrounding environment and helps to create a clean and beautiful urban landscape.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Component Parts
Underground compression box: The core container, used for garbage compression and temporary storage, with a volume typically ranging from 6 to 20 cubic meters.
Hydraulic compression system: Provides powerful thrust, compressing the garbage to a density of ≥ 0.7 - 0.86 tons per cubic meter.
Lifting mechanism: Hydraulically driven, used for the lifting of the box, facilitating the docking with the transfer vehicle.
Intelligent control system: Automatically monitors, diagnoses faults, and provides remote monitoring, supporting unmanned operation.
Odor removal system: Multi-stage purification, with a removal rate of > 90%.
Waste discharge system: Treats the leachate from the garbage, ensuring compliance with discharge standards.
Ground landscaping layer: Customizable with greenery, paving, or decoration, integrating with the environment.
Loading device: Dumping bucket type or sliding cover type entrance, supporting manual or mechanical loading.
Product Effects

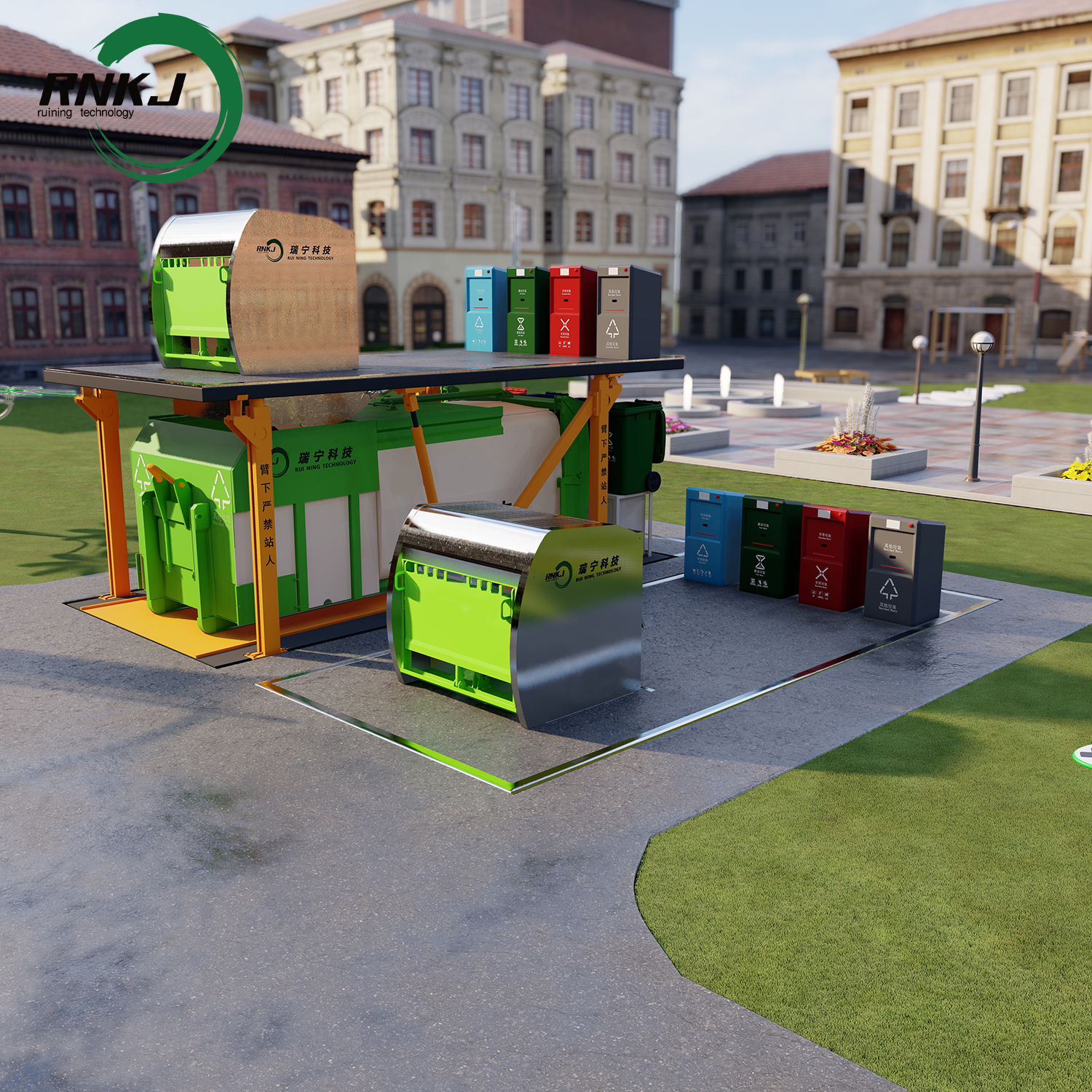

Lifting mode

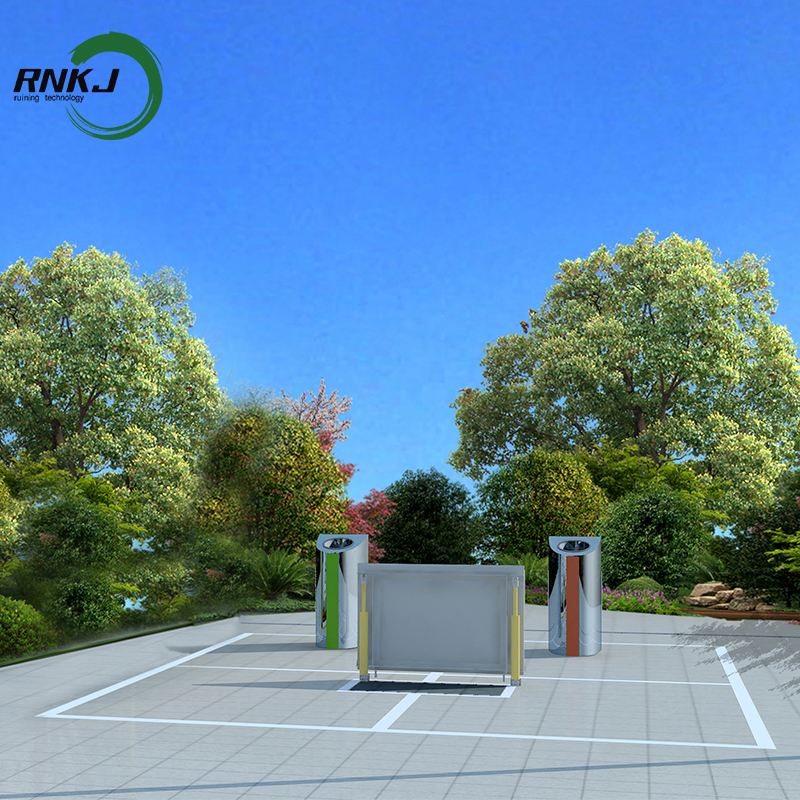

Landing mode
Product Uses
Urban communities: can be installed near urban residential areas and apartment buildings to collect various types of garbage generated by residents in their daily lives, such as kitchen waste, waste paper, plastic bottles, etc. Compress and treat these garbage in a timely manner to reduce the space occupied by garbage, reduce the frequency of garbage removal, keep the community environment clean and hygienic, and avoid garbage accumulation to produce odor and breed bacteria.
Commercial centers: In crowded commercial areas such as shopping malls, shopping centers, and commercial streets, a large amount of commercial garbage, including packaging materials, food residues, etc., is generated every day. Underground garbage compactors can quickly process these garbage, prevent garbage from accumulating in commercial areas, and maintain a good business environment and image.
Public institutions: suitable for public institutions such as schools, hospitals, and government agencies. A large amount of waste paper and meal waste generated by students in schools, medical waste in hospitals (under the treatment process that complies with relevant regulations), and office waste in government agencies can all be effectively treated by underground garbage compactors to improve the environmental sanitation level of public institutions.
Transportation hubs: Airports, railway stations, bus stations and other transportation hubs have large passenger flow and generate a lot of garbage. Underground garbage compactors can promptly compress various types of garbage discarded by passengers, keep transportation hubs clean and hygienic, and provide passengers with a good travel environment.
Run Process
when the box body is full of garbage collection system will be prompted to start the lifting system,the equipment will be raised to the ground level,and then the compressed box body will be compressed with the compartments of the removable garbage truck to transport to the garbage disposal center; after the dumping of the garbage,the compressed box body will be transported back to the elevating platform,and then the platform as a whole fall into the ground.

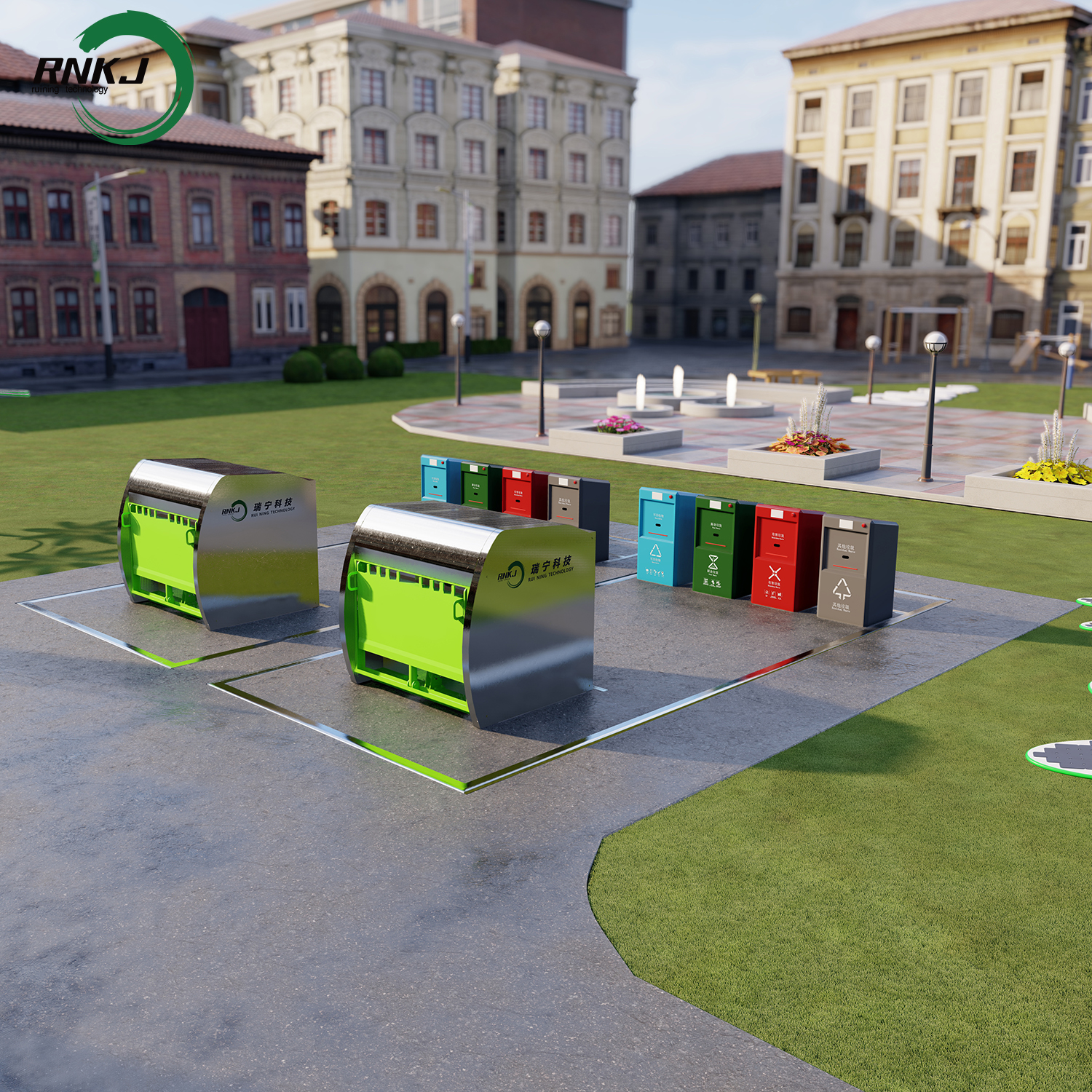

Landing Effect

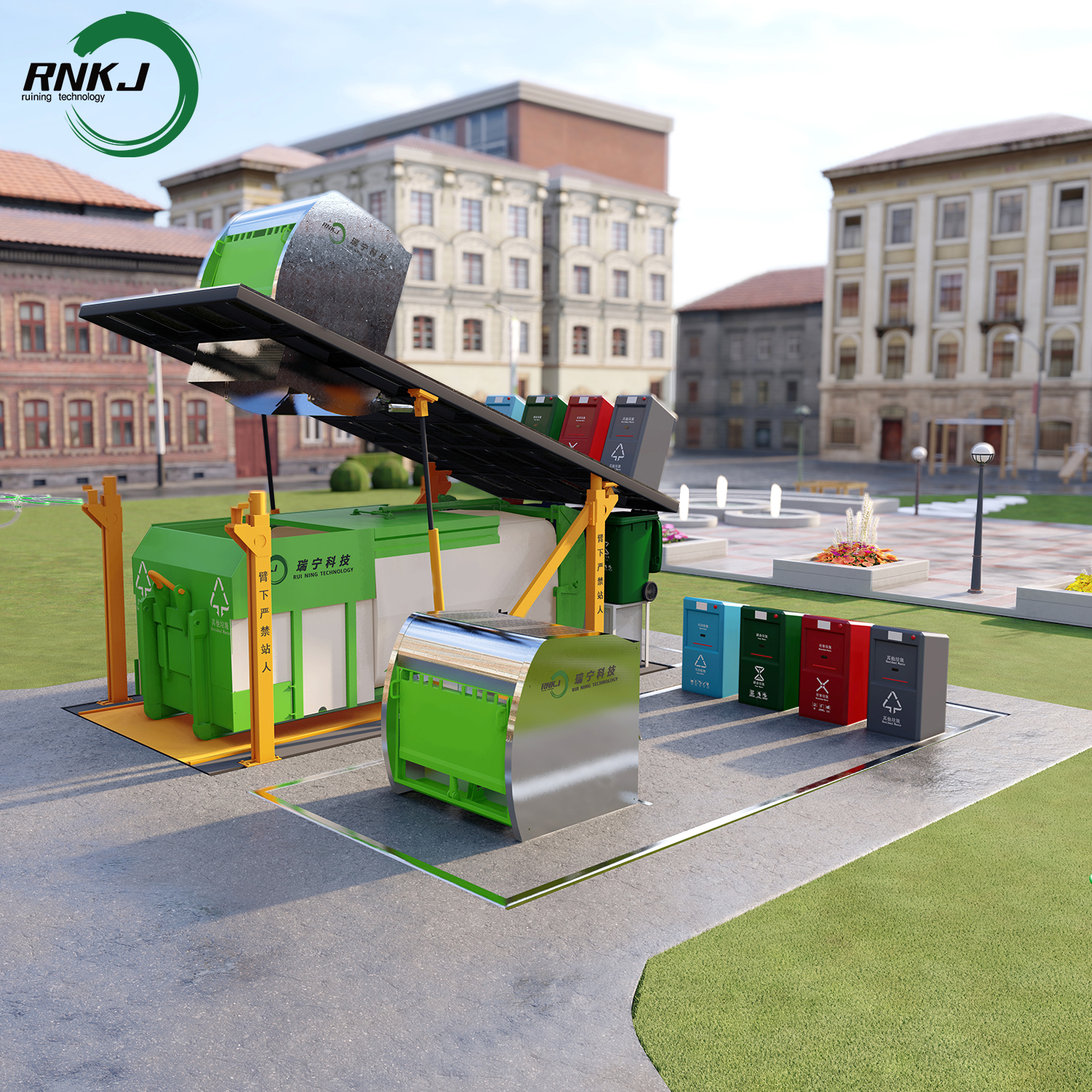

Lift Effect

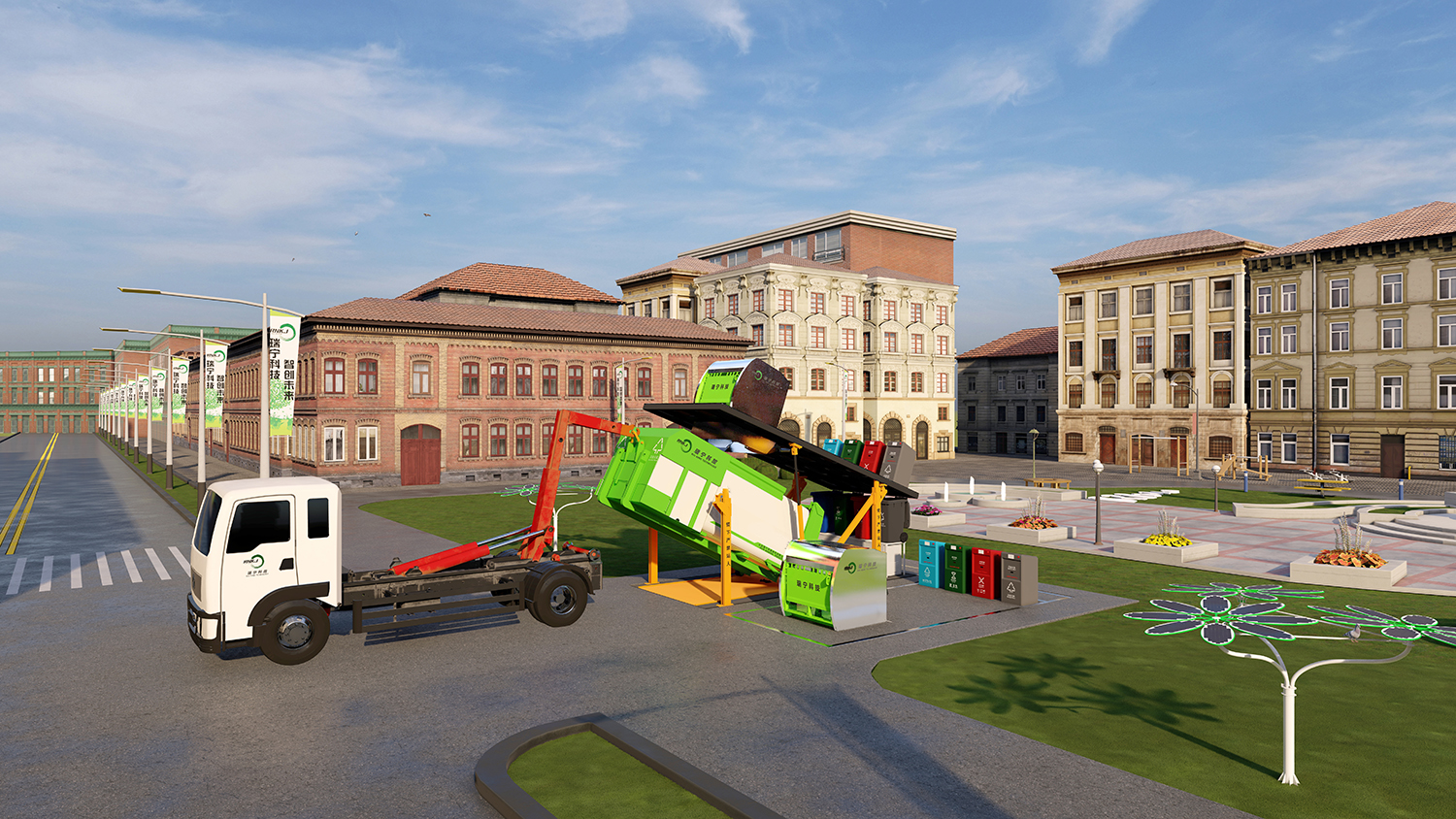

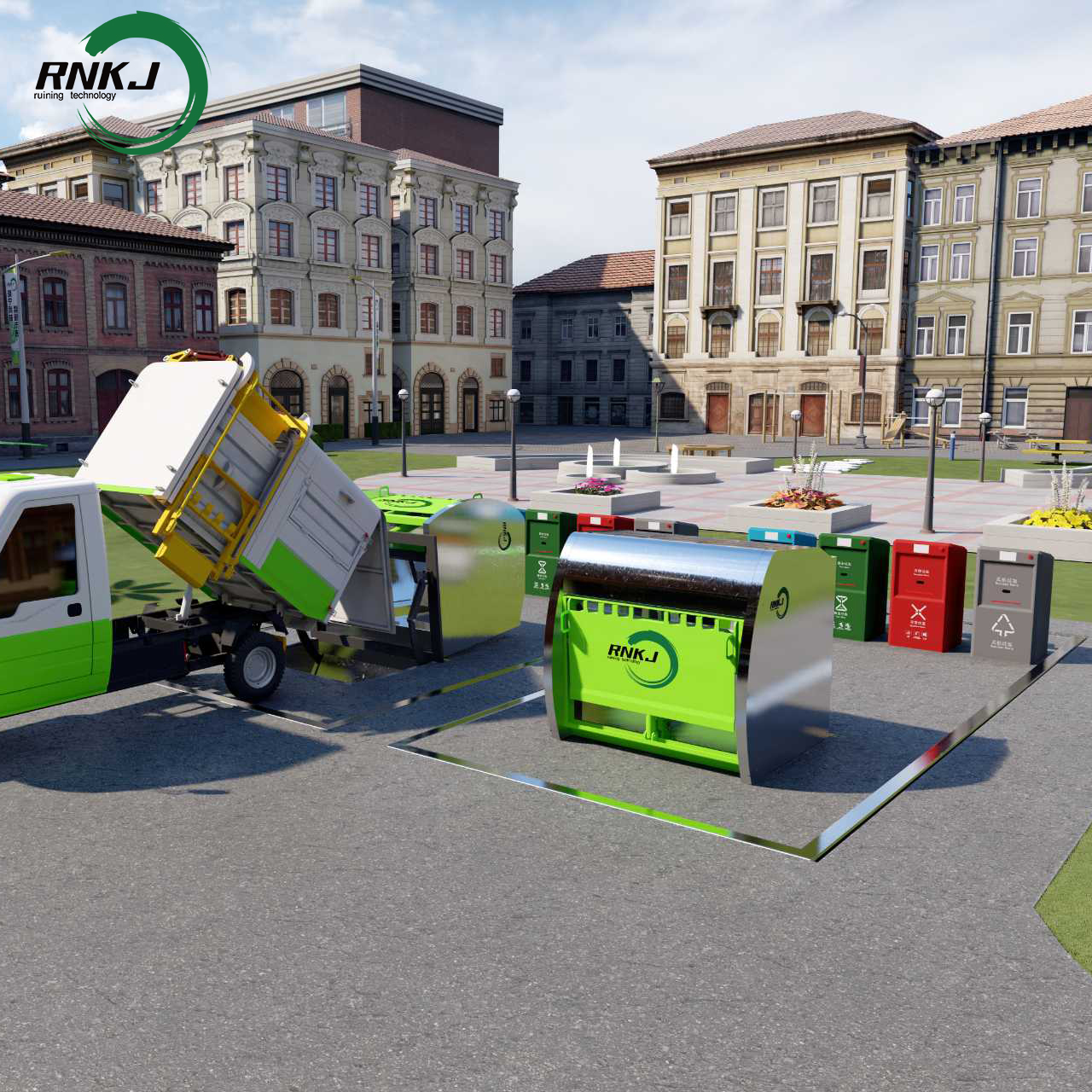

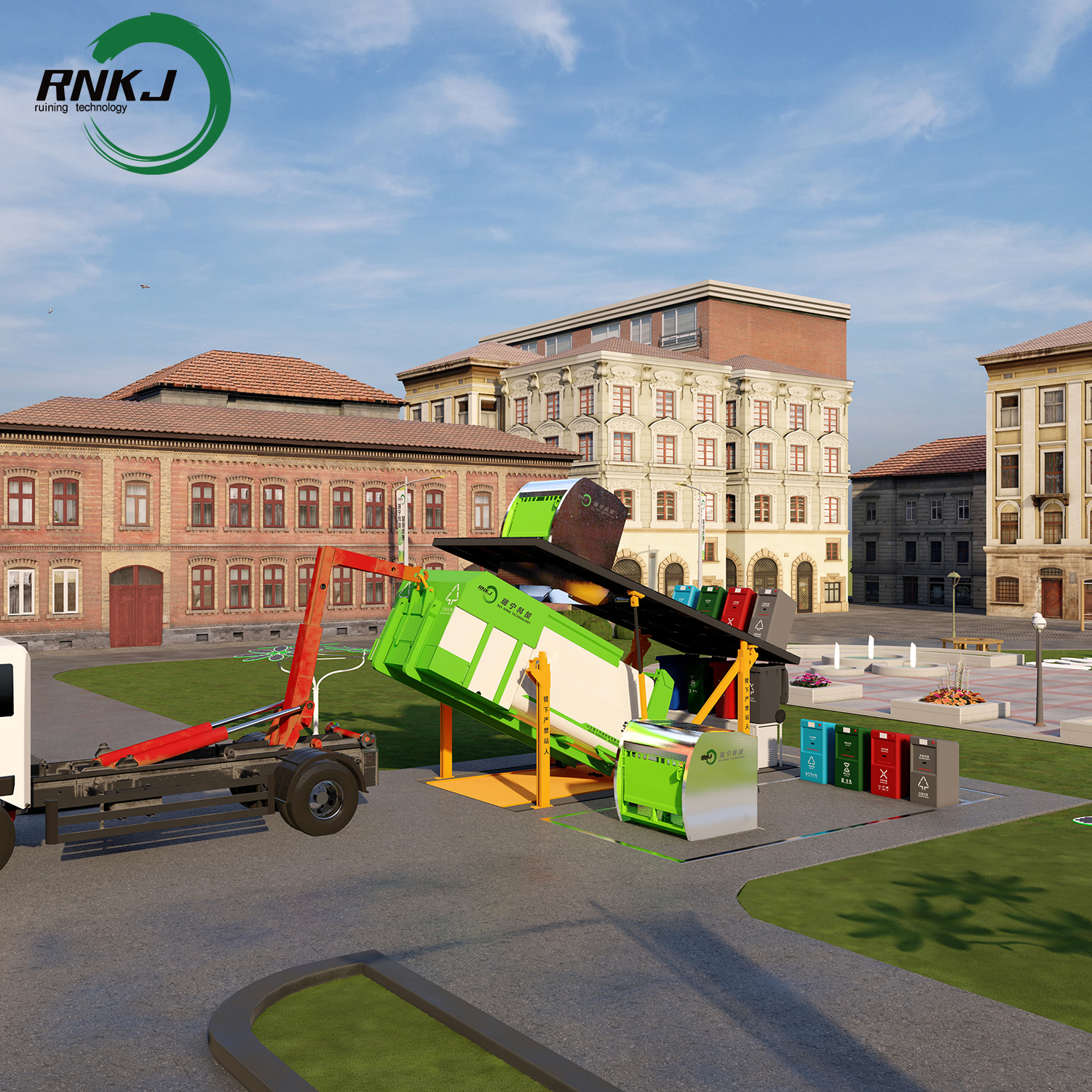

Loading Effect

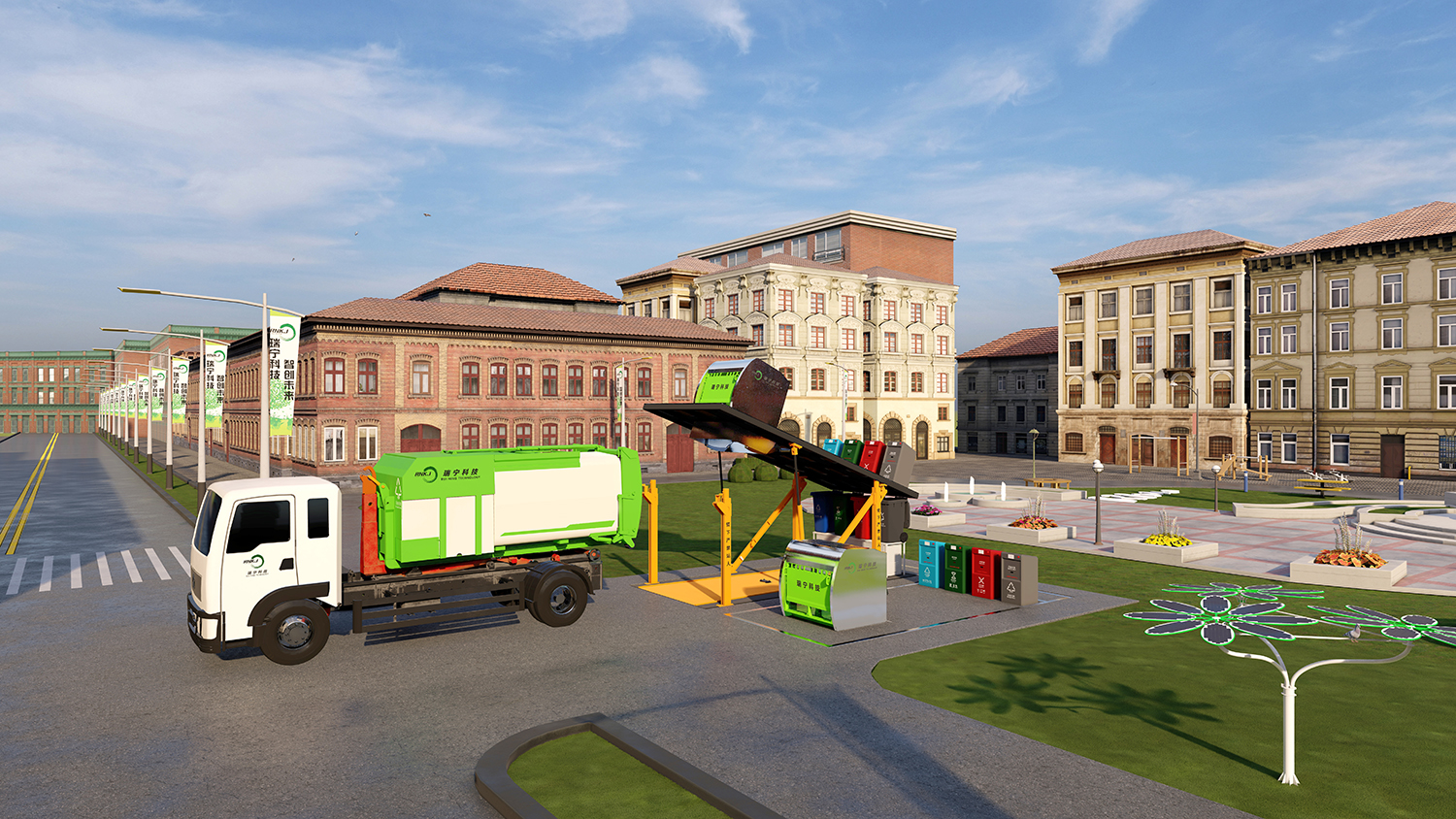

Transit Effec
Application scenarios
High-end residential communities: Enhance community quality, eliminate "mess, disorder, and stench", increase green area
Urban parks / scenic areas: Maintain landscape integrity, with visitors hardly noticing the sanitation facilities
Commercial centers / pedestrian streets: Save prime space, maintain high-end image, reduce odor interference
Hospitals / schools: Reduce the spread of germs, create a clean environment, especially suitable for installing plasma sterilization in hospitals
Transport hubs: Solve the garbage disposal pressure caused by large passenger flow, maintain environmental cleanliness
Tourism resorts: Coexist harmoniously with the natural environment, enhance the vacation experience
Installation and Maintenance Guide
Installation Process:
Site leveling and foundation pit excavation
Concrete foundation pouring and pre-installed components installation
Compression box body hoisting and positioning
Installation and commissioning of hydraulic and electrical systems
Ground landscaping layer construction
System testing and acceptance
Maintenance cycle
Daily: Check the operating status of equipment, clean the feeding port, and observe the instruments.
Weekly: Check the oil level of the hydraulic system and pipeline connections, and clean the filters.
Monthly: Conduct a comprehensive inspection, lubricate moving parts, and test safety devices.
Quarterly: Replace hydraulic oil and clean the filter of the deodorization system.
Half-yearly: Perform a comprehensive maintenance of the system, test electrical insulation, and calibrate sensors.
Yearly: Carry out deep maintenance, replace wear-prone parts, and conduct comprehensive performance tests.
Landscape Underground Waste Compactor represents the development trend of environmental sanitation facilities. By adopting the design concept of "concealing waste underground and presenting beauty above ground", it successfully resolves the problems of traditional garbage stations and achieves the functions of environmental protection and landscape beautification. With the advancement of urban and ecological city construction, the landscape underground waste compactor will play a greater role in improving the urban environmental quality and promoting sustainable development.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
