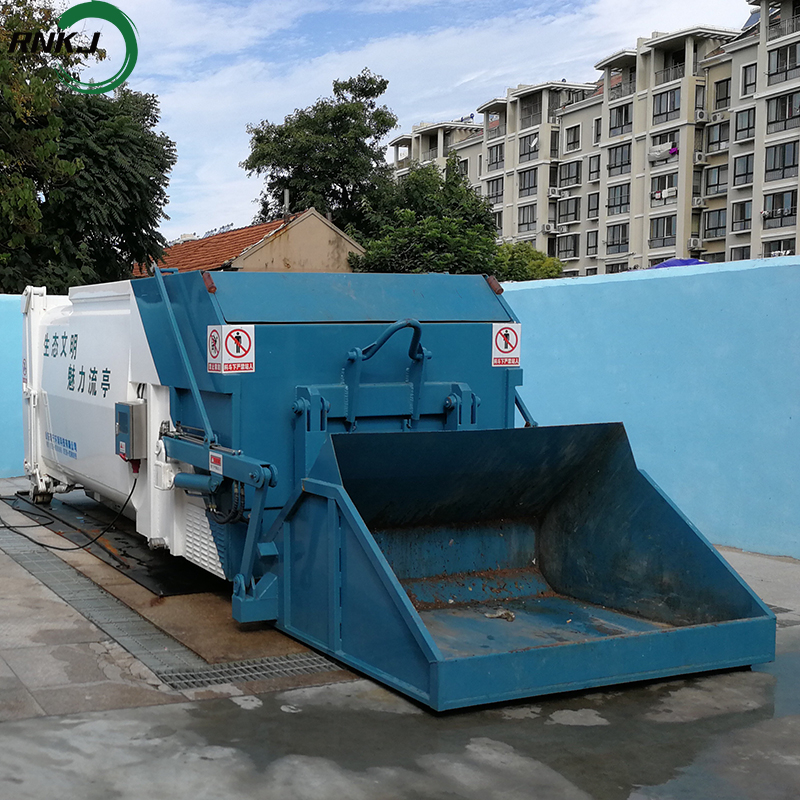

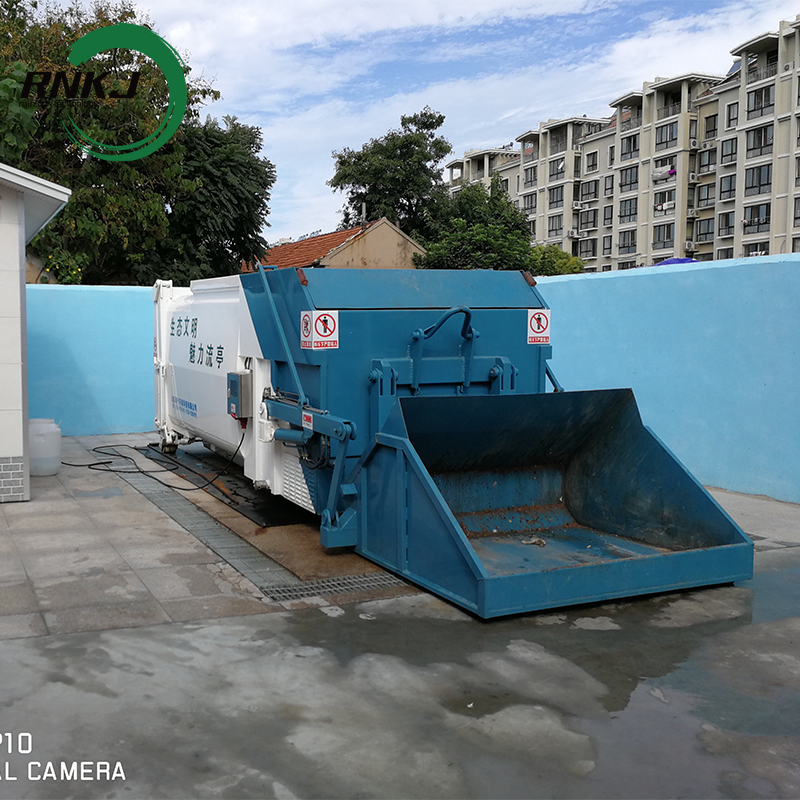

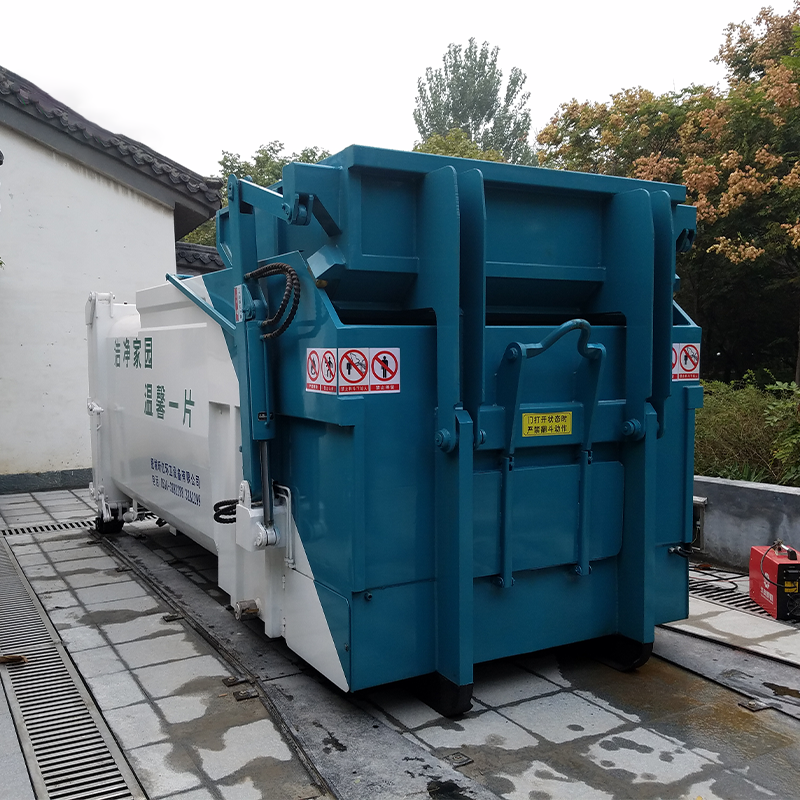

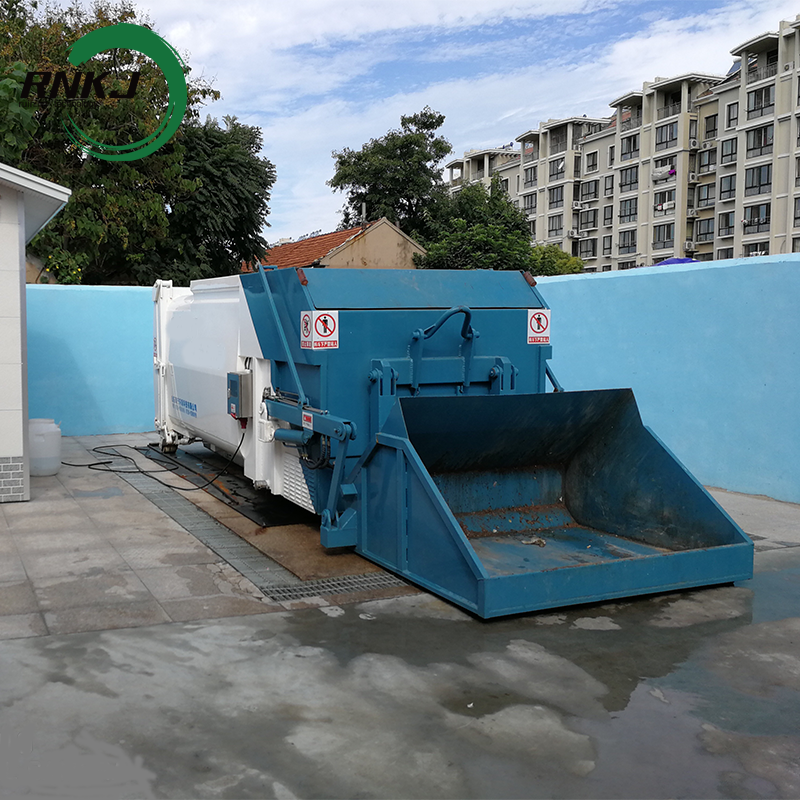

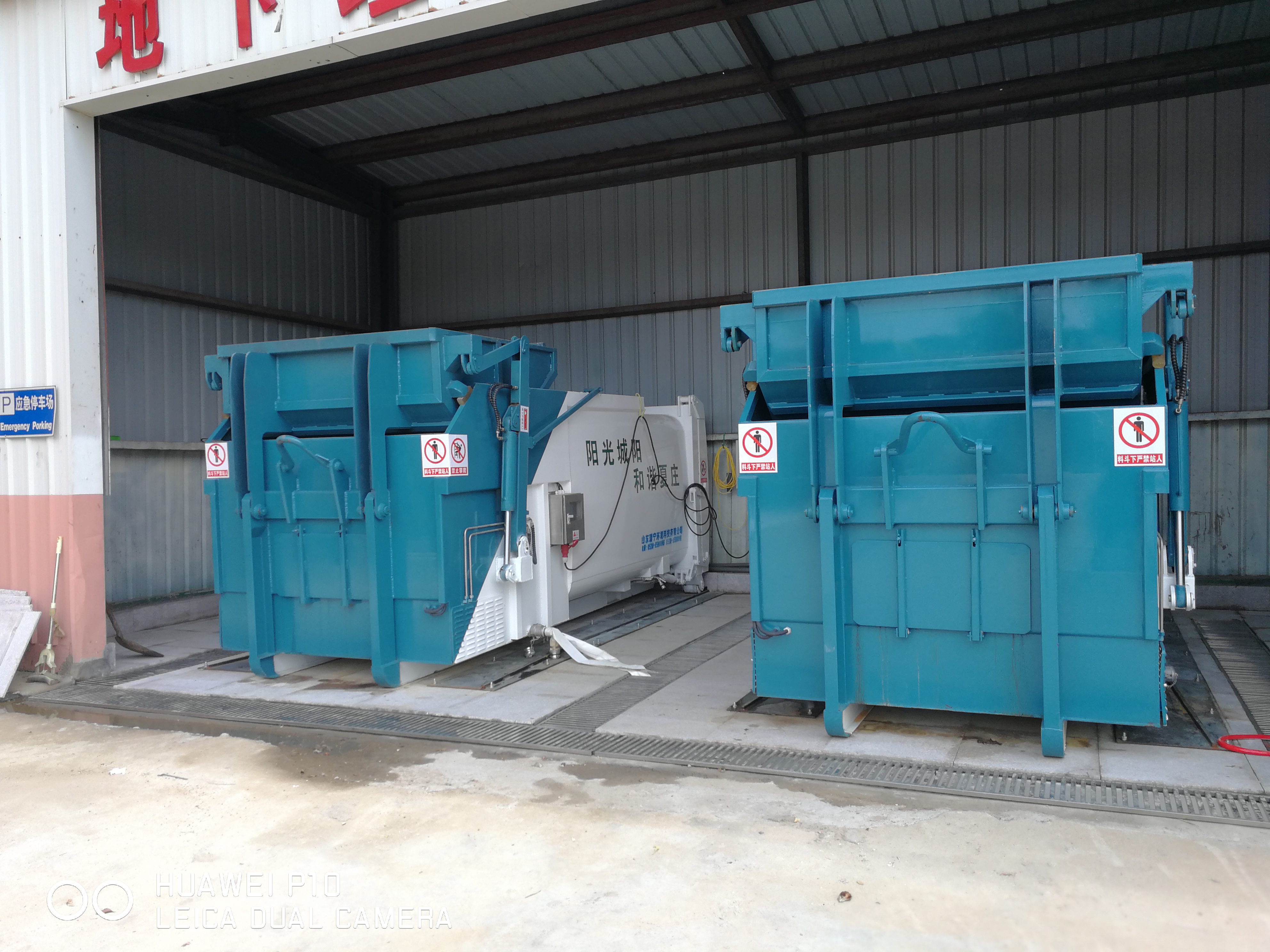

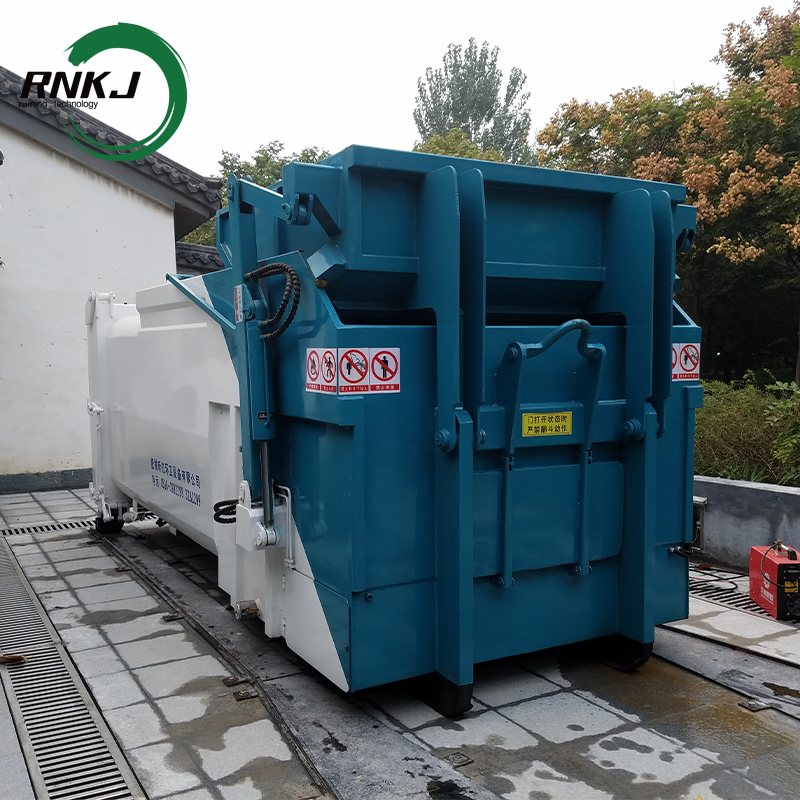

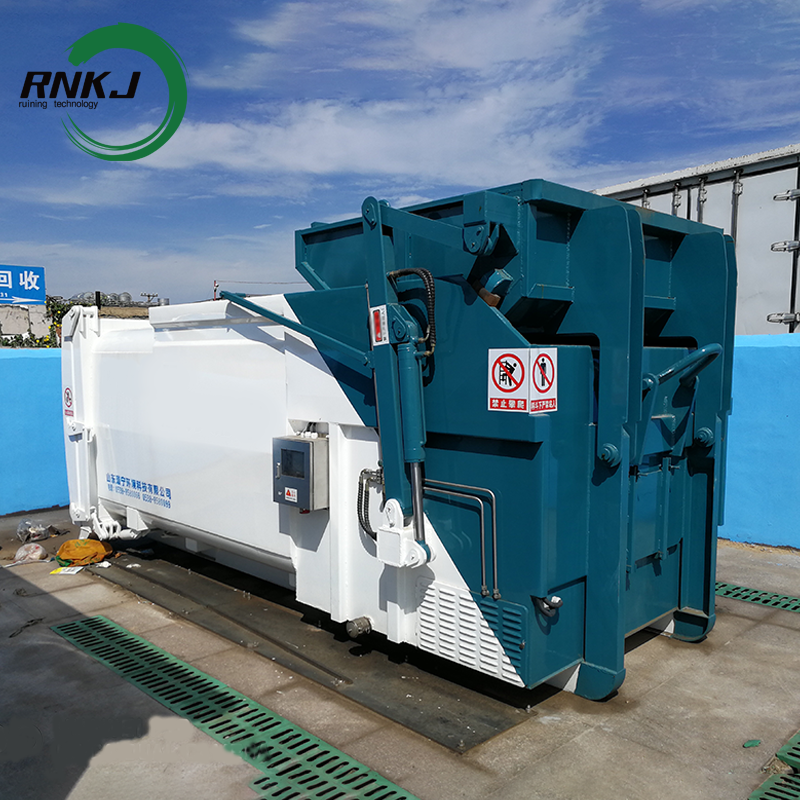

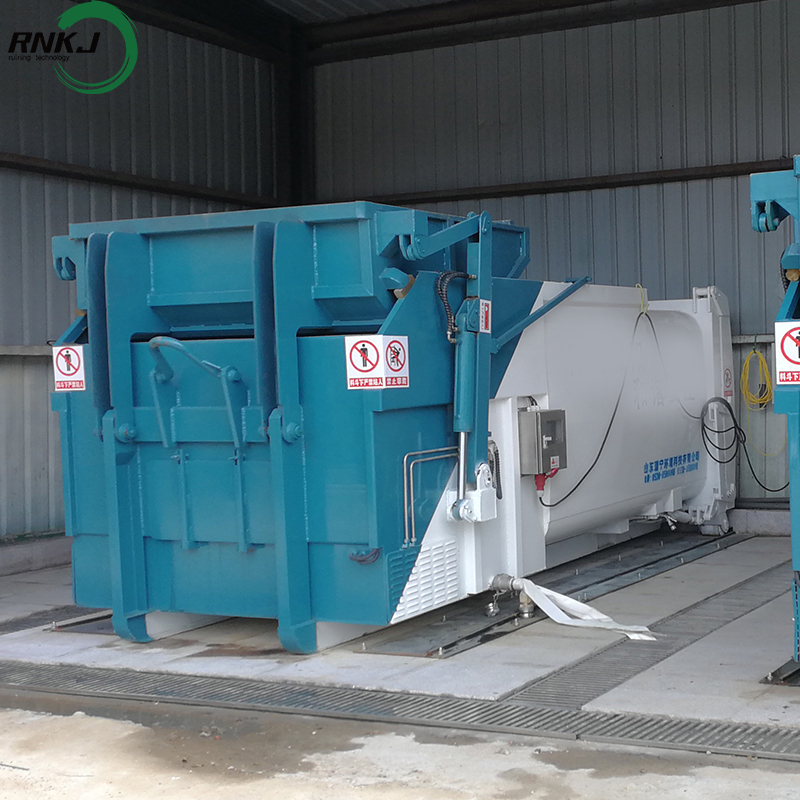

Hopper Waste Compactor is a device that receives garbage through a hopper and compresses it. It is often used in garbage transfer stations, large public places or industrial waste treatment scenarios.The Hopper Waste Compactor is a mobile compaction equipment with a large-capacity hopper. It is mainly driven by hydraulic power and feeds materials through the hopper and compresses them with the press head, significantly reducing the volume of dry and wet mixed garbage / loose industrial waste. It is suitable for scenarios such as docks, supermarkets, and factories, and is often used in conjunction with boom trucks and collection vehicles for waste removal.
Product Advantage
Hopper Waste Compactor is a closed operating structure with a seamless connection between the hopper and the compression chamber. Some equipment is equipped with a sealed door or a spray deodorization system to suppress the spread of odor and the leakage of leachate, meeting environmental protection standards. It supports a variety of loading methods such as loaders, forklifts, and manual carts, and can be flexibly adjusted according to site conditions.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg, 6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Garbage transfer station: As the core equipment, it centrally compresses the garbage collected at the front end to reduce the number of transfer vehicles.
Industrial field: Processing production waste (such as automobile dismantling waste, packaging waste) to reduce storage and transportation costs.
Construction site: Compressing construction waste (concrete blocks, waste wood) to reduce on-site stacking and transportation costs.
Garden/agricultural scene: Compressing biomass waste such as pruned branches and crop straw for subsequent composting or energy utilization.
Product Video
Product Feature
Hopper Waste Compactor have become the preferred equipment for handling "large, mixed, and difficult-to-compress" garbage due to their large capacity, strong compression, and high adaptability. Their core value lies in significantly reducing the cost of the entire garbage disposal chain through physical volume reduction and process optimization, while reducing the negative impact on the environment through environmentally friendly design. They are particularly suitable for large-scale garbage disposal scenarios that require high efficiency and professionalism.
Working principle
Feed: Loose garbage is fed into the hopper.
Compression: Start the hydraulic system, the press head advances and pushes the garbage into the compaction chamber. It is repeatedly compressed until the set density is reached.
Empty bin monitoring: The sensor triggers an empty bin signal, stopping the compression and alerting for removal.
Discharge: Connect to the removal vehicle/container, unlock and then push or tip out the high-density garbage, completing the cycle.
Core Advantage
Efficient compression: Reduces volume by 70% - 80%, lowers transportation and disposal costs.
Easy operation: Large feed inlet + low feed height, suitable for various feeding methods, reduces labor intensity.
Environmentally friendly: Reduces odors, pests and secondary pollution, some models come with deodorization systems.
Maintenance Points
Regularly check the hydraulic oil level, filter elements and seals to prevent leakage and wear.
Clean the hopper and compaction chamber to avoid residue accumulation and corrosion. Increase the cleaning frequency in wet garbage conditions.
Calibrate the full-bin sensor and safety interlock to ensure operational safety.
FAQ
1.Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both available.
2.What is your MOQ?
1 set.
3.What services can we provide?
Customized are accepted. Someone will answer your questions at any time, 24 hours online. We will provide pre-sales and after-sales service
4.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
