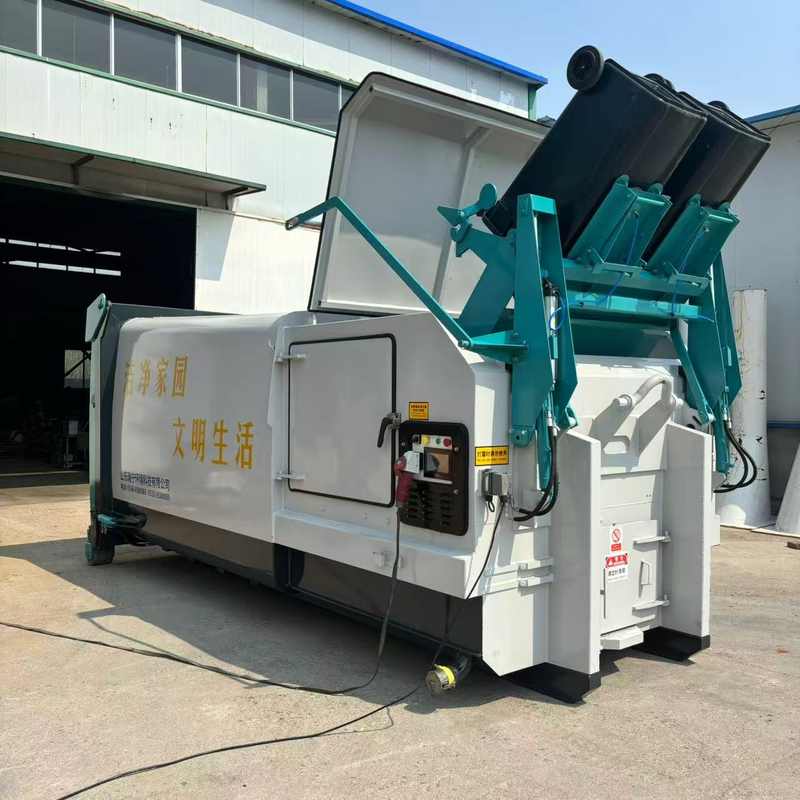

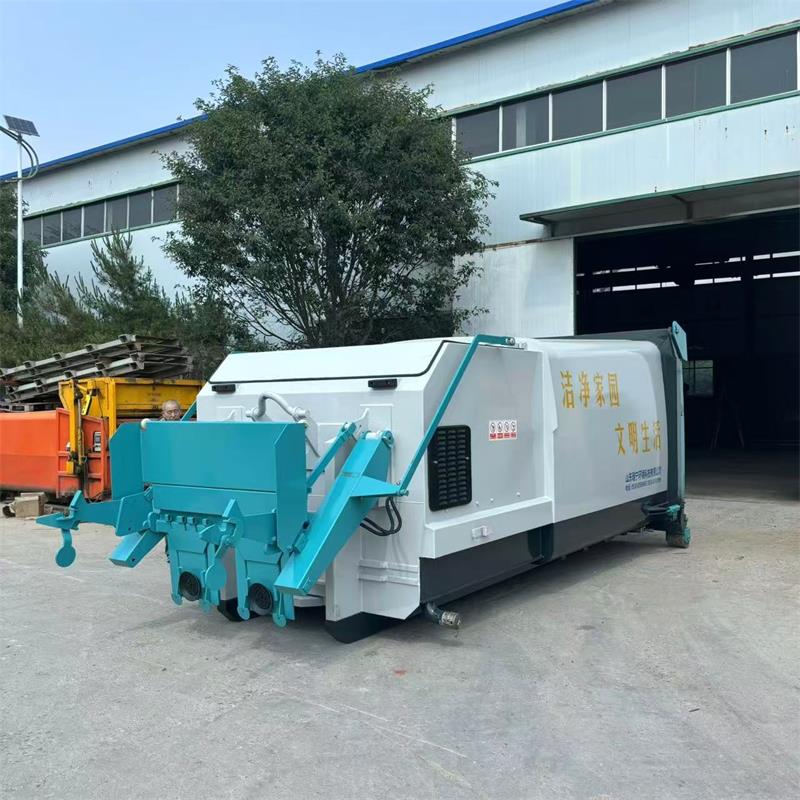

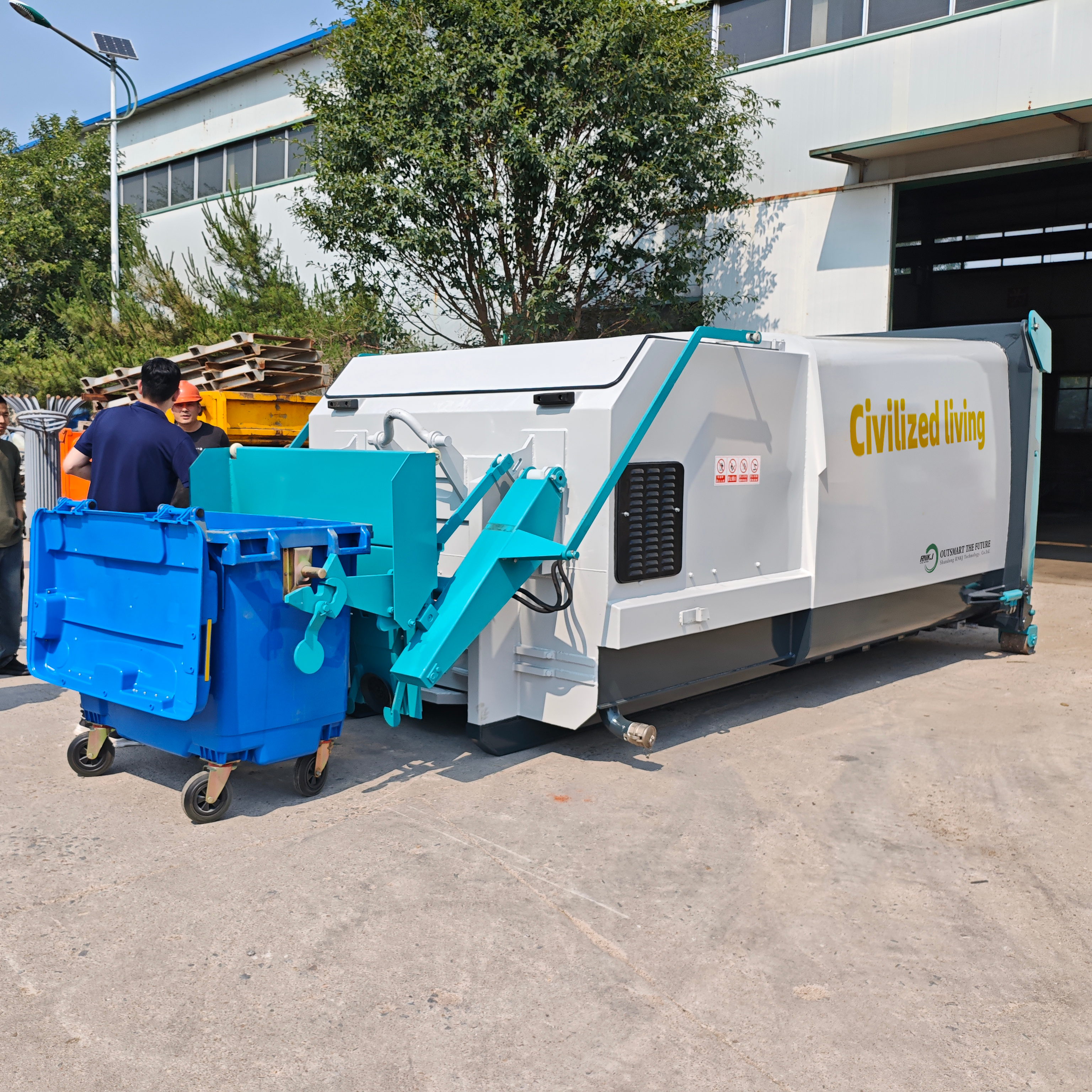

Automatic Bucket Trash Compactor is a sanitation equipment that integrates the functions of automatic bucket-turning and loading and garbage compression and volume reduction. It is mainly used for efficient treatment of various types of domestic garbage, commercial garbage or industrial garbage. Its core principle is to automatically dump the garbage in the standard garbage can into the compression chamber through a mechanical or hydraulically driven bucket-turning device, and then use the compression mechanism to strongly compact the garbage, thereby reducing the volume of garbage, improving the efficiency of transportation, and reducing the risk of secondary pollution.
Product Advantage
The Automatic Bucket Trash Compactor is equipped with an electric or hydraulic bucket-turning device, which can automatically grab, lift and dump the garbage can (some models support larger capacity garbage cans). There is no need for manual handling and dumping. One person can complete the operation, which greatly reduces labor costs and labor intensity. The Automatic Bucket Trash Compactor uses a hydraulic or mechanical compression system to compact the garbage at a high frequency and high pressure. Reduce the floor space occupied by garbage storage and improve transportation efficiency. The Automatic Bucket Trash Compactor is equipped with a touch screen or button control panel, which supports "automatic/manual" mode switching. Operators can take up their posts after simple training, reducing equipment failures caused by manual misoperation. It is standardly equipped with a universal bucket-turning device, which can be adapted to standard garbage cans in municipal, commercial, industrial and other scenarios. There is no need to modify the garbage cans additionally, and it has strong compatibility.
Technical Parameters
Performance Parameters | |
Compression: | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg): | 4800kg,5500kg,6080kg, 6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working Principle
Inductive Trigger Mechanism: The device is equipped with an infrared sensor or weight sensor module. When the user throws in garbage, the sensing system detects that the accumulated height of the garbage reaches the preset threshold, and automatically initiates the compaction process without requiring manual operation.
Hydraulic Compaction Drive: A small high-pressure hydraulic pump is used as the power source to drive the compaction plate to press down vertically. The pressure range can reach 50-150 kg, compressing loose garbage (such as tissues, plastic bottles, kitchen waste residues, etc.) to 1/3-1/5 of its original volume, significantly increasing the actual capacity of the trash can.
Intelligent Safety Control: During the compaction process, overload protection and hand-avoidance sensors are equipped. If an object is detected, the compaction will be stopped immediately and the press plate will reverse and rise.
After the compaction is completed, the press plate automatically resets and waits for the next trigger; when the garbage is compressed to the maximum capacity of the bucket, an LED indicator light or a buzzer will give a full overflow reminder.
Sealing and Leak Prevention Design: The compaction bucket is made of high-quality materials, and the bucket opening is equipped with a silicone sealing ring. During the compaction process, odors are reduced, and kitchen waste does not leak, maintaining a clean usage environment.
Applicable Scenarios
Household Scenarios: Kitchen (for compacting food waste), living room (for paper scraps and packaging waste), mother and baby room (for diapers and wipes), balcony (for used clothing and express delivery packaging), etc.
Small Commercial Scenarios: Convenience stores, coffee shops, milk tea shops (for packaging waste and tissues), small offices, guesthouses, postpartum care centers, etc.
Special Scenarios: Hospital wards, laboratories (for waste requiring sealed disposal), RVs, campsites (to reduce waste storage space), etc.
Usage and Maintenance Points
Usage Prohibitions: Do not throw in sharp metal, glass, or large hard objects to avoid damaging the compaction plate and bin; it is recommended to drain the water from food waste before throwing it in to reduce the risk of leakage.
Cleaning and Maintenance: The bin is removable and it is recommended to clean it once a week with a neutral detergent, avoiding strong acids and alkalis; check the sealing ring regularly and replace it promptly when it ages (parts are readily available).
Troubleshooting: If compaction fails to start, check for obstructions in the sensing area and ensure the power supply is normal. If the compaction force is insufficient, it may be due to hard objects mixed in with the waste; clean them and try again. For hydraulic system malfunctions, contact after-sales service; no self-disassembly is required.
Long-term storage: If not used for an extended period, empty the waste bin, wash and dry it. Rechargeable bins must be fully charged before storage to prevent battery depletion.
Product Features
Good sealing performance: During the process of garbage loading, compacting and storage, it has good sealing performance, which can effectively prevent the odor of garbage, garbage spilling and sewage overflow, reduce pollution to the surrounding environment, and improve the working environment and surrounding air quality.
Equipped with deodorization and sterilization devices: Some bucket-turning garbage compactors are equipped with spray flushing deodorization systems or automatic spraying agents systems, which can deodorize and sterilize garbage, inhibit bacterial growth, reduce pests such as mosquitoes and flies, and further improve environmental protection effects.
Simple operation: Usually equipped with a humanized operation interface and control system, operators can operate proficiently after simple training. Some equipment also has automatic control functions, which can realize automatic circulation operation of loading, compacting, unloading and other processes, reducing the difficulty of operation and labor intensity.
Easy to maintain: The structural design of the equipment is reasonable, and the key components are easy to access and repair, which is convenient for daily maintenance and maintenance. At the same time, some bucket-turning garbage compactors adopt modular design. If a component fails, it can be quickly replaced to reduce equipment downtime.
Packaging and Shipping
The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40HQ container, flat rack container, open top, platform container, express, etc.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
