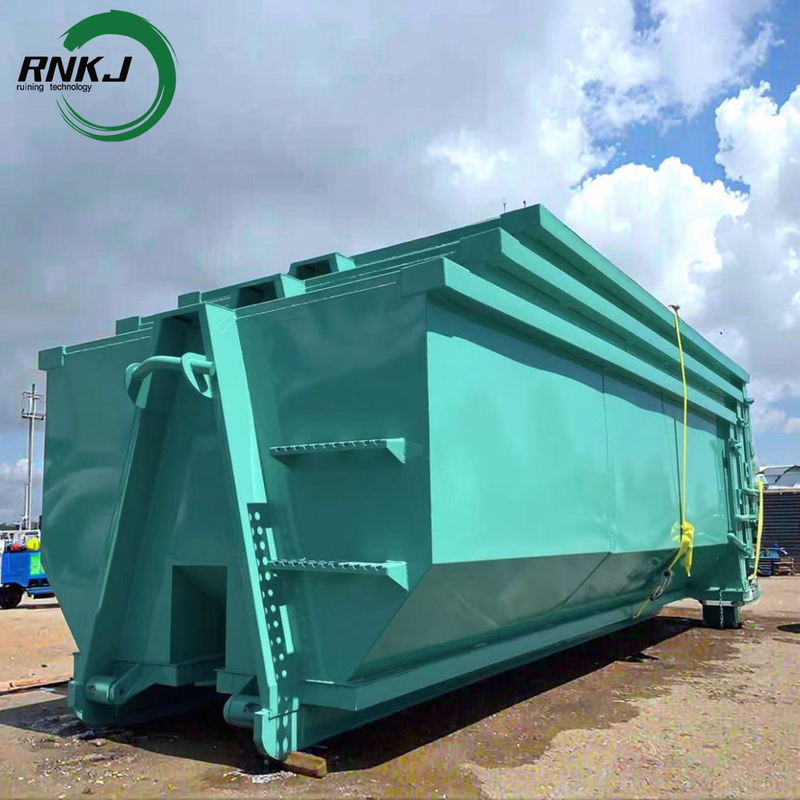

Hook Lift Dumpster Container is a large-scale garbage collection equipment that is lifted and transported as a whole by a top or side sling. It is often used in scenarios where a large amount of garbage is generated (such as industrial parks, large communities, garbage transfer stations, etc).
Product Advantage
The Hook Lift Dumpster Container adopts a welded fully enclosed structure, and the door is equipped with a rubber seal and a locking device, which completely prevents sewage leakage, garbage spillage and odor diffusion during transportation. It is especially suitable for transporting easily polluted waste such as kitchen waste and medical waste. As a fixed or temporary garbage collection point, the Hook Lift Dumpster Container replaces multiple small garbage bins, reduces the stop frequency of cleaning vehicles, and alleviates urban road congestion. The Hook Lift Dumpster Container can be customized with an anti-corrosion lining (such as a polyethylene coating) to adapt to special wastes such as strong acids and alkali.
Technical Parameters
Product name | Hook Lift Style Dumpsters |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Operation Procedure
The crane truck operates the hydraulic arm through the cab control system to connect the hook at the front of the truck with the hook rod of the container. Then, through hydraulic lifting and tilting actions, the container is smoothly lifted onto the truck chassis or unloaded to the designated location. Throughout the process, the driver does not need to get out of the vehicle, and no track assistance is required.
Video
Product Details
Our hook can be customized,strong and durable.We take the highest weight-to -lift ratio in the industry. We use high tensile steel for reducing bins weight , which means more payload,longevity of truck lifeime.
Our doors hinges are greasable,and capable of holding a big weight as well as mounting and adjustment are very easy.
Our wheels are heavy duty ,have great flexibility in using ,can be a good optional to our customers.
Door locking mechanism with high tensile safety chain and catch,this operates a heavy-duty secure locking mechanism.We also can customize the door locking mechanism to suit various transportation methods and requirements.
Tailgate Shape
Key Construction and Technical Details
Main Structure
Material: Mainly Q235 and Q345 carbon steel. The thickness of the side plates is 3-4mm, and the thickness of the bottom plate is 4-6mm. Customized thick plates can be added to handle heavy waste.
Frame: The top uses square tube guardrails, and the bottom is a channel steel or channel section chassis to ensure stability in bearing weight.
Connecting Components: Equipped with high-strength hook rods that precisely connect with the hydraulic system of the lifting truck; hinges and rollers have oil injection points to extend service life.
Customized Configurations
Door Opening Method: Options include double doors, upturned doors, or side doors;
Corrosion Protection Treatment: Hot-dip galvanizing or zinc-based epoxy primer + polyurethane topcoat double-layer coating, suitable for harsh environments;
Auxiliary Accessories: Optional top lifting rings, ladders, locks, etc. Some models support stacking for space savings.
Application scenarios
Core fields
Construction engineering: Transport and dispose of heavy waste such as demolition debris and concrete blocks (suitable for 10-40 cubic models);
Industrial manufacturing: Collect metal waste and chemical waste residues, optional with corrosion-resistant customization;
Municipal sanitation: Large-scale garbage collection in communities, emergency handling after disasters, supports rapid scheduling.
Innovative Applications
On-site Recycling Center: Equipped with sorting devices, used for recycling construction materials;
Mobile Water Treatment Station: Modified to include purification equipment, deployed in disaster areas or remote construction sites;
Temporary Storage Area: Used to store equipment and supplies during events / exhibitions, featuring both security and mobility.
Selection and Usage Suggestions
Selection Points: Choose the material based on the type of waste and set the size according to the site restrictions;
Maintenance Guidelines: Lubricate the hinges and rollers every 3 months, and apply topcoat every year to prevent rust;
Compliance Tips: Hazardous waste should be of leak-proof type, and export products must comply with destination certification.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
