Underground horizontal waste compressor is an underground garbage disposal equipment that compresses garbage horizontally. It pushes the push plate to squeeze the garbage horizontally through the hydraulic system. It has the characteristics of high compression efficiency, small footprint, and high degree of automation. Its core uses cover urban sanitation systems, commercial and residential scenarios, special area adaptation and other fields. It is suitable for processing mixed domestic garbage, kitchen waste, packaging waste, etc.
Product Advantage
The compression box of the Underground horizontal waste compressor is located underground and has good sealing performance, which can effectively reduce the emission of garbage odor and odor. At the same time, the upper cover is tight and can cover the entire pit mouth to prevent rainwater, ground water, rats and flies from entering, avoid garbage from being exposed to the external environment, reduce the spread of odor and bacterial growth, and improve the surrounding air environment and sanitary conditions. Most of the equipment structure is installed underground, and only a platform is retained on the ground, which does not occupy too much ground space, so that the ground can be used for other purposes, such as greening, parking, etc., which improves the utilization rate of land resources. The compression box of the entire equipment is hidden underground, and only the feeding port is located above the ground. The cover of the feeding port can be closed and locked to prevent people and animals from accidentally falling in. The equipment is easy to operate and can be directly operated by remote control. The whole process of lifting, loading and unloading, and resetting only takes a few minutes, which reduces the labor intensity and safety risks of operators. Using horizontal compression, the system has a large working pressure, and the compression density can reach about 0.7. It can efficiently compress the garbage, greatly reduce the volume of garbage, increase the loading capacity and transfer efficiency of transfer vehicles, and reduce the costs of garbage disposal and transportation.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run Process

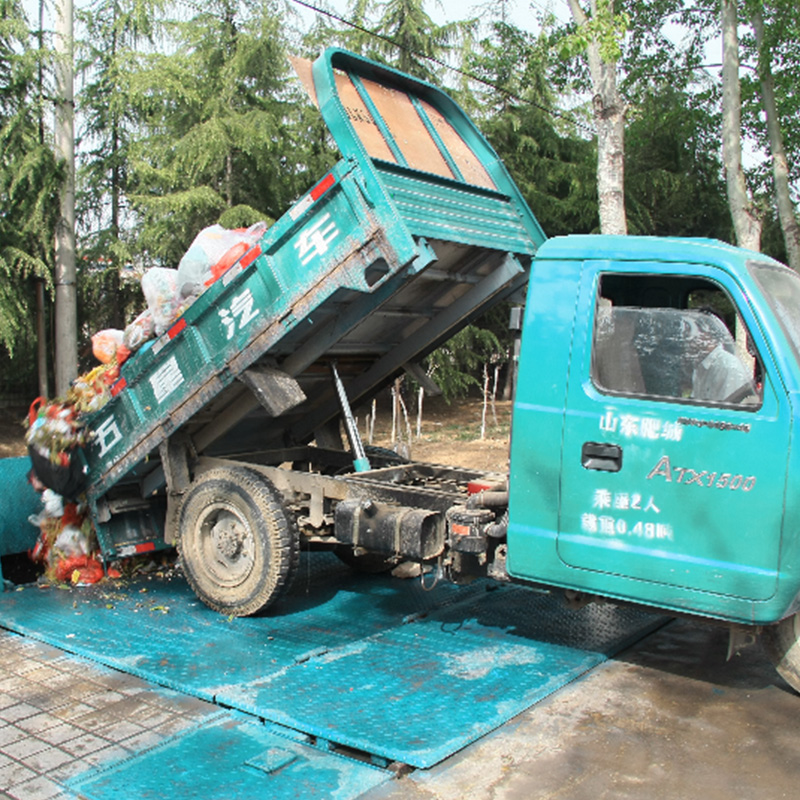

The user puts the garbage into the feeding port of the garbage bin, the garbage is stored in a certain amount and then the compression mechanism compresses the garbage and repeats until the garbage is full, the sewage is discharged from the bottom of the sewage discharge system without power from the bin into the sewage collection tank to be discharged away.

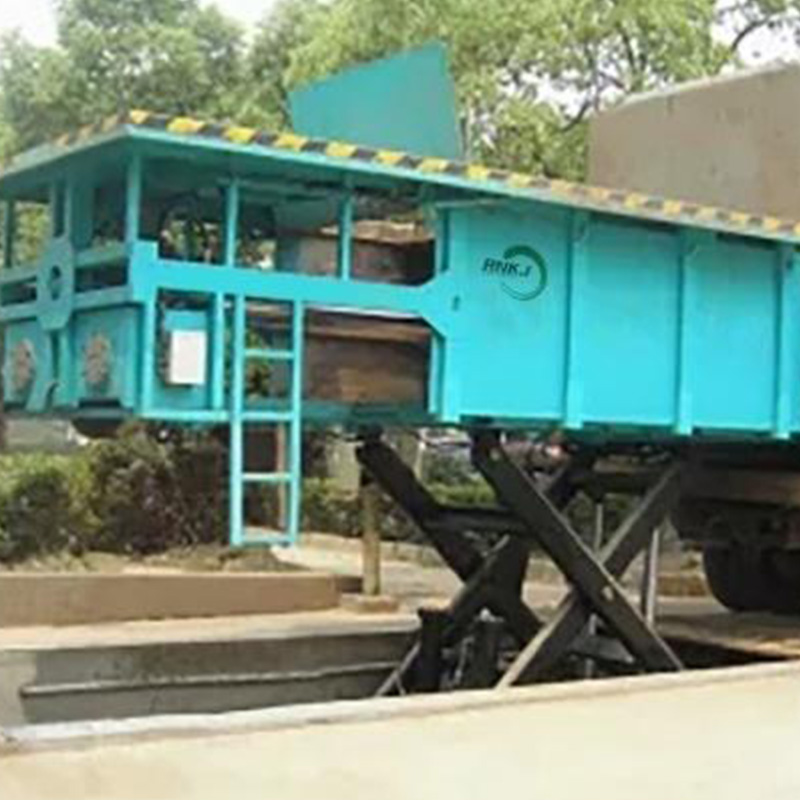

After the garbage is filled, the equipment is raised from the pit. Dock with the garbage truck and open the discharge door after docking. The garbage block is pushed into the garbage transportation vehicle through the compression mechanism.
After the garbage is unloaded, the garbage truck leaves the garbage bin, the push shovel is withdrawn, and the discharging door is closed and locked.
After making sure the door is closed tightly, the equipment is lowered into the ground and waits for re-inputting garbage.
Product Style
|
|
Features
Space-saving:
Only a small, visible trash can is needed above ground, while the compacting and storage happen underground.
Reduced odors:
The underground location helps minimize odors and prevent the spread of pests, as well as protect waste from extreme temperatures.
Improved sanitation:
Underground placement keeps the waste from being exposed to the elements, making the area cleaner and more sanitary.
Increased capacity:
Compactors can dramatically increase the amount of waste that can be stored in a given area.
Efficient waste management:
Underground systems can be integrated with smart city platforms for optimized waste collection scheduling and route planning.
Modular and adaptable:
Many underground compactor systems are designed to be modular and adaptable to different existing and new underground container sizes.
