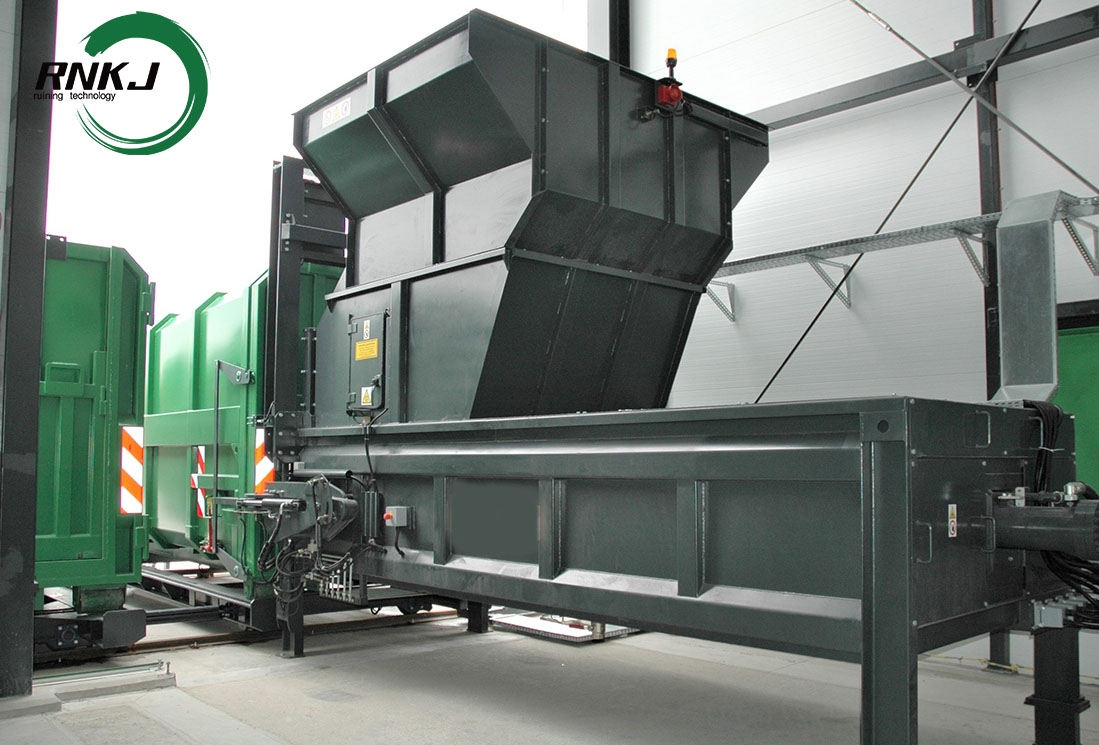

Split Waste Compactor is a device commonly used in garbage disposal. Through the design of separating the "compression host" and the "garbage bin", it can achieve functions such as garbage volume reduction and improved transfer efficiency.
Product Advantage
Split Waste Compactor has high transfer efficiency, and can be arranged with two boxes in one machine to achieve uninterrupted operation, improve equipment utilization, and save equipment capital investment. The horizontal garbage compressor completes the process from feeding to compression in a closed environment inside the equipment, which can better control the garbage odor. In other forms of garbage compressors, whether in the feeding or compression process, most of the garbage will be exposed to the outside, making it difficult to control the garbage odor. The configuration is flexible and diverse, and through modular design, different solutions can be designed according to different needs of users.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Urban garbage transfer station: As a hub for garbage collection from the front end to the back end, it centrally compresses garbage to reduce the number of transfer vehicles and reduce transportation costs.
Community/Residential Area: Replaces traditional open-air garbage bins, reduces garbage accumulation and land occupation, improves the living environment, and is especially suitable for garbage sorting pilot areas.
Commercial complex: Processes packaging garbage and office garbage generated by shopping malls and office buildings to avoid sanitation problems caused by garbage retention.
Farmers' markets: Compresses and processes fruit and vegetable residues and kitchen waste to reduce leachate pollution and improve the market's environmental sanitation level.
Industrial parks: Processes industrial scraps, packaging waste, etc. to meet the needs of industrial waste reduction and standardized disposal.
Temporary garbage disposal points: Such as large-scale activities and post-disaster rescue sites, quickly handles sudden garbage volumes to avoid environmental pollution and the risk of disease transmission.
Product Operate Guide
The split type garbage compactor uses imported high-quality programmable controllers and other components. The program door is designed with an interlocking function to avoid damage to the equipment due to misoperation. After the operator pours the material at the designated location, the garbage compactor will automatically load the material and complete the entire compression process. All operations can be controlled automatically and manually, and the operation is simple. The garbage storage box can be separated from the compression host, and the compression host can be moved horizontally to achieve multi-station operation.
