The Hook Lift Dumpster is a large mobile garbage storage and transfer container specially designed to be used in conjunction with the Hook Lift Truck. With its efficient loading and unloading capabilities and the feature of multiple boxes being transferred in one vehicle, it has become the core equipment for garbage collection and transfer in modern sanitation, construction, industrial and other fields.
Core positioningThe Hook Lift Dumpster is a closed garbage container that can be independently placed and can be quickly loaded, unloaded and automatically dumped through the hydraulic system of the hook arm vehicle. Its core value lies in achieving efficient turnover between garbage collection points and processing sites, addressing the problems of large land occupation, high construction costs, and low transfer efficiency of traditional fixed garbage stations. Its design concept is the flexible operation mode of "one box for multiple vehicles, one vehicle for multiple boxes", allowing one hook arm vehicle to serve multiple fixed garbage containers, significantly improving equipment utilization and collection efficiency.
Product Advantage1. Structural Performance Advantages
High-strength Design: Integral welding structure, dense reinforcing ribs, high load-bearing capacity
Precise Compatibility: Standardized lifting lugs and slide rails design, suitable for various boom trucks
Extremely Long Service Life: High-quality steel, anti-corrosion treatment, normal use can last up to 8-15 years, heavy-duty type can last over 20 years
2. Environmental Performance Advantages
Zero Leakage Design: The labyrinth seal at the tailgate and the oil-resistant rubber strip process ensure no leakage when filled with water, eliminating secondary pollution.
Odor Control: The fully enclosed structure and the sealed lid at the discharge port effectively prevent the spread of odors and the breeding of mosquitoes and flies.
Rainwater Prevention Design: The sloping top and the sealed discharge port design prevent rainwater from entering and increasing the weight of the garbage, reducing transportation energy consumption.
3. Operational Performance Advantages
Easy Deployment: Can be opened by a single person, reducing operational strain
Safety Assurance: Dual locking mechanism and anti-misoperation design to prevent accidental opening during transportation, ensuring road safety
Maintenance Convenience: Modular design, easy-to-replace components for quick replacement, reducing maintenance costs
Technical ParametersProduct name | Hook bin & Hook lift Bin & Roll on / roll off container |
Material | Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade |
Size Range | from 10 to 80 yd And OEM is also available. |
Thickness of plates used | 10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements. |
Other specifications | 1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside |
Options | 1) Two openning door 2) Up openning door |
Painting | We will paint each bin you order in your company colour, enhancing your company image with great looking bins.Two times of primer |
Product CustomizationRNKJ offers a wide range of hook lift containers is what we specialize in. Hook lift dumpster come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Main StructureCargo Body: The core for storing garbage, featuring an integral welding structure to ensure strength and sealing performance.
Made of Q235/Q345 carbon steel (standard)
Top Frame: The top frame strengthens the box structure to prevent deformation and provides support for the discharge opening.

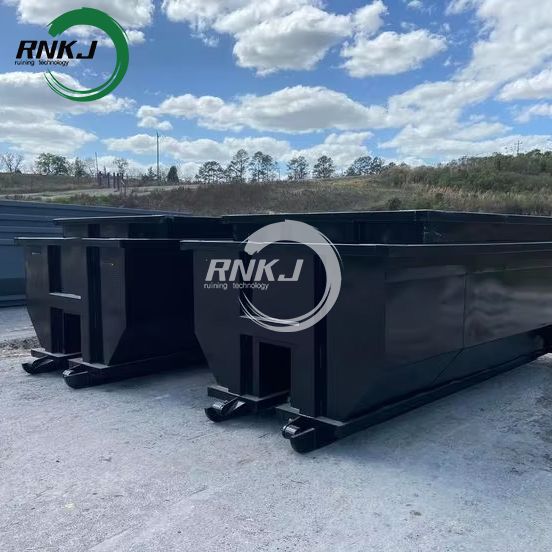

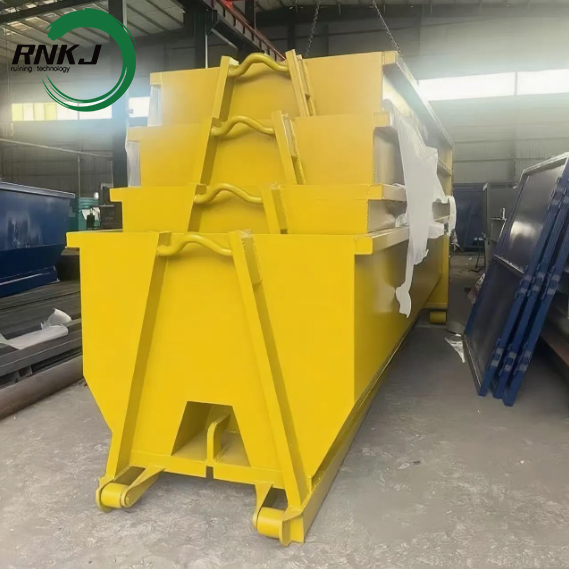

Front Hook Assembly: The core component connecting to the hook arm vehicle, including the lifting hook and the sliding rail interface.
Bottom support system (Undercarriage): Load-bearing and moving foundation, including crossbeams, sliding rails, and rollers.
The bottom sliding rails precisely match the hook arm vehicle guide wheels.
Rear Door: Garbage disposal and dumping outlet, with multiple opening methods - single door, double door, flip-up door. Equipped with a dual safety locking mechanism to prevent accidental opening during transportation.
Working PrincipleThe core advantage of Hook Lift Dumpster lies in its efficient compatibility with boom trucks. The product design is entirely optimized around the following operation procedures:
Box placement stage:
The garbage bin is placed independently on the hardened ground. It is in contact with the ground through the bottom slide rails to maintain stability.
The discharge opening is open to receive the garbage. When it is full, the discharge opening is closed and it waits for collection.
Hook arm vehicle docking stage:
The hook arm vehicle backs up to the front end of the container, the hydraulic hook arm lowers, and the hook precisely inserts into the front lifting lug of the container.
The hydraulic system is activated, the hook arm pulls the container along the slide rail upward and slides it into the frame, while automatically locking in place.
Transportation stage:
The box is perfectly fitted to the frame, and dual locking mechanisms ensure transportation safety. The sealed structure prevents garbage spillage and odor diffusion.
The anti-surge boards inside the box reduce the shaking of garbage, thereby lowering transportation energy consumption and wear on the box.
Dumping stage:
After reaching the disposal site, the hydraulic system lifts the boom, the box tilts at an angle of 45-60 degrees, the tailgate automatically unlocks, and the garbage is discharged by gravity.
After the dumping is completed, the boom is reset and the empty box is sent back to the original collection point or transported to other collection points.
Volume Classification3-5 cubic meters: Small communities, shops, scenic areas, basements
6-10 cubic meters: Medium-sized communities, industrial parks, small construction sites
11-15 cubic meters: Large communities, large construction sites, industrial waste
16-20 cubic meters: Garbage transfer stations, mine waste, large demolition sites
Over 20 cubic meters: Extra-large industrial projects, urban waste treatment centers
The Hook Lift Dumpster, as the core equipment of modern waste transfer systems, is gradually replacing traditional fixed waste stations due to its efficient, flexible and environmentally friendly features. It has become the preferred choice in sectors such as sanitation, construction, and industry. The product design focuses on four core elements: "strength, sealing, compatibility, and durability". Through high-quality materials, precise manufacturing and maintenance, it can have a service life of 8 to 15 years, bringing significant economic and environmental benefits to users. Choosing the right Hook Lift Dumpster not only enhances the efficiency of waste collection but also effectively reduces the risk of secondary pollution, achieving sustainable development.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
