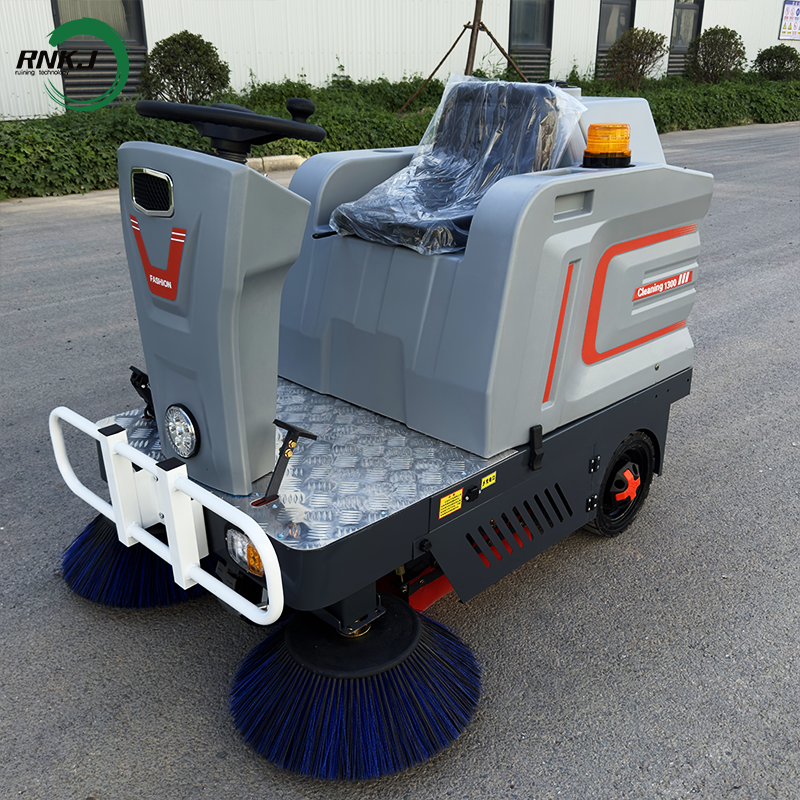

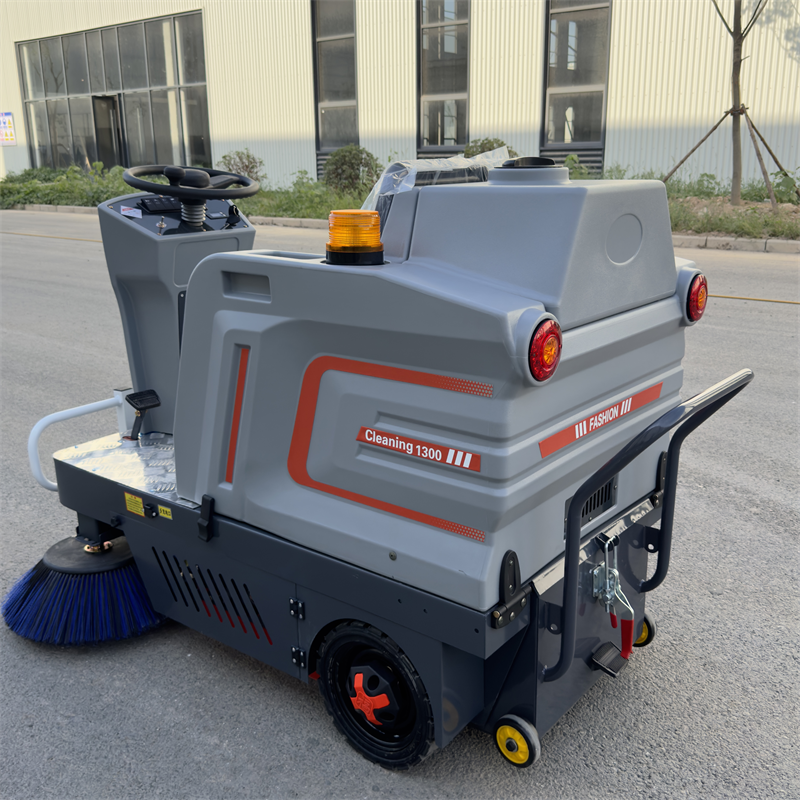

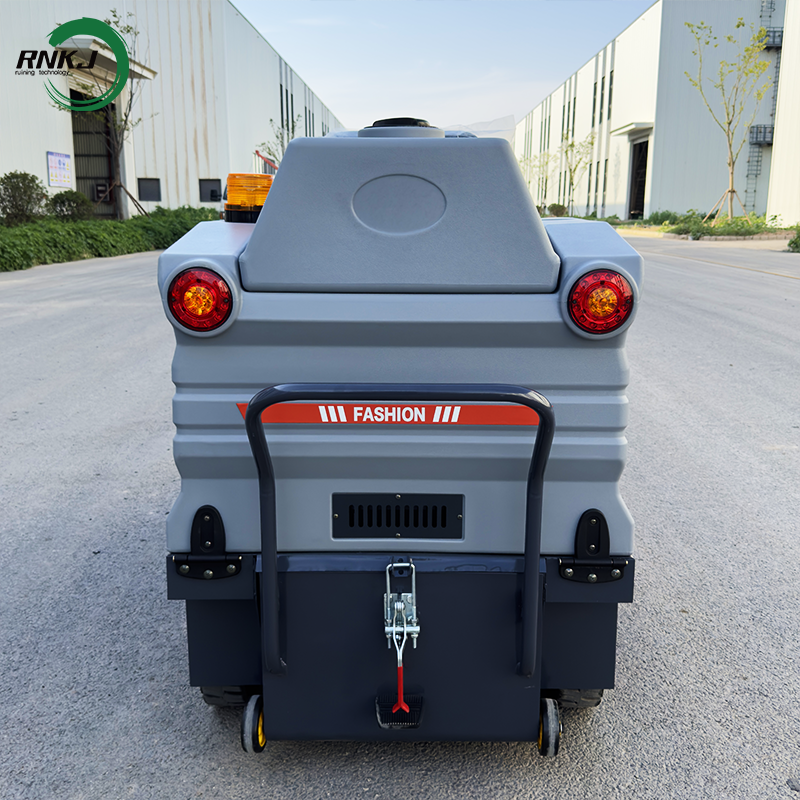

3 wheel road sweeper is a ground cleaning device that integrates "sweeping, vacuuming, and dust collection". It is named for its three-wheel design. 3 wheel road sweeper has a compact structure and flexible operation. 3 wheel road sweeper is suitable for medium and large open scenes such as parks, campuses, factories, and streets. The front wheels of the 3 wheel road sweeper are steering wheels, and the rear wheels are driving wheels. The turning radius is small, and it can be flexibly turned around in narrow roads, flower bed edges, and obstacles, which is suitable for complex terrain.
Product Advantage
Compared with the 4 wheel sweeper, the 3 wheel road sweeper design is more suitable for narrow areas such as sidewalks, pedestrian streets, and workshop passages. The three wheels form a stable triangular support, the center of gravity of the vehicle body is low, and it is not easy to roll over when driving, especially on slopes or uneven roads. It can still remain stable. 3 wheel road sweeper equipped with a steering wheel or handle control, the steering force is light, and novices can quickly master it, which is suitable for long-term operations.
Appearance:
1. The bottom plate is made of sheet metal steel, which is strong, collision-resistant, and not easy to deform or damage; it adopts automotive electrophoretic paint, which is impact-resistant, and has good adhesion and corrosion resistance;
Configuration:
1. The front and rear are equipped with LED lights and rear tail operation safety warning lights, making night cleaning brighter and safer; front water spray device;
2. The cleaning width is 1300mm;
3. Domestic well-known brand batteries such as Tianneng or Chaowei are selected, and they are guaranteed nationwide;
3. A hair dryer and tool kit are provided for easier dust removal;
Performance:
1. Constant temperature controller, durable, and automatic overload protection system for safer cleaning;
2. High-strength wear-resistant side brush, sand, stones, dust, one-shot sweep;
3. Replacement of consumable parts (main brush, side brush) is quick and convenient, without any tools.
Technical Parameters
Product Parameters | |
Cleaning width | 1300mm |
Main brush width | 500mm |
Power source | 48v |
Working efficiency | 8000-10000m²/h |
Trash bin capacity | 85L |
Travel motor | 650w |
Roller brush motor | 800w |
Side brush diameter | 500mm |
Side brush motor | 2*100w |
Travel speed | 0-12km/h |
Battery capacity | 48V/45Ah |
Water tank | 60L |
Vacuum filter area | 5m² |
Quick cleaning storage box volume | 85L |
Product size | 1750*1300*1300mm |
Product Performance
1. Constant temperature controller, durable, automatic overload protection system makes cleaning safer;
2. High-strength wear-resistant side brush, sand, stones, dust, sweep away;
3. Replacement of consumable parts (main brush, side brush) is quick and convenient, without any tools;
Features
Rugged
The bottom plate is made of sheet metal steel, which is strong,collision-resistant and not easy to deform or damage.
Car craft paint
The entire vehicle adopts automotive electrophoretic paint,which is impact-resistant and has good adhesion and corrosion resistance.
Control System
Constant temperature controller,durable,automaticoverload protection system,safer cleaning
Easy to operate
Replacement ofconsumable parts (main brush, sidebrush) is quick and easy, without any tools
More products
Factory Display
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3. What can you buy from us?
Trash compactor,Underground garbage compactor,Underground collection system,Hook lift bin,Skip bin,Sweeper,sScrubber.
4. What services can we provide?
Customized bins are accepted.Someone will answer your questions at any time, 24 hours online.We will provide pre-sales and after-sales service
5.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
