The main body of the Underground garbage compression station is buried underground (only the feeding port and the operation panel are left on the ground), which does not occupy the ground space and has a neat appearance. Underground garbage compression station is mainly suitable for densely populated areas such as residential areas, parks, shopping malls, schools, etc., especially for places with high requirements for environmental beauty.
Product Advantage
Significant volume reduction effect: The volume of garbage is greatly reduced after compression, which reduces the frequency and cost of transportation and reduces the amount of landfill/incineration.
Superior environmental performance: Fully enclosed design reduces odor diffusion, mosquito and fly breeding and sewage leakage; equipped with deodorization and sewage collection systems to avoid secondary pollution.
Space saving: Underground equipment does not occupy ground space and can be integrated with the surrounding environment (such as setting up as green belts, parking lots, etc.).
High degree of automation: Supports intelligent induction feeding, automatic compression, overflow alarm, easy operation, and reduces labor costs.
Strong durability: Adopts corrosion-resistant materials (such as stainless steel) and high-strength structure to adapt to long-term high-load operations.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Uses
Urban sanitation system: Underground garbage compression station replace traditional open-air trash cans, used for centralized garbage treatment in streets and communities, and improve the city's image.
Commercial and public facilities: places with large flow of people such as shopping malls, airports, and stations, efficiently handle daily garbage.
Industrial and construction sites: handle construction waste and industrial waste, reduce transportation costs and environmental pollution.
Rural and township: solve the problem of scattered rural garbage and insufficient treatment facilities, and promote rural environmental governance.
Product Effects

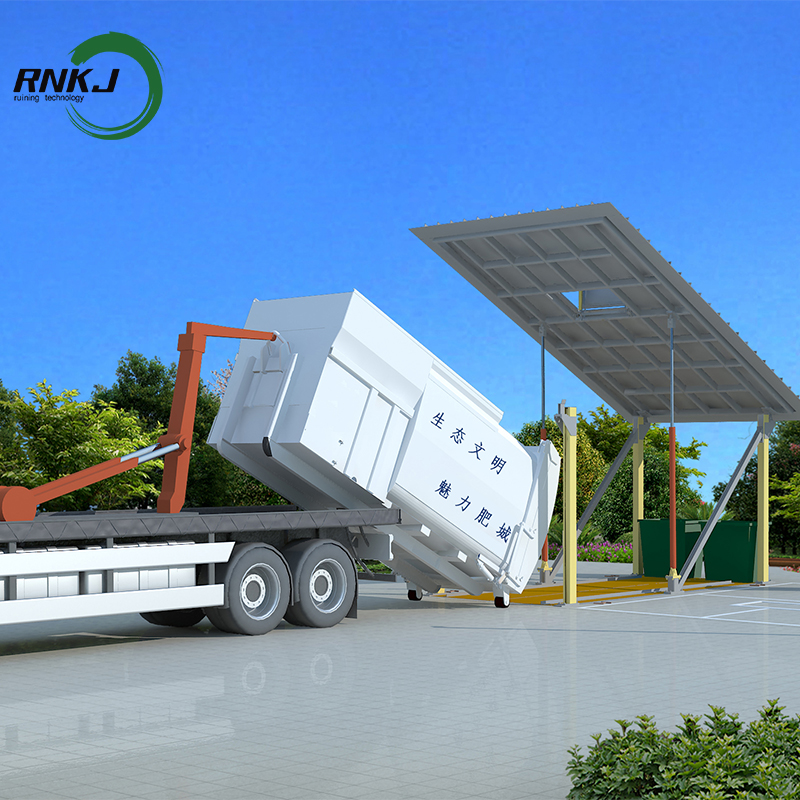

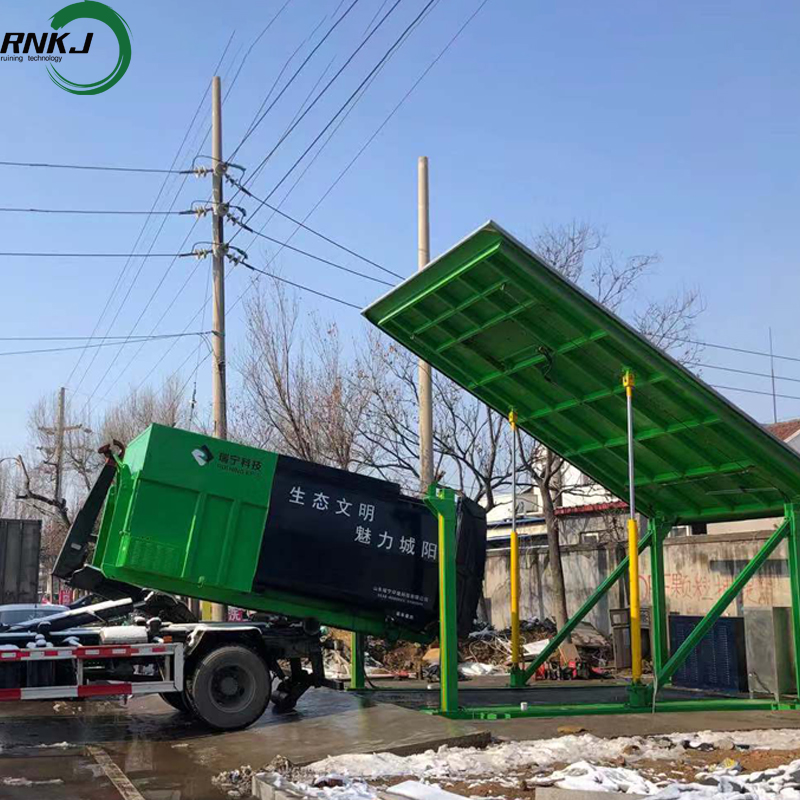

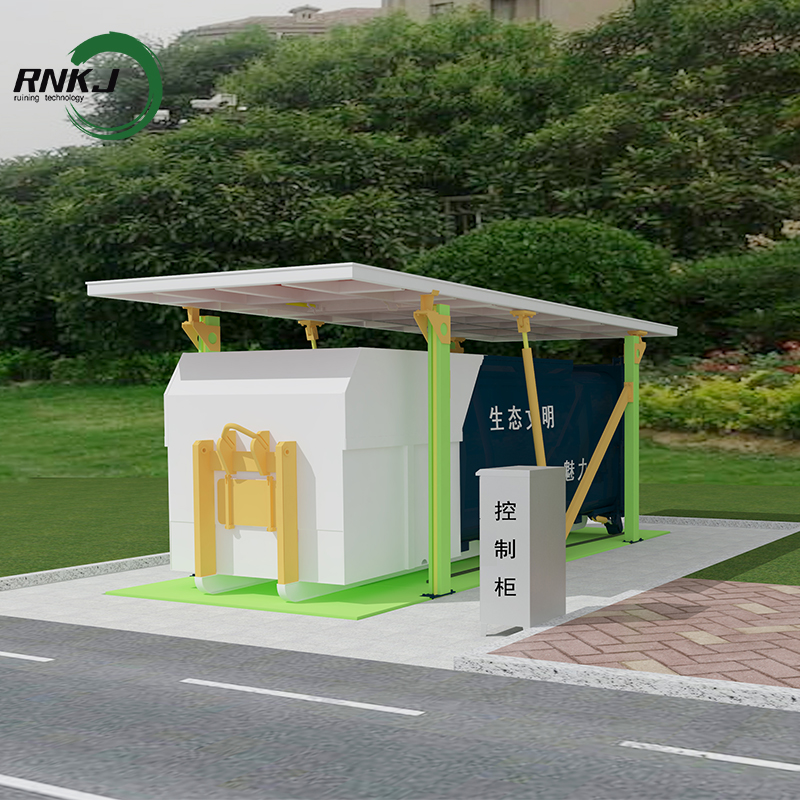

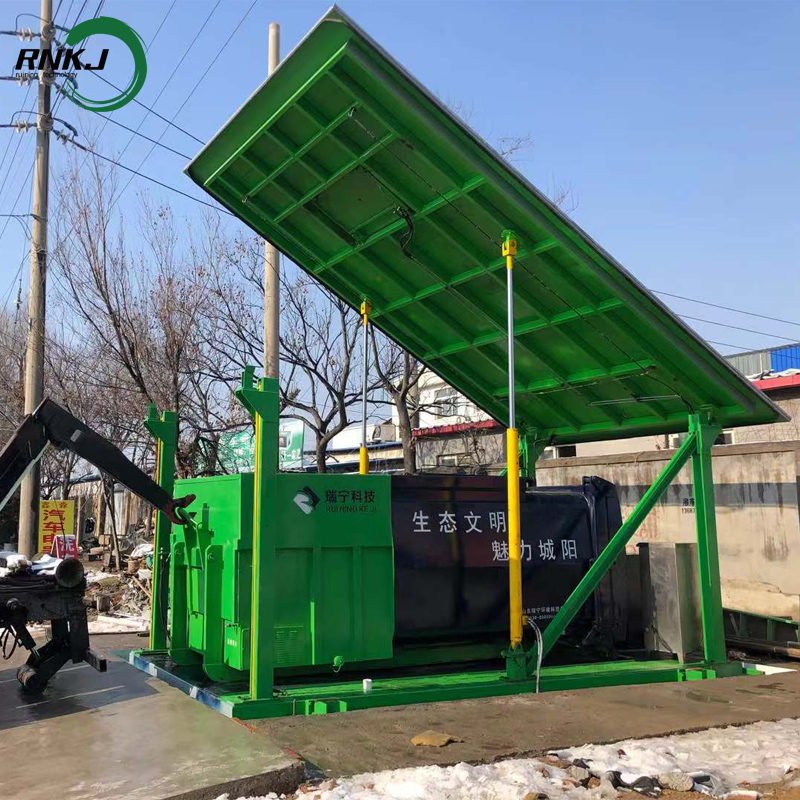

Lifting mode

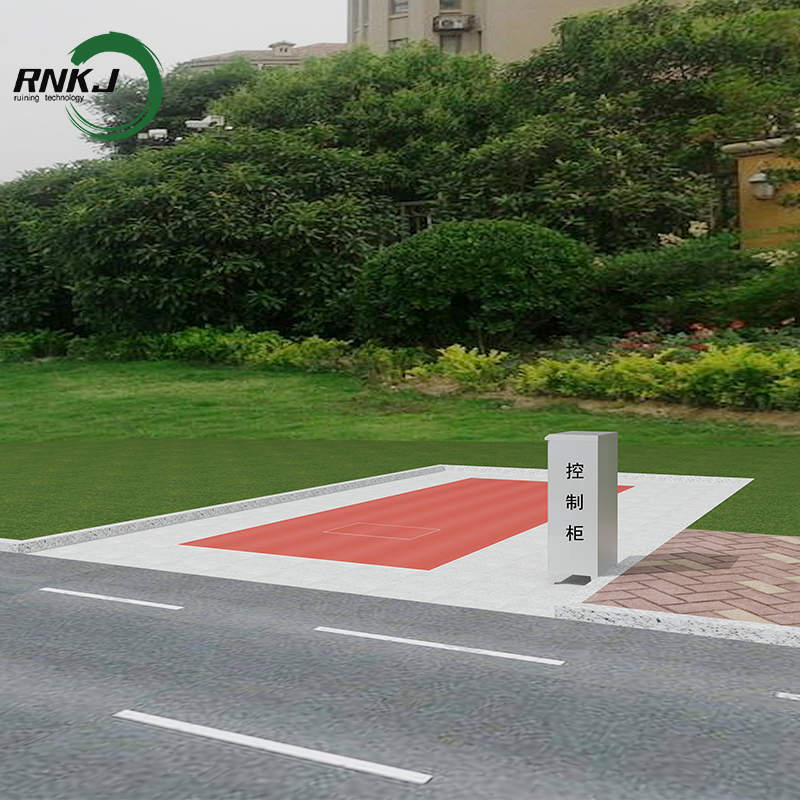

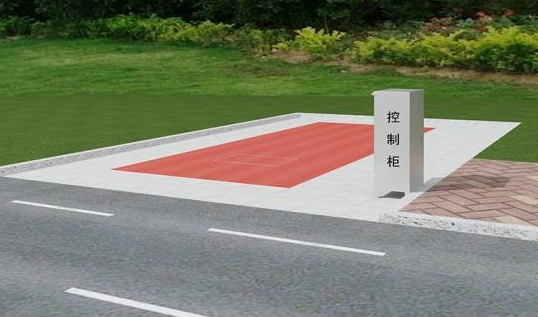

Landing mode
Our Company
Shandong RNKJ Environmental Technology Co., Ltd is a leading environmental protection and sanitation company in China.
Our factory is a manufacturer specializing in the production of garbage collection and transportation equipment, garbage harmless treatment and comprehensive utilization equipment.
The main products for overseas markets include: garbage stations, garbage compactors, garbage collection system, sweepers, floor scrubbers, etc.
Looking forward to cooperating with you.
