Mobile Waste Compactor adopts the most advanced PLC microcomputer control system, which is easy to operate, has remote control operation, automatic compression function and high compression ratio.

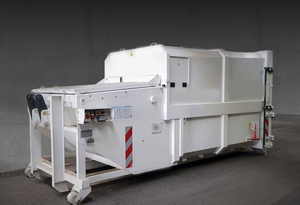

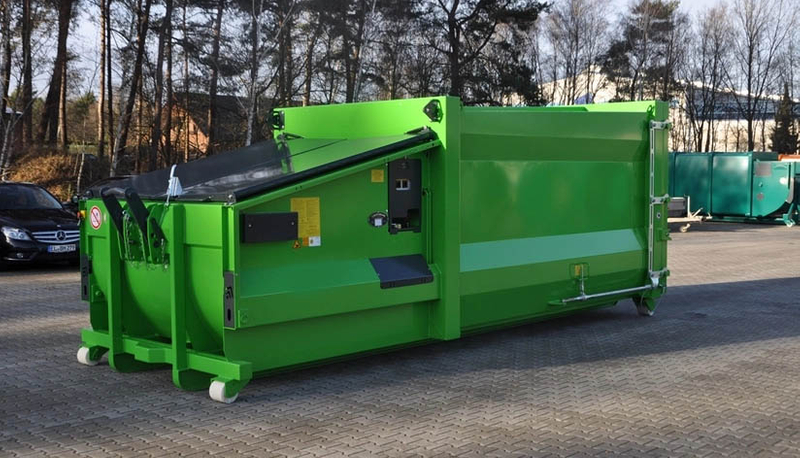

Mobile Waste Compactor is an environmentally friendly device that can be flexibly moved and compress and reduce the volume of various types of waste. It is widely used in various scenarios such as urban waste disposal.
Product Advantage
RNKJ offers a wide range of Mobile Waste Compactor to meet your specific waste needs. SMART technology makes it possible. To receive messages automatically when it is time for emptying, which optimizes availability and saves you money.
Core Definition and Working Principle
Mobile Waste Compactor integrates functions such as waste sealing, compression, and storage. It uses a hydraulic system or mechanical structure to generate pressure, compressing loose waste to reduce its volume. It is also mobile, requiring no fixed infrastructure. Its core principle is to use the mechanical force of the compression head to squeeze the waste. Some models are equipped with a PLC control system to achieve adaptive pressure adjustment, preventing equipment overload, and the sealing design prevents leachate leakage and odor diffusion.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Mobile Waste Compactor can be programmed individually for different locations, such as megastore, supermarkets, shopping malls, market places, hospitals, restaurants, agricultural or food industries.
Features
High Flexibility and Adaptability: Can be mounted on hooklift trucks, trucks, and other carriers, or fixed at stations. Some models can be repositioned within 30 minutes using hydraulic outriggers to handle sudden surges in waste. A wide range of capacities is available, from equipment suitable for small-scale applications to large industrial models, supporting front-loading, side-loading, and other loading methods.
Environmental Protection and Hygiene: Generally employs a double-sealing design. The compression chamber is sealed with silicone strips and hydraulic locks. The discharge door features an inclined guide chute and rubber baffle. A stainless steel leachate collection tray is located at the bottom, connecting to the municipal sewage system.
Automation and Operation/Maintenance: Equipped with sensors to detect the feed inlet, automatically alarming and generating a collection command when full. Some models utilize a modular design, making the hydraulic system and compression mechanism easy to disassemble, reducing maintenance difficulty.
Product Operate Guide
Sanitary: Self-contained Mobile Waste Compactor have a built-in fluid collection chamber (sump).
Easy to use: Self-contained Mobile Waste Compactor are easy and safe to operate and drequire no special training.The user throws in the garbage and turns the compactor on with the touch of a button.
Cost-effective: Trash is compacted into blocks ,take up less space, savingyour money on hauling trips.
Product Details
Reasonable Design
The compression head is on the upper side of the tank to avoid liquid backflow and ensure that the cylinder and compression head are not corroded by sewage immersion, and thus ensure that the tank is clean.
Reasonable sewage treatment
Sewage collection box is equipped to prevent sewage leakage.
Sewage can be discharged directly through sewage pump or transported with the tank for disposal.
Standardiztion
Mobile Waste Compactor is applicable for most standard hook arm garbage trucks in the world.
Customization
As a professional factory and manufacturer, we are able to caters to our customers needs in every way, such as color, capacity, dimensions, voltage etc.
Good Performance
Mobile Waste Compactor system adopts high strength steel as main frame to ensure its long service life.
And it has high compression rate and short cycle time to ensure high efficiency.
Muitiple Choices
Muitiple choices of garbage drop-off point are available, including hoppers, flipping buckets, etc. Customers can choose the most suitable pattern.
Our Advantages
Shandong RNKJ Environmental Protection Technology Equipment Co., Ltd. is a leading environmental protection technology company in China.
With independent R&D and design capabilities.
All equipment has passed CE, UL, ISO, EAC, 1S09001.2000 certification.
Our factory specializes in the production of garbage collection and transportation equipment, including garbage compactors, underground garbage collection systems, underground garbage compactors, garbage sweepers, road sweepers, hook-type garbage bins, hook-arm trucks, and provides full-process solutions.
Tailor-made solutions are the core of RNKJ.
FAQ
1.Are you a manufacturer or Trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2.What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
3.How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
4.What is your delivery time?
Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
5.Do you provide OEM/ODM Service?
Yes, with necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
6.How can we ensure quality?
The final inspection is always carried out before shipment. How to install the equipment after purchasing? We will provide a professional installation video to illustrate, as well as a manual.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
