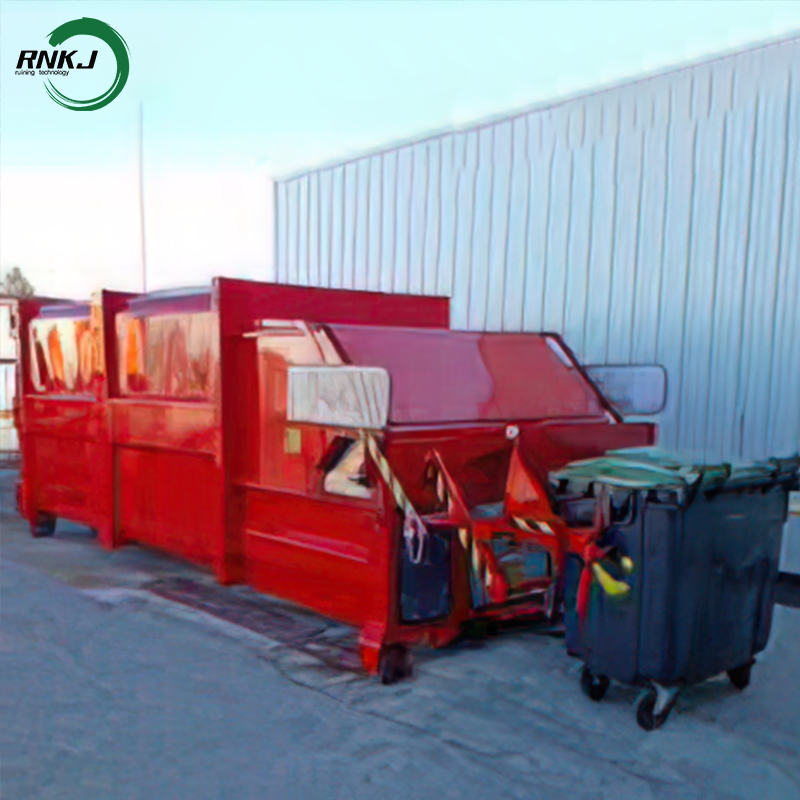

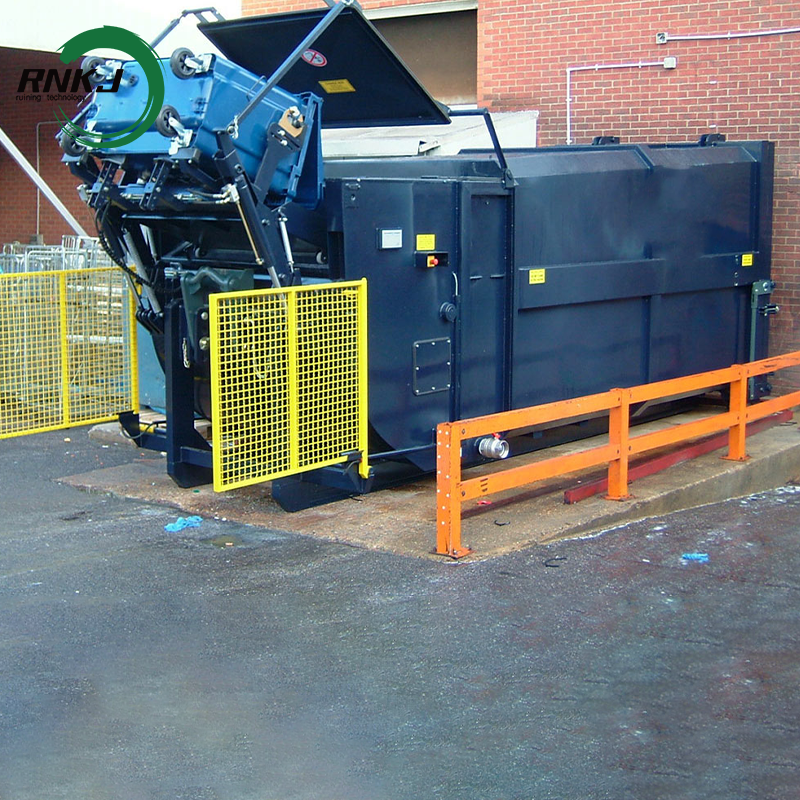

Bucket Waste Compactor is a kind of small and medium-sized garbage collection and transportation equipment that can be installed in the roadside green belt, the corner of the site, the living community and other places.
Bucket Waste Compactor is a small to medium-sized compression processing equipment designed for decentralized garbage generation scenarios. Its core components include a tipping and feeding mechanism, a compression unit, a storage silo, a hydraulic system, and an electrical control system. The equipment is compatible with 240L and 660L standard garbage bins, automatically completing the bin tipping, garbage dumping, and compression through a mechanical structure, ultimately compressing loose garbage into high-density blocks for easy subsequent transportation and processing. The processing capacity is typically 5-20 tons/day, with a small footprint, flexible installation, and no need for complex civil engineering.
Product Advantage
Bucket Waste Compactor is compatible with a variety of trash cans, easy to operate, and has flexible bin turning functions. It can be adapted to standard trash cans (such as 240L and 120L plastic barrels), and the robot arm automatically grabs, turns and dumps the trash, reducing the intensity of manual handling.
High degree of automation: One-button operation for processes such as bin tipping, compression, and material feeding reduces manual intervention and labor intensity.
Significant volume reduction: Waste compression ratio reaches 3:1-5:1, significantly reducing the number of transfers and lowering transportation costs.
Outstanding environmental performance: Sealed design reduces odor diffusion; equipped with a leachate collection device to prevent secondary pollution.
High adaptability: Compatible with various standard waste bin sizes, suitable for small to medium-sized waste generation sites such as communities, schools, and commercial areas.
Low maintenance costs: Simple and reliable structure, few vulnerable parts, convenient daily maintenance, and low energy consumption.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
Widely applicable scenarios
Commercial places: shopping malls, supermarkets, office buildings, hotels and other places that generate a large amount of packaging waste and kitchen waste.
Industrial field: compression and processing of factory waste (such as plastic, paper, metal scraps).
Municipal sanitation: centralized compression of community garbage collection points and transfer stations to improve the efficiency of urban garbage disposal.
Product Operate Guide
Preparation Phase: Check the hydraulic system oil level and electrical wiring connections, ensure the storage hopper is free of debris, and confirm the garbage bins are properly positioned.
Feeding and Compression: Start the equipment; the tipping mechanism automatically grabs and flips the garbage bins, dumping the garbage into the compression chamber; the compression pusher, driven by hydraulics, pushes forward, completing one compression cycle.
Continuous Operation: Repeat the feeding-compression process until the compressed garbage in the storage hopper reaches the set capacity.
Transfer and Discharge: Activate the pushing mechanism to push the compressed garbage blocks into the transfer vehicle, completing a single operation.
Equipment Reset: After operation, clean up any remaining garbage from the equipment, turn off the power, and perform thorough cleaning and maintenance of the equipment.
Applicable Scenarios
Urban communities and residential areas
Schools, hospitals, office buildings
Industrial parks and industrial zones
Small to medium-sized waste collection points such as township markets and small commercial areas
Maintenance Points
Daily check hydraulic oil levels and seals for leaks; clean the leachate collection tank.
Weekly lubricate moving parts and check the sensitivity of the electrical control system.
Monthly inspect the wear of the tipping mechanism and compression pusher; replace vulnerable parts promptly.
Perform a thorough cleaning of the equipment regularly to prevent waste residue from corroding the equipment.
Bucket Waste Compactor effectively solves the problems of large volume, high transportation cost, and environmental pollution in traditional garbage disposal through its core advantages of compression and volume reduction, automated operation, and environmental control. It is especially suitable for modern garbage management scenarios with high efficiency and environmental protection requirements. When choosing, it is necessary to comprehensively evaluate the equipment model and configuration based on factors such as garbage type, daily processing volume, and budget.
RNKJ high-quality garbage compactors provide efficient and economical waste disposal solutions even under harsher conditions.
RNKJ garbage compactors feature powerful motors, practical designs, and easy operation. This makes them ideal for locations with high waste volumes.
Whether you need a large or small garbage compactor, RNKJ compressors' powerful motors, practical designs, and easy operation make them ideal for various waste-generating sites. RNKJ's comprehensive maintenance and support services ensure a worry-free and safe user experience.
View the RNKJ garbage compactor series today and get a quote! We offer sales and service for garbage compactors.
