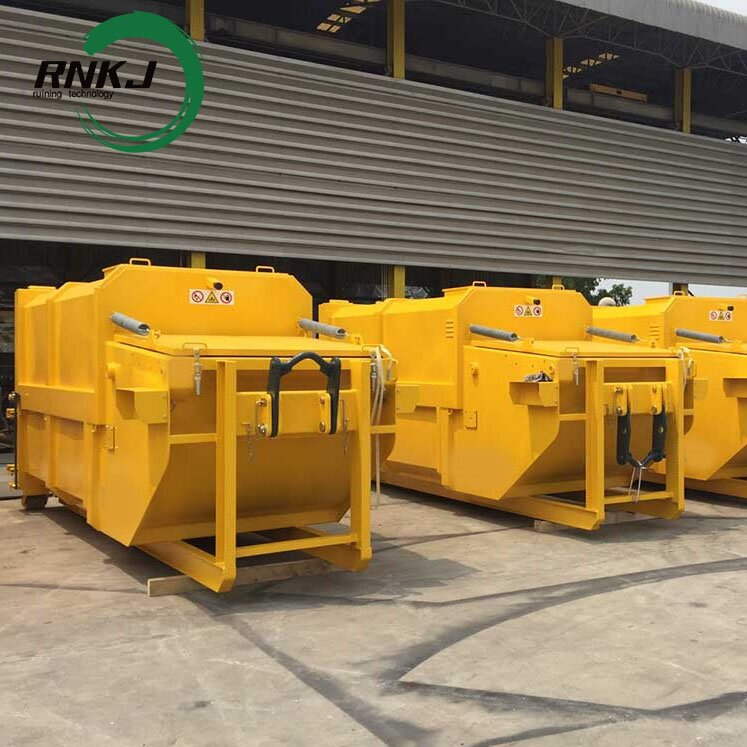

The wet waste compactor is a specialized compression device designed specifically for waste with high moisture content. It integrates waste collection, hydraulic compression, and sealed storage into one unit. Through mechanical force, it compresses loose wet waste into high-density blocks, while simultaneously achieving efficient separation and collection of leachate. Its core value lies in solving the problems of large volume, easy decomposition and odor of wet waste, and high transportation costs, making it one of the key pieces of equipment for the back-end processing of waste sorting.
Product Advantage
Improved space utilization: Compression ratios can reach over 3:1, significantly reducing the number of waste transfers.
Reduced operating costs: Taking a transfer station processing 50 tons of wet waste per day as an example, compression reduces transportation frequency by 60%, directly lowering fuel and labor costs by approximately 80%.
Outstanding environmental friendliness: The fully sealed design allows for 100% collection of leachate, preventing secondary pollution of soil and water bodies while reducing odor diffusion.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
The Wet Refuse Garbage Compactor has the core functions of volume reduction, dehydration and quality improvement. It is widely used at the source of wet waste generation, in the intermediate transfer process, and at the final treatment plants.
Product Operate Guide
Material Input: Wet waste enters the compression chamber via a tipping mechanism or hopper.
Hydraulic Compression: The pressure head pushes the waste, causing the water to separate through the perforated walls of the compression chamber and flow into the bottom collection tank; the solids are compacted into dense blocks.
Storage and Transfer: The compressed waste is stored in a sealed compartment. When the preset capacity is reached, it is transferred to the treatment plant by a hooklift truck, without touching the ground, thus avoiding secondary pollution.
Product Features
Waterproof and Sealing Technology: The main body of the equipment adopts a waterproof structure, and the bottom collection tank can hold more than 200 liters of leachate. It has passed water depth testing to ensure no leakage.
High-Efficiency Compression System: Equipped with a compaction head or horizontal hydraulic head, the pressure can reach over 35 tons. Optimized for the fiber and moisture characteristics of wet waste, the compression density is stable at 0.8-1.2 tons/cubic meter.
Intelligent Control: Utilizes a PLC control system and touch panel, supporting remote monitoring of compression progress and fault warnings. The operation process is simplified, and independent operation can be achieved after half a day of training.
Flexible Adaptability: Adopting a modular design, it can adapt to different sites and supports vehicle-mounted mobility, suitable for emergency waste disposal scenarios.
Applications
Urban and Rural Sanitation: Wet waste transfer stations in communities and villages, especially suitable for areas with limited land and far from sewage treatment plants.
Commercial and Industrial Scenarios: Organic waste treatment in large farmers' markets, hotel kitchens, and food processing plants.
Emergency and Special Scenarios: Temporary disposal of garbage pile-ups during peak holiday periods, after typhoons and other disasters, and sealed compression of medical wet waste.
We have the design that will help you meet your challenges for waste compaction.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
The wet waste compactor is a specialized compression device designed specifically for waste with high moisture content. It integrates waste collection, hydraulic compression, and sealed storage into one unit. Through mechanical force, it compresses loose wet waste into high-density blocks, while simultaneously achieving efficient separation and collection of leachate. Its core value lies in solving the problems of large volume, easy decomposition and odor of wet waste, and high transportation costs, making it one of the key pieces of equipment for the back-end processing of waste sorting.
Product Advantage
Improved space utilization: Compression ratios can reach over 3:1, significantly reducing the number of waste transfers.
Reduced operating costs: Taking a transfer station processing 50 tons of wet waste per day as an example, compression reduces transportation frequency by 60%, directly lowering fuel and labor costs by approximately 80%.
Outstanding environmental friendliness: The fully sealed design allows for 100% collection of leachate, preventing secondary pollution of soil and water bodies while reducing odor diffusion.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product Uses
The Wet Refuse Garbage Compactor has the core functions of volume reduction, dehydration and quality improvement. It is widely used at the source of wet waste generation, in the intermediate transfer process, and at the final treatment plants.
Product Operate Guide
Material Input: Wet waste enters the compression chamber via a tipping mechanism or hopper.
Hydraulic Compression: The pressure head pushes the waste, causing the water to separate through the perforated walls of the compression chamber and flow into the bottom collection tank; the solids are compacted into dense blocks.
Storage and Transfer: The compressed waste is stored in a sealed compartment. When the preset capacity is reached, it is transferred to the treatment plant by a hooklift truck, without touching the ground, thus avoiding secondary pollution.
Product Features
Waterproof and Sealing Technology: The main body of the equipment adopts a waterproof structure, and the bottom collection tank can hold more than 200 liters of leachate. It has passed water depth testing to ensure no leakage.
High-Efficiency Compression System: Equipped with a compaction head or horizontal hydraulic head, the pressure can reach over 35 tons. Optimized for the fiber and moisture characteristics of wet waste, the compression density is stable at 0.8-1.2 tons/cubic meter.
Intelligent Control: Utilizes a PLC control system and touch panel, supporting remote monitoring of compression progress and fault warnings. The operation process is simplified, and independent operation can be achieved after half a day of training.
Flexible Adaptability: Adopting a modular design, it can adapt to different sites and supports vehicle-mounted mobility, suitable for emergency waste disposal scenarios.
Applications
Urban and Rural Sanitation: Wet waste transfer stations in communities and villages, especially suitable for areas with limited land and far from sewage treatment plants.
Commercial and Industrial Scenarios: Organic waste treatment in large farmers' markets, hotel kitchens, and food processing plants.
Emergency and Special Scenarios: Temporary disposal of garbage pile-ups during peak holiday periods, after typhoons and other disasters, and sealed compression of medical wet waste.
We have the design that will help you meet your challenges for waste compaction.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
