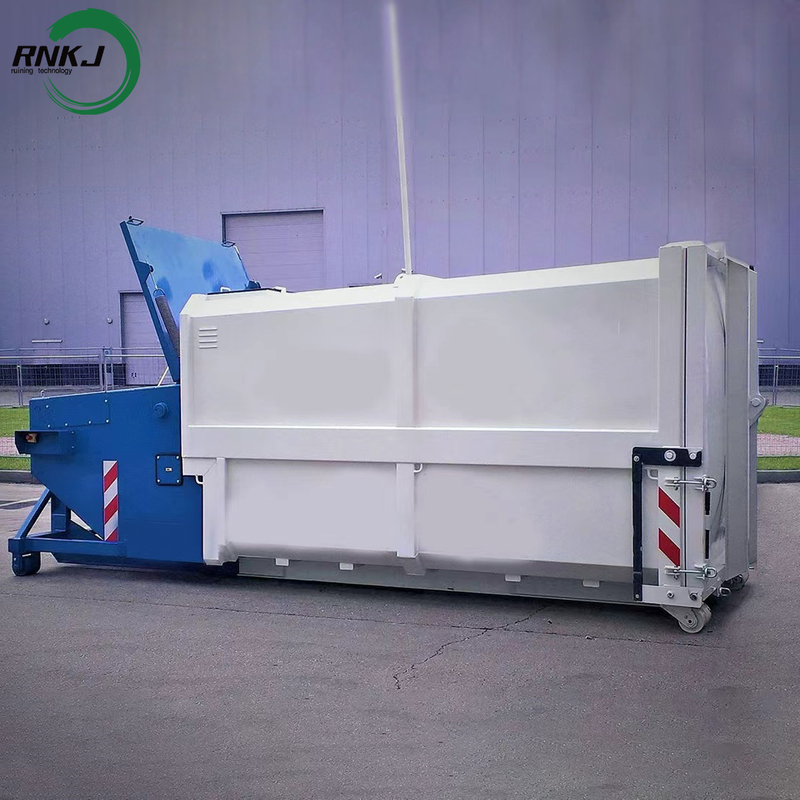

Wet trash compaction station is a specialized equipment designed specifically for handling high moisture content organic waste, such as kitchen waste, vegetable waste, and food waste. It uses hydraulic pressure to compress and reduce the volume of wet garbage and also performs dehydration treatment, significantly reducing its volume and lowering its moisture content. This makes it easier for subsequent collection, transportation, and processing.
Wet trash is characterized by high moisture content and is highly susceptible to decomposition. For this reason, our wet trash compaction stations are purpose-built and optimized based on standard compactors, featuring four core enhancements:
Anti-Corrosion & Wear Resistance
All components in direct contact with waste are coated with wear-resistant materials, effectively resisting acid-alkali corrosion and abrasion from waste materials.
Integrated Dewatering
Selected models are equipped with screw press or filter screen structures, which separate leachate during the compaction process. This reduces secondary pollution during waste transportation and subsequent treatment.
Sealed Odor Control
Feed inlets and compaction chambers are fitted with sealing rubber strips and negative pressure odor extraction systems, effectively containing odor dispersion.
Intelligent Control
Pressure and humidity sensors automatically adjust compaction force, preventing inefficient compaction caused by excessive moisture content.
Wet Trash Compaction Station are specifically designed to process waste containing large amounts of liquid residue.
Advantages of Wet Trash Compaction StationTargeted structural design: Equipped with corrosion-resistant cavities and components to withstand the corrosiveness of wet waste; equipped with dedicated drainage holes and collection devices to quickly separate and extract the sewage.
High-efficiency compression and dehydration: The compression ratio can typically reach 3:1, significantly reducing the volume of waste; the dehydration rate can reach 40%-60%, reducing the weight of waste and transportation costs.
Environmental-friendly sealing design: Utilizes sealed cavities and odor-absorbing systems to prevent the spread of garbage odors and leakage of leachate, reducing secondary pollution.
Working PrincipleFeed stage: Wet waste enters the compaction container through the feed opening.
Compression and dehydration: The hydraulic system drives the pressing plate or screw mechanism to apply high pressure, forcing the pores between the waste particles to shrink and simultaneously extracting excess moisture.
Liquid collection: The extracted filtrate is collected through the drainage system and can be connected to the sewage treatment system.
Compaction and shaping: The waste is compressed into high-density blocks or cakes.
Transport stage: The compacted waste is transported to the waste treatment plant by the compaction machine in conjunction with the articulated truck, facilitating subsequent processing.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
FeatureMaterial selection: The part in contact with garbage is coated with a corrosion-resistant layer to prevent corrosion and the penetration of odors.
Sealing system: Fully sealed design, preventing the leakage of foul odors and the dripping of leachate, in line with environmental protection requirements.
Drainage design: Multi-layer filtration drainage system, enhancing dehydration efficiency and reducing the risk of leachate contamination.
Automation control: PLC control system, which enables automatic feeding, compression, drainage and discharging, reducing labor costs.
Safety protection: Overload protection, emergency stop and other safety devices ensure operational safety.
Maintainability: Modular design, key components can be easily disassembled and replaced, extending the service life of the equipment.
Application ScenariosCommercial catering: Restaurants, hotels, chain catering enterprises, handling food waste
Retail industry: Fresh food sections of supermarkets, farmers' markets, handling vegetable waste, fruit scraps
Food processing: Food factories, slaughterhouses, handling organic waste from the production process
Public institutions: Schools, hospitals, unit canteens, handling kitchen waste generated from collective meals
Waste management system: City waste transfer stations, wet waste treatment centers, serving as front-end pre-treatment equipment
Community property management: Residential communities, used for centralized collection of residents' food waste
We have the design that will help you meet your challenges for waste compaction.
