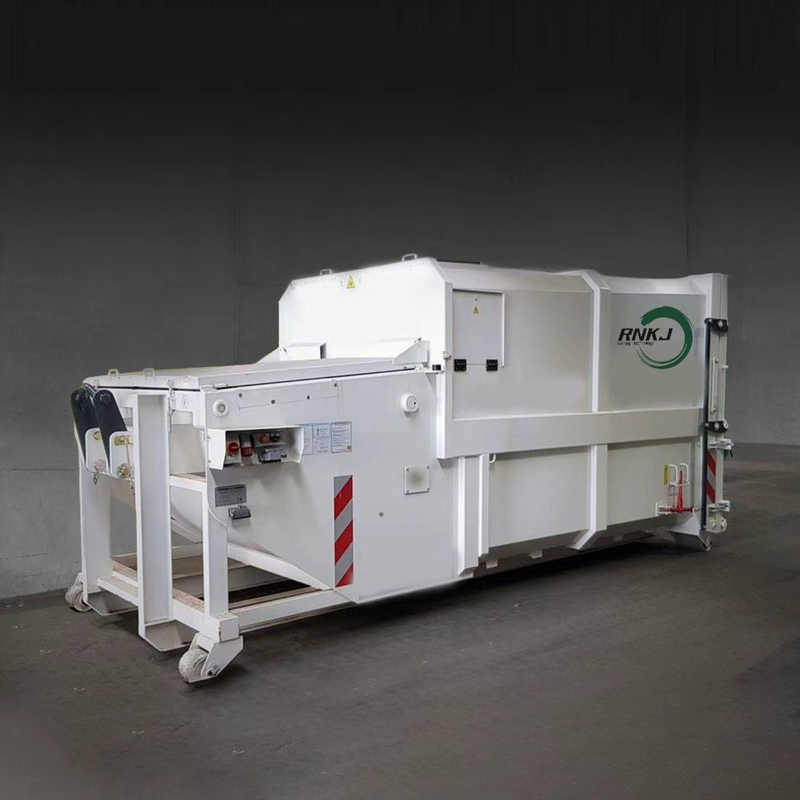

Wet Garbage Compaction Station is a specialized mechanical device designed specifically for handling wet garbage, food waste, kitchen waste, and organic waste that is prone to decomposition. Its core mechanism involves applying high pressure through hydraulic and other mechanical power to compress and squeeze the wet garbage, extracting the moisture and air within it and significantly reducing its volume. The device also features a sealed and leak-proof design to prevent odors, and the processed wet garbage is in a block-like or compacted state, making it convenient for subsequent storage, transportation, and resource recovery.
Wet Garbage Compaction Station Solutions
Wet garbage is high in moisture and prone to decomposition, so wet garbage compaction station are purpose-optimized from standard compactors with four core improvements:
Anti-corrosion & wear resistance: Waste-contacting components are coated with wear-resistant materials to withstand acid-alkali corrosion and waste abrasion.
Integrated dewatering: Screw press/filter screen structures in select models separate leachate during compaction, reducing secondary pollution in transit and treatment.
Sealed odor control: Sealing rubber strips and negative pressure odor extraction systems at the feed inlet and compaction chamber block odor spread.
Intelligent control: Pressure and humidity sensors auto-adjust compaction force to avoid poor results from excess moisture.
Wet Garbage Compaction Station are specifically designed to process waste containing large amounts of liquid residue.
What are the advantages of the Wet Garbage Compaction Station?
High sealing performance: To prevent the leakage of wastewater and the emission of odors from wet garbage, the wet garbage compactor usually adopts a sealed design.
High compression ratio: It can significantly reduce the volume of wet waste, with a volume reduction ratio of up to 3:1 to 8:1 or even higher. This effectively improves transportation and storage efficiency and reduces processing costs.
Drainage function: Through the filter net at the bottom of the box and the sewage collection tank, the moisture in the wet waste can be squeezed out and collected, making it convenient for subsequent sewage treatment.
Functionalities and Uses
Volume Reduction: Through high-pressure compression, the moisture content of wet waste is partially squeezed out, reducing the volume by 50% to 70%, thereby lowering transportation and storage costs.
Initial Dewatering: The separated leachate can be collected and treated separately, reducing odors and secondary pollution.
Pre-treatment Function: It provides convenience for subsequent resource utilization processes such as composting, anaerobic digestion, or incineration.
Technical Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Work Process
Compression system: Hydraulic or mechanical devices apply high pressure to the garbage, squeezing out the moisture.
Separation design: Built-in filters or drainage holes enable the separation of leachate from the solid matter. Some equipment is equipped with centrifugal dehydration function.
Automation control: The model adopts PLC control to achieve automated operations such as feeding, compression, and discharging.
Feature
Significant volume reduction: Through high-pressure compaction, the volume of the garbage is significantly reduced, greatly increasing the loading capacity of the same container or vehicle.
Reduce transportation costs: By reducing the frequency of collection and the number of vehicles required, we can directly save on logistics costs such as fuel, labor, and vehicle wear and tear.
Optimize processing efficiency: Provide a more compact and uniform material for subsequent processing steps, thereby enhancing the efficiency of processing equipment.
Reduce pollution: During the compaction process, some of the leachate is squeezed out and collected centrally. This effectively reduces leakage during transportation and minimizes secondary pollution to the road surface and the environment.
Control odors and diseases: The compressed garbage is dense and reduces contact with air, inhibiting fermentation and the emission of odors. At the same time, it suppresses the breeding of mosquitoes and flies, improving the hygiene conditions both inside the station and in the surrounding areas.
Improve the visual environment: The garbage volume is reduced, the site becomes cleaner, which helps to enhance the overall appearance of the community.
We have the design that will help you meet your challenges for waste compaction.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
