Underground Trash compression station is an ideal space saving, clean and representative waste collection solution. There is only a litter bin located on the ground that is visible to the user, other components are hidden under the ground. Underground Trash compression station is lifted and lowered back to be hidden under the ground mechanically with a help of a multi lift system of the emptying truck.
Product Advantage
New Design
The system adopts the internationally advanced fully enclosed floor layout with a beautiful appearance. It’s convenient and efficient for users to dump wastes.
Multiple choices of feeding port are available, such as hoppers, flipping buckets and dumping ports for large wastes, which are both suitable for manual and vehicles.
The system is lifted steadily with four-cylinder lifting and has good waterproof performance with high strength thick steel sheet as outer frame. Less infrastructure investment and no extra installation and commissioning is required.

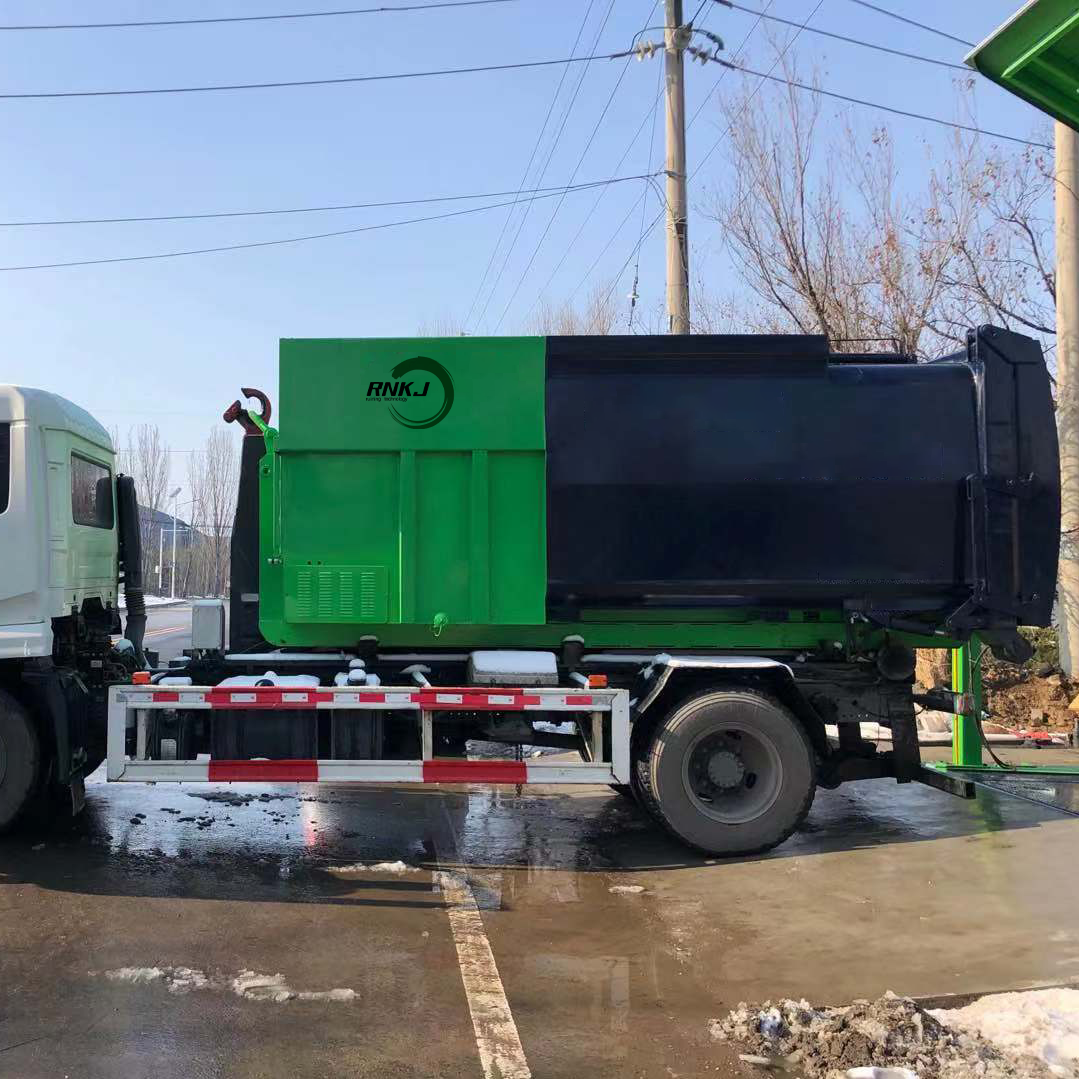

The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Muitiple Functions
The system is equipped with automatic fire fighting, deodorization, ventilation and automatic clean facilities. Spray effecitvely reduces odor and disinfects, whose time and frenquency can be set up. High pressure water gun can rinse the surface of the tank and floor.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

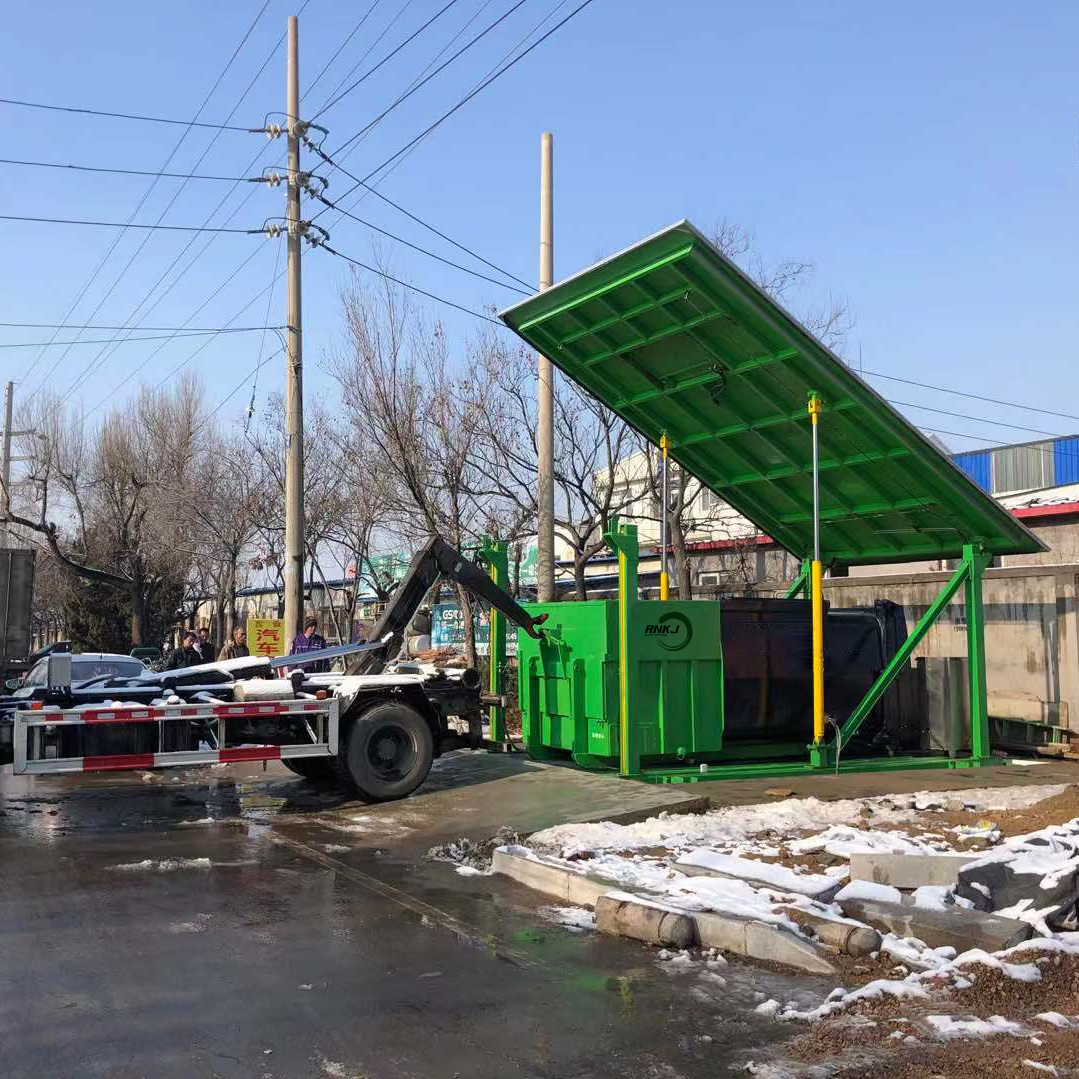

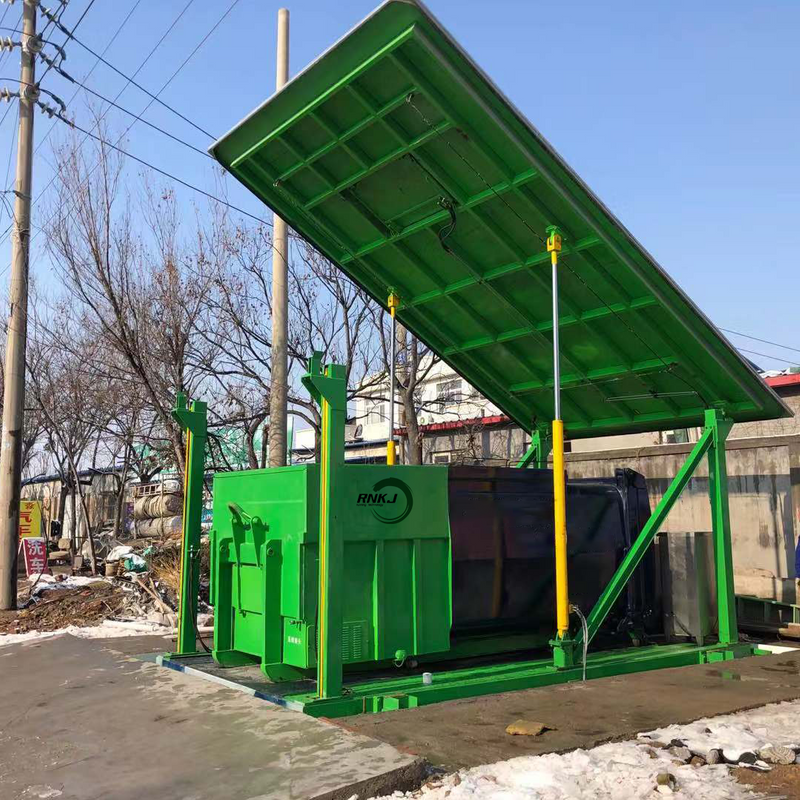

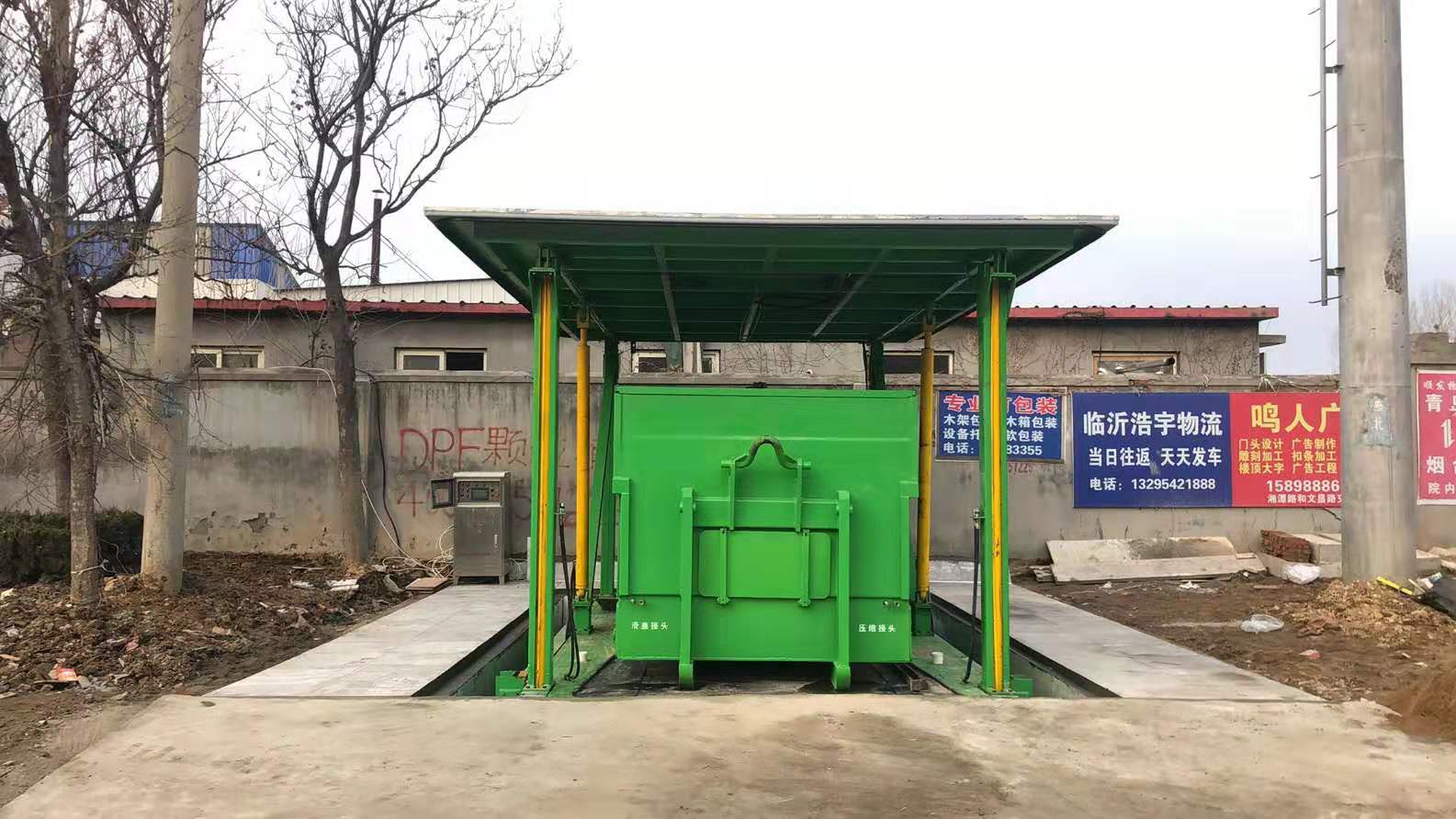

Lifting mode

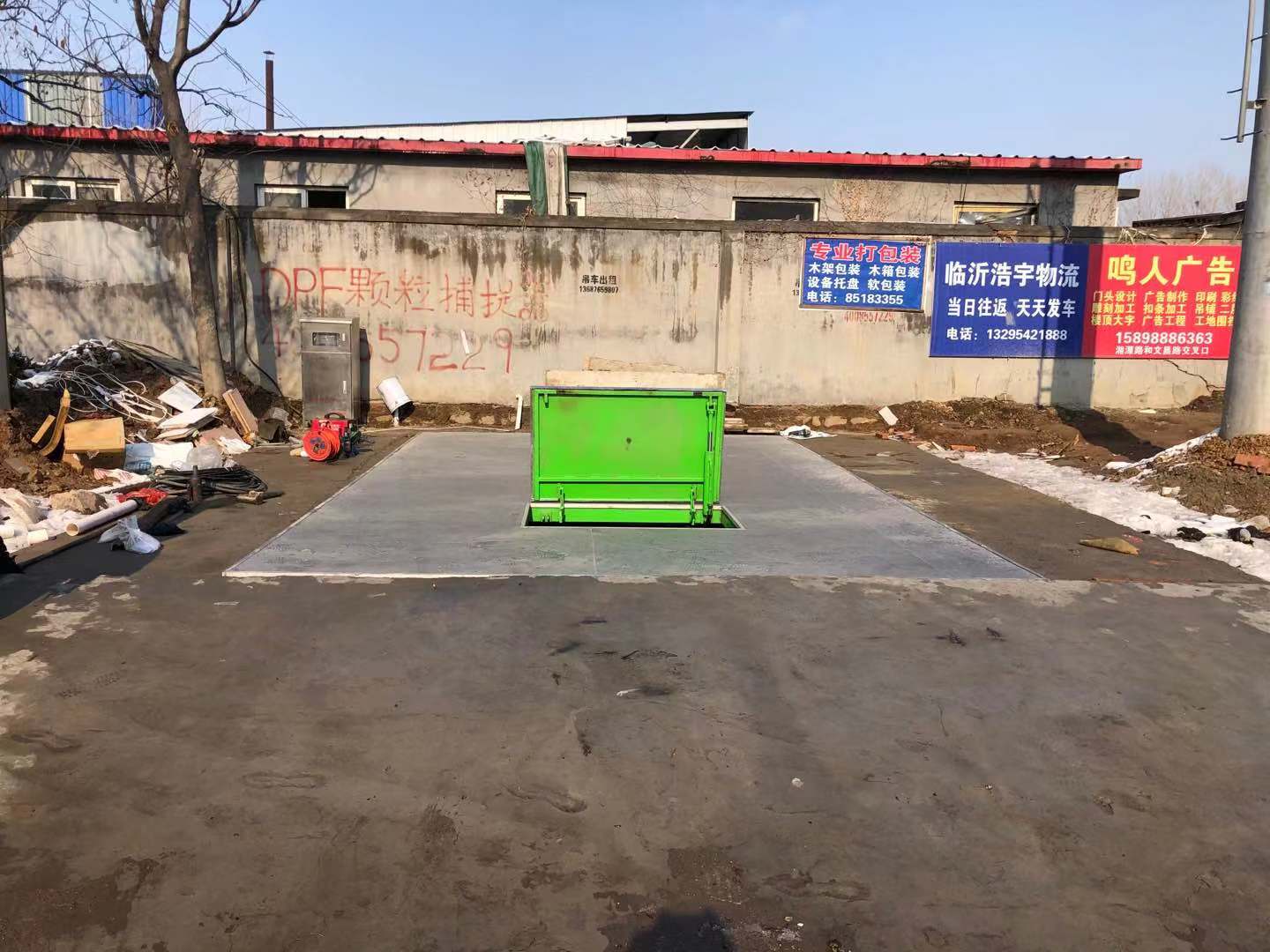

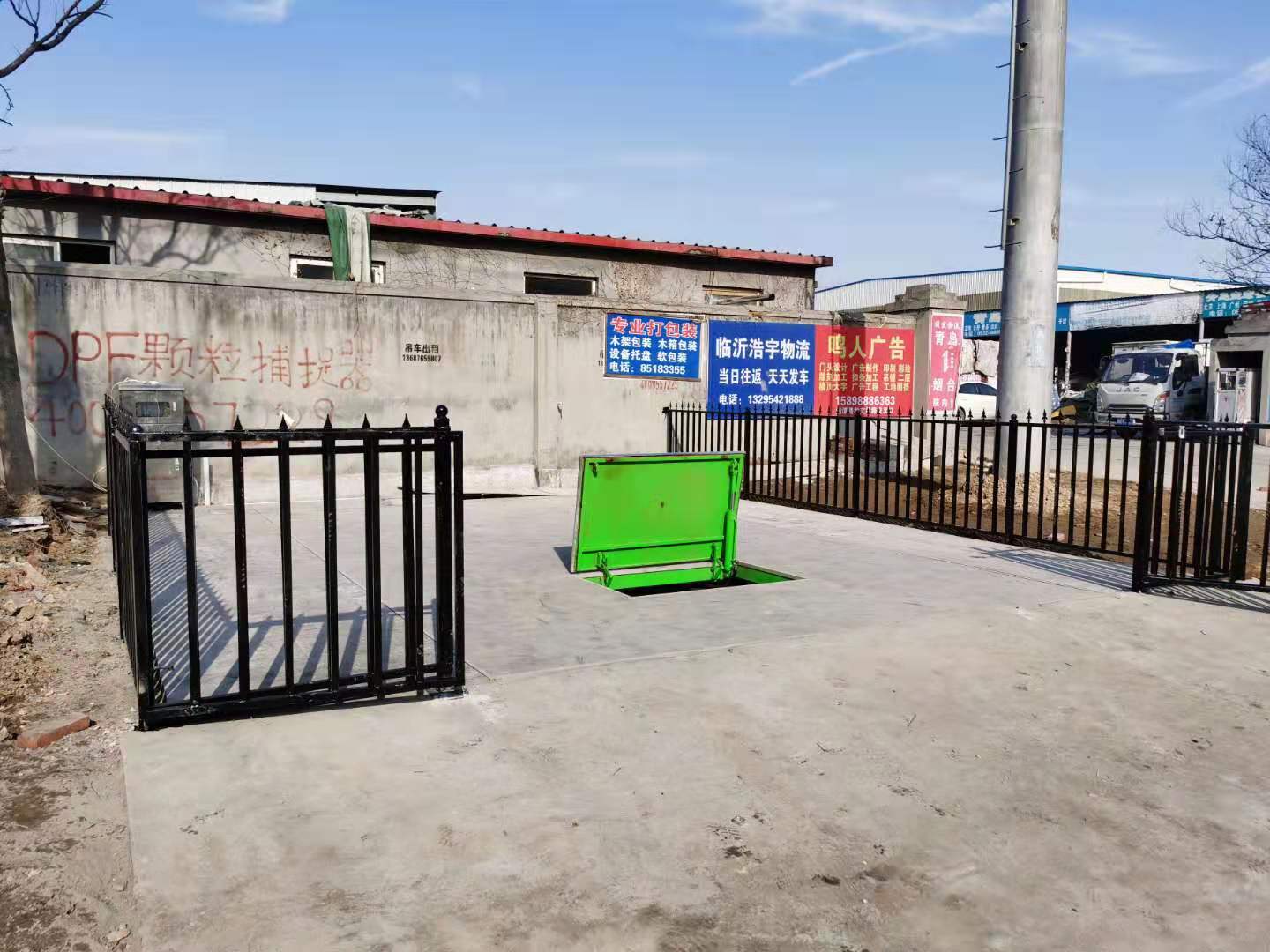

Landing mode
Product Uses
Urban communities: can be installed near urban residential areas and apartment buildings to collect various types of garbage generated by residents in their daily lives, such as kitchen waste, waste paper, plastic bottles, etc. Compress and treat these garbage in a timely manner to reduce the space occupied by garbage, reduce the frequency of garbage removal, keep the community environment clean and hygienic, and avoid garbage accumulation to produce odor and breed bacteria.
Commercial centers: In crowded commercial areas such as shopping malls, shopping centers, and commercial streets, a large amount of commercial garbage, including packaging materials, food residues, etc., is generated every day. Underground garbage compactors can quickly process these garbage, prevent garbage from accumulating in commercial areas, and maintain a good business environment and image.
Public institutions: suitable for public institutions such as schools, hospitals, and government agencies. A large amount of waste paper and meal waste generated by students in schools, medical waste in hospitals (under the treatment process that complies with relevant regulations), and office waste in government agencies can all be effectively treated by underground garbage compactors to improve the environmental sanitation level of public institutions.
Transportation hubs: Airports, railway stations, bus stations and other transportation hubs have large passenger flow and generate a lot of garbage. Underground garbage compactors can promptly compress various types of garbage discarded by passengers, keep transportation hubs clean and hygienic, and provide passengers with a good travel environment.
Product Features
1. Significantly reduce capacity and enhance transportation efficiency
The core function of the garbage compression station is to apply pressure to loose garbage through hydraulic or mechanical devices, reducing its volume to 1/3 - 1/5 of the original size.
2. Strengthen sealing and reduce secondary pollution
The compression station is usually equipped with a fully enclosed compression chamber and a sealed garbage storage bin. Compared to traditional open garbage collection points, it can block secondary pollution at the source;
Control odor dispersion: During the compression process, the garbage is tightly wrapped, reducing the release of volatile odors, and some compression stations are equipped with odor removal systems to further reduce the impact on the surrounding environment;
Prevent leakage of leachate: The leachate generated during compression will be collected through dedicated pipelines to the sewage treatment system, avoiding direct leakage of leachate into the soil, polluting groundwater, or scattering on the road surface;
Reduce mosquito breeding: The sealed environment blocks direct contact between garbage and the outside environment, reducing the breeding conditions for disease vectors such as flies and mosquitoes, and improving the hygiene level in the surrounding area.
3. Save space and adapt to urban land resources
Urban land resources are scarce, and garbage compression stations have significant advantages in space utilization:
Small footprint: Small compression stations occupy only 10-20 square meters and can be flexibly set up in compact areas such as residential areas and commercial streets, without the need for large-scale land acquisition;
Large storage capacity: Compressed garbage has a high density, and the same volume of storage bins can hold several times more than loose garbage, reducing the accumulation time of garbage at collection points and avoiding the temporary predicament of "garbage encirclement".
4. Reduce the total operating costs over the long term
From a long-term operation perspective, garbage compression stations can reduce transportation costs, processing costs, and management costs through capacity reduction and efficient characteristics.
5. Improve the standardization and safety of garbage collection and transportation
Garbage compression stations improve the standardization and safety of garbage handling through standardized operation procedures, especially for mixed garbage or special scenarios: reducing the risk of garbage scattering, lowering the risk of human contact, and adapting to the needs of garbage classification.
CUSTOM DROP
According to customer needs, we can choose a variety of feeding port modes such as garbage sorting and dumping port, bucket tipping device, large garbage opening device, etc.,
CUSTOM FLOOR MATERIAL
The surface material can be arranged according to your surroundings, hiding the location of the compression station, ensuring smooth roads and achieving beautiful result.
Our Advantages
The system adopts the internationally advanced fully enclosed floor layout with a beautiful appearance. It’s convenient and efficient for users to dump wastes.
Multiple choices of feeding port are available, such as hoppers, flipping buckets and dumping ports for large wastes, which are both suitable for manual and vehicles.
The system is lifted steadily with four-cylinder lifting and has good waterproof performance with high strength thick steel sheet as outer frame. Less infrastructure investment and no extra installation and commissioning is required.
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.
Muitiple Functions
The system is equipped with automatic fire fighting, deodorization, ventilation and automatic clean facilities. Spray effecitvely reduces odor and disinfects, whose time and frenquency can be set up. High pressure water gun can rinse the surface of the tank and floor.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
