Underground Garbage Compactor is a state-of-the-art, space-saving waste collection method suitable for any location. It consists of a separate above-ground trash container and a complete underground unit, including a main frame structure and a trash compactor.
Underground Garbage Compactor is a highly efficient waste collection system suitable for storing a wide variety of waste. The underground elevator can be customized to various sizes. Standard models are 10, 17, and 20 cubic meters. An underground trash compactor is a perfect solution for sanitation and waste collection, ideal for large commercial areas and city centers.
Product Advantage
Underground Garbage Compactor adopts an internationally advanced fully enclosed floor-standing layout, integrating the functions of a garbage compression station and garbage classification. It meets the current national requirements for garbage classification and the collection and transportation of large-sized garbage.
Its appearance is beautiful and it has good concealment. Garbage disposal is convenient and efficient, without the need for building construction and saving infrastructure investment. Its structure includes an elevation system, compression box, four-category collection bucket platform, power unit, deodorization system, drainage system, equipment foundation system, etc.
The cover on the elevation platform of this equipment can provide marble, lawn, or colored plastic, etc., corresponding to the surrounding environment according to customer needs, and coexist harmoniously with the surrounding environment.
The volume of the compression box has various options such as 8 cubic, 10 cubic, 12 cubic, 16 cubic, and 18 cubic, which can meet different customer needs.
The accompanying vehicles are the existing dumpable garbage trucks of the sanitation department, and basically do not require separate purchase.
Characteristics
1. Aesthetic Appearance: Underground structure, module design and no building require.
2. Wide Scope of Application: Because of no building require that is very easy for outdoor position choosing such as on the road side, the corners of the street, the ends of the pavement and the spaces between buildings.
3. Low Transportation Cost: High compression stress and 3: 1 compression ratio which can be significantly reduce the transportation cost.
4. Excellent Compactability: Being adopt with PLC programming controller and combined with the dewatering and air exhausting technology on the both side and bottom of storage tank. It can be remarkably reduce the moisture content and increase garbage density.
5. Six Patents: Adopt the patented technology of "fore-and-aft move while lifting" to ensure good connection between garbage station and transportation vehicle and avoid the garbage dropped into foundation pit.
6. Friendly Environmental Applicability: The facility compresses the garbage underground and adopts with atomizing deodorant spray technology of deodorization and dedusting, sewage drainage technology to guarantee the friendly environmental applicability.
7. Reliability: The facility combined with stable PLC auto-controller and electro-hydraulic controlling system and high-performance hardwares to ensure its reliability and easy-to-operate concept.
8. Long life-time: All structural parts are treated with shot-blasting, rust removing, painting with marine-use high anticorrosive heavy protection paint, with international brands as Nobel or COSCO. The whole facility has good performance for anti-corrosibility and long service life.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

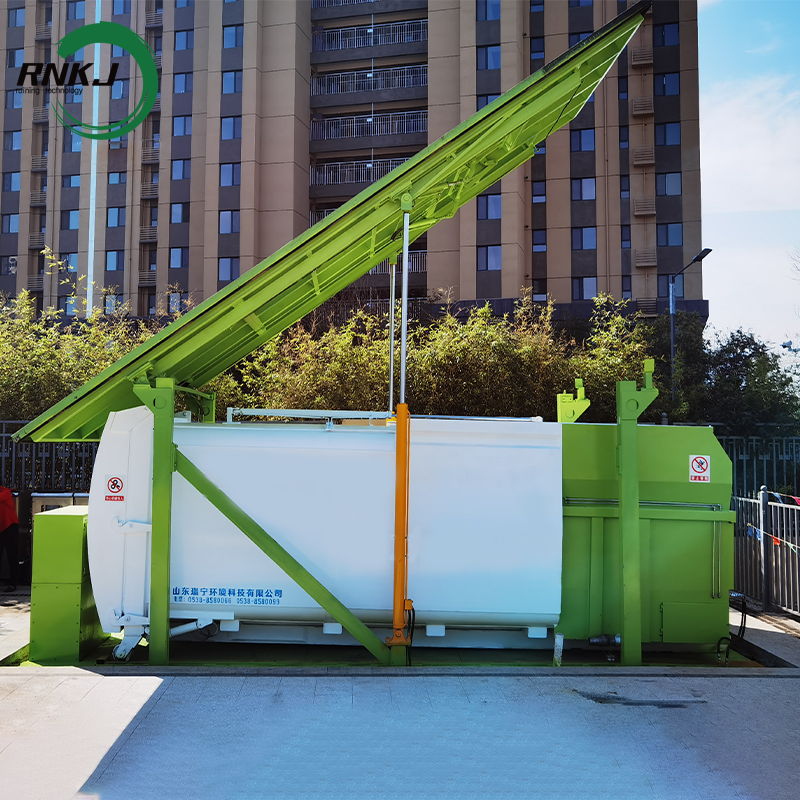

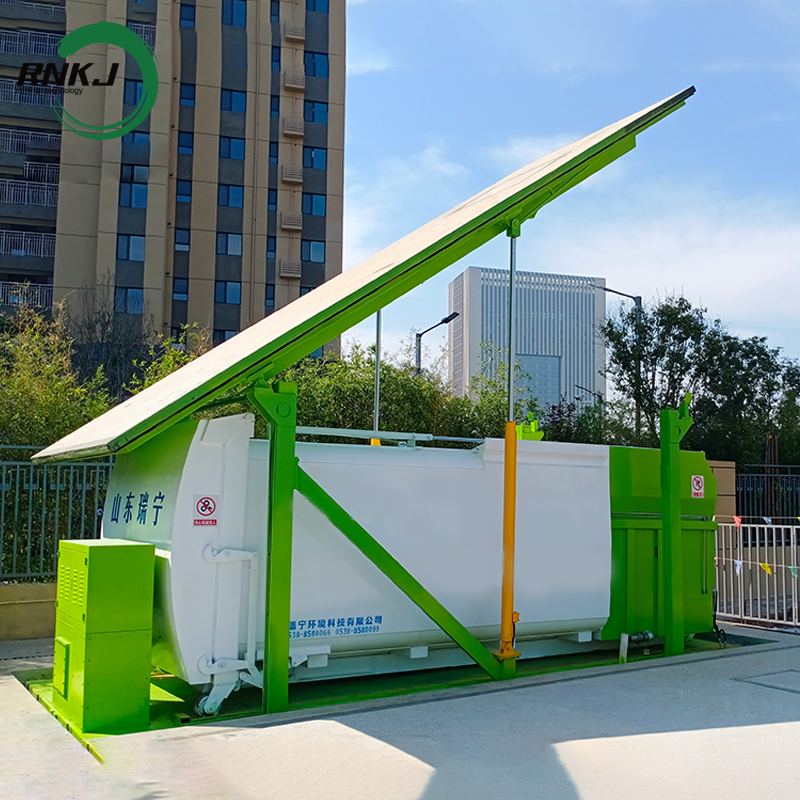

Lifting mode

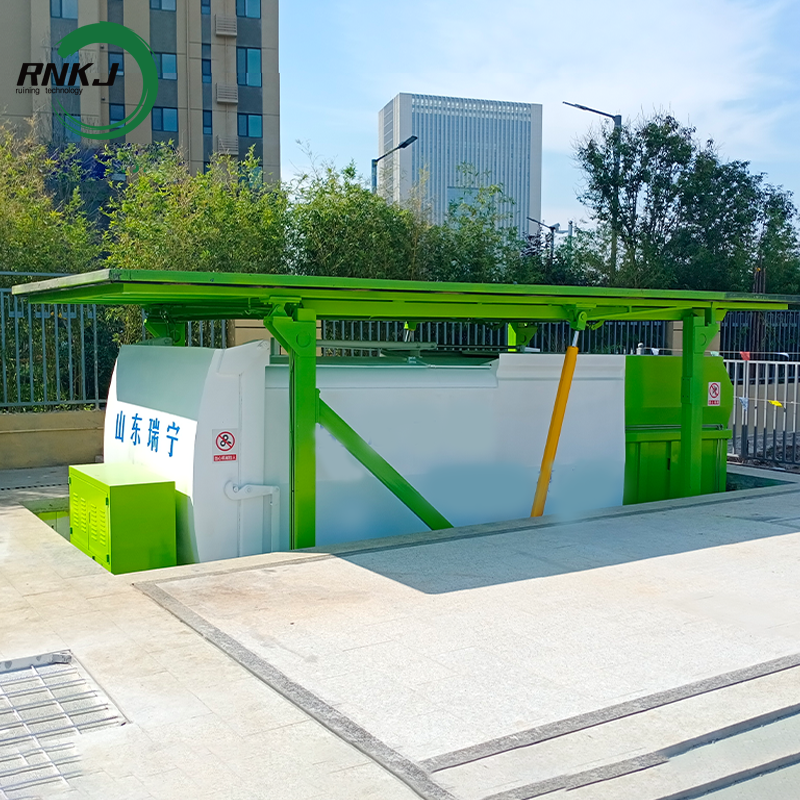

Landing mode
Product Uses
Underground Garbage Transfer Station
This is the most crucial application scenario. In areas with scarce ground space, such as urban centers and high-density residential areas, underground garbage transfer stations will be constructed. The compactor is installed in the underground operation area, where the collected domestic and commercial garbage is compressed and reduced in size. Then, it is transported to the final processing plant. This model can avoid the noise and unpleasant odors from ground-based transfer stations, and at the same time, save ground space.
Large-scale underground commercial complexes / shopping centers
The underground floors of large shopping malls and complexes generate a large amount of packaging waste, catering waste and household waste. By setting up a garbage disposal room underground and equipping it with a compactor, the garbage can be compressed on-site, reducing the transfer process of garbage on the ground and avoiding pollution to the shopping mall environment and passenger flow channels during the garbage transportation process.
Underground transportation hubs
At subway stations, underground high-speed railway stations, and underground passenger hubs, there is an extremely high volume of passenger flow, which continuously generates domestic waste such as food packaging and tissues. Installing underground waste compaction equipment can quickly reduce the volume of waste, preventing the accumulation of waste from occupying underground space and minimizing the interference to the normal operation of the transportation hub caused by frequent waste removal.
Underground industrial parks / storage bases
Some industrial parks or storage bases will plan underground operation areas for storing goods or conducting production support work. As a result, industrial packaging waste, leftover materials, etc. are generated. Underground garbage compactors can compress such garbage at the source, reducing the storage space occupation of the garbage and lowering the cost and frequency of subsequent transportation.
Underground garbage disposal points in high-density residential areas
Many newly-built high-rise residential areas will set up centralized garbage collection points in the underground garages and equip them with small underground garbage compaction machines. After residents place their garbage at the underground locations, the compaction machines directly compress and process it. This not only solves the problem of occupying ground space and disturbing residents at the traditional surface garbage stations, but also improves the efficiency and cleanliness of garbage collection.
Underground venues / supporting areas of public buildings
Underground gymnasiums, underground exhibition halls, underground libraries and other public buildings will generate a certain amount of garbage during operation, and have high requirements for environmental cleanliness. Equipping underground garbage compaction machines can achieve sealed compression treatment of garbage, avoiding the spread of garbage odors and affecting the use of the venues.
Run Process
The equipment is usually placed underground. According to the customer's requirements, various types of loading ports such as garbage classification discharge ports, bucket flipping devices, and large-item garbage opening devices can be selected. This makes it convenient for garbage collection vehicles and cleaning staff to dump the garbage.
The interior of the box is equipped with a compression device, which will compress the garbage inside the box.
When the box is full of garbage, the system will give a prompt, activate the lifting system, raise the equipment to the ground level, and then use the removable garbage truck in the compartment to transport the compressed box to the garbage disposal center.
After dumping the garbage, transport the compressed box to the lowering platform, and then the entire lowering platform will fall underground.
Landing Effect
Lift Effect
Loading Effect
Transit Effec
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
