Provide innovative and cost-effective solutions for modern waste management challenges.In addition to the feature of saving space, this underground compressor also has excellent waste compression technology. By efficiently compressing the waste, it can reduce the volume of the waste, thereby maximizing the capacity of the compressor and reducing the frequency of waste collection. This brings significant cost savings for enterprises and municipal authorities, as the number of required collections is reduced.
Furthermore, our underground compressor is equipped with an advanced information system. This system can perform real-time monitoring, enabling precise waste management and the formulation of maintenance plans. It can provide detailed information on filling levels, collection times, and maintenance requirements, ensuring optimal equipment performance and preventing overflow situations, reducing downtime and improving operational efficiency.
Product Advantage

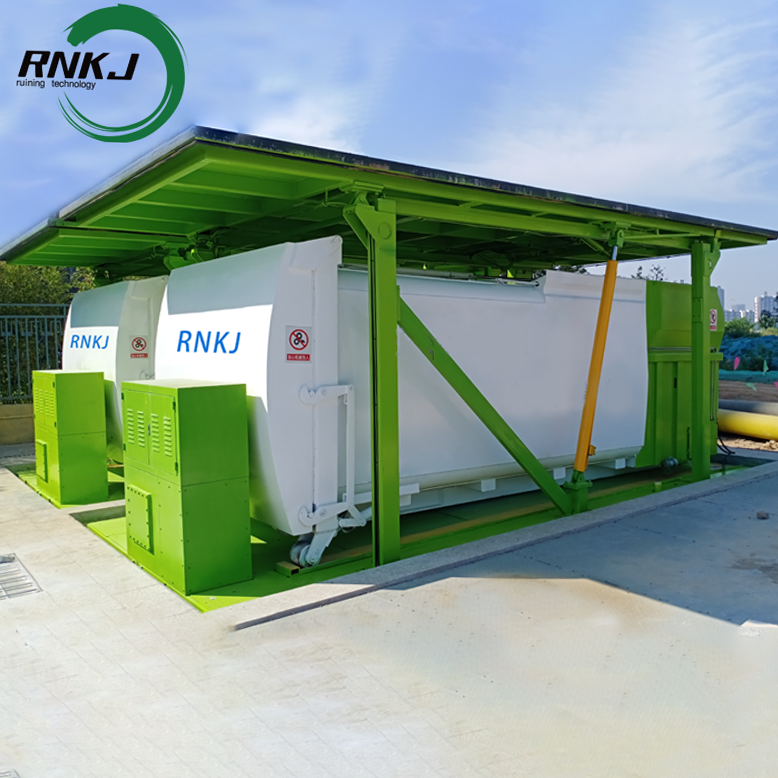

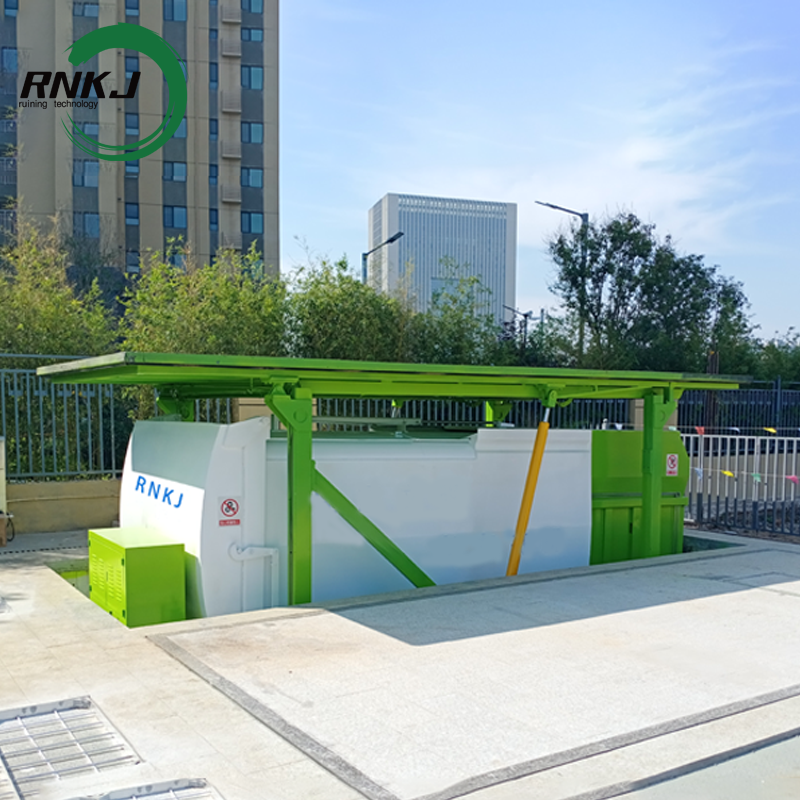

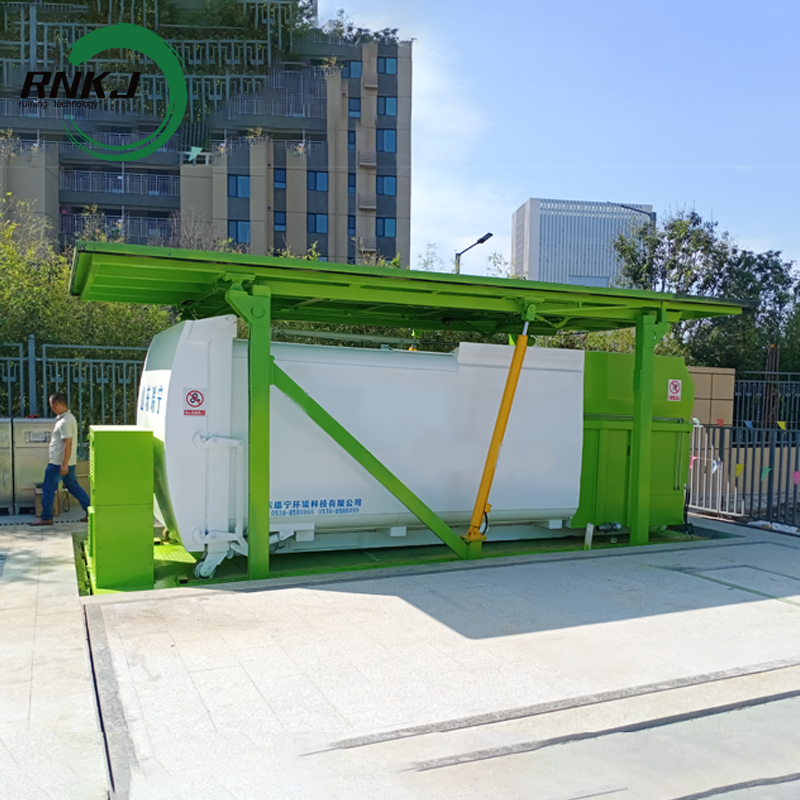

The Underground Garbage Compaction Equipment is not merely a "compression machine", but rather an integrated system that combines garbage collection, sealed storage, powerful compression, and convenient transportation. Its core objective is to: within the limited urban space, through "hidden underground processing", achieve a balance between the efficiency, environmental friendliness, and space utilization of garbage collection.
Characteristics
1. Aesthetic Appearance: Underground structure, module design and no building require.
2. Wide Scope of Application: Because of no building require that is very easy for outdoor position choosing such as on the road side, the corners of the street, the ends of the pavement and the spaces between buildings.
3. Low Transportation Cost: High compression stress and 3: 1 compression ratio which can be significantly reduce the transportation cost.
4. Excellent Compactability: Being adopt with PLC programming controller and combined with the dewatering and air exhausting technology on the both side and bottom of storage tank. It can be remarkably reduce the moisture content and increase garbage density.
5. Six Patents: Adopt the patented technology of "fore-and-aft move while lifting" to ensure good connection between garbage station and transportation vehicle and avoid the garbage dropped into foundation pit.
6. Friendly Environmental Applicability: The facility compresses the garbage underground and adopts with atomizing deodorant spray technology of deodorization and dedusting, sewage drainage technology to guarantee the friendly environmental applicability.
7. Reliability: The facility combined with stable PLC auto-controller and electro-hydraulic controlling system and high-performance hardwares to ensure its reliability and easy-to-operate concept.
8. Long life-time: All structural parts are treated with shot-blasting, rust removing, painting with marine-use high anticorrosive heavy protection paint, with international brands as Nobel or COSCO. The whole facility has good performance for anti-corrosibility and long service life.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Video
Product Effects

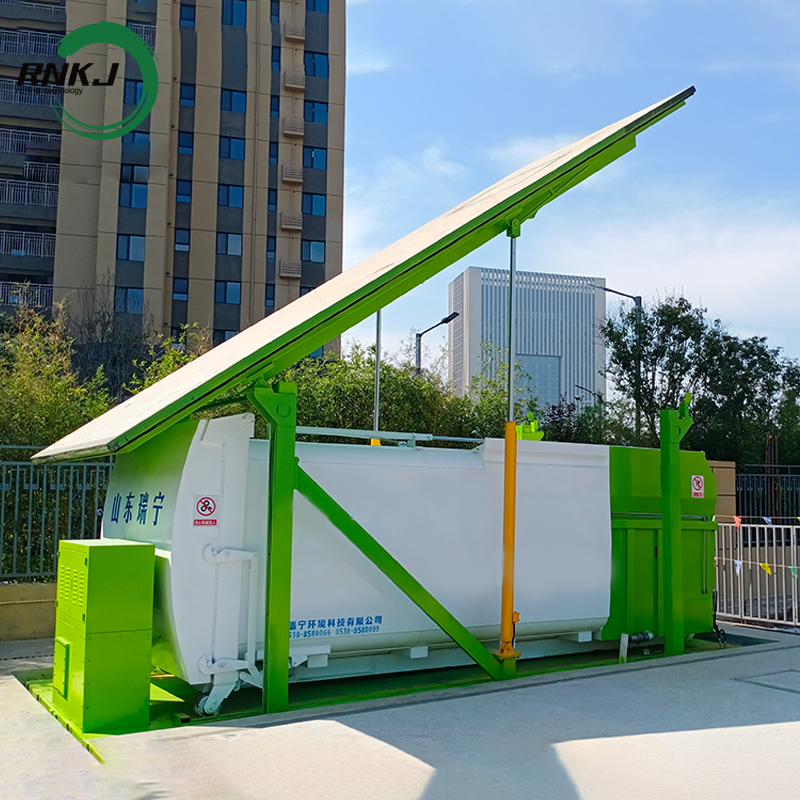

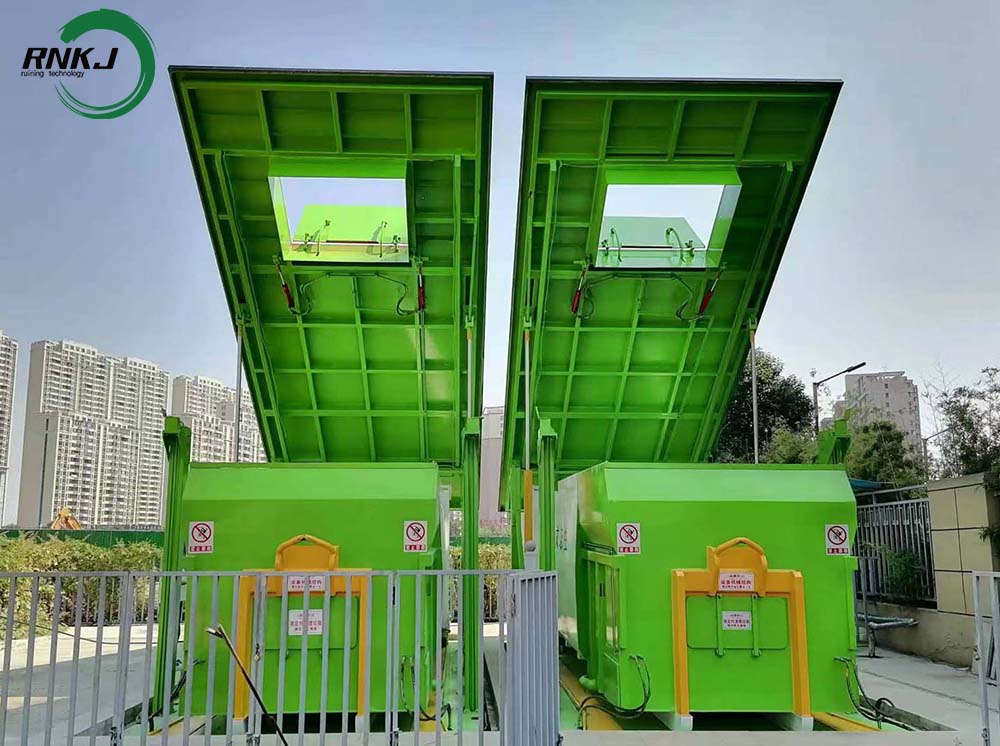

Lifting mode

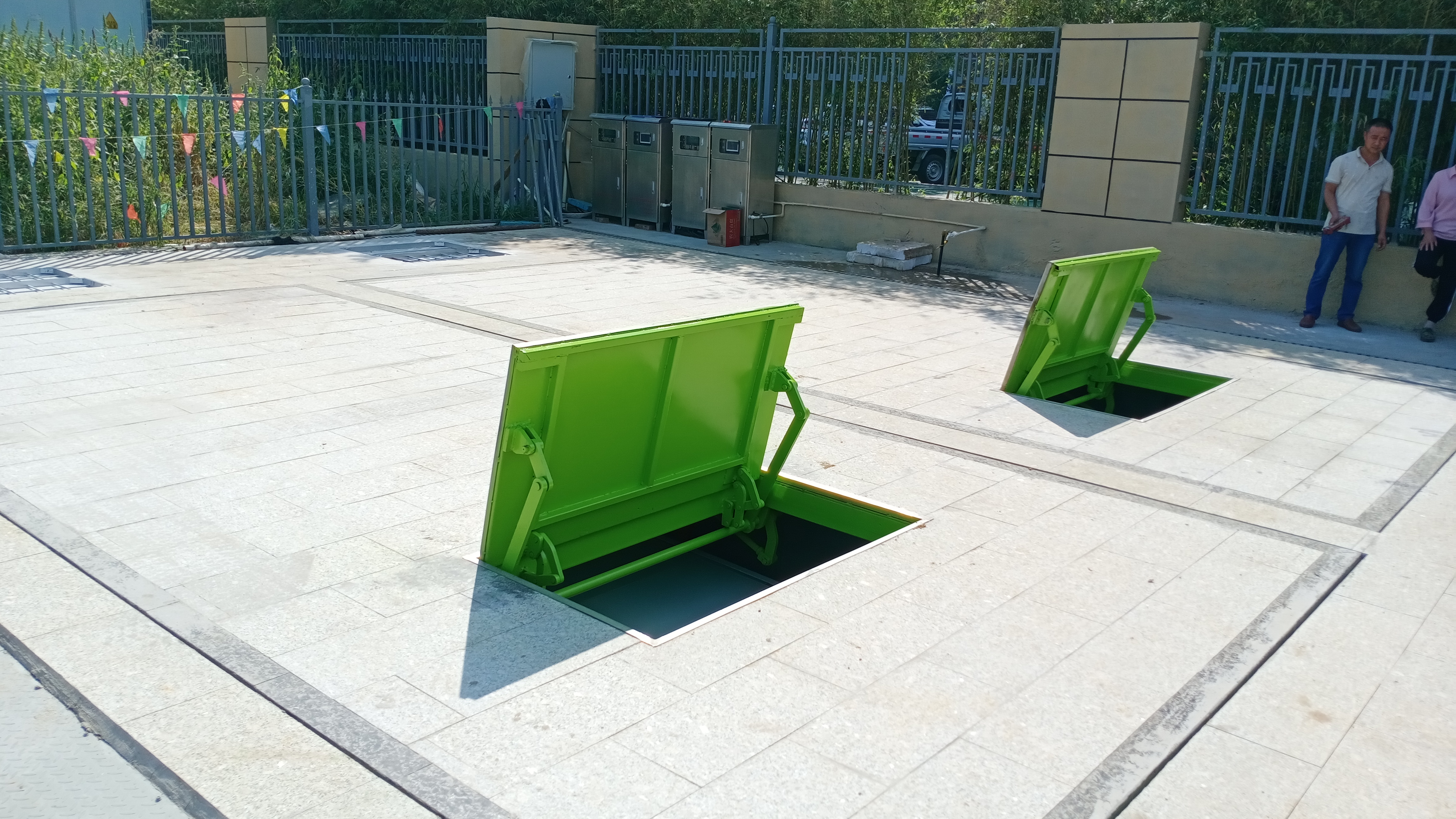

Landing mode
Product Uses
Urban communities: can be installed near urban residential areas and apartment buildings to collect various types of garbage generated by residents in their daily lives, such as kitchen waste, waste paper, plastic bottles, etc. Compress and treat these garbage in a timely manner to reduce the space occupied by garbage, reduce the frequency of garbage removal, keep the community environment clean and hygienic, and avoid garbage accumulation to produce odor and breed bacteria.
Commercial centers: In crowded commercial areas such as shopping malls, shopping centers, and commercial streets, a large amount of commercial garbage, including packaging materials, food residues, etc., is generated every day. Underground garbage compactors can quickly process these garbage, prevent garbage from accumulating in commercial areas, and maintain a good business environment and image.
Public institutions: suitable for public institutions such as schools, hospitals, and government agencies. A large amount of waste paper and meal waste generated by students in schools, medical waste in hospitals (under the treatment process that complies with relevant regulations), and office waste in government agencies can all be effectively treated by underground garbage compactors to improve the environmental sanitation level of public institutions.
Transportation hubs: Airports, railway stations, bus stations and other transportation hubs have large passenger flow and generate a lot of garbage. Underground garbage compactors can promptly compress various types of garbage discarded by passengers, keep transportation hubs clean and hygienic, and provide passengers with a good travel environment.
Run Process
when the box body is full of garbage collection system will be prompted to start the lifting system,the equipment will be raised to the ground level,and then the compressed box body will be compressed with the compartments of the removable garbage truck to transport to the garbage disposal center; after the dumping of the garbage,the compressed box body will be transported back to the elevating platform,and then the platform as a whole fall into the ground.
Landing Effect
Lift Effect
Loading Effect
Transit Effec
Our Advantages
The system is equipped with automatic fire fighting, deodorization, ventilation and automatic clean facilities. Spray effecitvely reduces odor and disinfects, whose time and frenquency can be set up. High pressure water gun can rinse the surface of the tank and floor.
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3. What can you buy from us?
Trash compactor,Underground garbage compactor,Underground collection system,Hook lift bin,Skip bin,Sweeper,sScrubber.
4. What services can we provide?
Customized bins are accepted.Someone will answer your questions at any time, 24 hours online.We will provide pre-sales and after-sales service
5.What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
