Split Garbage Compactor is a device commonly used in garbage disposal. Through the design of separating the "compression host" and the "garbage bin", it can achieve functions such as garbage volume reduction and improved transfer efficiency.
The core advantage of the split design lies in "fixing the main unit and rotating the garbage bins". When one garbage bin is completely filled, it can be directly transported away by a special vehicle. At the same time, a new empty bin can be quickly replaced. The compression unit can continue to operate without stopping. This "non-stop bin replacement" mode completely solves the problem of the integrated compressor needing to stop the entire machine for cleaning and transportation, significantly increasing the daily garbage processing capacity. It is particularly suitable for places with large garbage production and frequent transportation (such as large communities, commercial areas, industrial parks).
Product Advantage

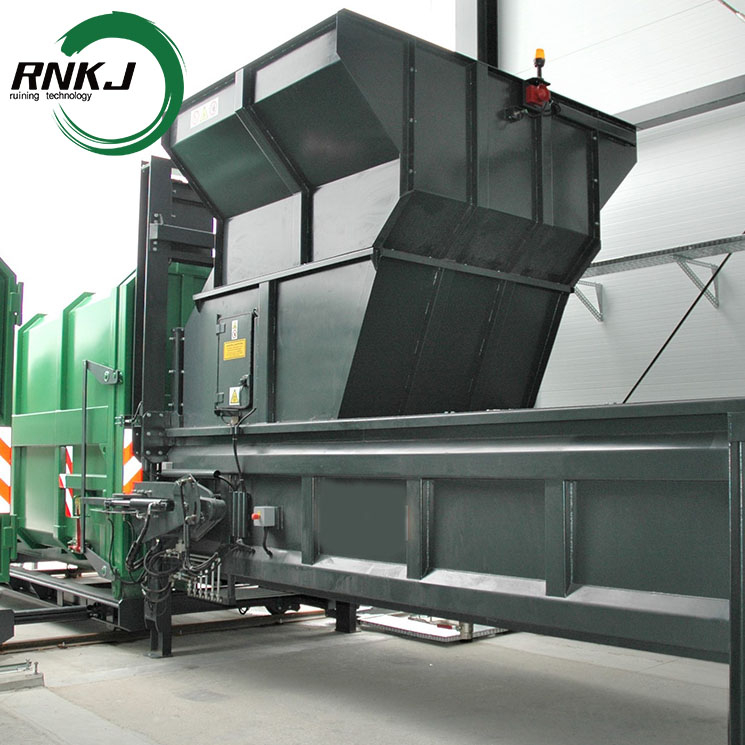

Split Waste Compactor
The core structure features a detachable design for the "compressor" and the "waste transfer container," connected via a quick-connect device.
The working principle utilizes a hydraulic system to drive the compressor head, compressing the waste under high pressure to reduce its volume before transferring it into the transfer container.
It is primarily used for the centralized processing of unsorted or sorted household waste, commercial waste, and industrial solid waste.
Product Parameters
Performance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Features
Flexible Structure: The main unit and transport container are independent, allowing for uninterrupted installation, relocation, and maintenance.
Easy Operation: Supports manual/automatic control; some models are equipped with an intelligent control panel for easy operation.
High Durability: Key components are made of high-strength steel, resistant to wear and corrosion, ensuring a long service life.
Safe and Reliable: Equipped with overload protection and emergency stop devices to reduce operational risks.
Product Uses
Urban and rural sanitation stations: Centralized waste treatment at the township and street levels, connecting to large transfer stations.
Densely populated residential areas: Addressing the issue of land occupied by garbage dumps in densely populated areas such as residential communities and urban villages.
Commercial and office areas: Handling daily commercial waste from shopping malls, office buildings, hotels, etc.
Industrial parks: Processing industrial solid waste (non-hazardous waste), such as packaging waste and scrap materials.
Temporary sites: Construction sites, sports venues, etc., meeting short-term centralized waste treatment needs.
Product Operate Guide
1. Waste Collection and Unloading: Sanitation collection vehicles transport waste scattered across various areas to transfer stations. Using unloading platforms or specialized unloading devices, the waste is poured into the feed hopper of the compactor, completing the initial waste collection.
2. Waste Compaction: Waste enters the compactor from the feed hopper. A hydraulic system drives the press head to forcefully compact the waste, significantly reducing its volume and solidifying it to prevent leakage during transportation.
3. Container Loading: Compacted waste is continuously pushed into modular waste containers until the containers reach their rated loading capacity. The core advantage of the modular design is the separation of the compactor and the container; multiple containers can be reused, ensuring operational continuity.
4. Container Transfer: Fully loaded containers are moved to a storage area for temporary storage via a rail transfer system or trackless tractor, or directly docked with large transfer vehicles.
Finally, the transfer vehicles transport the containers to the waste treatment terminal.
5. Circular Operation: Empty containers are returned to the compression area to prepare for the next round of waste loading; the compression equipment is also reset and enters the next operation cycle, realizing the continuous operation of waste transfer.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
