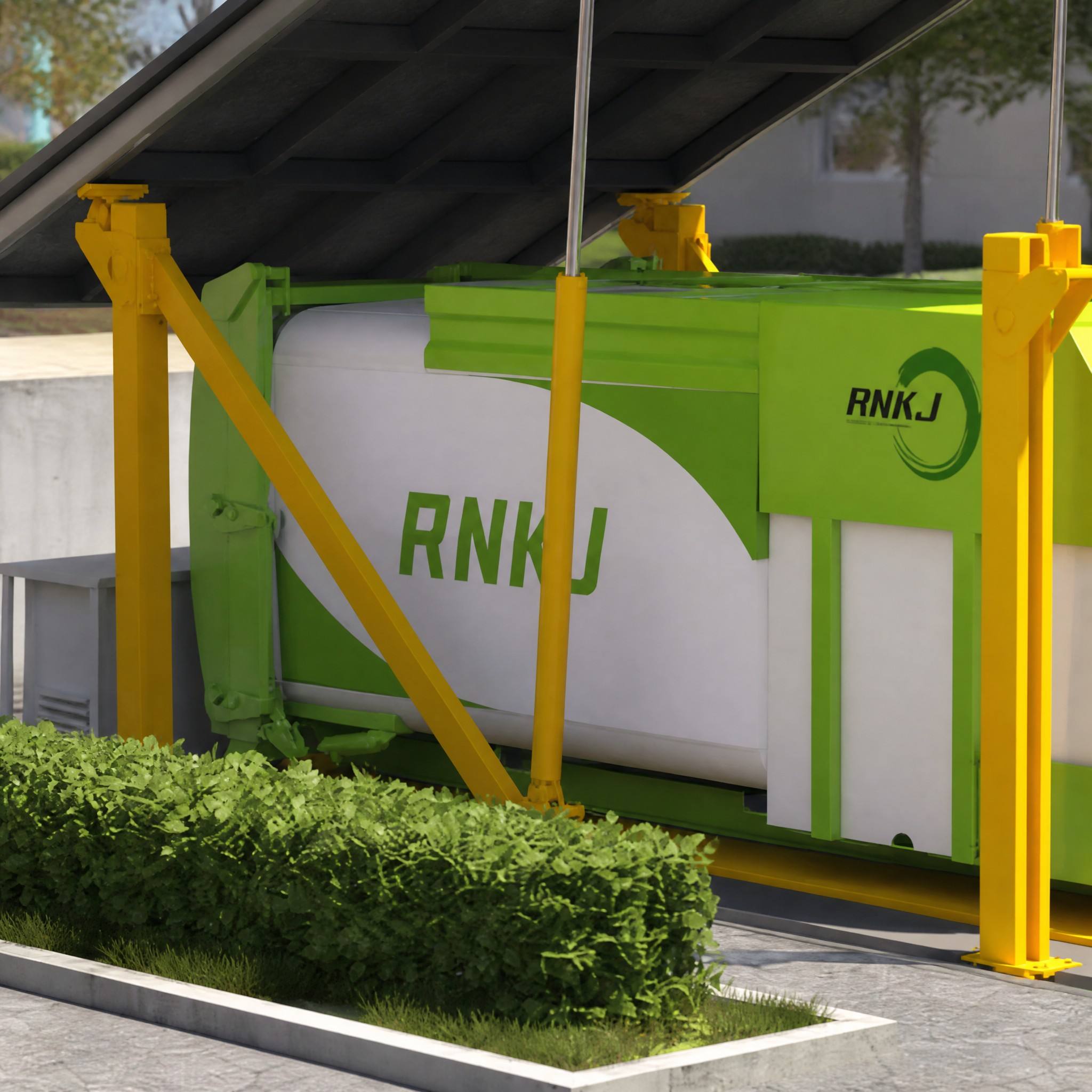

Product OverviewIndustrial Automatic Underground Garbage Compactor with Hydraulic Lifting Platform, also referred to as underground buried hydraulic waste compactor, is an integrated sealed waste collection and compression solution for municipal and industrial waste disposal.As shown in the render image, the compactor container is normally installed beneath ground level inside a concrete pit. When the waste bin reaches full load, the built-in hydraulic lifting platform lifts the entire compactor unit out of the pit to ground height. A standard hook lift truck can directly connect, hoist and transport the whole container to waste treatment facilities without secondary waste transfer.
What Is an Industrial Underground Garbage Compactor?An Industrial Automatic Underground Garbage Compactor with Hydraulic Lifting Platform is an intelligent, self-contained waste collection and compression system installed primarily below ground level. It performs four core functions in a single integrated unit:
Collection — Waste is deposited through above-ground inlets into a sealed underground receiving chamber.
Automatic Compaction — A high-pressure hydraulic ram automatically compresses the deposited waste, reducing its volume by a factor of 3 to 6 times depending on waste composition.
Sealed Underground Storage — Compacted waste is held in a sealed, leak-proof container beneath the surface, isolated from temperature extremes, rain, wind, and pests.

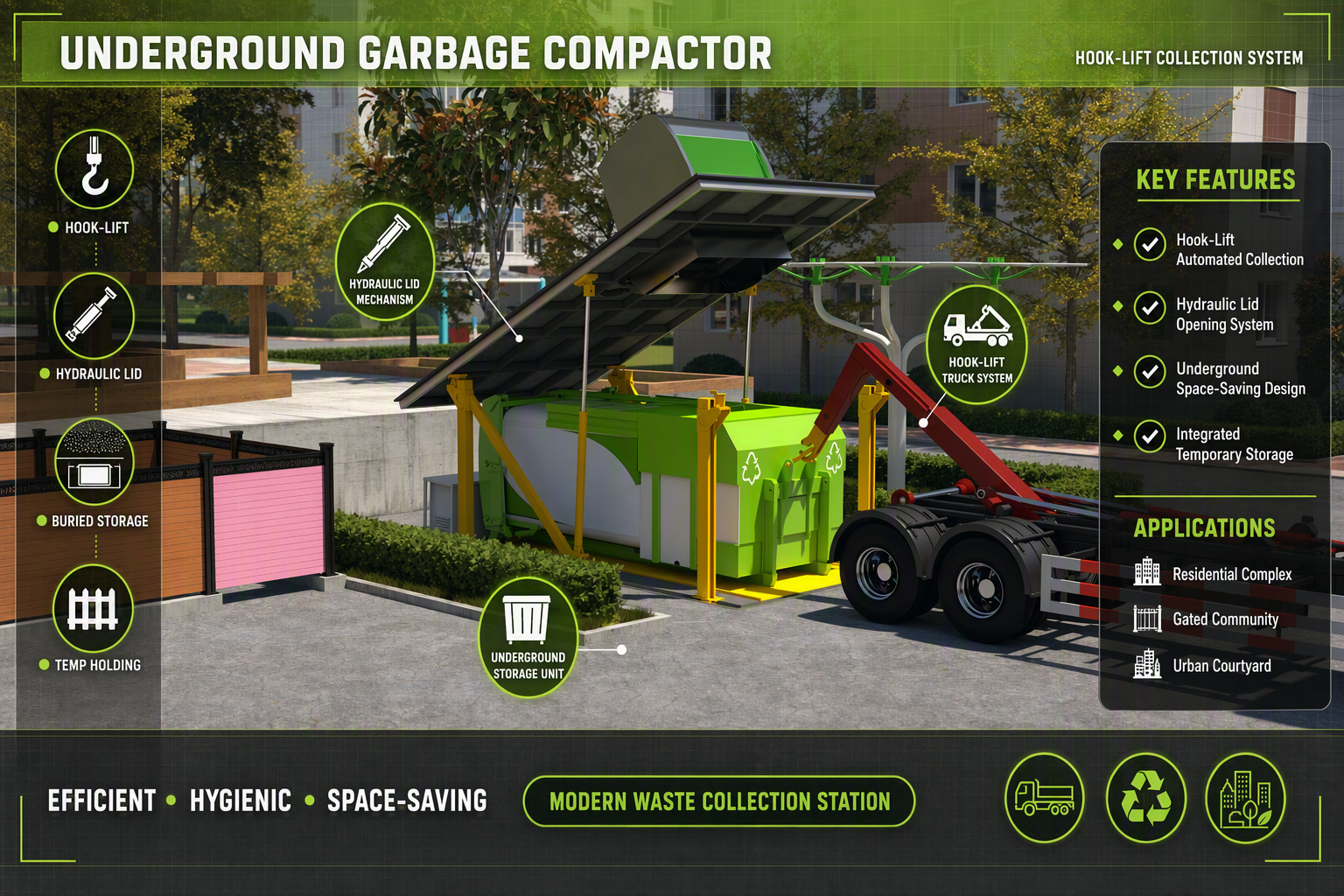

Hook Lift Transport — When the container reaches its preset capacity, the hydraulic lifting platform raises the entire compactor unit to ground level. A hook lift truck then secures and transports the sealed container directly to a transfer station or disposal facility.
This end-to-end workflow eliminates the fragmented, multi-step process of traditional waste collection — where loose garbage is transferred from plastic bins into a compactor truck, compacted en route, and then emptied at a facility — and replaces it with a single, seamless operation.
Main Technical Features| Item | Specification |
|---|---|
| Product Name | Landscape Underground Garbage Compactor 18m³ |
| Capacity | 18 Cubic Meters |
| Compression Type | Hydraulic Horizontal Compression |
| Compression Ratio | 4:1–6:1 |
| Installation | Underground |
| Transfer Method | Hook Lift Truck |
| Loading Method | Manual / Wheel Bin Feeding |
| Control | PLC Automatic |
| Cover | Hydraulic Landscape Cover |
| Structure | Fully Sealed |
| Power | Electric Hydraulic |
| Optional Functions | Remote Monitoring, Deodorization, Automatic Washing |
Product Effects

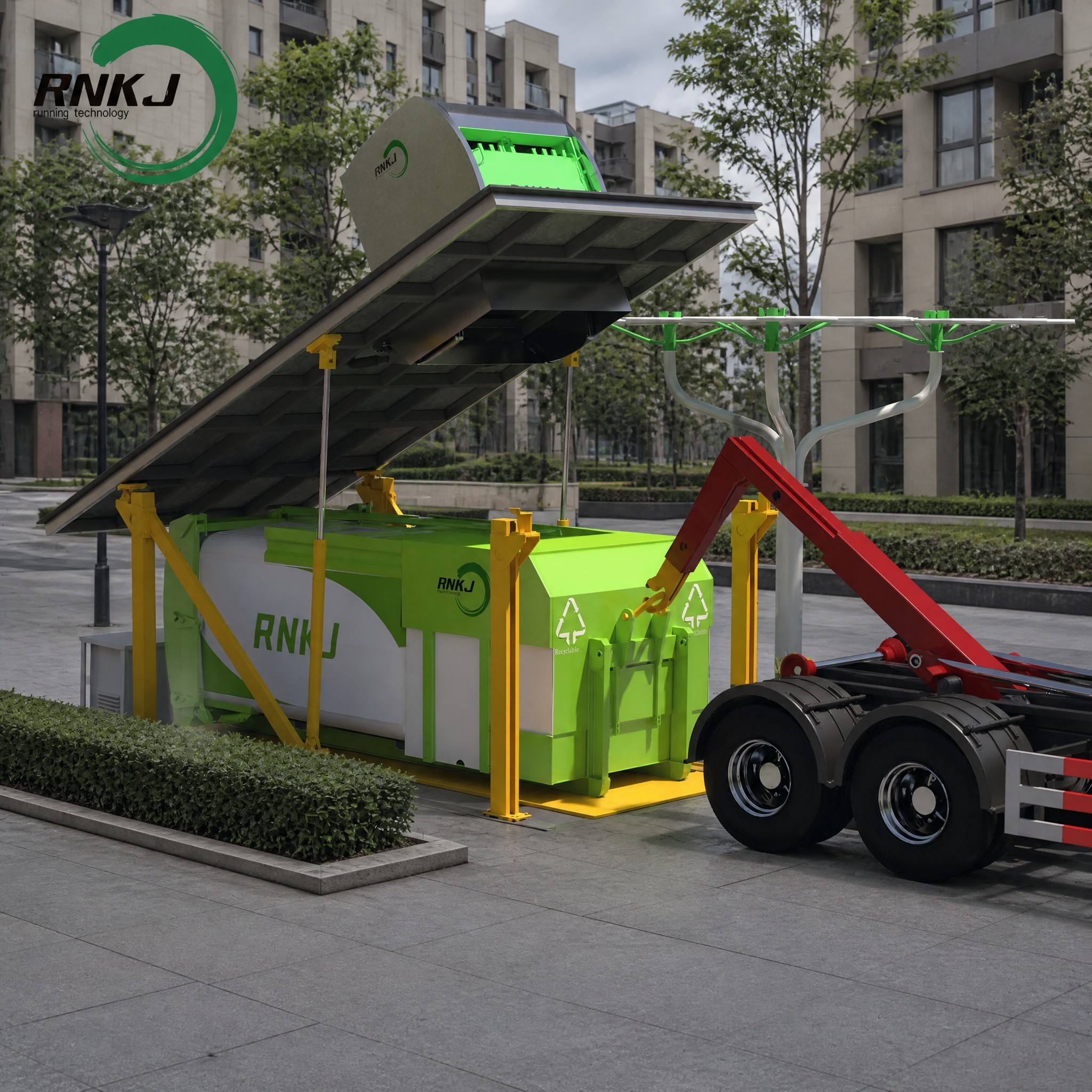

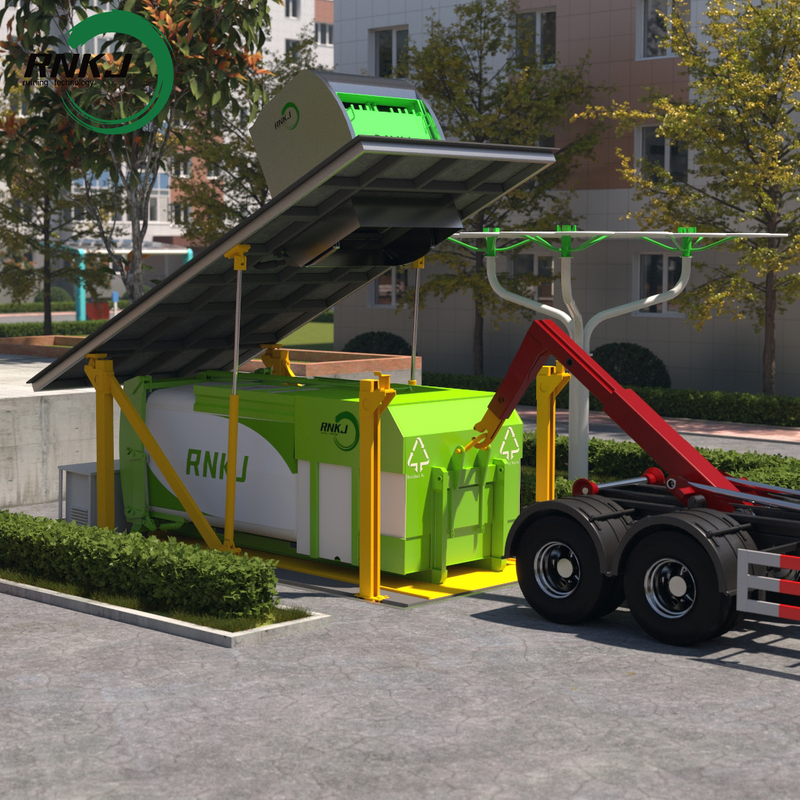

Lifting mode
Landing mode
Key Features and Engineering AdvantagesThe hydraulic compression system is the core of the unit's efficiency. A high-pressure hydraulic power unit drives a heavy-duty ram that compresses municipal solid waste on every cycle. The system operates automatically — triggered by waste deposition sensors or on a timed cycle — without requiring operator intervention.
The hydraulic circuit is designed with pressure regulation and overload protection, ensuring consistent compaction density regardless of waste stream variability. The result is a 3–6× increase in effective storage capacity compared to uncompacted waste collection.
By installing the compactor body and storage container below ground level, the system frees up valuable surface space. Only the compact disposal inlets remain visible — an aesthetic improvement that integrates seamlessly into landscaped environments, public plazas, and high-end residential developments.
The underground environment also provides natural sound attenuation — the hydraulic power unit operates at significantly lower perceived noise levels than above-ground compactors — and passive temperature regulation that reduces odor generation.

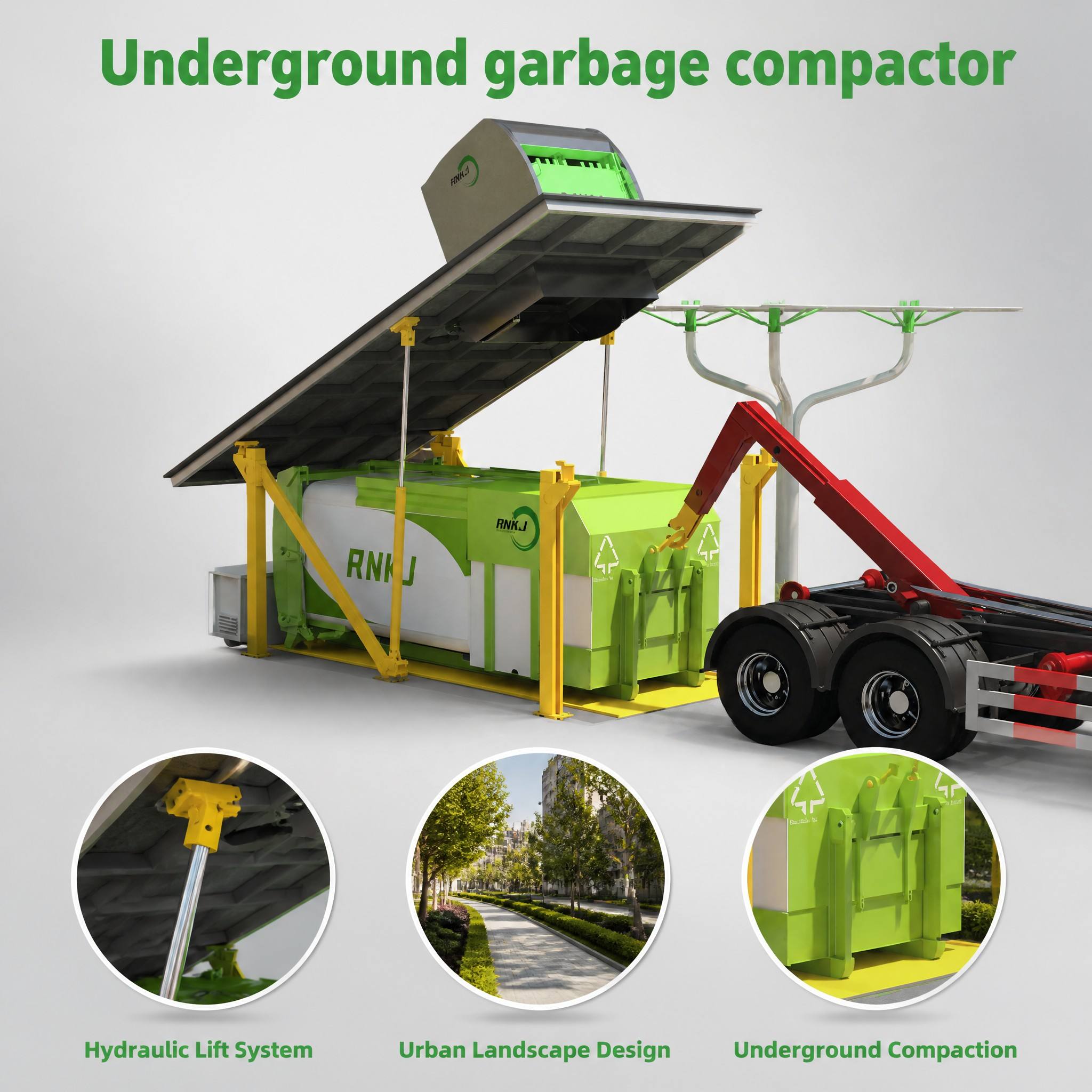

The hydraulic lifting platform is the mechanical link between underground storage and surface-level transportation. When the container is full, this heavy-duty four-pillar lift raises the entire sealed compactor unit to ground level in a controlled, hydraulically-actuated motion.
This eliminates the need for on-site waste transfer, crane trucks, or specialized unloading equipment. A standard municipal hook lift truck can handle the entire collection process in minutes.

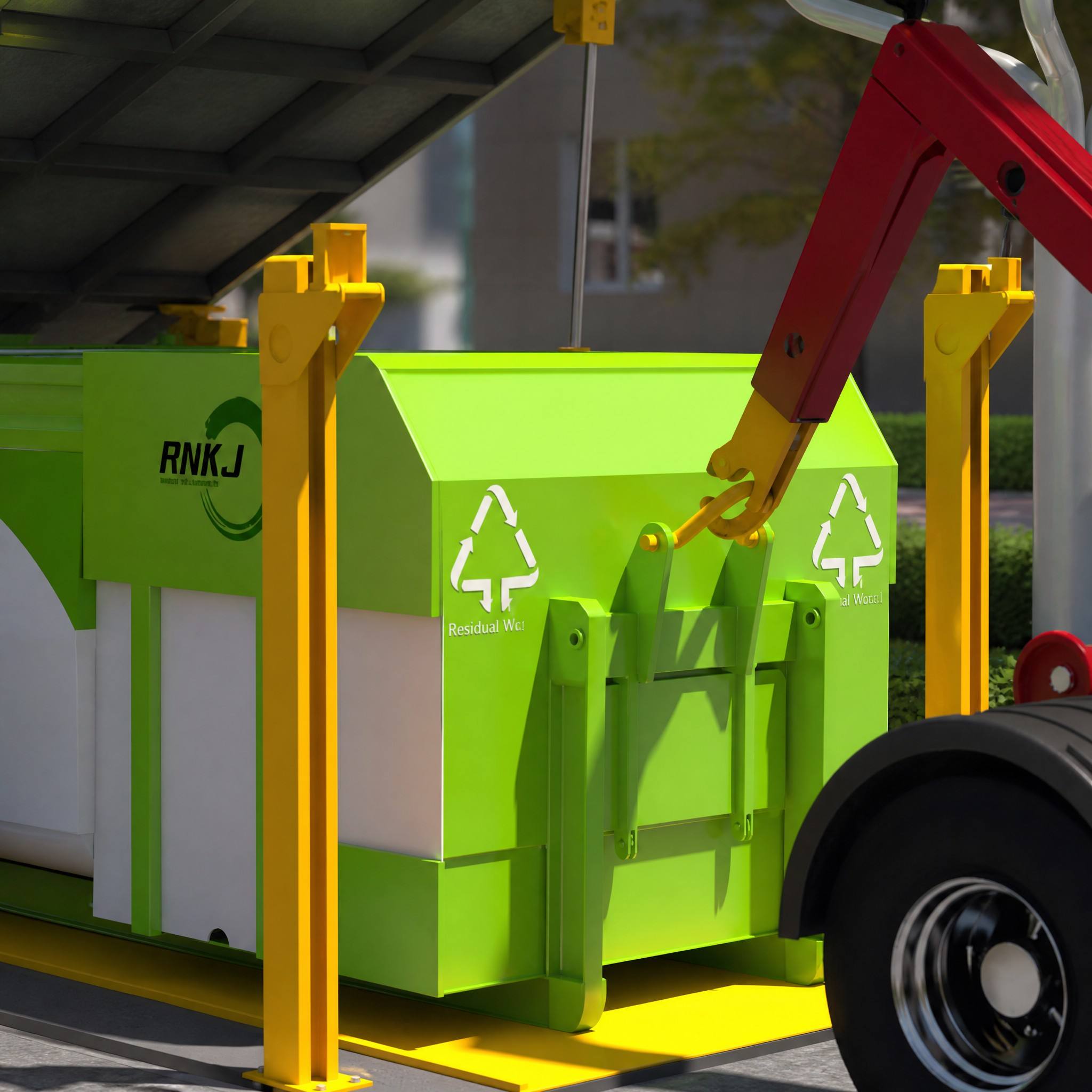

The compactor container is purpose-designed with a hook-compatible lifting bar that interfaces with standard hook lift truck systems. Hook lift trucks are among the most versatile vehicles in municipal and industrial fleets — they can swap between different container types throughout a single shift.
For waste management operations, this means:
One truck type services multiple container functions — reducing fleet diversity and maintenance complexity
No dedicated compactor truck is needed — freeing capital for other fleet investments
Containers can be exchanged in under five minutes — minimizing site disruption
The sealed container serves as both storage and transport vessel — zero secondary transfer, zero spillage risk
The programmable logic controller governs all automated functions: compaction cycle timing, hydraulic pressure monitoring, full-container detection, safety interlock management, and optional remote data transmission.
The control interface is designed for simplicity — operators can monitor system status, initiate manual compaction cycles, and acknowledge alarms through a straightforward panel. Optional IoT connectivity enables fleet managers to monitor fill levels, compaction counts, and maintenance alerts from a centralized dashboard.
Every component that contacts waste or bears mechanical load is constructed from high-strength structural steel with multi-layer corrosion protection. The underground structure is specifically engineered to resist:
Long-term soil moisture exposure
Groundwater contact
Mechanical stress from compaction cycles
Environmental temperature fluctuations
Surface traffic loads above the installation
The welded construction, combined with anti-corrosion surface treatment, delivers a design service life measured in decades — not years.
Sealed compression chambers prevent odor escape. Underground storage eliminates wind-blown litter. Integrated drainage and leak prevention systems protect groundwater. The system's environmental control extends to:
Odor management — sealed chambers plus optional ozone/cooling systems
Pest exclusion — no surface-level access points for insects or rodents
Leachate containment — integrated liquid collection and drainage
Noise reduction — underground installation naturally attenuates operating noise
Rainwater protection — above-ground inlets are sealed against weather ingress
Application Scenarios & Adaptable Waste TypesIndustrial parks, manufacturing factories, logistics distribution hubs (industrial domestic waste, light packaging waste)
Shopping malls, commercial plazas, large supermarkets, catering blocks
High-grade residential communities, apartment complexes, tourist scenic spots, urban parks
Hospitals, schools, universities, government administrative institutions
Municipal sanitation underground waste collection transfer stations
Ports, large farmers’ markets, highway service areas
Domestic solid waste, commercial waste, kitchen waste, plastic packaging waste, paper waste, light industrial solid waste, recyclable mixed waste.
Unsuitable waste: Large construction waste, stones, metal ingots, highly corrosive chemical waste, high-temperature residue.
FAQAbsolutely yes. Our Industrial Automatic Underground Garbage Compactor with Hydraulic Lifting Platform is structurally optimized for hook-lift transportation. After the hydraulic lifting platform lifts the entire compactor out of the underground pit, standard hook lift trucks can directly hook and transport the whole integrated container without disassembly or waste transfer. We can adjust the hook connection size to match local hook lift truck standards.
Yes. Customers need to construct a sealed concrete foundation pit according to our official civil engineering drawings. The pit is used to place the hydraulic lifting platform and accommodate the compactor unit. Our engineering team provides complete construction drawings, size standards and remote technical guidance for civil works.
The hydraulic system is equipped with hydraulic self-locking and anti-fall safety device. Once power is cut off suddenly, the platform will lock immediately to prevent accidental falling of the compactor container, ensuring construction and operation safety.
Under standardized operation and regular maintenance, the service life of the main steel structure can reach 10~15 years. Consumable hydraulic seals and wear plates can be replaced regularly. We provide long-term spare parts supply service.
Factory direct supply, no middleman markup, competitive overall project quotation
Complete set of engineering technical documents: civil drawing, installation manual, operation guide
Support customized size, capacity and hook arm connection structure for different countries
Rich overseas project cases, experience in adapting to different national sanitation standards
Multilingual operation manual, remote video installation guidance and after-sales technical support
Flexible packaging scheme for sea transportation, convenient container loading for export
