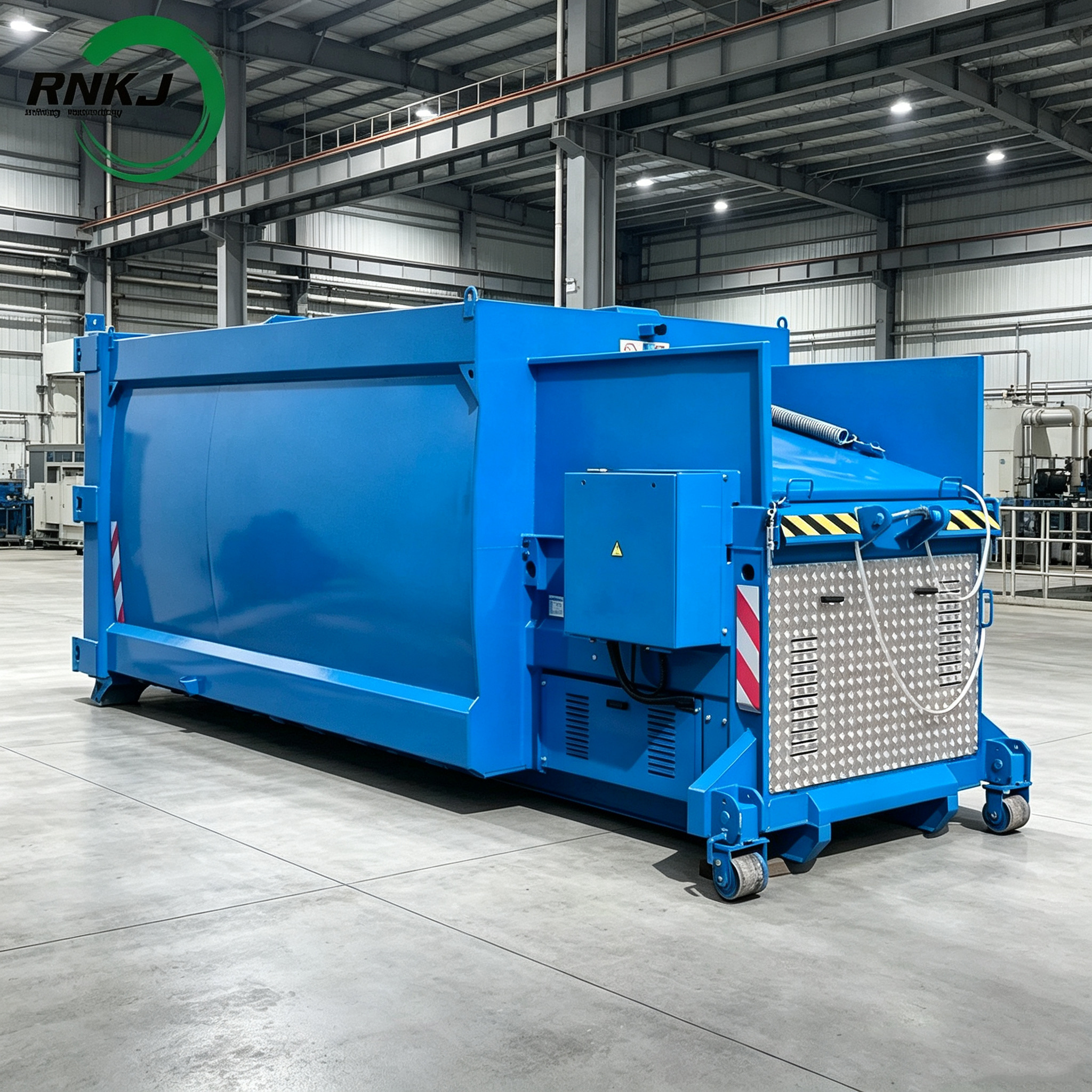

The Automatic Hydraulic Industrial Spiral Garbage Compactor is an advanced waste compression solution designed for large-scale commercial, industrial, municipal, and environmental waste management applications. It combines an automatic hydraulic drive system with a spiral compression mechanism to efficiently reduce waste volume, improve transportation efficiency, and lower overall waste disposal costs.
Unlike traditional garbage containers that only provide temporary storage, this Industrial Spiral Garbage Compactor integrates waste collection, continuous compression, and sealed storage into one complete system. The compressed waste is stored inside the container and can be transported as a whole unit by a Hook Lift Truck, making waste collection and transfer faster, cleaner, and more efficient.
Designed for high-volume waste producers such as factories, logistics centers, shopping malls, airports, communities, and municipal waste stations, this hydraulic spiral garbage compactor provides a reliable solution for modern intelligent waste management.
What Is an Industrial Spiral Garbage Compactor?An Industrial Spiral Garbage Compactor is a high-capacity waste compaction machine that uses a rotating spiral compression mechanism combined with hydraulic power to continuously push and compress garbage inside the container.
The spiral auger system creates strong forward pressure, gradually reducing the volume of waste while increasing the loading capacity of the container. Compared with standard waste bins, this equipment can significantly improve waste storage efficiency and reduce the frequency of garbage transportation.
The Automatic Hydraulic Industrial Spiral Garbage Compactor adopts a fully automatic hydraulic control system, allowing operators to start and control the compression process easily. The compact design, sealed structure, and hook lift transport system make it suitable for industrial waste collection and long-distance waste transfer.
Working Principle of Industrial Spiral Garbage CompactorThe working process of the Automatic Hydraulic Industrial Spiral Garbage Compactor mainly includes waste feeding, spiral compression, sealed storage, and transportation.
Garbage is loaded into the feeding chamber from the front opening. The machine can handle various types of industrial and commercial waste, including:
General industrial waste
Packaging materials
Cardboard and paper waste
Plastic waste
Household waste
Lightweight production waste
Mixed commercial garbage
The large feeding opening improves loading efficiency and reduces manual handling requirements.
After waste enters the compaction chamber, the hydraulic motor drives the internal spiral mechanism to rotate.
The spiral blade continuously pushes the waste forward while applying strong compression force. The waste volume is reduced as air gaps are removed and materials become densely packed.
The spiral compression structure provides:
Continuous waste compression
Stable feeding performance
Higher filling efficiency
Reduced waste volume
Longer operating time before transportation
After compression, waste is stored inside the sealed container section.
The compacted waste has:
Higher density
Lower transportation frequency
Better space utilization
Reduced leakage and odor problems
The closed container design prevents rainwater intrusion and minimizes environmental pollution during storage.
When the container reaches full capacity, the complete Industrial Spiral Garbage Compactor can be transported by a Hook Lift Truck.
The Hook Lift Truck lifts and carries the entire compactor unit to the waste treatment facility. After unloading, an empty compactor can be installed immediately for continuous operation.
This replacement method provides:
Fast container exchange
Reduced downtime
Lower labor requirements
Efficient waste logistics management
Key Features of Industrial Spiral Garbage CompactorThe hydraulic system provides powerful and stable driving force for the spiral compression mechanism.
Advantages include:
Easy operation
Reliable performance
Strong compression capability
Low maintenance requirements
Long service life
The automatic control system allows the machine to operate efficiently with minimal operator involvement.
The spiral compression mechanism is the core feature of this equipment.
Compared with traditional push-plate garbage compactors, the spiral design offers continuous compression and smoother material movement.
Benefits include:
Uniform waste compaction
Higher filling rate
Reduced material blockage
Improved compression efficiency
The Industrial Spiral Garbage Compactor is designed for high-volume waste generation environments.
It is suitable for:
Manufacturing plants
Industrial parks
Warehouses
Distribution centers
Commercial complexes
Municipal waste collection points
Food processing facilities
The large-capacity container reduces the number of waste collection trips and improves operational efficiency.
The equipment adopts a standard hook lift container structure, allowing transportation with a Hook Lift Truck.
The hook lift design provides:
Flexible installation
Easy transportation
Quick replacement
Compatibility with existing waste collection vehicles
Businesses can use one Hook Lift Truck to manage multiple compactors in different locations.
The sealed structure helps prevent:
Waste leakage
Bad odors
Secondary pollution
Exposure to rain and external conditions
It is especially suitable for urban environments and locations requiring clean waste management.
Product ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Applications of Industrial Spiral Garbage CompactorFactories generate large amounts of packaging waste, production waste, and general garbage every day.
The spiral compactor provides continuous compression and reduces waste storage pressure.
Large distribution centers produce significant amounts of cardboard, plastic packaging, and commercial waste.
The equipment helps optimize waste collection and reduce disposal costs.
Shopping malls, supermarkets, and business centers can use the compactor to maintain cleaner waste areas and reduce garbage collection frequency.
The machine can be integrated into modern waste collection systems and transported using Hook Lift Trucks for centralized treatment.
Technical HighlightsProduct Name: Automatic Hydraulic Industrial Spiral Garbage Compactor
Main System: Hydraulic Spiral Compression System
Operation Mode: Automatic Hydraulic Control
Transportation Method: Hook Lift Truck
Structure: Integrated Sealed Compactor Container
Application: Industrial Waste Collection and Compression
Suitable Waste Types:
Industrial garbage
Commercial waste
Packaging waste
Mixed municipal waste
Recyclable waste
Why Choose Industrial Spiral Garbage Compactor?The Automatic Hydraulic Industrial Spiral Garbage Compactor provides an efficient combination of automatic operation, powerful compression, sealed storage, and flexible transportation.
Compared with conventional garbage containers, it offers:
Higher waste storage capacity
Lower waste transportation frequency
Better environmental protection
Faster waste collection efficiency
Reduced operating costs
Easy Hook Lift Truck transportation
For companies seeking a reliable Industrial Spiral Garbage Compactor for sale, this equipment provides an ideal solution for improving waste management efficiency and building a cleaner, smarter waste disposal system.
We are an established equipment manufacturer equipped with state-of-the-art production facilities, including CNC laser cutting machines, CNC bending machines and machining centers. These ensure our products’ superior quality and exquisite finish.
We accommodate custom design requirements based on drawings, backed by a robust technical team and skilled welding professionals. We look forward to cooperating with you.
