The Industrial Screw Garbage Compactor is a high-efficiency waste compression machine designed for industrial facilities, commercial properties, transfer stations, logistics centers, manufacturing plants, shopping centers, and other locations that generate large volumes of solid waste. By using a continuous screw-driven compression mechanism, the machine reduces the volume of loose garbage before transportation, helping businesses improve waste handling efficiency while reducing storage space and transportation frequency.
Compared with conventional waste collection equipment, an Industrial Screw Garbage Compactor for Sale provides a more practical solution for projects that require continuous feeding, efficient compaction, and centralized waste management. The screw compression structure is particularly suitable for applications where waste needs to be moved and compressed continuously rather than processed only through intermittent pressing cycles.
The equipment can be customized according to waste characteristics, processing capacity, installation conditions, container dimensions, and transportation requirements. It can therefore be integrated into different industrial waste management systems and used as an independent compactor or as part of a larger waste transfer and collection solution.

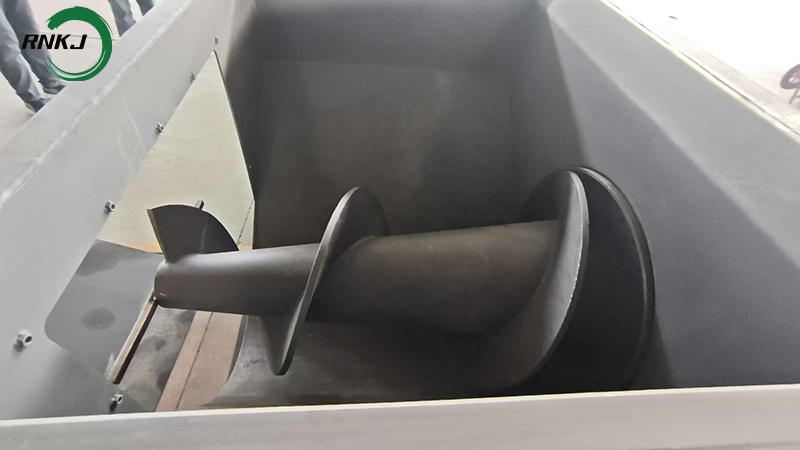

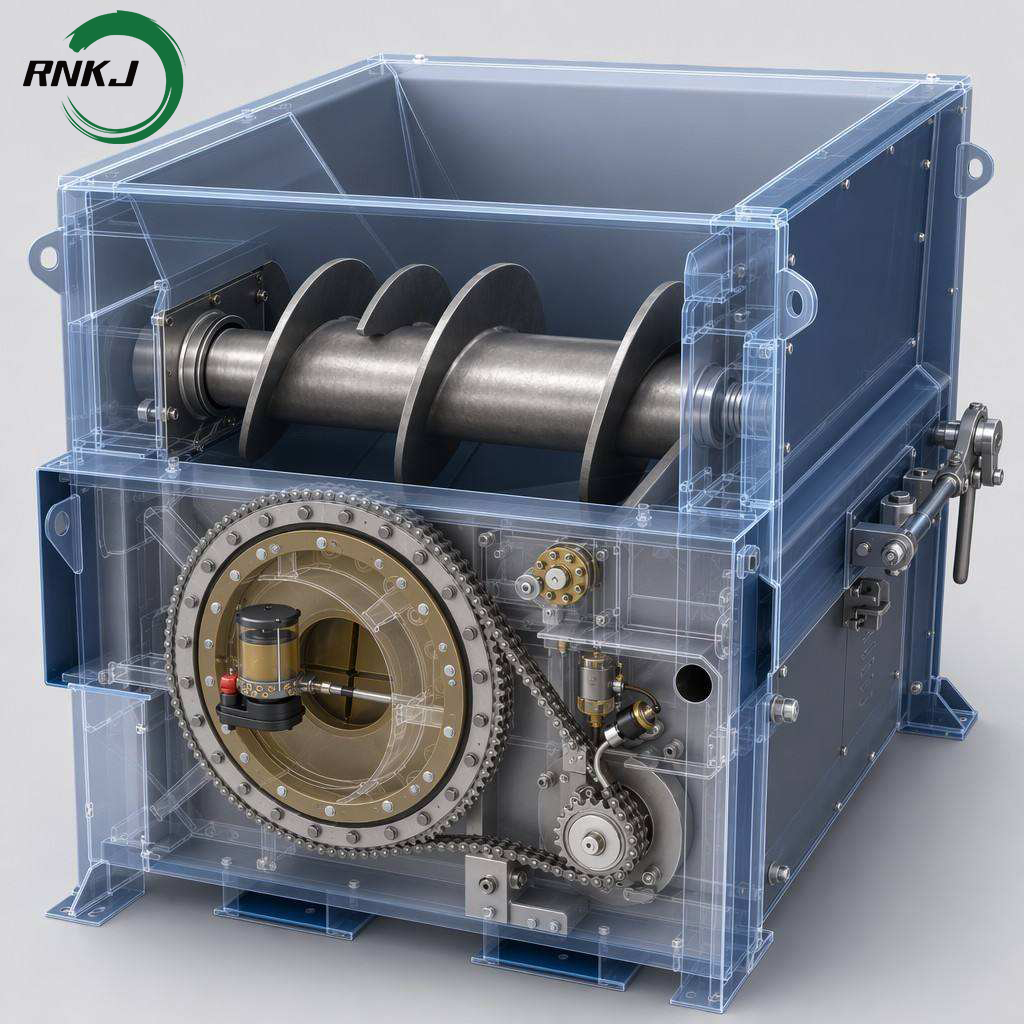

What Is a Industrial Screw Garbage Compactor?An Industrial Screw Garbage Compactor is mechanical waste compression equipment that uses a rotating screw mechanism to convey and compress waste. As garbage enters the feeding area, the screw continuously pushes the material forward while reducing its volume under controlled compression.
The screw structure creates a continuous conveying and compaction process. Instead of relying only on a single vertical pressing movement, the equipment combines waste conveying, feeding, compression, and discharge into one working process.
This design makes the industrial screw garbage compactor suitable for high-volume applications where stable waste processing and space-efficient storage are important.
Depending on the project, the machine can be configured with different feeding systems, compression chambers, discharge structures, hydraulic or electric drive systems, control systems, and waste containers.
How Does an Industrial Screw Garbage Compactor Work?The working process of the Industrial Screw Garbage Compactor can generally be divided into several stages:
Waste is delivered to the feeding hopper or inlet of the compactor. Different feeding configurations can be selected depending on the source of the waste, including manual loading, garbage bins, conveyors, or other material-feeding equipment.
After entering the machine, the waste is captured by the rotating screw. The screw continuously moves the material toward the compression chamber.
This conveying action helps maintain a stable material flow and reduces the need for manual handling.
As the available space becomes smaller along the compression section, the waste is gradually compacted. The screw applies mechanical force to reduce the volume of garbage and increase its density.
The continuous compression process is one of the main characteristics that differentiates a screw-type compactor from conventional intermittent garbage presses.
After reaching the required compression level, the compacted waste is pushed toward the discharge area and transferred into a collection container or subsequent waste transportation system.
The final configuration can be customized according to the customer's waste collection and transportation process.
Once the waste container reaches the required capacity, it can be transported to a transfer station, recycling facility, landfill, incineration facility, or other waste treatment destination.
By increasing waste density before transportation, the system can help reduce the number of trips required for certain waste streams.
Key Features of the Industrial Screw Garbage CompactorThe screw-driven compression mechanism enables continuous conveying and compaction. This makes the equipment suitable for industrial environments where waste is generated continuously throughout the working day.
The machine reduces the volume of loose waste and increases waste density, allowing more material to be stored within the same container volume.
Industrial facilities often have limited space for temporary waste storage. Compressing garbage before storage can significantly improve the utilization of available container and storage areas.
For industrial applications, the compactor can be manufactured with a robust steel structure and reinforced components designed for demanding operating conditions.
The structure can be customized according to the type, density, moisture content, and volume of the waste being processed.
The feeding system can be adapted to different waste collection methods. This allows the Industrial Screw Garbage Compactor to be integrated with existing waste bins, conveyors, hoppers, and other waste handling equipment.
An electrical control system can be used to manage the screw motor, operating cycles, safety functions, sensors, and other components. Automation can reduce manual intervention and make daily operation easier for sanitation and industrial workers.
Different projects have different waste generation rates. Therefore, the machine can be configured according to required processing capacity, container size, installation space, and operating conditions.
Product ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW, 7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Industrial Screw Garbage Compactor vs. Traditional Garbage CompactorDifferent waste streams require different compression technologies.
A traditional hydraulic garbage compactor generally relies on a reciprocating compression head. It presses waste in a chamber and then returns to its original position before the next cycle.
An Industrial Screw Garbage Compactor, on the other hand, uses a rotating screw to continuously convey and compress waste.
The screw-type design can be particularly advantageous when:
Waste is generated continuously.
A stable feeding process is required.
Continuous conveying and compression are preferred.
The waste needs to be moved toward a collection container.
The project requires integration with conveyors or automated feeding systems.
Available waste storage space is limited.
The facility handles a relatively high volume of solid waste.
The best solution depends on waste type, capacity requirements, site conditions, container design, and transportation methods.
Advantages of Choosing an Industrial Screw Garbage CompactorThe primary function of the machine is to compress loose garbage into a denser form. This allows more waste to be stored in the same physical space.
When waste is compacted before transportation, container utilization can be improved. Depending on the waste type and transportation arrangement, this may reduce transportation frequency and associated operating costs.
A centralized waste compaction system can replace multiple scattered waste storage points and create a more organized waste handling area.
With automated feeding and screw conveying, workers may not need to repeatedly move or manually compress waste.
The continuous working principle makes the machine suitable for industrial and commercial facilities that produce waste at a relatively steady rate.
The Industrial Screw Garbage Compactor can be integrated with feeding hoppers, conveyors, collection containers, control systems, and transportation equipment to create a complete waste handling line.
Industrial Screw Garbage Compactor for Sale – Customization OptionsDifferent customers have different waste management requirements, so customization is an important part of industrial compactor design.
Available configurations may include:
Compression capacity
Screw diameter and structure
Motor power
Feeding hopper dimensions
Compression chamber dimensions
Container capacity
Discharge configuration
Electrical control system
Safety protection system
Automatic or semi-automatic operation
Installation method
Steel structure and surface treatment
Waste container connection
Conveyor or feeding system integration
Before selecting an Industrial Screw Garbage Compactor for Sale, customers should provide information about the type of waste, approximate daily waste volume, bulk density, moisture content, feeding method, available installation space, and preferred transportation method.
This information helps determine a suitable machine configuration.
Industrial Screw Garbage Compactor for Different Waste TypesThe performance of a screw garbage compactor depends strongly on the characteristics of the material being processed.
It can be considered for applications involving:
Municipal solid waste
Commercial garbage
Industrial solid waste
Packaging waste
Cardboard
Plastic waste
Lightweight production waste
General commercial waste
Mixed solid waste
For particularly wet, sticky, abrasive, oversized, or specialized waste, the screw design, motor power, compression chamber, and material-contact components should be selected accordingly.
This is why customized engineering is important for industrial waste compaction projects.
How to Choose the Right Industrial Screw Garbage Compactor?Selecting the correct machine requires more than simply choosing the largest capacity.
Consider the following factors:
Identify whether the material consists mainly of municipal waste, commercial waste, packaging materials, industrial solid waste, or another specific waste stream.
Estimate the amount of waste generated per hour, per day, or per operating shift. This determines the required processing capacity.
Moisture content, density, particle size, abrasiveness, and composition can affect screw configuration and compression performance.
Measure the installation area, feeding height, discharge direction, and maintenance space before confirming the machine dimensions.
The collection container should match the expected waste volume and transportation requirements.
For large industrial projects, automatic operation and integration with conveyors or centralized control systems may improve overall efficiency.
An Industrial Screw Garbage Compactor for Sale is more than a simple waste pressing machine. It can become an important part of a complete industrial waste management system.
For projects with high waste generation, limited storage space, frequent waste transportation, or continuous feeding requirements, screw-type compression technology provides a practical way to improve waste handling efficiency.
The equipment can be engineered according to the customer's actual working conditions rather than relying on a one-size-fits-all configuration. From feeding and screw compression to discharge and container transportation, every stage can be considered as part of the overall system.
Whether the project is for a factory, industrial park, logistics center, commercial complex, waste transfer station, municipal sanitation project, or centralized waste collection facility, the right screw compaction system can help create a cleaner, more efficient, and more space-efficient waste management process.
