Product OverviewModern cities need waste collection equipment that can handle increasing waste volumes without taking up valuable public space. The High Density Compaction Eco Friendly Underground Waste Compactor is designed to combine underground waste storage, high-density compaction, efficient collection, and flexible transportation in one integrated waste management solution.
Unlike conventional above-ground waste containers that occupy visible space and can affect the appearance of residential and commercial areas, this Underground Waste Compactor is installed below ground or integrated into a landscaped waste collection area. Only the waste loading and collection interface remains visible during normal operation, helping create a cleaner and more organized environment.
The system is particularly suitable for residential communities, commercial complexes, public facilities, tourist destinations, schools, industrial parks, municipal waste collection points, and other locations where both space efficiency and environmental appearance are important.
A major feature of this design is that the compacted waste container can be lifted and transported as a complete unit using a Hook Lift Truck. This reduces the need for manual waste transfer and provides a practical solution for centralized waste collection and transportation.
What Is an Underground Waste Compactor?An Underground Waste Compactor is a waste collection and compaction system designed to store and compress municipal solid waste in an underground installation.
The basic concept is simple: waste is deposited into the designated loading area, transferred into the compaction chamber, and compressed by a hydraulic compaction mechanism. By reducing the loose volume of waste, the equipment can accommodate more waste before collection is required.
The underground structure also helps separate waste storage from pedestrian and vehicle areas. Depending on the project configuration, the system can be combined with waste classification bins, decorative covers, landscaping elements, access platforms, and other municipal sanitation facilities.
The result is a more integrated waste collection point that focuses on:
High-density waste storage
Reduced visible waste accumulation
Better utilization of limited urban space
More efficient waste transportation
Cleaner waste collection areas
Reduced frequency of waste collection
Improved appearance of residential and public environments
High-Density Compaction for Greater Waste Storage CapacityThe core function of this system is high-density waste compaction.
Loose household and municipal waste often contains a significant amount of air and empty space. Simply placing uncompressed waste into a container can result in the container reaching its usable capacity relatively quickly. The compaction system applies hydraulic pressure to compress the waste and make better use of the available storage volume.
The High Density Compaction Underground Waste Compactor is therefore suitable for locations where waste generation is relatively high but available collection space is limited.
By compacting waste before transportation, the system can help:
Increase effective storage utilization
Reduce the volume of loose waste
Reduce unnecessary collection trips
Improve transportation efficiency
Keep waste contained within the collection system
Support more organized municipal waste management
The actual compaction performance depends on waste composition, moisture content, operating conditions, equipment configuration, and hydraulic pressure. For this reason, the equipment can be configured according to the waste characteristics and requirements of individual projects.
Eco-Friendly Underground Waste Collection DesignEnvironmental performance is an important consideration in modern waste management.
The underground installation of the Underground Waste Compactor provides a cleaner alternative to traditional open waste storage. Waste is kept within a controlled collection area rather than being exposed in conventional roadside containers.
The enclosed structure can help reduce direct exposure to rain, wind, and surrounding pedestrian activity. It can also contribute to a cleaner waste collection environment when combined with appropriate sealing, drainage, cleaning, and odor-control measures.
The underground configuration provides additional benefits for urban planning because the waste storage equipment does not need to dominate the visual appearance of the surrounding area.
This makes the system especially attractive for:
Residential communities
Luxury housing developments
Shopping centers
Hotels and resorts
Scenic areas
Urban plazas
Municipal facilities
Universities and campuses
Transportation hubs
Industrial parks
Space-Saving Underground Waste ManagementLand availability is becoming increasingly important in densely populated cities.
Traditional waste collection stations may require considerable above-ground space for large containers, access routes, and vehicle operations. In comparison, an underground waste compaction system moves the main storage and compaction area below the surface.
This creates a more efficient use of limited land.
The above-ground section can be designed around the surrounding environment. Waste bins, loading openings, decorative structures, landscaping, pavement, or other municipal facilities can be incorporated into the overall site design.
For projects where appearance is an important consideration, an Underground Garbage Compactor can provide a better alternative to large exposed waste containers.
Main Technical Features| Item | Specification |
|---|---|
| Product Name | Landscape Underground Garbage Compactor 18m³ |
| Capacity | 18 Cubic Meters |
| Compression Type | Hydraulic Horizontal Compression |
| Compression Ratio | 4:1–6:1 |
| Installation | Underground |
| Transfer Method | Hook Lift Truck |
| Loading Method | Manual / Wheel Bin Feeding |
| Control | PLC Automatic |
| Cover | Hydraulic Landscape Cover |
| Structure | Fully Sealed |
| Power | Electric Hydraulic |
| Optional Functions | Remote Monitoring, Deodorization, Automatic Washing |
Product Effects

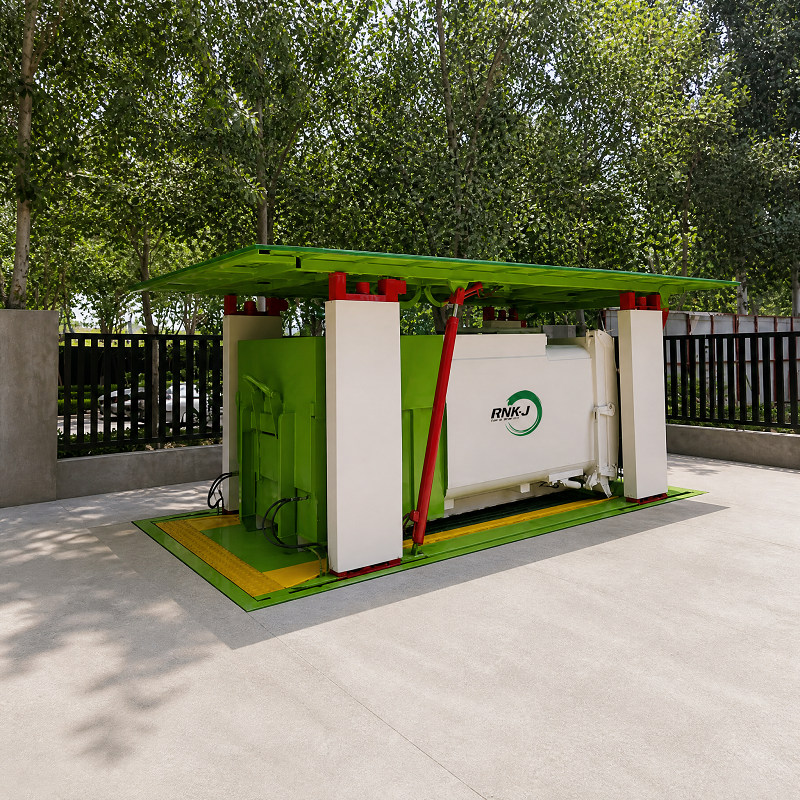

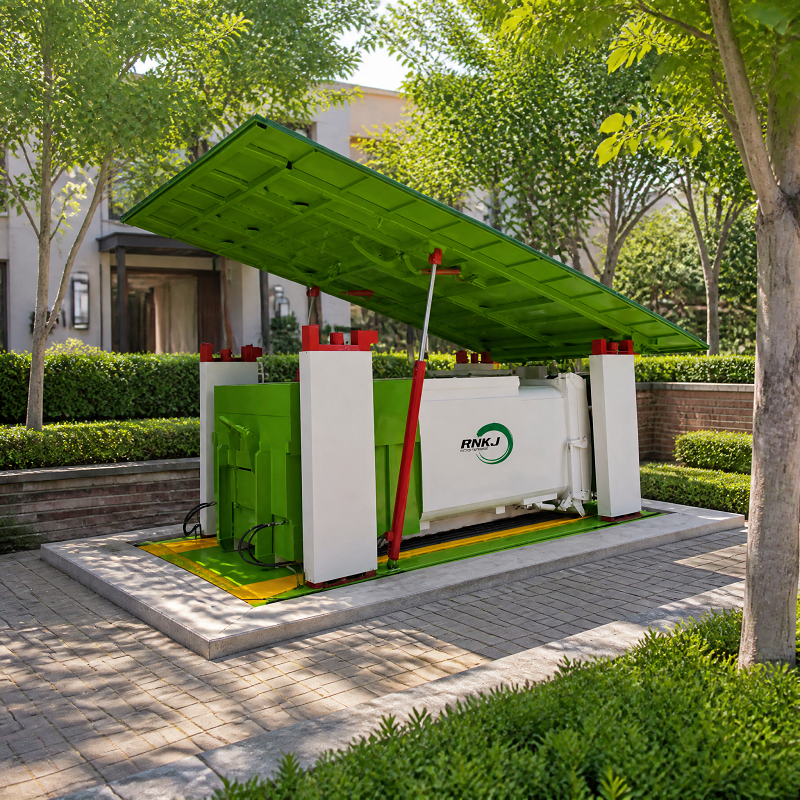

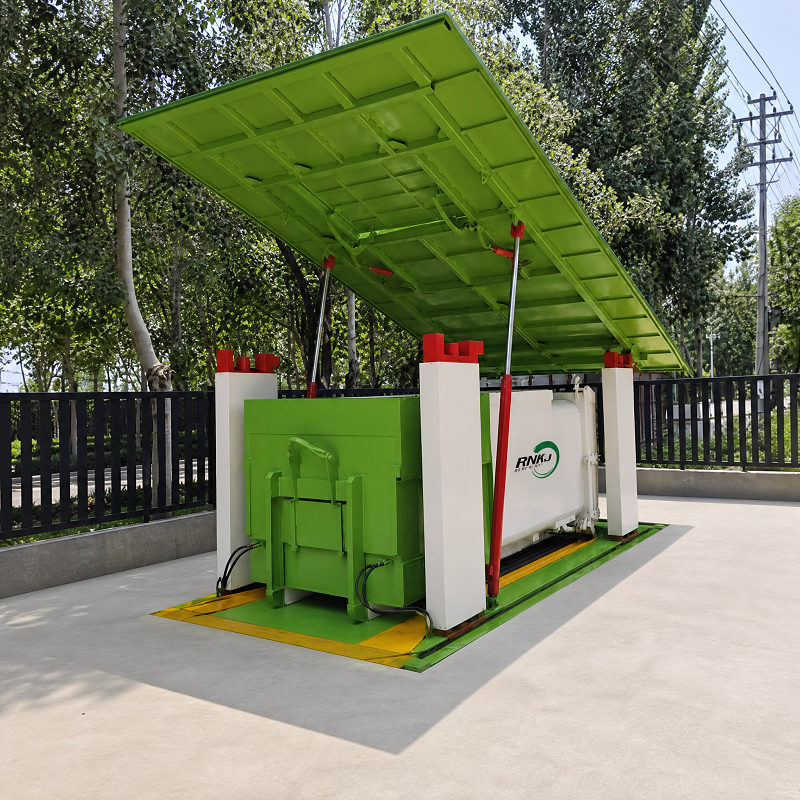

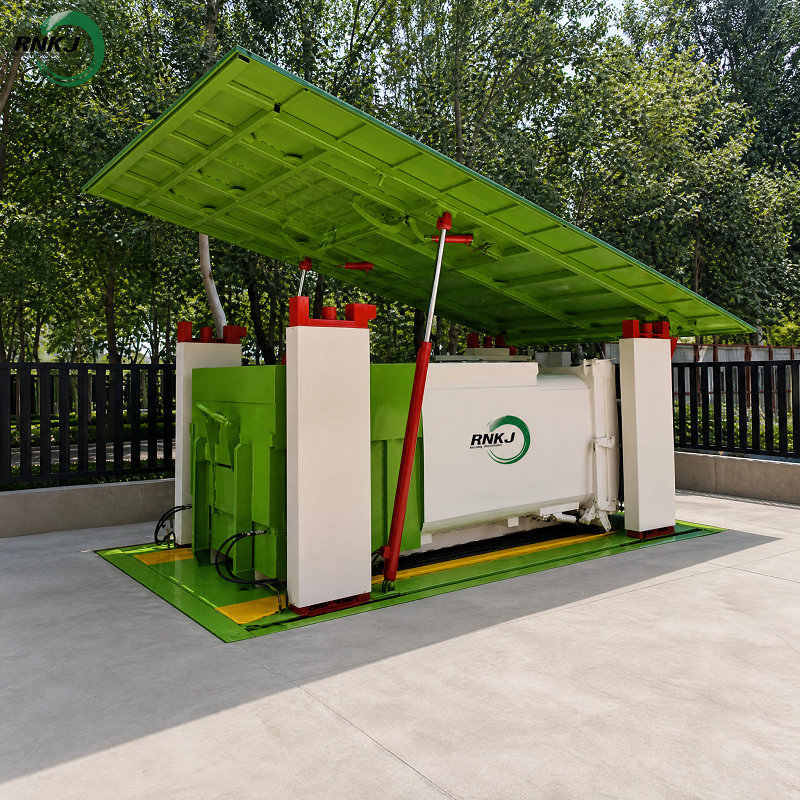

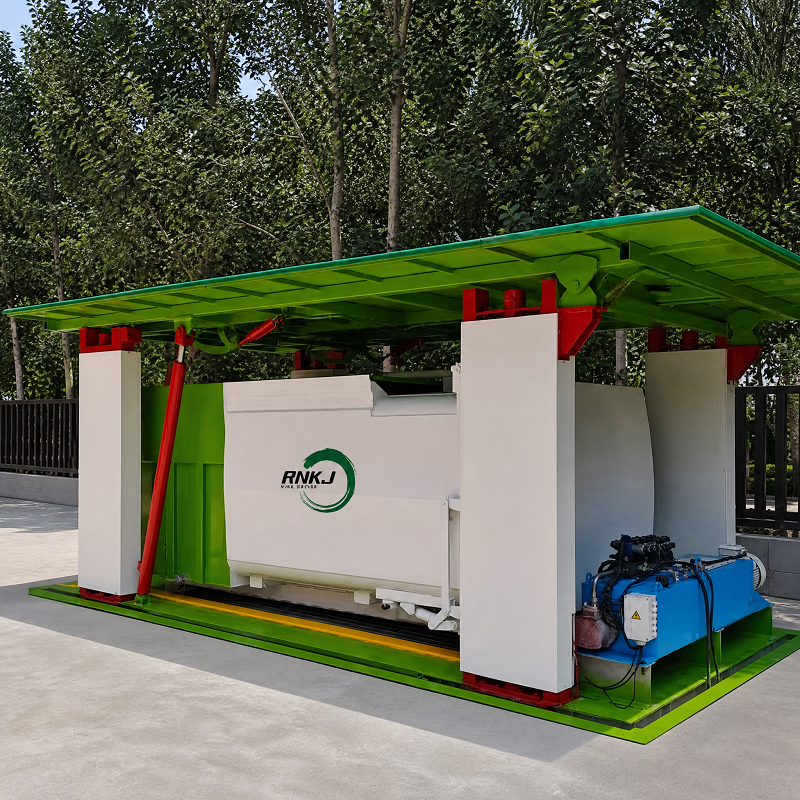

Lifting mode
Landing mode
How the High Density Underground Waste Compactor WorksResidents, workers, customers, or sanitation personnel place waste into the designated loading area.
Depending on the configuration, the system can work together with standard waste bins or separate waste collection points.
The collected waste is transferred into the internal storage and compaction chamber.
The structure is designed to guide waste into the appropriate area while keeping the collection point organized.
The hydraulic compaction mechanism pushes the waste toward the storage chamber.
The compaction cycle reduces the loose volume of waste and creates additional usable storage capacity.
After compaction, the waste remains inside the enclosed underground container.
The underground position minimizes the visual impact of the equipment and keeps the main waste storage area away from normal pedestrian activity.
When the container reaches the required collection condition, the lifting system raises the underground unit to the collection position.
The lifting operation provides access for the transportation vehicle without requiring permanent above-ground storage.
A Hook Lift Truck connects with the container and lifts it onto the truck.
The complete container can then be transported to the designated waste transfer station, treatment facility, or disposal location.
After unloading, the container can be returned to the collection point and positioned back into the underground system for continued operation.
Advantages Compared with Conventional Waste ContainersTraditional waste containers are simple and widely used, but they may not be ideal for every urban environment. Large containers can occupy valuable roadside space, create visual clutter, and require frequent collection when waste generation is high.
An Underground Waste Compactor approaches the problem differently.
| Feature | Conventional Waste Container | Underground Waste Compactor |
|---|---|---|
| Waste storage | Above ground | Underground |
| Compaction | Usually unavailable | Hydraulic compaction |
| Space utilization | Relatively low | Improved |
| Visual impact | More noticeable | Lower visual impact |
| Waste transportation | Standard collection vehicle | Hook Lift Truck configuration |
| High-volume waste | Limited by container size | Better suited to high-volume applications |
| Urban integration | Basic | Can be integrated with landscaping |
| Collection efficiency | Depends on collection frequency | Improved through compaction |
The Underground Waste Compactor is not simply a larger waste container. It is an integrated waste collection, compression, storage, lifting, and transportation solution.
Custom Underground Waste Compactor SolutionsWaste management requirements vary significantly between projects.
For this reason, the Underground Waste Compactor can be developed around the customer's site conditions rather than using a single standard configuration for every application.
Important factors to consider include:
Required waste storage capacity
Daily waste generation
Waste type
Available installation space
Underground depth
Ground and foundation conditions
Vehicle access
Hook Lift Truck specifications
Loading height
Waste collection frequency
Local environmental requirements
Electrical power availability
Automatic control requirements
Climate and operating environment
Before manufacturing and installation, the project layout and transportation method should be reviewed to ensure that the equipment works effectively with the customer's existing waste collection process.
FAQIt is a hydraulic waste compaction system installed underground to reduce waste volume and improve storage efficiency.
The compacted container is lifted and transported as a whole using a Hook Lift Truck.
Yes. Hydraulic compaction significantly reduces the volume of loose waste and allows more waste to be stored.
It is suitable for residential communities, commercial areas, hotels, parks, scenic spots, schools, and municipal waste collection sites.
Yes. Capacity, dimensions, compaction system, lifting system, and other configurations can be customized according to project requirements.
It saves space, reduces waste volume, improves collection efficiency, and provides a cleaner and more organized waste collection environment.
If you are planning an Underground Waste Compactor Project, the most important step is to match the equipment configuration with your waste volume, available installation area, transportation vehicle, and collection workflow. A properly designed system can provide a cleaner collection environment while making waste storage and transportation more efficient.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
