The Fully Sealed Hydraulic Landscape Integrated Underground Waste Compaction Station is an integrated underground waste collection, compaction, storage, and transfer solution designed for modern municipal and commercial waste management projects. By placing the main compaction body and waste storage container below ground level, the system minimizes the visual impact of conventional waste facilities while providing a more organized and hygienic waste collection environment.
The equipment combines a hydraulic waste compaction system, fully sealed storage structure, underground installation, landscape-integrated cover, intelligent electrical control, and hydraulic lifting mechanism in one complete system. Only the waste feeding area and landscape-style upper cover remain visible after installation, allowing the equipment to blend into parks, residential communities, commercial districts, scenic areas, public plazas, and other environments where appearance and space utilization are important.
The system can be configured with different capacities and optional functions according to project requirements. Standard models include approximately 6 m³, 9 m³, 12 m³, 15 m³, and 18 m³, while customized dimensions, feeding arrangements, control functions, deodorization systems, and other configurations can be developed for specific projects.
Fully Underground and Landscape-Integrated DesignThe main body of the waste compaction station is installed below ground inside a prepared foundation or pit. This installation method keeps most of the equipment hidden from view and reduces the amount of ground space occupied by traditional waste collection facilities.
The upper section can be configured with a landscape-style cover according to the surrounding environment. Depending on the project, the visible area can be coordinated with landscaping, paving, decorative surfaces, or other architectural elements.
This design is particularly suitable for locations where waste equipment needs to be functional without becoming a prominent visual feature, including:
Residential communities
Urban public spaces
Parks and green areas
Tourist attractions
Scenic areas
Commercial complexes
Pedestrian streets
Schools and institutional facilities
Municipal sanitation projects
High-density urban areas
The underground configuration also helps separate the waste storage area from pedestrian activity, creating a cleaner and more organized surface environment.
Fully Sealed Waste Storage StructureThe station uses a sealed structure to contain waste during the collection and storage process. After waste enters the underground receiving area, it is compacted and stored inside the enclosed container rather than remaining exposed on the ground.
The enclosed design helps reduce direct contact between waste and the surrounding environment. It can help control:
Waste exposure
Odor diffusion
Rainwater entering the waste container
Wind-blown litter
Pest access
Leachate leakage
Secondary pollution around the collection area
For projects with higher environmental-control requirements, optional deodorization, drainage, pit flushing, and sewage collection systems can be incorporated into the equipment configuration.
Hydraulic Waste Compaction SystemHydraulic compression is the core operating function of the station.
Loose waste enters the receiving chamber through the designated feeding opening. The hydraulic power unit drives the compression mechanism to apply controlled pressure to the waste. The compression plate moves through the chamber and gradually reduces the volume of loose material before storing the compacted waste in the sealed container.
Depending on waste composition and operating conditions, the system can achieve a typical volume reduction ratio of approximately 4:1 to 6:1. Actual performance depends on factors such as moisture content, material composition, particle size, and the proportion of bulky materials in the waste stream.
Hydraulic compaction provides several practical benefits:
Higher effective storage density
More efficient use of underground container volume
Reduced loose-waste accumulation
Longer intervals between collection operations
More organized waste transfer
Adaptability to different municipal and commercial waste streams
Integrated Compression and Storage DesignUnlike a simple underground waste container, this equipment combines waste receiving, hydraulic compaction, sealed storage, and lifting/transfer functions into an integrated station.
The main structure generally consists of:
The underground compaction body forms the main structural and operating section of the equipment. It is fabricated from high-strength steel and designed to withstand repeated loading, compression, and lifting operations.
The hydraulic power unit supplies the pressure required to operate the compression cylinder, lifting mechanism, and other hydraulic functions. Hydraulic components can be selected according to the required capacity and operating configuration.
The compression chamber receives waste from the feeding opening and provides the working space for horizontal hydraulic compaction.
After compression, waste remains inside the enclosed storage area until the unit reaches its preset capacity and is scheduled for collection.
When waste collection is required, the hydraulic lifting system raises the underground equipment to ground level, allowing the complete unit to be accessed for transfer operations. The available configuration can be designed for Hook Lift Truck transportation, depending on the project requirements.
The upper cover provides access to the waste feeding point while helping integrate the equipment into the surrounding landscape. Hydraulic or electrically controlled opening systems can be configured according to the project.
A PLC-based control system can be used to coordinate compression, cover operation, lifting, safety protection, alarms, and other automatic functions. Manual and automatic operating modes can be configured according to application requirements.
Efficient Waste Volume ReductionOne of the main purposes of the station is to reduce the volume occupied by loose waste before final transportation.
Instead of allowing waste to accumulate loosely inside conventional containers, the hydraulic compression mechanism repeatedly compacts incoming material. This creates a denser waste load and makes better use of the available storage space.
For municipal and commercial applications, higher storage density can help reduce the frequency of waste collection operations. The actual reduction in collection frequency depends on daily waste generation, waste composition, container capacity, and the operating schedule of the project.
Hook Lift Truck-Compatible TransferFor configurations designed for hook lift transportation, the complete compaction unit can be raised from its underground position and transferred using a compatible Hook Lift Truck.
A typical transfer process is:
Waste is deposited through the underground station's feeding opening.
The hydraulic system compresses the waste.
Compacted waste remains in the sealed storage container.
The control system provides a full-load or collection indication.
The hydraulic lifting mechanism raises the unit to ground level.
A compatible Hook Lift Truck connects to and transfers the complete unit.
The unit is transported to the designated waste treatment or transfer facility.
After unloading, the empty unit can be returned to the installation position.
This configuration avoids unnecessary secondary handling of loose waste during the transfer process and is especially suitable for projects that require a mobile transfer solution combined with underground waste collection.
Product Effects

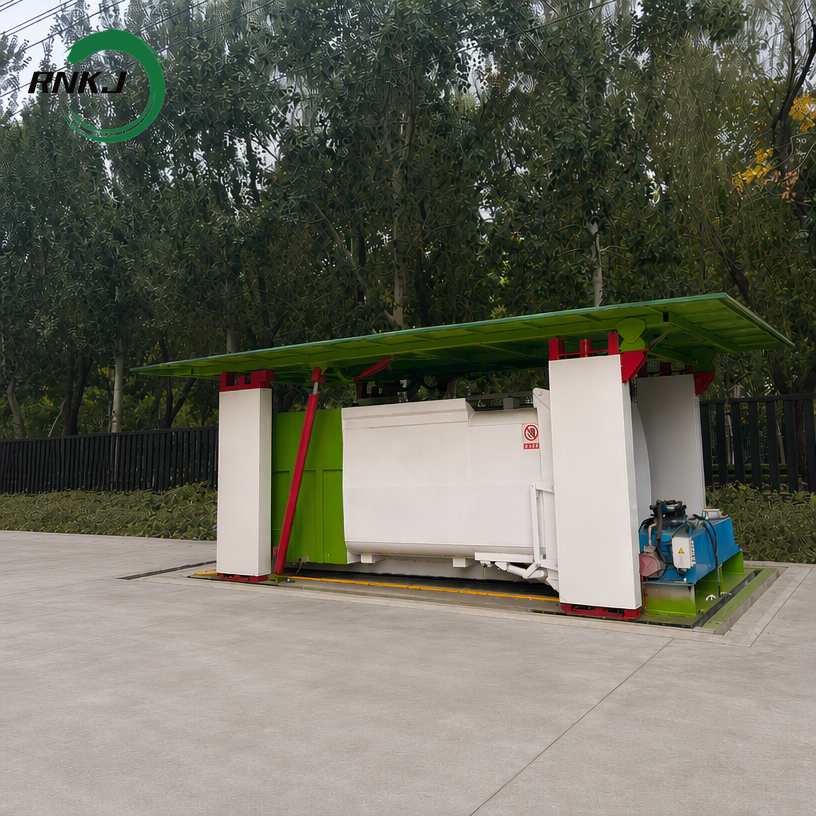

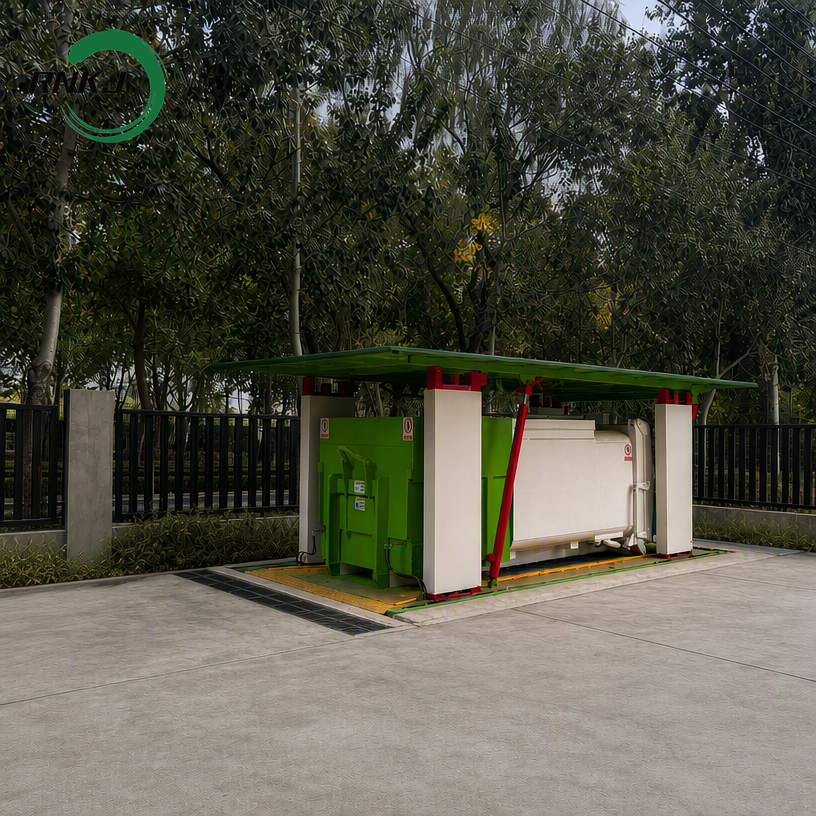

Lifting mode
Landing mode
Intelligent Control and Automatic OperationThe Fully Sealed Hydraulic Landscape Integrated Underground Waste Compaction Station can be equipped with a PLC control system for centralized equipment management.
Depending on the selected configuration, the control system can coordinate:
Automatic compression cycles
Hydraulic cover operation
Lifting and lowering operations
Full-load detection
Equipment status monitoring
Overload protection
Fault alarms
Emergency stop functions
Remote monitoring
Optional remote monitoring can provide operating-status information to sanitation management personnel, allowing collection and maintenance operations to be organized according to actual equipment conditions.
Flexible Capacity and Project CustomizationDifferent waste-generating environments require different storage capacities. The equipment can therefore be configured in multiple sizes.
Typical available capacities include:
6 m³
9 m³
12 m³
15 m³
18 m³
The specific capacity, dimensions, motor power, feeding configuration, lifting arrangement, landscape cover, and auxiliary functions can be adjusted according to project requirements.
Customization options may include:
Customized storage capacity
Customized equipment dimensions
Different feeding openings
Wheelie-bin feeding arrangements
Hydraulic or electric cover operation
Deodorization equipment
Automatic washing system
Pit flushing system
Sewage collection and discharge
Remote monitoring
Emergency-stop system
Customized landscape cover
This makes the station suitable for both standard municipal waste collection projects and projects requiring a more tailored underground installation.
Suitable Waste TypesThe system is primarily designed for general non-hazardous waste streams, including:
Municipal solid waste
Household waste
Commercial waste
General urban waste
Packaging waste
Paper
Plastic
General dry waste
Other compatible non-hazardous solid waste
Waste composition should be evaluated before equipment selection because excessive liquid, oversized materials, hazardous substances, or abrasive materials may require a specially configured system.
Main Product AdvantagesThe Fully Sealed Hydraulic Landscape Integrated Underground Waste Compaction Station combines several functions into one integrated waste management system.
Key advantages include:
Fully underground installation
Landscape-integrated appearance
Fully sealed waste storage
Hydraulic high-density compaction
Reduced waste storage volume
Integrated collection and compaction
Hydraulic lifting mechanism
Hook Lift Truck-compatible configuration
PLC automatic control
Optional deodorization system
Optional drainage and sewage collection
Optional remote monitoring
Multiple capacity configurations
Customizable feeding and cover systems
Suitable for municipal and commercial applications
FAQA Fully Sealed Landscape Integrated Underground Waste Compaction Station is an underground waste handling system that combines waste collection, hydraulic compaction, sealed storage, and lifting functions while integrating the surface structure with the surrounding landscape.
Unlike a conventional waste container, the station combines waste storage with hydraulic compaction. The main equipment is installed underground, while the surface structure can be designed to coordinate with landscaping and surrounding public spaces.
Typical configurations can be provided in approximately 6 m³, 9 m³, 12 m³, 15 m³, and 18 m³ capacities. The actual capacity and dimensions can be customized according to the project's waste volume and installation conditions.
Yes. The upper structure can be customized according to the surrounding landscape, paving, architectural environment, and project requirements. This allows the waste collection point to better integrate with residential, commercial, park, or public-space designs.
Yes. For configurations designed for Hook Lift Truck transportation, the hydraulic lifting system can raise the equipment from the underground position to ground level for collection and transfer. The transportation configuration should be confirmed according to the selected model.
The Fully Sealed Hydraulic Landscape Integrated Underground Waste Compaction Station is designed for projects that need more than simple waste storage. It combines underground installation, hydraulic compaction, sealed storage, landscape integration, intelligent control, and lifting-based transfer into one coordinated system.
By moving the main waste handling equipment below ground and maintaining only the necessary feeding and access components at the surface, the system provides a practical way to manage waste while maintaining a cleaner surrounding environment. Its modular configuration and customizable capacity make it suitable for different municipal, residential, commercial, and public-space applications.
For projects with specific site dimensions, waste volumes, landscape requirements, or transportation arrangements, the system can be customized to match the actual operating environment.
