The 9m³ Hook Lift Underground Fully Sealed Hydraulic Garbage Compression Equipment is a high-capacity municipal waste collection and compaction solution designed for urban communities, commercial areas, residential developments, industrial parks, public facilities, and municipal sanitation projects. Combining underground installation, hydraulic waste compaction, full sealing, and Hook Lift transportation, this system provides an efficient way to collect, compress, store, and transport large volumes of municipal solid waste.
Unlike conventional open garbage collection points, this underground garbage compression equipment keeps most of the waste container and operating mechanism below ground level. The enclosed structure helps improve the appearance of waste collection areas while reducing exposure to odors, rainwater, scattered waste, and unauthorized access.
The 9m³ capacity provides a practical balance between storage volume and site footprint, while the Hook Lift compatible container design allows the filled unit to be lifted and transported by a suitable hook lift truck for centralized waste disposal or transfer.
Key Features of the 9m³ Underground Garbage Compression EquipmentWith an approximately 9m³ waste storage capacity, the system is suitable for locations that generate a continuous volume of municipal or commercial waste.
The underground configuration makes better use of available space and helps maintain a cleaner appearance around the collection point. It is particularly suitable for:
Residential communities
Apartment complexes
Shopping centers
Hotels and resorts
Commercial districts
Industrial parks
Schools and public facilities
Municipal sanitation projects
Transfer and collection points
High-density urban areas
The actual usable capacity, dimensions, inlet configuration, and equipment layout can be customized according to project requirements.
One of the major advantages of this system is its Hook Lift compatible design.
After the waste collection container reaches its required filling level, a Hook Lift Truck can be used to lift and transport the container to a waste transfer station, treatment facility, landfill, or other designated disposal location.
This transportation method eliminates the need for a dedicated fixed transportation vehicle and can integrate the underground compactor with existing municipal waste logistics.
Hook Lift compatibility makes the equipment particularly attractive for projects that already use hook lift trucks and hook lift containers.
The fully sealed design is an important feature for modern municipal waste management.
The enclosed structure helps contain waste within the collection system and reduces direct exposure to the surrounding environment. Compared with traditional open waste containers, a sealed underground garbage compression system can help minimize:
Waste leakage
Scattered garbage
Rainwater entering the waste container
Unpleasant odors
Insect and pest exposure
Unauthorized waste access
Visual pollution
For urban environments where cleanliness and environmental appearance are important, a fully sealed underground waste compactor can provide a significant improvement over conventional open collection points.
Hydraulic Waste Compaction TechnologyThe system uses a hydraulic compression mechanism to compact incoming waste inside the underground collection container.
Instead of simply storing loose garbage, the hydraulic compactor reduces the volume of waste through controlled mechanical compression. This allows more waste to be stored within the available container volume and can reduce the frequency of collection and transportation.
The hydraulic system provides strong compression force and is suitable for handling common municipal solid waste and other compatible non-hazardous waste streams.
Depending on the project configuration, the hydraulic power unit, compression mechanism, control system, and operating parameters can be customized to meet different waste characteristics and working conditions.
How Does the 9m³ Hook Lift Underground Garbage Compactor Work?The basic operating process is straightforward:
Waste Disposal → Waste Collection → Hydraulic Compaction → Sealed Storage → Hook Lift Transportation → Waste Treatment
Residents, workers, or sanitation personnel place waste into the designated garbage inlet or collection opening.
The system can be designed to work with different waste loading arrangements depending on the project.
Collected waste is transferred into the underground storage chamber. The underground structure keeps the majority of the waste storage volume below the ground surface.
The hydraulic compaction mechanism pushes the waste and compresses it inside the container.
Repeated compression allows the available storage volume to be used more efficiently.
The fully sealed structure keeps compressed waste contained until transportation is required.
This is particularly useful for public locations where controlling odor, leakage, and visual pollution is important.
Once the container reaches the designated filling level, a compatible Hook Lift Truck can lift and transport the waste container.
The container can then be delivered to a transfer station, waste treatment facility, landfill, or other authorized disposal location.
Why Choose an Underground Hydraulic Garbage Compression System?Traditional garbage collection points can occupy considerable surface space and may create problems with odor, scattered waste, appearance, and sanitation.
An underground hydraulic garbage compactor approaches these challenges from a different perspective by combining underground storage with mechanical compaction.
The underground configuration allows a large waste storage capacity without creating a large above-ground container.
This makes the system suitable for locations where available land is limited or where maintaining an attractive streetscape is important.
Only the necessary loading and operating structures remain visible above ground. The main waste storage volume is positioned underground, helping the collection station integrate more naturally into its surroundings.
This makes it suitable for:
Urban streets
Residential neighborhoods
Tourist areas
Commercial plazas
Landscaped public spaces
Modern city sanitation projects
Hydraulic compression allows waste to be stored in a more compact condition. Depending on waste composition, operating frequency, and compression parameters, this can help increase the amount of waste handled between transportation cycles.
Fewer collection trips can potentially reduce vehicle operating time, fuel consumption, labor requirements, and transportation costs.
The fully enclosed structure helps keep waste contained and reduces exposure to external environmental conditions.
This can be especially valuable in areas with high pedestrian traffic or strict sanitation requirements.
Designed for Municipal and Commercial Waste ManagementThe 9m³ Hook Lift Underground Fully Sealed Hydraulic Garbage Compression Equipment can be configured for different application environments.
For residential communities and apartment complexes, the underground design can help create a cleaner and more organized waste collection point.
The system can accommodate regular household waste collection while reducing the visual impact of conventional large waste containers.
Shopping centers, commercial streets, hotels, and restaurants often generate substantial quantities of waste every day.
A high-capacity underground waste compactor can provide centralized waste collection while keeping the surrounding area cleaner and more visually appealing.
Municipal authorities can integrate the system into modern urban waste collection networks.
Its combination of hydraulic compaction + underground storage + sealed construction + Hook Lift transportation makes it suitable for city sanitation modernization projects.
Industrial parks and large public facilities may require centralized waste collection points with higher storage capacity.
The 9m³ configuration provides a practical solution for collecting compatible general solid waste before transportation.
Customized Underground Waste Compactor SolutionDifferent projects have different site conditions, waste volumes, transportation systems, and installation requirements. Therefore, the 9m³ underground garbage compression equipment can be customized rather than being limited to one standard configuration.
Potential customization options include:
Container capacity
Overall equipment dimensions
Underground pit dimensions
Waste inlet design
Hydraulic system configuration
Compression mechanism
Control system
Safety protection system
Access doors
Sealing structure
Surface platform
Hook Lift interface
Electrical specifications
Operating voltage
Installation layout
Exterior finish
For projects with limited installation space, special ground conditions, or specific Hook Lift Truck requirements, the equipment dimensions and interface can be adjusted during the engineering stage.
Fully Sealed Design for Better Environmental ProtectionEnvironmental control is an important consideration when designing a modern underground waste collection system.
The fully sealed configuration helps isolate collected waste from the surrounding environment. A properly engineered sealing structure can help reduce leakage and exposure while making the waste collection point easier to manage.
The underground structure also provides a physical barrier between the stored waste and the public environment.
For projects located close to residential buildings, commercial facilities, pedestrian areas, or landscaped public spaces, these characteristics can provide practical operational benefits.
Hydraulic Control and Reliable OperationThe hydraulic system is the core power mechanism of the garbage compression equipment.
Hydraulic cylinders provide the force required to operate the compression mechanism and can be controlled through an electrical control system.
Depending on the final configuration, the system can include:
Hydraulic power unit
Hydraulic cylinders
Hydraulic pipelines
Control valves
Electrical control cabinet
Operating controls
Safety interlocks
Emergency stop functions
The control system can be configured according to the customer's operating requirements and local electrical standards.
For municipal projects requiring frequent operation, the hydraulic system can be engineered around the expected waste volume, operating cycle, and working environment.
Product Effects

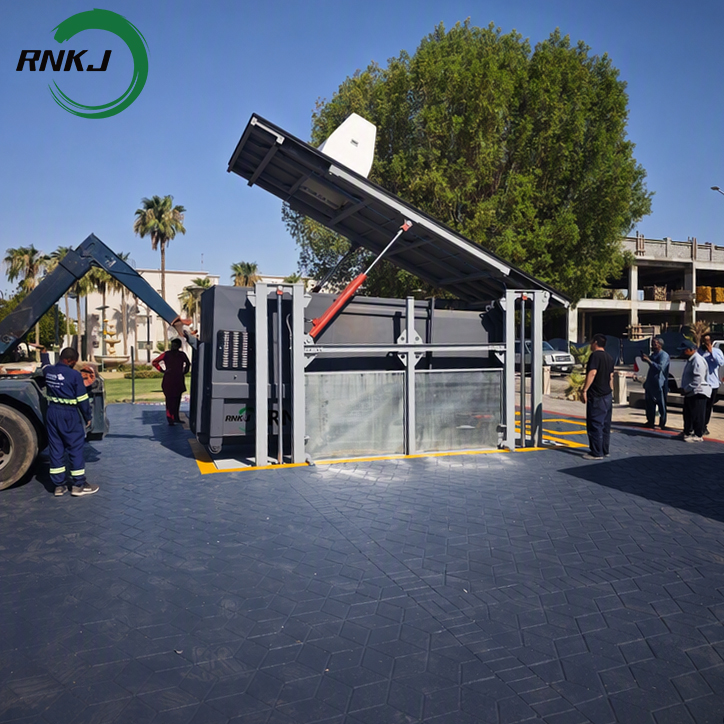

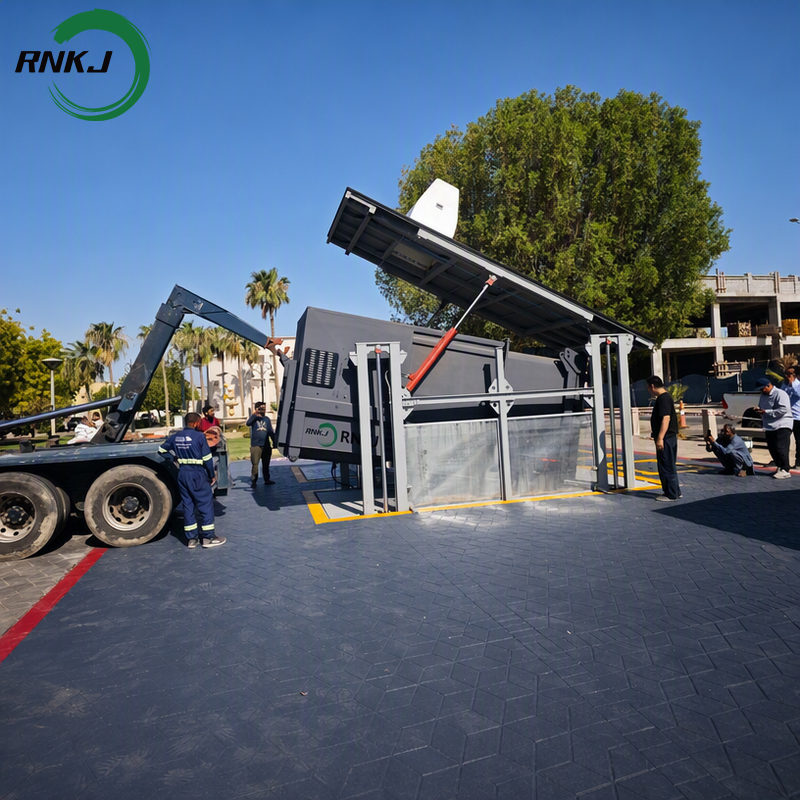

Lifting mode

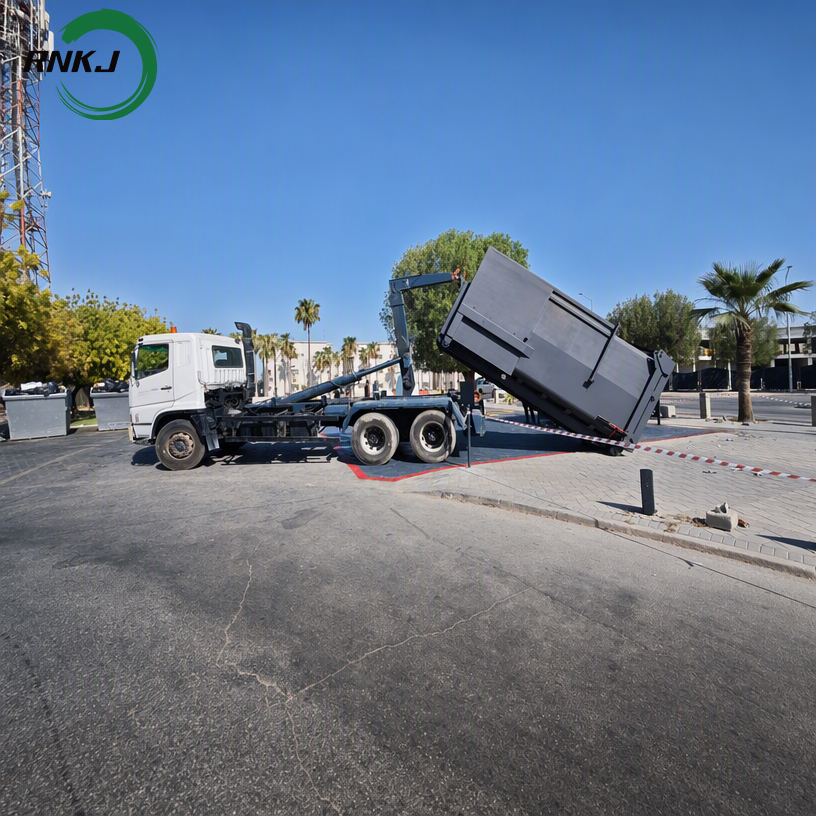

Landing mode
Advantages Compared with Conventional Waste Containers| Feature | 9m³ Underground Hydraulic Garbage Compactor | Conventional Waste Container |
|---|---|---|
| Storage position | Mainly underground | Above ground |
| Waste compaction | Hydraulic compaction | Usually no compaction |
| Sealing | Fully enclosed/sealed design | Depends on container |
| Space utilization | High | Moderate |
| Appearance | Low visual impact | Larger visual impact |
| Waste exposure | Reduced | Higher |
| Transportation | Hook Lift compatible | Depends on container type |
| Collection efficiency | High | Standard |
| Urban application | Excellent | General |
| Customization | Available | Usually limited |
The underground hydraulic compactor is therefore particularly suitable for projects where waste capacity, cleanliness, space efficiency, environmental appearance, and transportation efficiency are all important.
Hook Lift Underground Garbage Collection for Efficient LogisticsTransportation is a critical part of any waste management system. A well-designed compaction station should not only collect and compress waste but also connect efficiently with downstream transportation.
The Hook Lift Underground Garbage Compactor is designed around this concept.
Once the container is ready for transportation, a compatible hook lift truck can be used for lifting and hauling. This creates a relatively simple logistics process:
Collection Point → Hydraulic Compaction → Container Storage → Hook Lift Truck → Transfer Station / Treatment Facility
For operators already using hook lift vehicles, this configuration can help simplify fleet integration and waste transportation planning.
Suitable Waste TypesThe equipment is primarily intended for compatible municipal solid waste and general non-hazardous solid waste.
Potential applications include:
Household municipal waste
Commercial solid waste
General urban waste
Community waste
Hotel waste
Shopping center waste
Public facility waste
General industrial solid waste
Waste containing hazardous, toxic, corrosive, explosive, or otherwise specially regulated materials should not be processed unless the equipment has been specifically engineered and approved for that application.
FAQIt is an underground hydraulic waste compaction system with approximately 9m³ capacity, designed for efficient municipal and commercial waste collection and Hook Lift truck transportation.
Waste is loaded into the underground collection chamber and compressed by a hydraulic mechanism. The compacted waste remains enclosed until the container is lifted and transported by a compatible Hook Lift truck.
Yes. The equipment adopts a fully enclosed design to help reduce waste exposure, leakage, odors, rainwater intrusion, and scattered garbage.
Yes. The system is designed to be Hook Lift compatible, allowing the filled waste container to be lifted and transported to a transfer station or waste treatment facility.
It is suitable for residential communities, commercial areas, hotels, industrial parks, public facilities, municipal sanitation projects, and other high-volume waste collection locations.
Yes. Capacity, dimensions, hydraulic system, loading structure, control system, sealing configuration, and Hook Lift interface can be customized according to project requirements.
Key advantages include efficient waste compaction, better space utilization, reduced visual pollution, improved waste containment, higher collection efficiency, and convenient Hook Lift transportation.
The 9m³ Hook Lift Underground Fully Sealed Hydraulic Garbage Compression Equipment combines several key technologies into one integrated waste management solution: underground waste storage, hydraulic compaction, fully sealed construction, high-capacity collection, and Hook Lift transportation.
It is particularly suitable for municipalities, property developers, sanitation contractors, commercial facilities, residential communities, and other organizations looking for a more efficient and visually integrated alternative to conventional above-ground waste containers.
With customizable capacity, dimensions, hydraulic configuration, loading arrangement, control system, and Hook Lift interface, the equipment can be engineered around the specific requirements of different waste collection projects.
For projects seeking a high-capacity, space-efficient, fully sealed, and Hook Lift compatible waste collection solution, this 9m³ underground hydraulic garbage compactor provides a practical foundation for modern municipal waste management.
