The 9 CBM Hydraulic Underground Garbage Compaction Station is a compact and practical waste collection and compression solution designed for municipalities, residential communities, commercial properties, public facilities, industrial parks, and other locations where efficient waste management and limited surface space are important considerations.
With a 9 cubic meter waste storage capacity, hydraulic compression technology, and an underground installation structure, this garbage compaction station is designed to handle a continuous flow of municipal solid waste while keeping most of the equipment below ground level.
Unlike conventional above-ground waste containers, the underground structure helps reduce the visual impact of waste collection facilities and makes better use of limited ground space. The system can also be configured with sealed covers, drainage systems, lifting mechanisms, automatic controls, and other options according to project requirements.
For customers looking for a 9 CBM hydraulic underground garbage compaction station for sale, this equipment provides a customizable foundation for modern waste collection projects.
What Is a 9 CBM Hydraulic Underground Garbage Compaction Station?A 9 CBM Hydraulic Underground Garbage Compaction Station is an underground waste collection system that combines waste storage and hydraulic compaction within a dedicated underground structure.
The main waste container and related components are installed below ground, while the waste loading opening and necessary operating components remain accessible from the surface.
The hydraulic system drives the compaction mechanism to compress loose waste after it enters the collection chamber. By reducing the volume of loose waste, the available storage space can be used more effectively and the frequency of waste collection and transportation can potentially be reduced.
Hydraulic Waste Compaction SystemThe core of the equipment is its hydraulic garbage compaction mechanism.
After waste is deposited into the underground collection chamber, the hydraulic cylinder drives the compression plate to apply controlled pressure to the waste. The compression process reduces the volume of loose waste and creates a denser waste mass inside the storage chamber.
Compared with a simple underground waste storage container, a hydraulic underground garbage compactor provides an additional compression function, making it particularly suitable for locations where waste generation is relatively concentrated.
The hydraulic system can be configured according to the customer's requirements, including:
Hydraulic power unit
Hydraulic cylinders
Compression plate
Hydraulic control valves
Electrical control cabinet
Automatic operating controls
Emergency stop system
Pressure protection
Remote-control functions
The exact hydraulic configuration can be customized according to the waste characteristics, operating frequency, installation environment and required automation level.
9 CBM Underground Waste Storage CapacityThe 9 CBM capacity provides a practical balance between equipment size and waste storage volume.
The system can be considered for applications such as:
Residential communities
Apartment complexes
Commercial buildings
Shopping centers
Hotels and resorts
Schools and universities
Hospitals
Industrial parks
Public facilities
Parks and scenic areas
Municipal sanitation projects
Urban waste collection points
The actual usable capacity and collection frequency depend on the waste type, moisture content, bulk density, compression characteristics and operating schedule.
For projects with higher waste generation, larger 12 CBM, 15 CBM or 18 CBM configurations can also be considered.
Underground Installation DesignOne of the main characteristics of this underground garbage compaction station is its concealed installation.
Most of the collection and compression equipment is positioned below ground, while only the necessary loading and operating components remain visible.
This design can provide several practical advantages.
Urban land is often limited, particularly in residential communities, commercial developments and public areas. Moving the main waste collection equipment underground can reduce the amount of equipment occupying valuable surface space.
Traditional garbage containers can become visually prominent in public areas. An underground waste compaction station allows the waste collection point to be integrated more naturally into its surroundings.
The underground structure and optional sealing configuration help reduce direct exposure of waste to the surrounding environment.
The system can be incorporated into residential landscaping, commercial plazas, parks and other projects where appearance is an important consideration.
Automatic and Remote-Control OperationThe 9 CBM Hydraulic Underground Garbage Compaction Station can be equipped with an electrical control system to simplify daily operation.
Depending on the project configuration, the control system can manage:
Hydraulic compression
Equipment lifting
Cover opening and closing
Waste loading
Discharge-door operation
Automatic operating cycles
Emergency shutdown
Equipment status monitoring
Remote monitoring can also be added for projects that require centralized management of multiple waste collection stations.
The use of operating interlocks, overload protection and emergency-stop functions can further improve equipment safety during operation.
Flexible Waste Loading OptionsDifferent waste collection projects use different waste-loading methods. Therefore, the 9 CBM hydraulic underground garbage compaction station can be designed with different feeding configurations.
Depending on the application, the system may be equipped with:
Custom filling hopper
Wheelie-bin lifting system
Fixed loading platform
Automatic lid system
Manual loading opening
Customized waste inlet
This flexibility makes the equipment suitable for both manually collected waste and containerized municipal waste collection systems.
Convenient Maintenance DesignAlthough the main equipment is installed underground, maintenance accessibility remains an important consideration.
The system can be designed so that important components can be raised or brought to an accessible working position for inspection and maintenance, reducing the need for personnel to conduct routine work inside a deep underground pit.
Typical maintenance items include:
Hydraulic oil inspection
Hydraulic cylinder inspection
Hydraulic hose inspection
Electrical system inspection
Compression plate inspection
Sealing component inspection
Drainage system cleaning
Waste residue removal
Proper foundation design, drainage and access arrangements should be determined before installation.
Main Features of the 9 CBM Hydraulic Underground Garbage Compaction StationThe 9 m³ configuration provides a medium-capacity solution for residential, commercial and municipal waste collection applications.
A hydraulic compression mechanism applies controlled pressure to loose waste, helping reduce its occupied volume.
The main collection equipment is installed below ground, helping save surface space and improve the appearance of the waste collection area.
A sealed structure can be selected to help reduce exposure to rainwater, scattered waste and external environmental conditions.
The loading inlet, bin lifter, hopper and other feeding components can be customized according to the customer's waste collection method.
Drainage and sewage collection systems can be integrated according to local requirements and project conditions.
PLC-based or electrical control systems can be configured for automated equipment operation.
For smart sanitation projects, remote monitoring and centralized equipment management can be added.
Besides the 9 CBM model, similar underground hydraulic garbage compactors can be configured in different capacities, including 6, 12, 15 and 18 m³.
How Does the 9 CBM Underground Garbage Compaction Station Work?The general working process can be divided into several stages:
Step 1 – Waste Loading
Household, commercial or municipal solid waste is deposited into the underground garbage collection opening.
Step 2 – Waste Collection
Waste enters the underground storage and compaction chamber.
Step 3 – Hydraulic Compression
The hydraulic cylinder activates the compression mechanism and pushes the waste into the storage area.
Step 4 – Continuous Operation
Additional waste can continue to enter the system as the compaction cycle is repeated.
Step 5 – Full-Load Handling
When the collection chamber reaches the required loading level, the equipment is prepared for unloading or transportation according to the selected system configuration.
Step 6 – Waste Transfer
The compressed waste is removed and transported to a transfer station, treatment facility or designated disposal location.
The exact unloading method depends on the final equipment configuration and the customer's transportation system.
Product Effects

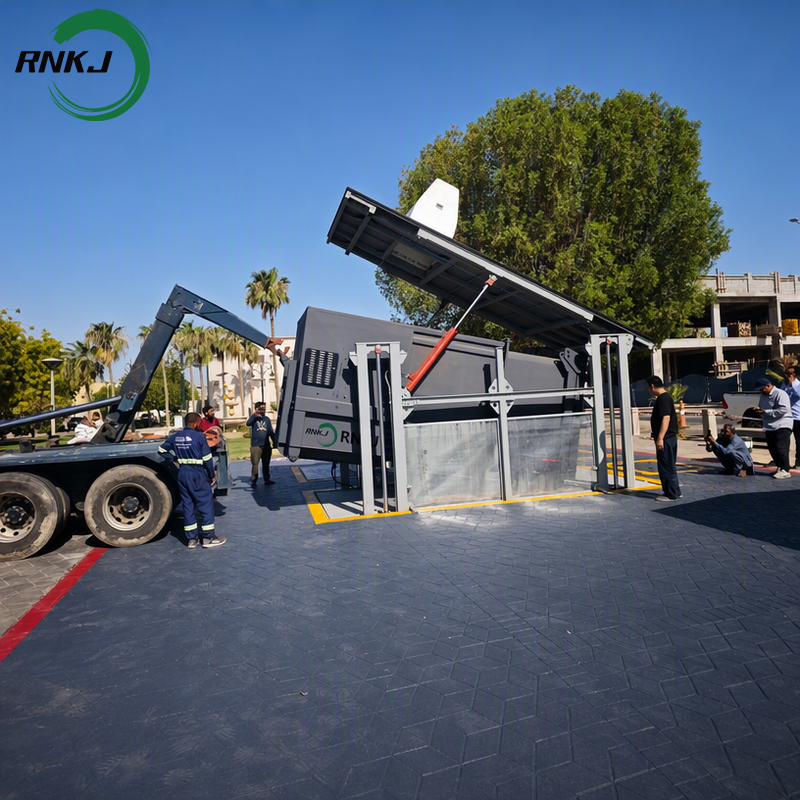

Lifting mode
Landing mode
Customization OptionsEvery waste management project has different installation and transportation requirements. Therefore, the 9 CBM hydraulic underground garbage compaction station can be customized according to the customer's technical conditions.
Possible customization areas include:
Equipment dimensions
Underground installation depth
Hydraulic compression force
Motor power
Hydraulic cylinder configuration
Compression plate structure
Loading opening
Sealing structure
Drainage system
Wastewater collection system
Odor-control system
Electrical control system
PLC control
Remote monitoring
Safety protection
Hook Lift Truck connection structure
Surface cover design
External finish
For Hook Lift Truck transportation, the lifting structure and hook connection should be matched to the customer's truck specifications to ensure compatibility during loading, unloading and transportation.
Reference Technical Specifications| Item | Reference Specification |
|---|---|
| Product Name | Hydraulic Underground Garbage Compaction Station |
| Capacity | 9 CBM |
| Equipment Type | Underground Hydraulic Garbage Compactor |
| Compression Method | Hydraulic Compression |
| Installation | Underground |
| Structure | Integrated Compression & Storage Unit |
| Transportation | Whole Unit by Hook Lift Truck |
| Control System | Electrical / PLC Control |
| Application | Municipal & General Solid Waste |
| Drainage | Optional / Customized |
| Odor Control | Optional / Customized |
| Remote Monitoring | Optional |
| Customization | Available |
The above specifications are for reference. Final dimensions, hydraulic parameters, power configuration and Hook Lift Truck connection dimensions should be confirmed according to the actual project.
9 CBM Hydraulic Underground Garbage Compaction Station for SaleIf you are looking for a 9 CBM Hydraulic Underground Garbage Compaction Station for Sale, the equipment can be customized according to your waste collection site, transportation method and installation conditions.
Before manufacturing, customers should provide key project information such as:
Required waste capacity
Daily waste generation
Waste type
Installation location
Available underground space
Required equipment dimensions
Local power supply
Hook Lift Truck model or lifting specifications
Waste transportation distance
Required automation level
Drainage requirements
Local environmental conditions
Based on this information, the hydraulic compression system, underground structure, loading arrangement and Hook Lift Truck transportation interface can be designed as an integrated solution.
The 9 CBM Hydraulic Underground Garbage Compaction Station is therefore not simply an underground waste container. It is a complete waste collection and compaction system that combines underground installation, hydraulic compression, integrated storage and whole-unit Hook Lift Truck transportation into one solution for modern municipal and commercial waste management projects.
FAQA 9 CBM Hydraulic Underground Garbage Compaction Station is an integrated underground waste collection and compression system with a nominal capacity of 9 cubic meters. It uses a hydraulic compression mechanism to compact municipal or general solid waste before the complete unit is transported for further waste treatment or disposal.
Waste is loaded into the underground collection chamber and periodically compressed by a hydraulic compression plate. The hydraulic system reduces the volume of loose waste and allows the station to collect and store a greater amount of compressed waste before transportation.
Yes. The equipment is designed as an integrated unit, and the complete garbage compaction station can be lifted and transported by a Hook Lift Truck when it reaches the required loading condition. The hook-lift connection can be customized according to the customer's truck specifications.
No. This configuration is designed as an integrated underground garbage compaction station. The main compression and waste storage components operate together as one complete unit. The whole station can be transported by Hook Lift Truck rather than separating the compression equipment from the storage body.
Yes. The equipment can be customized according to project requirements, including equipment dimensions, hydraulic system, motor power, compression mechanism, loading structure, drainage system, electrical controls, PLC system, odor-control options and Hook Lift Truck connection structure.
