The Underground Waste Compressor is a waste volume reduction processing device designed specifically for underground environments. Its core function is to compress the volume of waste through mechanical pressure, thereby improving the efficiency of underground waste storage and transportation.
Provide innovative and cost-effective solutions for modern waste management challenges
Underground Waste Compressor not only offer significant space-saving advantages but also incorporate advanced waste compression technology. By efficiently compressing waste, the equipment drastically reduces its volume. This core function directly delivers dual benefits: firstly, the compressed waste maximizes the use of the compressor's storage capacity, minimizing idle space; secondly, the reduced waste volume significantly decreases the frequency of waste collection. For businesses and municipal management departments, this reduction in collection frequency directly translates into savings in manpower, resources, and time, improving the overall economic efficiency of the waste management process.
Product Advantage
High space utilization: Compaction can reduce waste volume by 40%-60%, significantly reducing the floor space required for temporary underground waste storage sites.
High operational efficiency: Flexible movement allows direct operation at waste generation points, reducing waste handling steps. Compared to manual handling combined with fixed compaction equipment, efficiency is increased by over 30%.
Environmentally friendly: Compaction reduces waste spillage and odor emissions. Some equipment is equipped with sealing devices to further reduce pollution to the underground environment.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

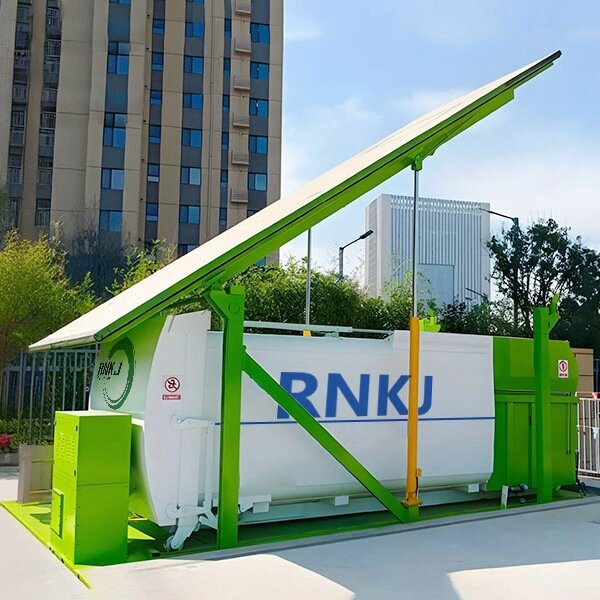

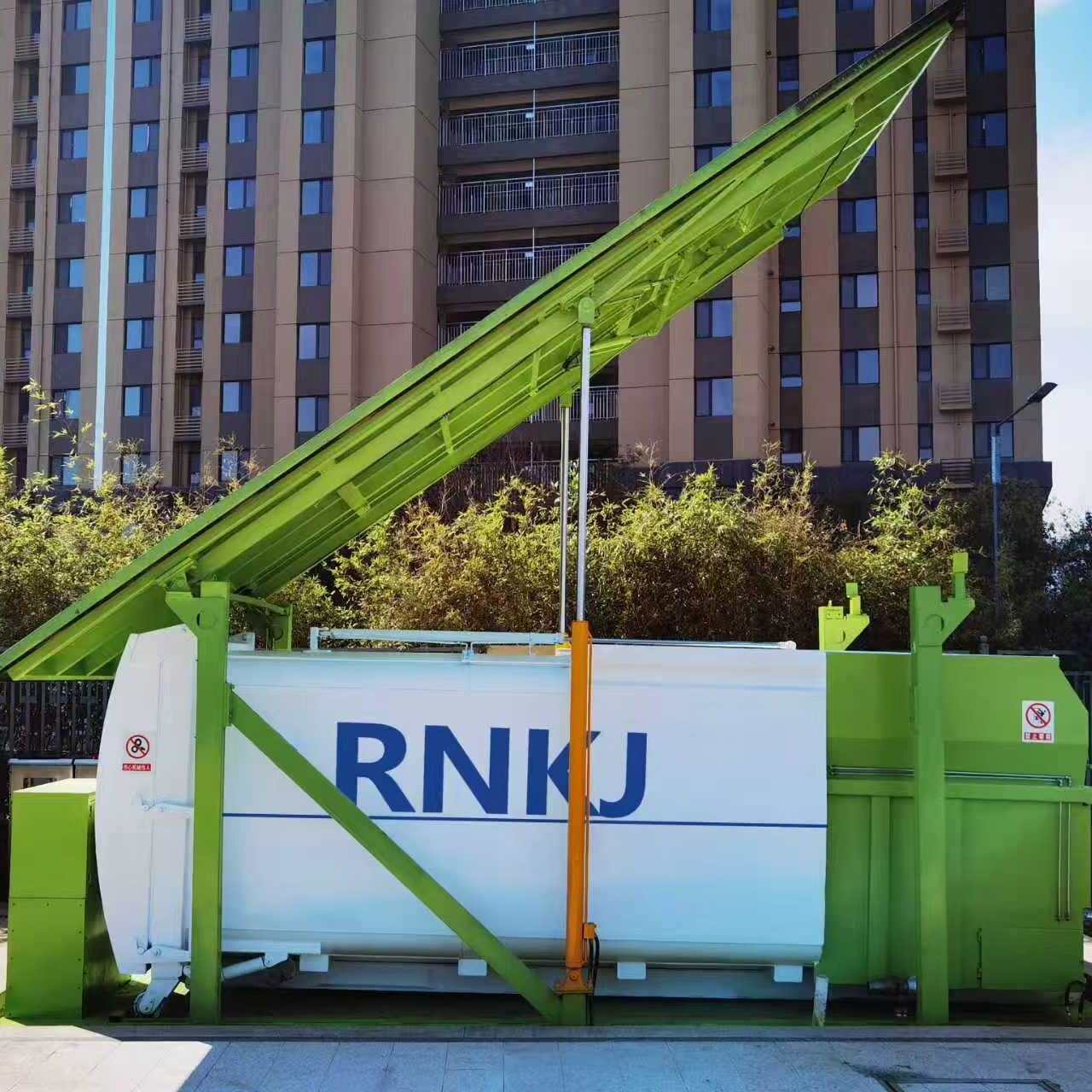

Lifting mode

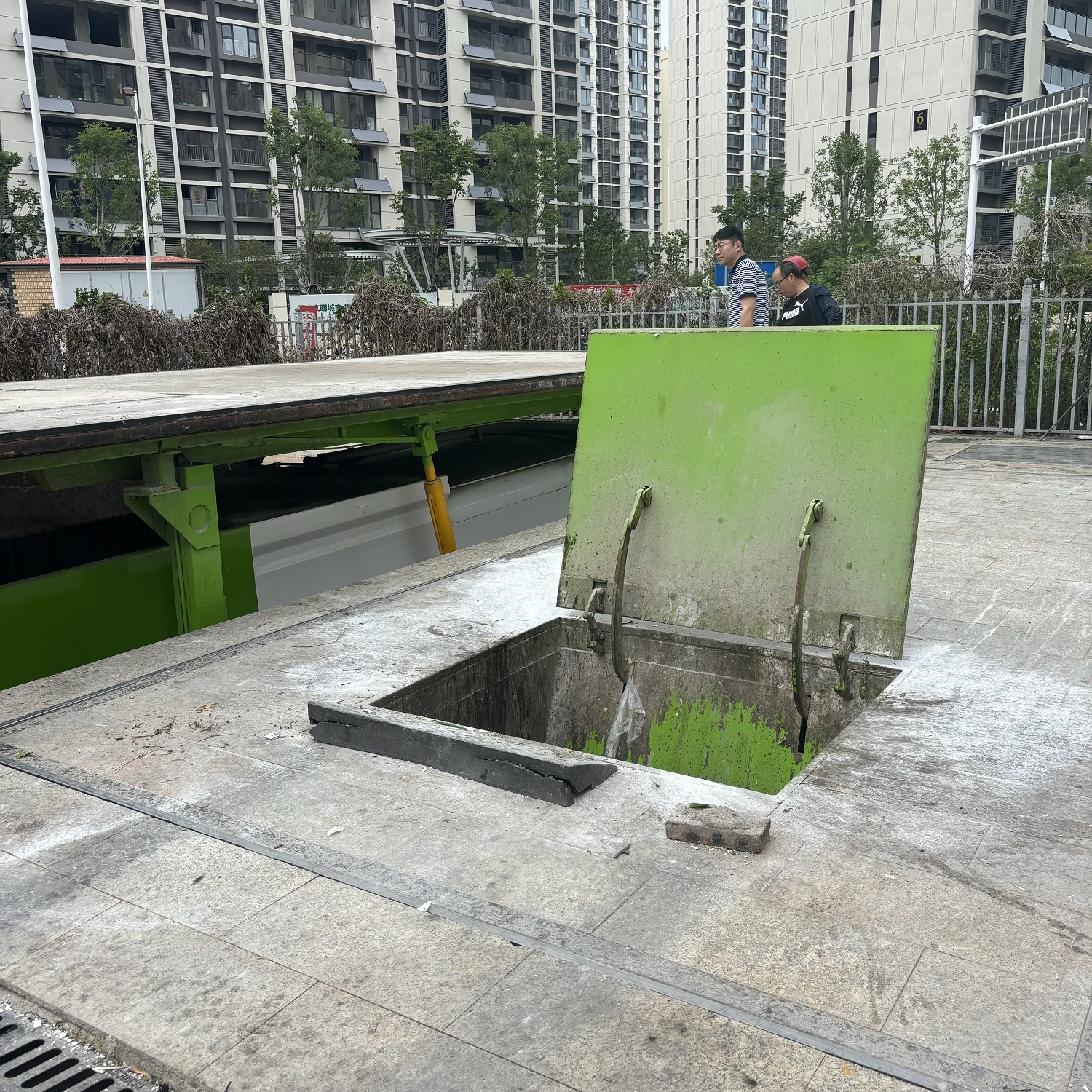

Landing mode
Features
Suitable for underground environments: The compact design conforms to the size limitations of underground passages and garage entrances, and boasts excellent explosion-proof and dust-proof performance.
Easy to operate: Hydraulically driven and controlled by a handle or touchscreen, requiring no specialized skills for quick mastery. Some units support remote control.
Highly durable: Parts in contact with waste are made of high-strength, wear-resistant steel. The hydraulic system features overload protection, making it suitable for harsh underground conditions characterized by dampness and dust.
Product Uses
Rail transit stations: Handle litter such as fruit peels and tissues generated by passengers, maintaining the cleanliness of platforms and passageways.
Commercial complexes: Handle kitchen waste and commercial waste from shops and restaurants, reducing the frequency of waste transfer and minimizing disruption to customers.
Factory/warehouse buildings: Handle industrial scraps and packaging waste, improving the utilization efficiency of underground production space.
Operation Procedure
The underground trash compactor consists of four main components: a sealed underground chamber, a hydraulic compacting mechanism, a lifting system, and a control system.
Waste is deposited into the underground chamber via a ground-level feed port, where the hydraulic system automatically compacts it to reduce volume.
Once the chamber is full, the lifting system raises either the entire compaction mechanism or compacted waste blocks to the surface for truck transport.
The entire system operates underground, with only the feed port visible above ground—resulting in a neater appearance.
Custom Drop
According to customer needs, we can choose a variety of feeding port modes such as garbage sorting and dumping port, bucket tipping device, large garbage opening device, etc.,
Custom Floor Materials
The surface material can be arranged according to your surroundings, hiding the location of the compression station, ensuring smooth roads and achieving beautiful result.
Our Factory
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3. Can you put my brand name (logo) on these products?
Your logo and design can be created on the product.
4.Do you have any After-Sales service?
Yes!lf you have any technical problem or question with the goods, welcome tocontact our TechnicalSupport Dept. or our sales directly.
5.Are you just trading company or factory?
We are a professional factory, we can offer you the most competitive price,unparalleled quality and service.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
