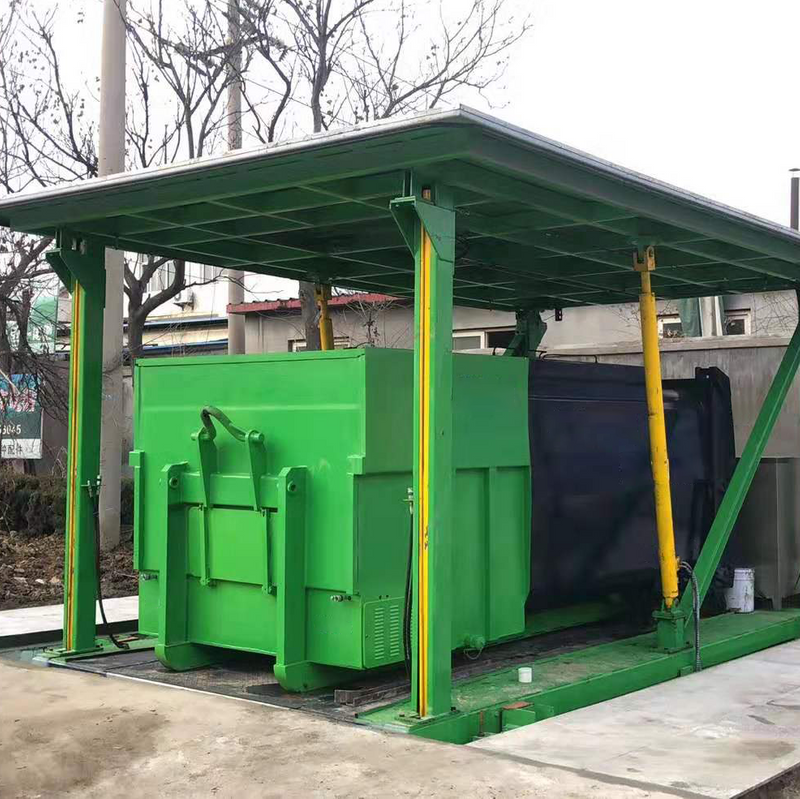

The Underground Waste Compression Station is an efficient solution for waste disposal - through the "underground compression function + ground landscaping" model, it not only addresses the problems of "dirty, messy, poor, and noisy" associated with traditional waste stations, but also effectively utilizes the limited urban land resources. It is an important facility choice for current high-density cities in their efforts to promote "reduction, harmless treatment, and resource utilization" of waste.
Support Customization
Individually Tailored Solutions core of RNKJ
Product Advantage
1.Compression and Reduction: The Underground Waste Compression Station uses strong pressure to compress the garbage, significantly reducing its volume. The compression ratio is usually high, which greatly reduces the space occupied by the garbage. This means that in the same storage space, more garbage can be accommodated, reducing the frequency and cost of garbage collection.
2.Easy Transportation: The compressed garbage is more compact and denser, making it easier to transport using garbage collection vehicles for centralized disposal. It reduces the scattering and flying of garbage during transportation, minimizing pollution to the surrounding environment along the transportation route.
3.Hygiene and Environmental Protection: The underground sealed structure effectively isolates the garbage from the outside environment, reducing the emission of garbage odors and the breeding of mosquitoes and flies, and minimizing pollution to the surrounding air and soil. During the compression process, the wastewater in the garbage can also be collected and treated, further protecting the environment.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects
Lifting mode
Landing mode
Precautions
Applicable garbage types: mainly used for compressing domestic garbage (such as kitchen waste, paper, plastic, etc.), and it is forbidden to put in flammable and explosive materials, liquids, and large hard objects (such as stones and metals).
Maintenance and management:
Regularly clean the residual garbage inside the equipment to prevent corruption and odor;
Check the operating status of the hydraulic system, seals and deodorization devices to ensure the normal operation of the equipment.
Site selection requirements:
Avoid underground pipelines (such as gas and water supply pipelines) and geologically unstable areas;
The ground needs to be hardened to facilitate the parking and operation of garbage trucks.
Safety regulations:
Safety warning signs must be set at the feeding port to prevent children or pets from entering by mistake;
It is strictly forbidden to open the inspection door when the equipment is running to avoid mechanical injuries.
Our Advantages
Our Customers
Our Services
Pre-sales Service
Processing inquiry in time.
Work as your technical assistant.
Feasibility analysis.
Technical drawings and customization.
Factory visit for reference.
After-sales Service
Delivery in time.
Instructions on installation and use.
Track the conditions of equipment regularly.
Spare parts in stock.
FAQ
Are you a manufacturer or trader?
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
