The Underground Trash Compressor is an environmentally friendly garbage disposal equipment. It is mainly buried beneath the ground surface, with only the feeding port exposed above ground. It reduces the volume of domestic waste through compression technology and is widely used in small-scale garbage transfer stations in residential areas, villages, parks, streets, etc.
Support Customization
Individually Tailored Solutions core of RNKJ
Product Advantage
Environmental friendliness: The entire process of garbage compression is enclosed, reducing odors and preventing sewage from overflowing; the cover plate is sealed to prevent rainwater and mosquitoes; the sewage system can centrally treat sewage.
Economy: The equipment has a low cost, is easy to operate, and one person can complete the transfer operation, saving labor costs.
Practicality: It occupies a small area and can be adapted to various locations; the compression efficiency is high.
Intelligence: It can be operated remotely, the hydraulic system is stable, and the maintenance cost is low.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

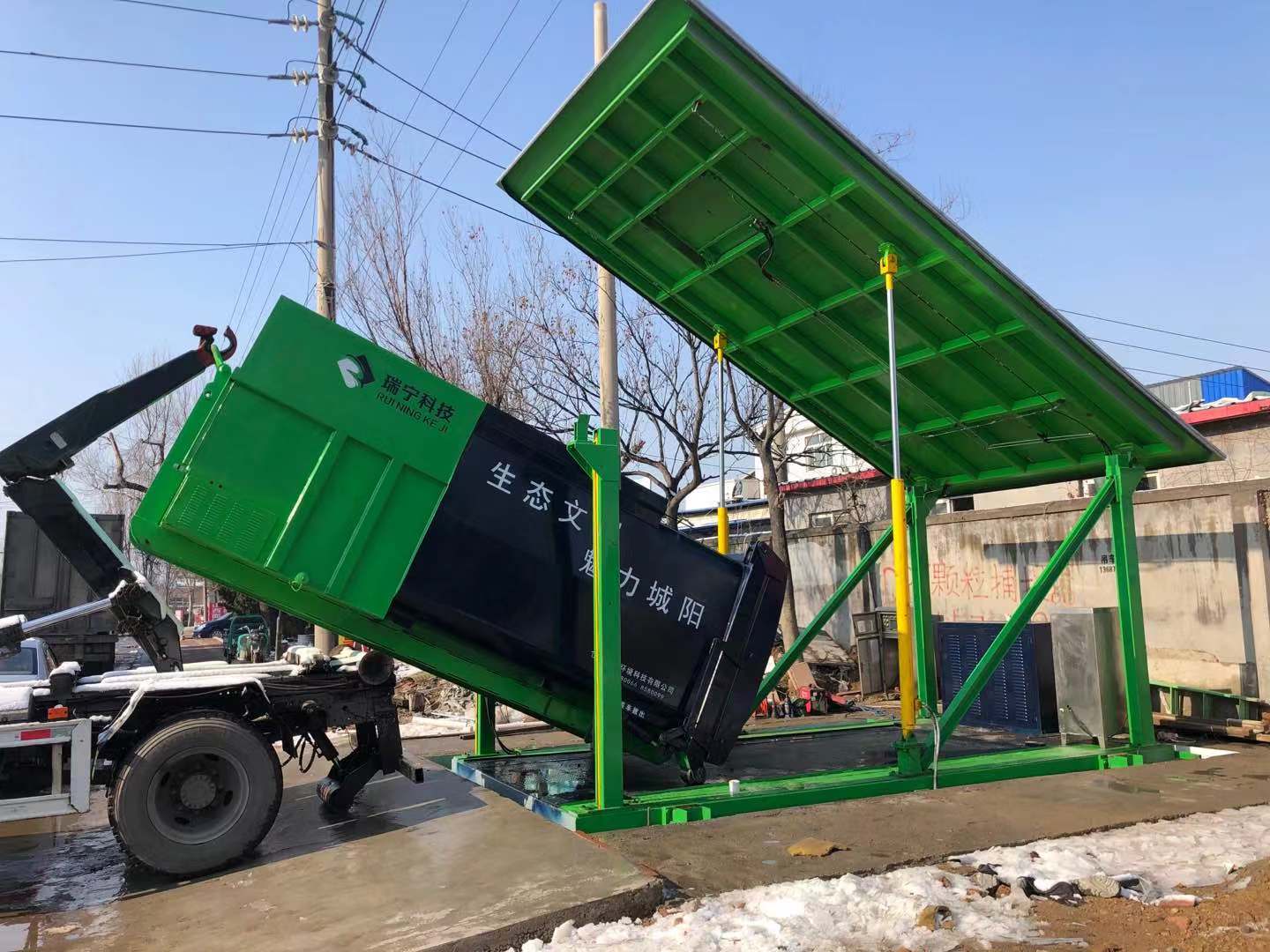

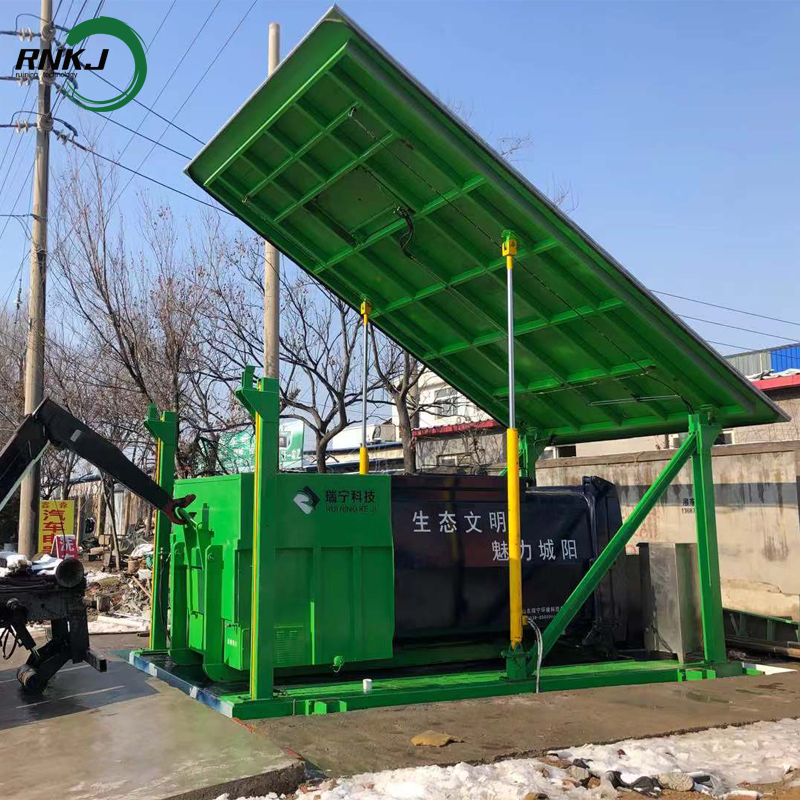

Lifting mode

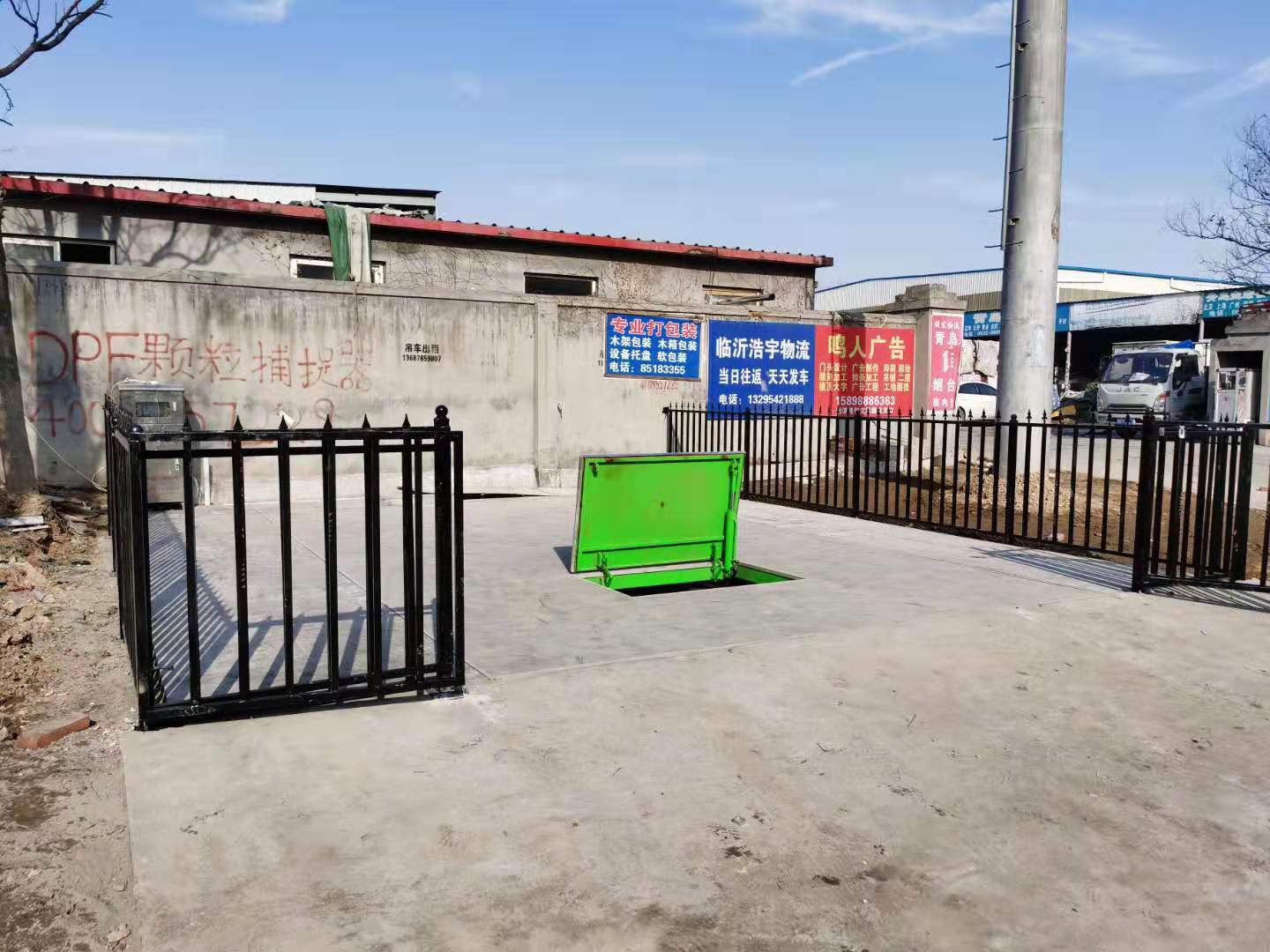

Landing mode
Features
High degree of automation: It can be automatically controlled 24 hours a day, with simple operation and no contact of the cleaning staff with the garbage.
Strong compression capacity: The compression ratio can reach above 2–3:1, reducing the frequency of garbage collection and lowering transportation costs.
Space-saving: The equipment is buried underground, keeping the ground clean and beautiful, and improving environmental quality.
High adaptability: The capacity can be customized according to user needs. The regular model is 6–10 cubic meters, and the daily processing capacity can reach 30–100 tons.
Safe and reliable: It is made of high-strength wear-resistant steel, and the key components are of imported brands, ensuring a long service life of the equipment.
Video
Precautions
Applicable garbage types: mainly used for compressing domestic garbage (such as kitchen waste, paper, plastic, etc.), and it is forbidden to put in flammable and explosive materials, liquids, and large hard objects (such as stones and metals).
Maintenance and management:
Regularly clean the residual garbage inside the equipment to prevent corruption and odor;
Check the operating status of the hydraulic system, seals and deodorization devices to ensure the normal operation of the equipment.
Site selection requirements:
Avoid underground pipelines (such as gas and water supply pipelines) and geologically unstable areas;
The ground needs to be hardened to facilitate the parking and operation of garbage trucks.
Safety regulations:
Safety warning signs must be set at the feeding port to prevent children or pets from entering by mistake;
It is strictly forbidden to open the inspection door when the equipment is running to avoid mechanical injuries.
Application scenarios
Underground Trash Compressor mainly used in small-scale garbage transfer stations in cities and rural areas to achieve the reduction and harmless treatment of household waste. It is suitable for daily garbage compression and transfer in densely populated areas such as residential communities, scenic spots, streets, schools, and enterprises and institutions.
Our Customers
Our Services
Pre-sales Service
Processing inquiry in time.
Work as your technical assistant.
Feasibility analysis.
Technical drawings and customization.
Factory visit for reference.
After-sales Service
Delivery in time.
Instructions on installation and use.
Track the conditions of equipment regularly.
Spare parts in stock.
Our Factory
Shandong RNKJ Environmental Technology Co., Ltd takes sanitation equipment "research and development, design, production, sales and service" as the entity's business philosophy, based on the sanitation industry for our customers to provide garbage collection, transport to waste reduction treatment of the overall solution.
Our company follows the "innovative development,integrity management" corporate culture, and constantly forge ahead, with professional technology, quality products, thoughtful after sales service,dedicated to provide you with cost-effective products and high-quality design solutions.
FAQ
Are you a manufacturer or trader?
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
