Underground Trash Compressor Station is an innovative and space-saving waste management system that has revolutionized the way cities and industries handle waste. By combining advanced compression technology with underground installation, this station addresses key issues in traditional waste management, such as limited space, odor pollution, and low collection efficiency. It is applicable to cities, commercial areas, industrial parks, and high-density residential areas, providing a sustainable and cost-effective solution for the increasing demand for waste disposal.
Product Advantage
Space Efficiency: Eliminates the need for large above-ground garbage bins, making it ideal for crowded urban areas, scenic spots, and commercial centers.
Cost Reduction: High compression ratio reduces collection trips by 60-75%, cutting fuel costs and labor expenses.
Environmental Sustainability: Reduces landfill usage by minimizing waste volume and preventing leakage of harmful substances. The closed system also controls pests and reduces the spread of diseases.
Low Maintenance: The underground unit is protected from harsh weather conditions, reducing wear and tear. Routine maintenance primarily involves filter replacement and hydraulic system checks, which can be performed without excavating the unit.
Safety & Convenience: The ground-level hopper is designed with anti-jam technology and emergency stop buttons, ensuring safe operation for users.
Core functions and technical specificationsUnderground installation: The main compression unit is installed 2 to 3 meters underground, and only a small discharge hopper is provided on the ground for use. This design saves valuable ground space and maintains aesthetics in urban environments.
High compression ratio: Equipped with a hydraulic compression system, this station has a high compression ratio, significantly reducing the volume of waste.
Large capacity: The standard model has a total storage capacity of 10 to 20 cubic meters, and customizable options up to 30 cubic meters can be selected based on specific project requirements.
Intelligent operation: Equipped with an intelligent control system and a touch screen interface, it supports automatic compression, waste level monitoring, and remote diagnostic functions.
Environmental Protection:
The advanced odor control system is equipped with activated carbon filters and ultraviolet sterilization devices, which can effectively eliminate unpleasant odors.
It adopts a leak-proof design and is equipped with a liquid collection tank to prevent sewage leakage and soil pollution.
It operates with low noise, avoiding interference to the surrounding areas.
The sturdy structure is made of high-strength steel and coated with anti-corrosion coating, ensuring a lifespan of 10 to 15 years.
The underground part can resist water, rust, and external impacts.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

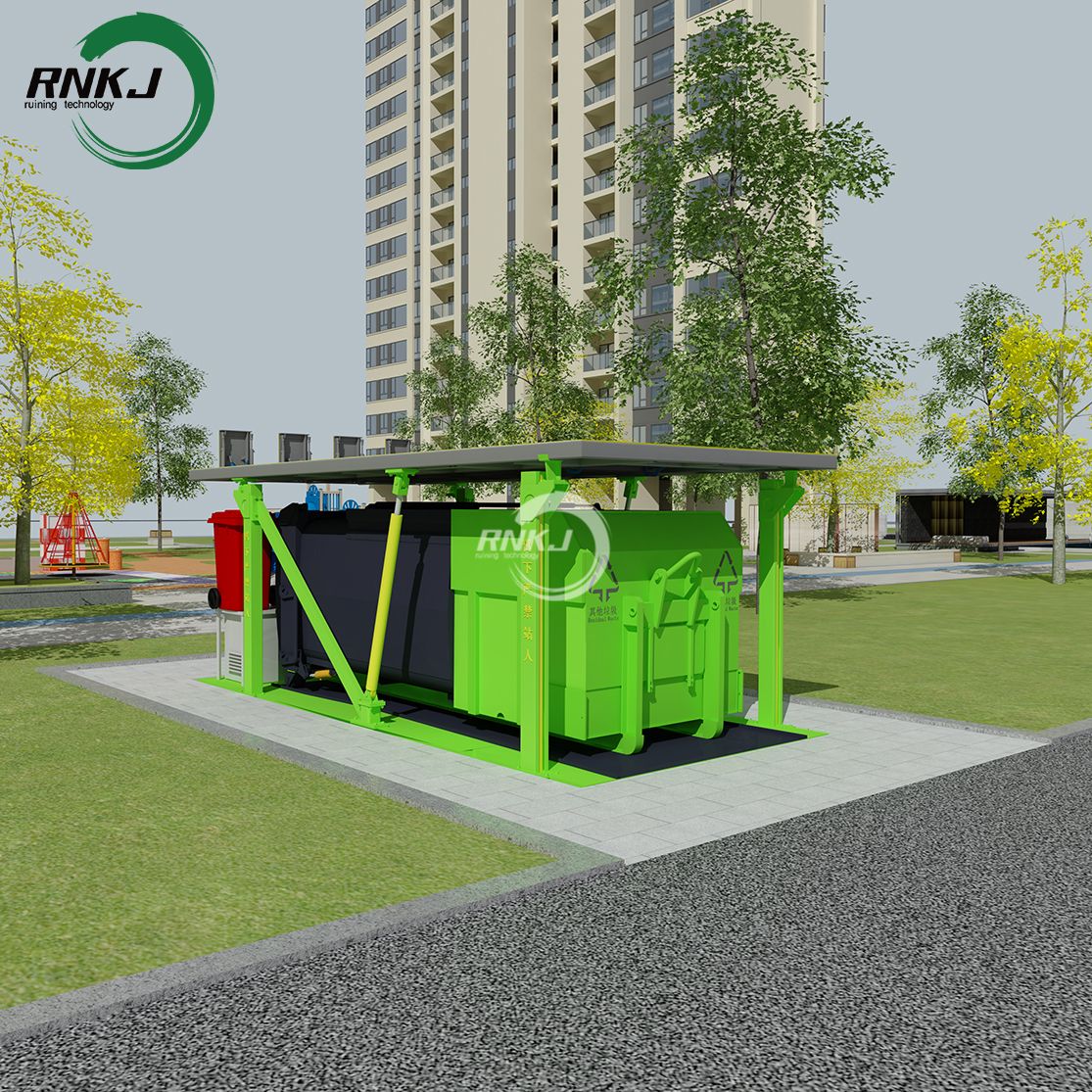

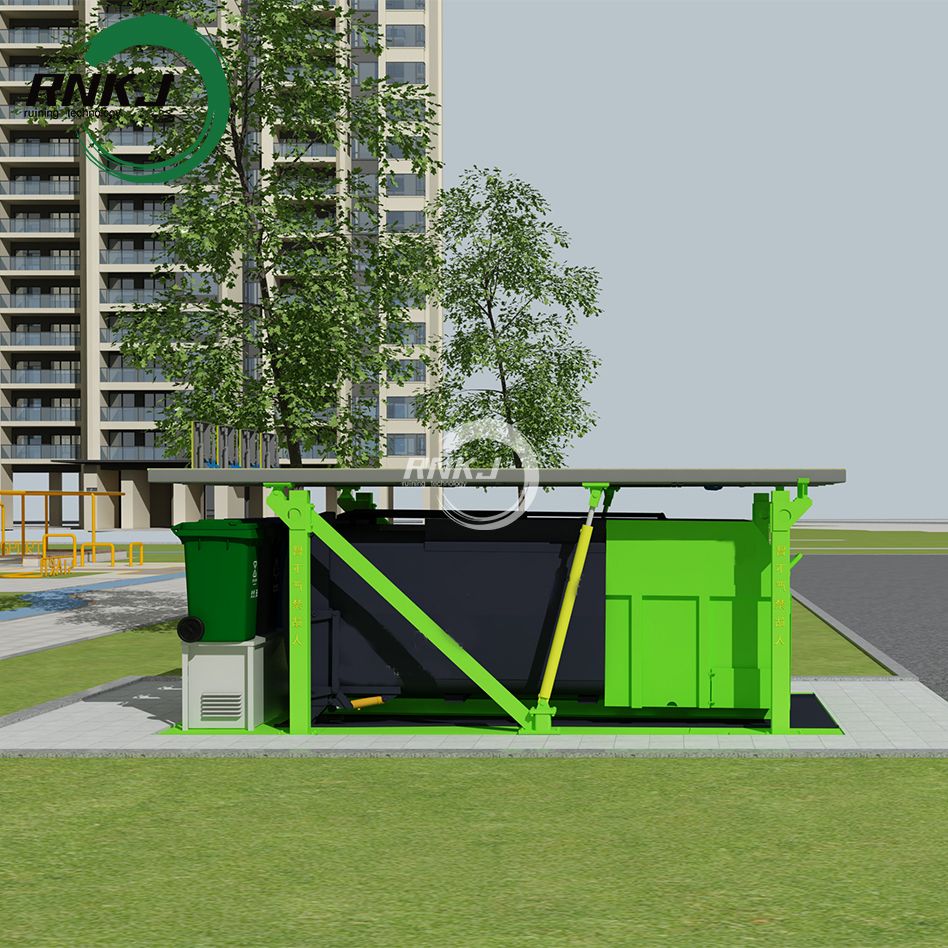

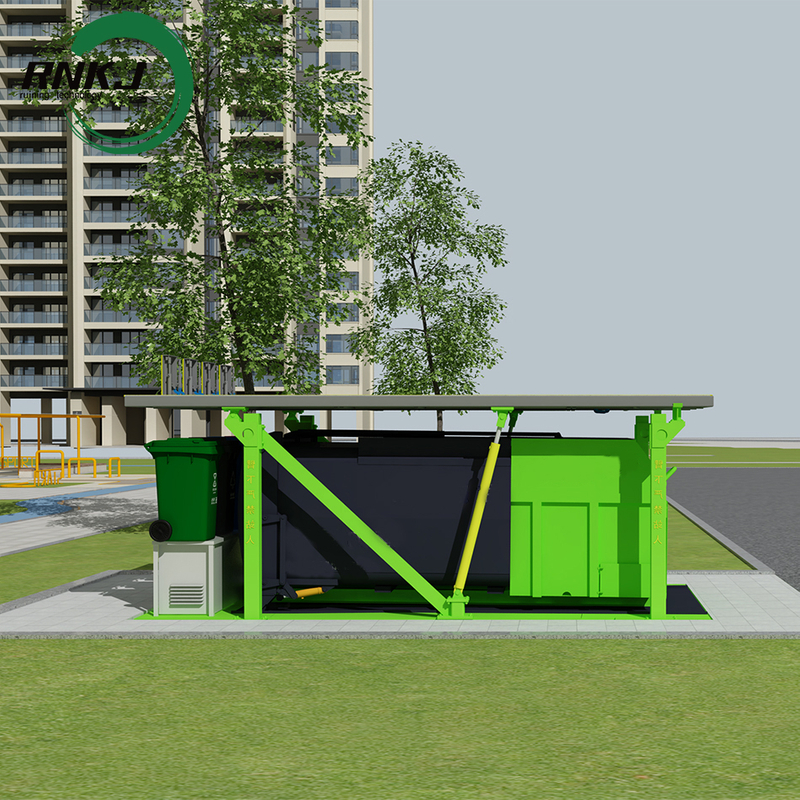

Lifting mode
Landing mode
Feature Of Underground Trash Compressor Station
Sustainable and Environmentally Friendly: No large equipment on the ground, does not damage the urban landscape, suitable for parks, squares, and residential areas.
Efficient and Environmentally Friendly: Fully enclosed design, significantly reduces odors, mosquitoes, and noise; underground constant temperature reduces garbage decomposition.
Land-saving and Energy-efficient: Occupies 60% less land than traditional stations; fully utilizes underground space; reduces transportation costs through compression and reduction.
Safe and Reliable: Stable underground structure, equipped with multiple safety protections, low operational risks.
Easy to Maintain: Modular design, automated control, simple daily maintenance.
Workflow
Feed-in: Waste materials are transported by sanitation vehicles or manually fed into underground storage tanks through ground feed-in ports. The automatic feed door will immediately close to prevent odor leakage.
Compression: The hydraulic system drives the press plate/pushing plate to horizontally or vertically squeeze the waste materials, removing air and leachate. The compressed waste materials are stored in the tanks in a compact form.
Storage and Monitoring: The intelligent system continuously monitors the liquid level of the waste in the tanks. When the tank is full, compression automatically stops and an alarm is triggered.
Transportation: The articulated truck lifts the filled containers and transports them to the waste treatment plant, completing the entire collection and transportation process.
Waste Water Discharge: The leachate generated during compression flows into the underground sewage tank and is regularly discharged through the municipal sewage network to avoid ground pollution.
Applicable Scenarios Urban Municipalities: Ideal for downtown areas, parks, and public spaces where surface space is limited.
Commercial & Industrial Zones: Shopping malls, hotels, factories, and logistics centers with high waste generation.
Residential Complexes: High-rise apartments and gated communities seeking clean, odor-free waste management.
Specialized Scenarios: Airports, seaports, and tourist attractions requiring discreet, efficient waste disposal solutions.
Why Choose Our Underground Trash Compressor Station?
In an era of rapid urbanization and increasing environmental awareness, traditional waste management methods are no longer sufficient. Our station combines cutting-edge technology with practical design to deliver a solution that is efficient, sustainable, and cost-effective. By choosing our product, you are not only investing in a reliable waste management system but also contributing to a cleaner, greener future for your community.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
