Underground Trash Compression Equipment refers to a sanitation facility where the main body of the garbage compression equipment is buried underground, with only a few components such as the loading port and operation control panel being set on the ground. It is a new type of garbage disposal site that balances the efficiency of garbage treatment with the aesthetic appearance of urban space. It is mostly used in densely populated residential areas, commercial zones, scenic spots, etc., where high environmental aesthetics requirements are imposed. Underground Trash Compression Equipment is an environmentally friendly device that addresses the problems of odor diffusion, mosquito and fly breeding, and large space occupation in traditional garbage disposal methods.
Product Advantage
Environmentally friendly: Only the feeding port is left on the ground, there is no garbage piled up outdoors, effectively reducing the spread of odors and the breeding of mosquitoes, and avoiding visual pollution to the surrounding environment.
Space-efficient: The main equipment is buried underground, and the ground area is only 5-10 square meters. It can be flexibly set in the narrow spaces of the city and does not occupy the public activity areas on the ground.
Noise reduction and dust control: The compression operation is completed in the underground warehouse, and in combination with the sealing design, it can significantly reduce the noise of equipment operation and dust pollution.
Safe and reliable: Equipped with anti-collision, anti-fall and other safety devices, the feeding port is equipped with an intelligent sensing system to avoid accidental falls of personnel.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

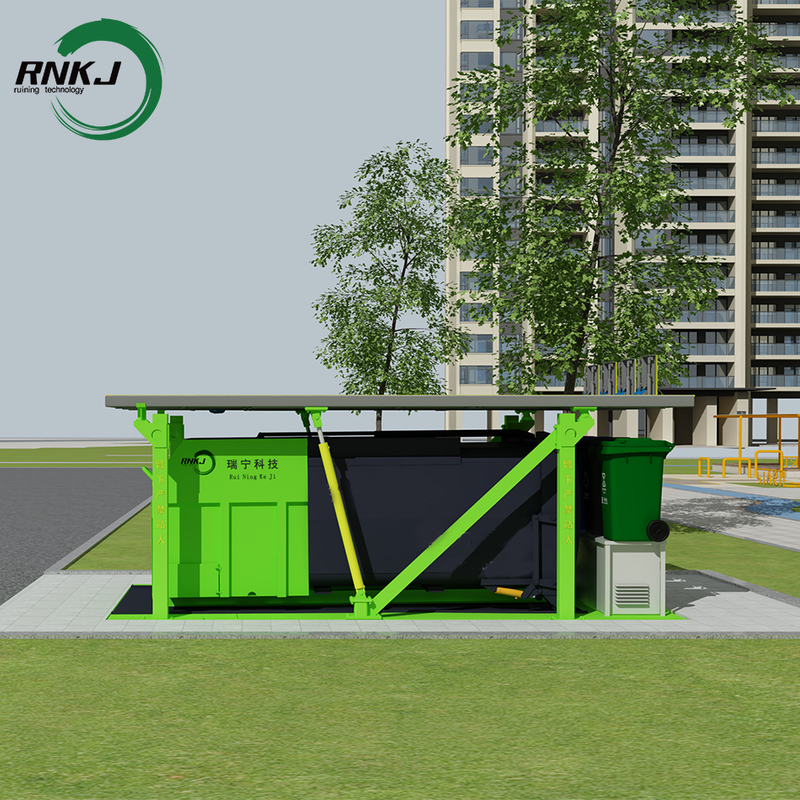

Lifting mode
Landing mode
Feature Of Underground Trash Compression Equipment
Reversed spatial layout: Over 90% of the functional components are located underground, while only the necessary operation interfaces are retained on the ground. The ground area is only one-third of that of traditional stations.
Fully enclosed operation: The entire process from garbage disposal to compression and temporary storage is completed within the underground sealed container. This fundamentally avoids garbage exposure and odor diffusion.
Intelligent integration: Equipped with intelligent systems such as full-bin sensing, automatic cleaning, and automatic collection of leachate. Some high-end models can also achieve remote monitoring.
Workflow
Garbage Disposal: Residents or sanitation workers place the garbage into the equipment through the ground discharge ports.
Automatic Compression: When the amount of garbage reaches a certain level, the compression mechanism automatically activates and performs powerful horizontal or vertical compression on the garbage.
Wastewater Treatment: During the compression process, the leachate generated flows through the sewage pipes in the pit into the sewage well, and is then pumped by the sewage pump into the urban sewage network.
Full Box Lifting: When the box is full, the lifting mechanism lifts the box to the ground and aligns it with the garbage transfer vehicle.
Empty Box Reset: After the transfer is completed, the box falls back to its original underground position and continues to receive garbage.
Applicable Scenarios
Core urban area: Such as the central commercial street, upscale residential areas, and historical cultural districts, have extremely high requirements for environmental aesthetics and noise control.
High-density communities: such as areas with concentrated high-rise residential buildings or apartment complexes, where the available ground space is limited but the daily waste production is high.
Special areas: such as tourist attractions, areas around hospitals, and near schools, require strict control over garbage odors and visual pollution.
Underground Trash Compression Equipment: An efficient and environmentally friendly solution for urban sanitation.
Excellent environmental protection performance, eliminating secondary pollution
It adopts a fully enclosed underground box structure, ensuring that the garbage is completely enclosed throughout the process. This effectively prevents the spread of odors, the breeding of mosquitoes and flies, and dust pollution at the source. The underground constant-temperature environment can slow down the decomposition rate of garbage, further reducing the generation of odors. The leachate produced during the compression process has a dedicated collection and discharge system, which can be directly connected to the urban sewage network, avoiding pollution of the soil and groundwater. Some high-end models are also equipped with odor removal and sterilization devices, resulting in even better environmental protection effects.
High space utilization rate, with extremely small ground occupation
The main equipment is deeply buried underground, while only the feeding ports, covers and a few operation areas are retained on the ground. The ground area of a single station is usually only 20-30 square meters. No dedicated garbage station buildings need to be constructed. It can be integrated with surrounding greenery and municipal facilities for layout, perfectly adapting to areas with tight land resources such as urban residential communities, commercial centers, and scenic spots. It will not cause urban visual pollution.
Highly efficient in compression and reduction, reducing transportation costs
Relying on a hydraulic strong compression system, it can reduce the volume of loose domestic waste by 70%-80%. After compression, the density of the waste can reach 0.8-1.2 tons per cubic meter, significantly reducing the number of garbage transfer vehicles, directly lowering transportation fuel consumption, labor costs, etc., while reducing the frequency of transfer vehicles traveling on urban roads, and reducing traffic pressure and pollution along the way.
High degree of automation, convenient and labor-saving operation
Equipped with an intelligent electrical control system, it supports manual/automatic dual-mode operation. After garbage is placed, it can achieve automatic sensing and automatic compression. When the box is full, the lifting mechanism can quickly lift the box to the ground and connect with the transfer vehicle. The entire process does not require direct human contact with the garbage, significantly reducing the labor intensity of sanitation workers and improving the operation efficiency of garbage collection and transfer.
The safety protection is highly complete, and there are no operational hazards.
The design incorporates multiple safety protection devices, such as lifting limit switches, compression overload protection, emergency stop buttons, and anti-collision protection for the feeding port, which can effectively prevent personal and equipment accidents during equipment operation; the underground box is made of high-strength steel plates, with strong pressure resistance and corrosion resistance, and the equipment operation stability is high.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
