Designed to tackle waste management challenges, the Underground Trash Compactor has an extremely small footprint—only a single waste bin is visible above ground. Its key components, hidden underground, automatically compress the waste dumped into the bin. During emptying, the compressor is lifted from the ground via a hydraulic system or a swing mechanism. It is then pushed out, hoisted onto a truck, and transported to a landfill or other waste collection/treatment facility for emptying. Once empty, the compressor is returned and rolled back onto the platform, which is then lowered using a hydraulic system or the truck's hook.
Through the synergy of technological innovation and spatial design, this equipment not only addresses the pain points of large space occupation and high collection costs in traditional waste collection methods but also provides a practical solution for the efficient and intensive development of modern urban waste management systems.
Product Advantage
The Underground Trash Compactor is suitable for various types of waste, such as biowaste, paper, cardboard, and plastic.
It can collect large volumes of waste, making it ideal for high-traffic areas or other areas where human activity generates continuous waste.
Because the key components of the Underground Trash Compactor are hidden underground, it prevents damage to the main components/machinery.
The consistently low underground temperature ensures that external temperatures do not affect the waste inside the compressor, resulting in a more hygienic environment and eliminating odor issues. The Underground Trash Compactor can be equipped with additional accessories to notify the operator when the compressor needs to be emptied.
The Underground Trash Compactor allows for longer emptying intervals. The size of the Underground Trash Compactor can be designed to suit site conditions.
Applications
This equipment is primarily used for the collection, compression, and transfer of household waste. By compressing the waste, it reduces the volume of waste, improves waste transfer efficiency, and lowers transportation costs. It also solves problems such as odor diffusion, sewage leakage, and mosquito and fly breeding in traditional waste treatment methods. It is suitable for various indoor and outdoor settings, including residential communities, schools, factories, shopping malls, and parks. Custom-designed models with special structures, such as side-loading, can be made for locations with height restrictions.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

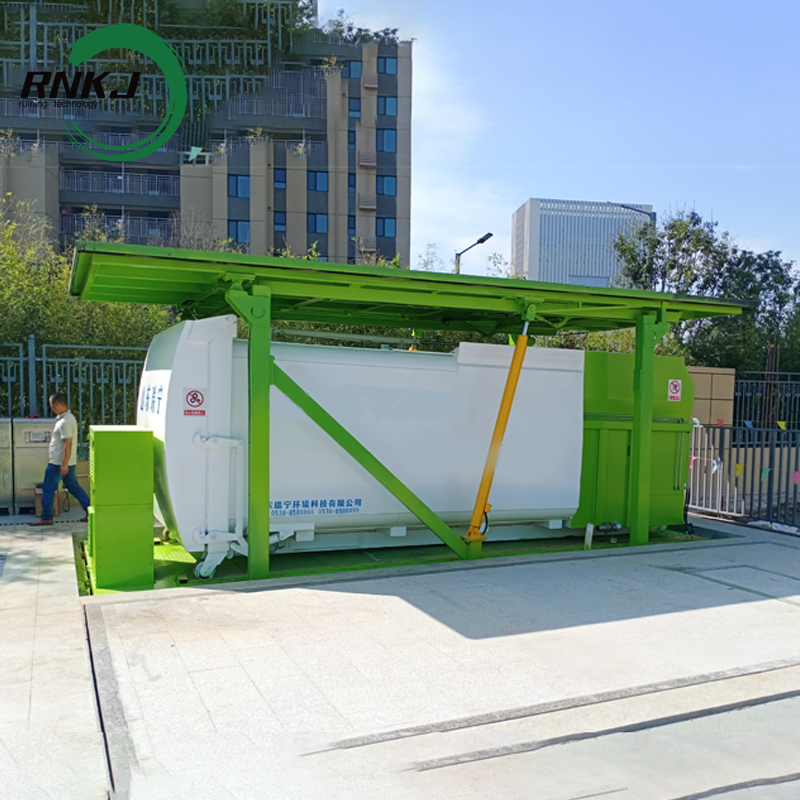

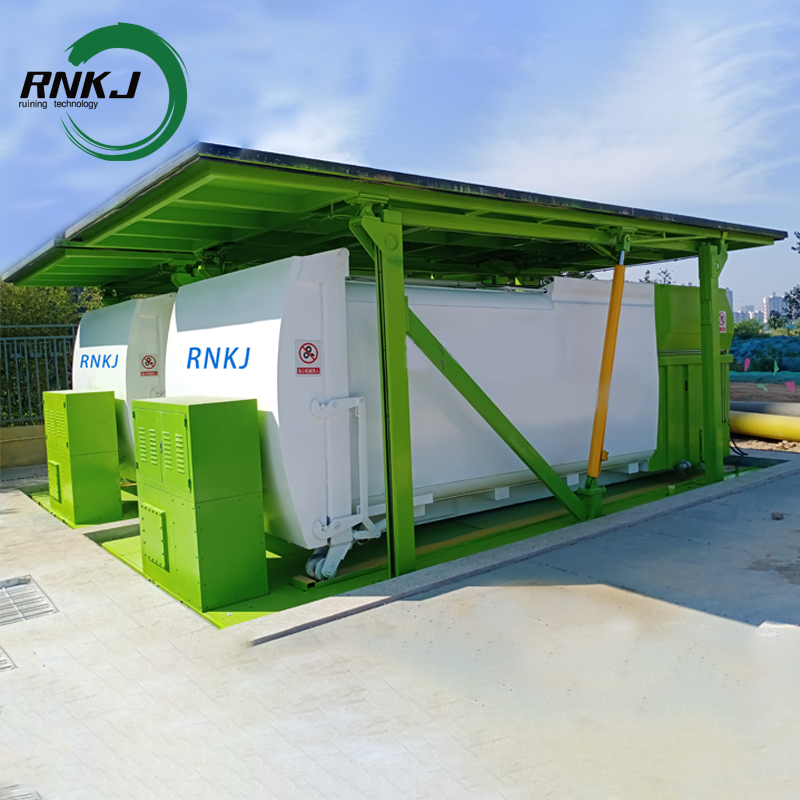

Lifting mode
Landing mode
Features
Highly Environmentally Friendly: Operating entirely underground, wastewater from garbage compression flows through drainage holes in the unit and a drainage channel in the pit into a wastewater collection tank, preventing secondary pollution. Some models are equipped with a spray deodorization system to further reduce odor dispersion.
Aesthetically Pleasing and Space-Saving: The main equipment is buried underground, leaving only a few components or covers above ground, blending seamlessly with the surrounding landscape. The small footprint and low construction costs allow for both indoor and outdoor installation.
Highly Efficient and Labor-Saving: An integrated automated control system allows for single-person operation via remote control or a central control console, with early warning prompts during operation. Horizontal compression technology reduces unnecessary movements, lowering energy consumption while increasing processing efficiency.
Robust and Durable: Key components are made of high-strength, corrosion-resistant steel, with reliable welding processes. Some models feature protective structures to prevent garbage and debris from corroding the equipment, extending its service life.
Operational Flow
Feeding and Compressing: The collection truck dumps the waste into the underground feeding hopper. Operators activate the compression mechanism via remote control or control panel. The pusher plate advances horizontally to compact the waste. After reaching maximum pressure, it holds for 10-20 seconds to reduce waste rebound. After the pusher plate retracts, feeding and compression can be repeated until the hopper is full.
Lifting and Docking: The lifting mechanism is activated. Using a synchronization valve, four lifting cylinders lift the compression hopper to a height matching the transfer vehicle. The transfer vehicle reverses into the station to complete the docking.
Waste Transfer: The front door is opened, and the compression mechanism is activated again. The pusher plate pushes the entire piece of waste into the transfer vehicle. After the pusher plate resets, the transfer vehicle closes its rear door and drives away.
Reset and Standby: The front door of the hopper is closed. The lifting mechanism lowers the hopper back into the underground pit, awaiting the next round of operations.
Custom Drop
According to customer needs, we can choose a variety of feeding port modes such as garbage sorting and dumping port, bucket tipping device, large garbage opening device, etc.,
Custom Floor Materials
The surface material can be arranged according to your surroundings, hiding the location of the compression station, ensuring smooth roads and achieving beautiful result.
Perfect for all your commercial and industrial needs
RNKJ offers a range of all-in-one compressors that reduce waste and transportation costs through efficient material compression. These rugged, leak-proof units combine compressor and container into one mobile platform, ensuring a sealed enclosure that complies with environmental regulations.
Our compressors are suitable for a wide range of commercial and industrial applications, including grocery stores, hospitals, casinos, shopping malls, food distribution centers, and more.
RNKJ's all-in-one compressors provide reliable and efficient waste management solutions.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
