The Underground Mobile Garbage Compactor is an efficient waste disposal device with wide applications, suitable for various scenarios of waste treatment. Installed underground, the operator operates from the ground, avoiding direct contact with the waste and reducing the risk of injury to the operator. At the same time, the underground structure can prevent unauthorized personnel from casually accessing the equipment, enhancing the safety of the equipment usage. The installation method of the Underground Mobile Garbage Compactor makes the equipment less affected by external environmental factors, effectively extending the service life of the equipment. Additionally, the Underground Mobile Garbage Compactor is usually designed with a sturdy structure and made of high-quality materials, possessing strong corrosion resistance and wear resistance, further enhancing the durability of the equipment.
Product Advantage
Significant improvement in environmental friendliness
Garbage is completely concealed underground, without exposure, no odor, no breeding of mosquitoes, effectively solving visual pollution caused by garbage
Permeate liquid is collected and treated centrally, avoiding soil and groundwater pollution, in line with environmental protection discharge standards
Optional odor removal system, with odor removal rate of over 90%
Maximizing space utilization efficiency
The ground only occupies 1-2 square meters, while the underground space occupies 30-50 square meters, saving floor space
It can be installed in idle underground spaces such as green belts and parking lots, without affecting the use of ground functions
Operating costs have been significantly reduced.
The volume of waste has been compressed, reducing the number of transfers and lowering fuel consumption and transportation costs.
The automation level is high, with one person capable of managing multiple sites, resulting in a reduction in labor costs.
The sealed design reduces secondary pollution of waste and lowers cleaning and maintenance costs.
Comprehensive safety guarantee
Fully enclosed operation, preventing personnel from direct contact with garbage and reducing the risk of infection
Multiple safety protections: anti-fall, anti-hand entanglement, overload protection, emergency stop button, in line with CE safety standards
Remote monitoring system can detect equipment failures in real time, facilitate timely maintenance and prevent safety accidents
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

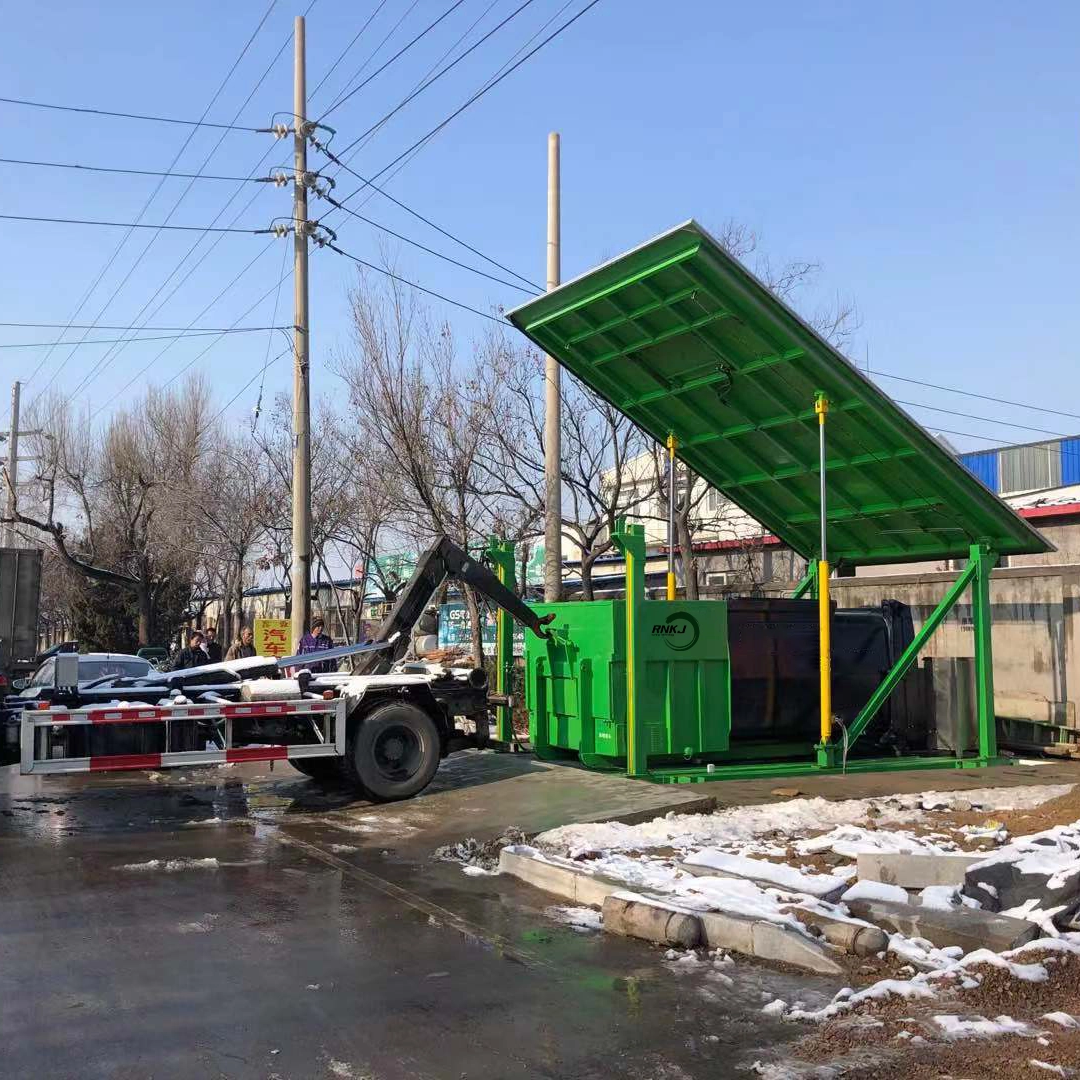

Lifting mode
Landing mode
Working principle and operation processThe working cycle follows the four steps of "discharge → compression → storage → transportation", with a high degree of automation:
Garbage Disposal Stage
On the ground, only the garbage feeding port remains. The garbage is either discharged through the dump mechanism or directly poured into the compression chamber.
Once the sensor detects the presence of garbage, the compression process is automatically initiated without the need for manual intervention.
Compression reduction stage
The hydraulic system drives the compression head to move horizontally from back to front, performing multiple cycles of compression on the garbage, and discharging air and filtrate.
During the compression process, the press head has its own crushing function, which can handle large pieces of garbage and improve the compression efficiency.
The compression force is adaptively adjusted to prevent hard garbage from damaging the equipment.
Full Box Processing Stage
When the garbage reaches the set capacity (detected by displacement sensors or pressure sensors), the system issues a full box alarm and stops the compression process.
The operator activates the lifting system via the remote control, raising the compression box to the ground.
The transfer vehicle aligns with the compression box, which is then fixed by the locking mechanism. It can be transported as a whole or separated for transportation.
Empty box reset stage
The transfer vehicle returns the empty boxes to their original positions, and the lifting system lowers them to the underground
Automatically clean the compression chamber and sealing surface, preparing for the next round of garbage disposal
Product Video
Applicable SceneHigh-density residential areas, large commercial complexes, shopping centers
Transport hubs (airports, railway stations, subway stations), sports venues, convention centers
Tourist attractions, city parks, upscale villa areas
Industrial parks, logistics centers, hospitals, schools
Core Structure Composition
Compression system
Compression head, compression chamber, hydraulic drive device: Provide compression force. Adopt horizontal compression process, compressing loose garbage to a density of 0.7-0.9 tons per cubic meter. High compression ratio.
Lifting system
Hydraulic cylinders, folding frame / guide rails, lifting platform: Drive the compression box to rise and fall between the underground and the ground, facilitating the connection between the garbage disposal and the transfer vehicle.
Mobile system
Walking wheel set, traction device, locking mechanism: Enables the compression box to be movable (for some models), can be separated from the compression main unit during transportation, and can be transported by a sanitation vehicle through traction.
Sealing system
Rubber sealing strips, cover assembly, anti-odor rings: Ensure complete sealing of the box, prevent odors from escaping and leakage of filtrate, the ground cover plate can bear a load of 5-10 tons and can allow normal passage of vehicles.
Control system
PLC control cabinet, touch screen, sensor group: Achieve automatic compression, full-box alarm, one-click lifting and lowering, remote monitoring. Equipped with overload protection, emergency stop button, and anti-fall device.
Auxiliary system
Spray odor removal, sewage collection tank, hydraulic pump station: The wastewater generated during the compression process flows into the sewage well through the underground sewage pipe. A biological odor removal or chemical spray system can be optionally equipped.
The Underground Mobile Garbage Compactor is a modern sanitation equipment that integrates garbage collection, compression reduction, sealed storage, and mobile transportation. It ingeniously combines the concealment of underground installation with the flexibility of mobile design, and is an efficient solution for addressing the garbage disposal problems in densely populated urban areas.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
