One of the standout benefits of our Underground Hydraulic Garbage Compactoror is its space-saving design. As Underground Hydraulic Garbage Compactor is installed below ground, valuable above-ground space is freed up that can be utilised for other purposes. This is particularly advantageous in urban areas and densely populated neighbourhoods where space is limited and optimising land usage is crucial.
Support Customization
Individually Tailored Solutions core of RNKJ
Product AdvantageSave floor space and achieve aesthetic integration: The main structure is fully buried underground, with only the feeding ports remaining on the ground. This saves over 80% of the floor area, making it suitable for urban core areas, scenic spots, and residential areas.
Efficient capacity reduction, significant cost reduction: With high compression ratio, it reduces the number of transportation vehicles, significantly lowering fuel, labor and vehicle wear and tear costs.
Fully enclosed and environmentally friendly, with zero secondary pollution: sealed compression, wastewater collection, ozone deodorization, no odor diffusion, no wastewater overflow, no breeding of mosquitoes or flies, improving the working environment and the surrounding environment.
High automation, safe and reliable: PLC intelligent control, one-click operation, one person can complete the entire process; multiple safety interlocks, self-diagnosis in case of faults, reducing human risks.
Durable and low maintenance, with a long lifespan: High-strength wear-resistant steel and anti-corrosion treatment protect it from harsh weather conditions and prolonged exposure to sunlight, ensuring a long service life; daily maintenance only requires checking the hydraulic oil, filters, and seals, and no excavation of the foundation pit is necessary.
Technical ParametersModel | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

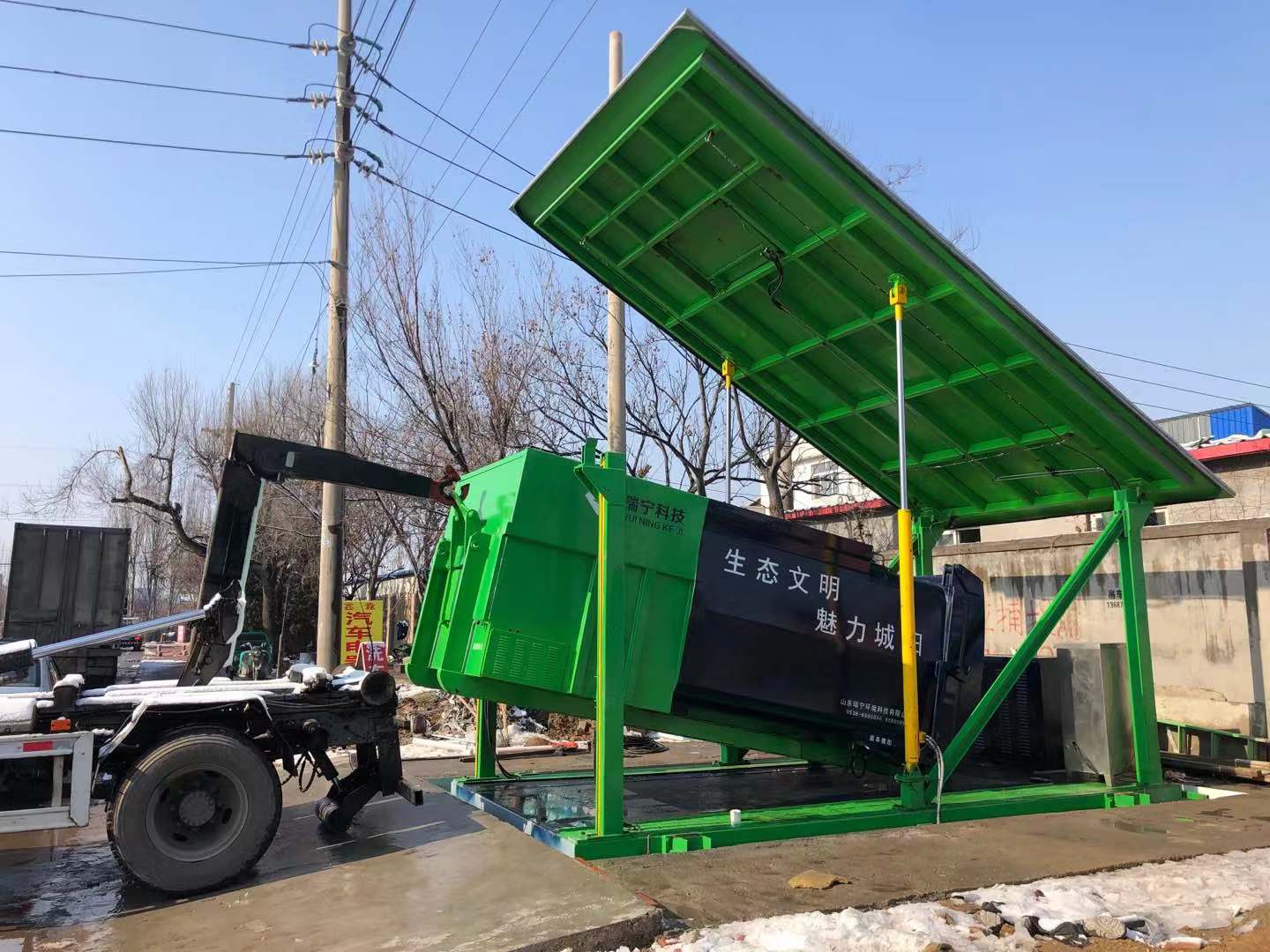

Lifting mode

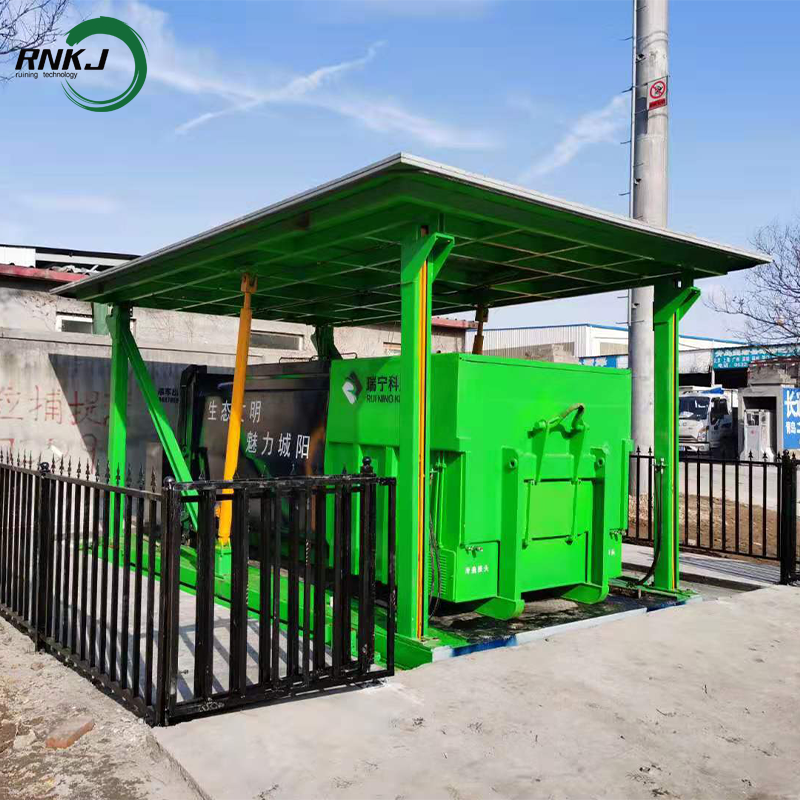

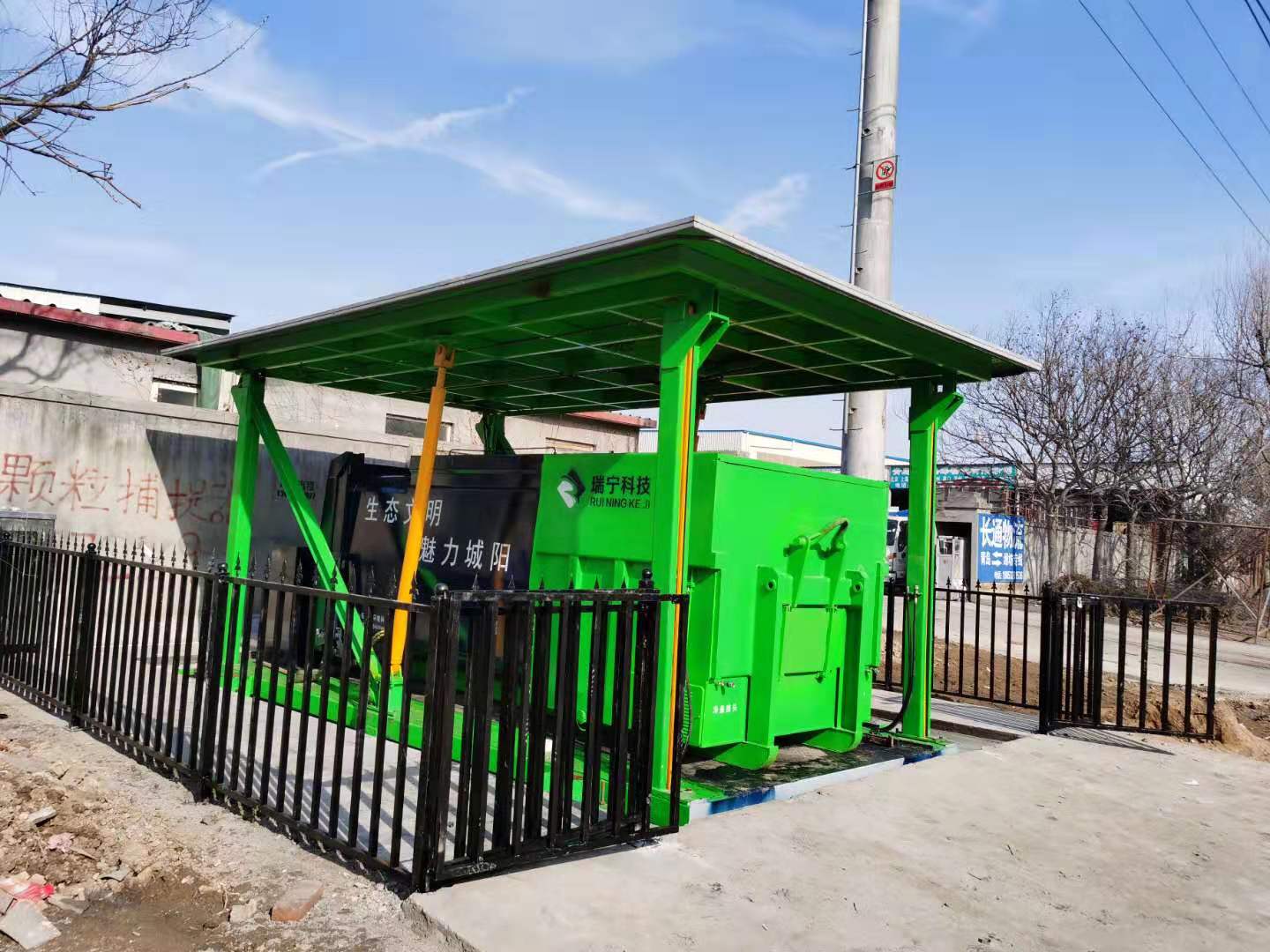

Landing mode
Working ProcessLoading stage: Garbage is fed into the compression chamber through the loading port, and the level sensor continuously monitors the filling height.
Compression and reduction: The PLC triggers the main cylinder, and the push plate horizontally presses the garbage. Once the pressure reaches the set value, it automatically retracts; the process is repeated for continuous compression until the box is full.

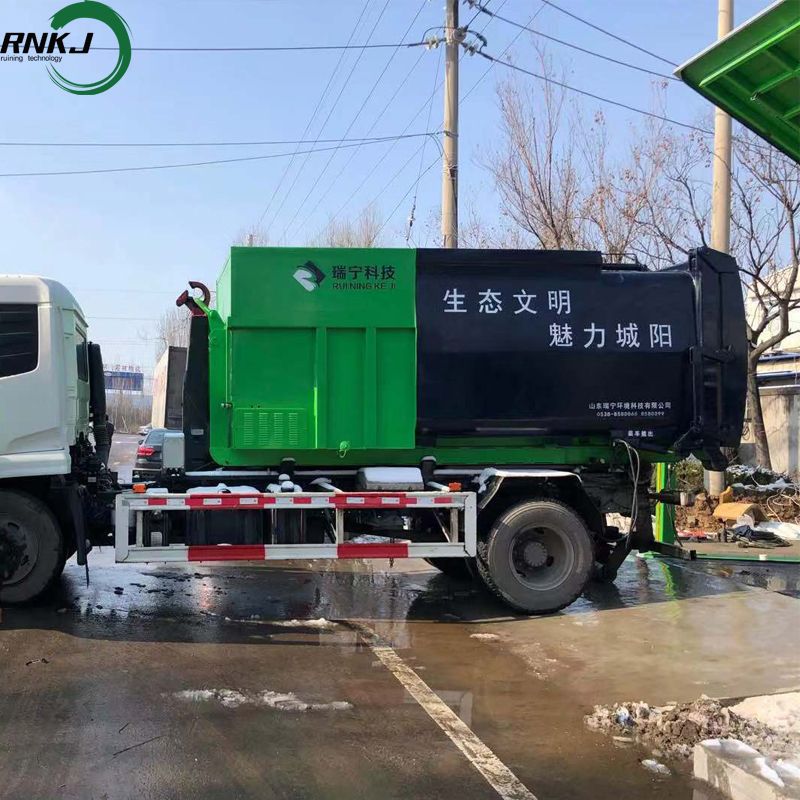

Lifting and discharging: After the box is full, the lifting mechanism raises the box to the ground, and the hydraulic system opens the discharge door. The push plate then pushes the compressed garbage blocks into the transfer vehicle; after discharging, it returns to its original position, and the sewage is discharged and the system is flushed, before entering the next cycle.
FeaturesThe waste compactors are extremely durable as all hydraulic and electrical parts are completely isolated from the press chamber. Their factory-tested water proof design effectively eliminates effluent seepage and minimizes odors. Waste management system as standard, enabling integration to Fleet Management system. The system provides insights on asset data and tools for streamlined fleet management.
Video
Key Points for Purchase and CustomizationVolume matching: Select 6-20m³ based on the daily garbage volume. For a daily average of 5 tons, choose 10m³; for more than 10 tons, choose 15-20m³ or dual containers.
Compression force selection: For household waste, choose 55 tons; for food/clean water waste, choose 63 tons; for industrial solid waste, choose 80-100 tons.
Lifting method: Hydraulic lifting mode, smooth and safe.
Environmental protection configuration: Must include sewage collection + high-pressure flushing. In areas with sensitive odor, add spray deodorization.
Control mode: Standard configuration includes PLC + remote control.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
