Underground Garbage Compressor Station is an innovative waste treatment equipment that integrates the compression unit and the storage box into the underground or a major part of it. It achieves the reduction, sealed storage and transportation of domestic waste through hydraulic compression technology, and is a key infrastructure component of modern urban waste collection systems.

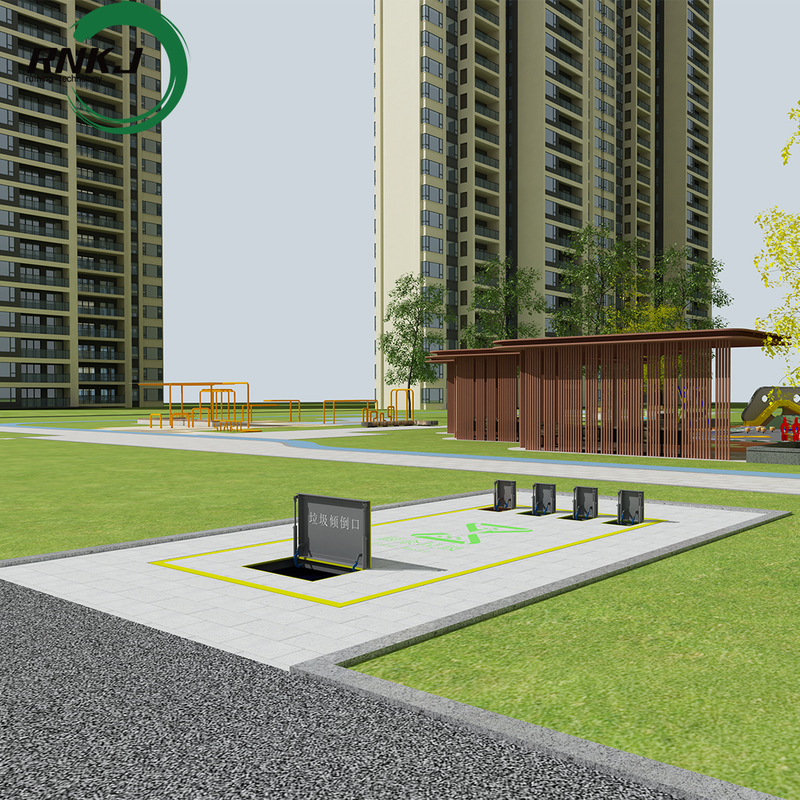

Product AdvantageVisual invisibility: The main body is hidden underground, with only small feed openings on the surface, blending seamlessly with the surrounding landscape.
Odor control: Fully enclosed operation + negative pressure odor removal system, preventing odor dispersion.
Pollution prevention: Leachate is collected and treated in a sealed manner, eliminating secondary pollution; the underground environment temperature is stable, inhibiting bacterial proliferation.
Noise reduction: Underground operation effectively isolates the noise from equipment operation, not affecting the lives of surrounding residents.
Land occupation reduction: Significantly reduce land occupation, lower land acquisition and construction costs
Transportation cost: Reduce volume by 60%-75%, reduce transportation frequency by 50%-70%, and lower fuel and labor costs
Maintenance simplicity: High level of automation, reduces manual operations, and maintenance costs are reduced by approximately 40%
Technical ParametersModel | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ³） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects Lifting mode
Landing mode
WorkflowCompression stage: After the garbage is input, the hydraulic system drives the press head to compact the loose garbage, reducing its volume by 60%-75% and increasing its density to 0.7-0.9 t/m³.
Storage stage: After compression, the garbage is sealed in an underground container to prevent odor diffusion and mosquito and fly breeding.
Transportation stage: The container is lifted to the ground by the lifting mechanism and seamlessly connected to the garbage transfer vehicle to achieve fully enclosed transportation.
Environmental treatment: The filtrate generated during compression is collected through a dedicated pipeline and treated before being discharged into the municipal sewage network; the odors are collected and purified through a negative pressure system.
Structural Composition And Key TechnologiesCompression system
Hydraulic pump station, pressure head, compression chamber: Provide 10-30 tons of pressure to achieve efficient compression of garbage
Lifting system
Lifting frame, hydraulic cylinder, guide device: Lift the box from the ground to the surface and connect it to the transfer vehicle
Sealing system
Anti-leak rubber ring, sealing cover plate, anti-seepage layer: Ensure no leakage during underground operations and prevent secondary pollution
Environmental protection system
Negative pressure odor removal device, leachate collector, automatic flushing: Treat odors and wastewater, keep the station clean
Control system
PLC control cabinet, touch screen, remote monitoring module: achieving automated operation and fault warning
Safety system
Overload protection, limit switches, emergency stop button: Ensuring the safety of equipment and personnel
Application ScenarioUrban communities: Replace traditional trash cans to solve the problem of garbage accumulation in residential areas and enhance living quality.
Commercial centers: Surrounding shopping malls and office buildings, meeting the large demand for garbage disposal while maintaining environmental beauty.
Public spaces: Parks, scenic spots, sports venues, achieving "invisible garbage disposal", protecting the landscape environment.
Transport hubs: Airports, high-speed railway stations, expressway service areas, efficiently handling the garbage generated by passengers.
Industrial parks: Handling industrial solid waste, reducing land occupation and lowering environmental pollution risks.
Rural areas: Promoting the construction of beautiful countryside, improving the conditions for rural garbage disposal.
Underground Garbage Compressor Station is a revolutionary product for urban waste management. Through its underground concealed design and efficient compression technology, it perfectly balances the functionality of waste treatment with environmental friendliness, solving the problems of traditional waste stations. With the acceleration of urbanization and the increasing environmental protection requirements, it provides important technical support for global urban waste collection systems and for building a resource-conserving and environment-friendly society.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
