Underground Garbage Compaction Station is a special device buried underground that is used to compress the volume of garbage and store it in a sealed manner. It can effectively solve the space occupation and environmental problems of ground garbage collection.
Provide innovative and cost-effective solutions for modern waste management challenges
In addition to the feature of saving space, this Underground Garbage Compaction Station also has excellent waste compression technology. By efficiently compressing the waste, it can reduce the volume of the waste, thereby maximizing the capacity of the compressor and reducing the frequency of waste collection. This brings significant cost savings for enterprises and municipal authorities, as the number of required collections is reduced.
Furthermore, our Underground Garbage Compaction Station is equipped with an advanced information system. This system can perform real-time monitoring, enabling precise waste management and the formulation of maintenance plans. It can provide detailed information on filling levels, collection times, and maintenance requirements, ensuring optimal equipment performance and preventing overflow situations, reducing downtime and improving operational efficiency.
Product Advantage
Substantial Volume Reduction and Cost Reduction: Compacted garbage can reduce its volume by 50%-70%, reducing collection times, transportation costs, and fuel consumption.
Sealed and Environmentally Friendly, Reducing Pollution: The underground bin is completely sealed, effectively isolating garbage odors, leachate, and insects, preventing secondary pollution to the surrounding environment.
Space-Saving and Aesthetically Enhanced: Requiring only a small ground-level feed port, the system eliminates the need for extensive floor space. This makes it particularly suitable for areas with limited land resources, enhancing the aesthetics of the surrounding environment.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Product Effects

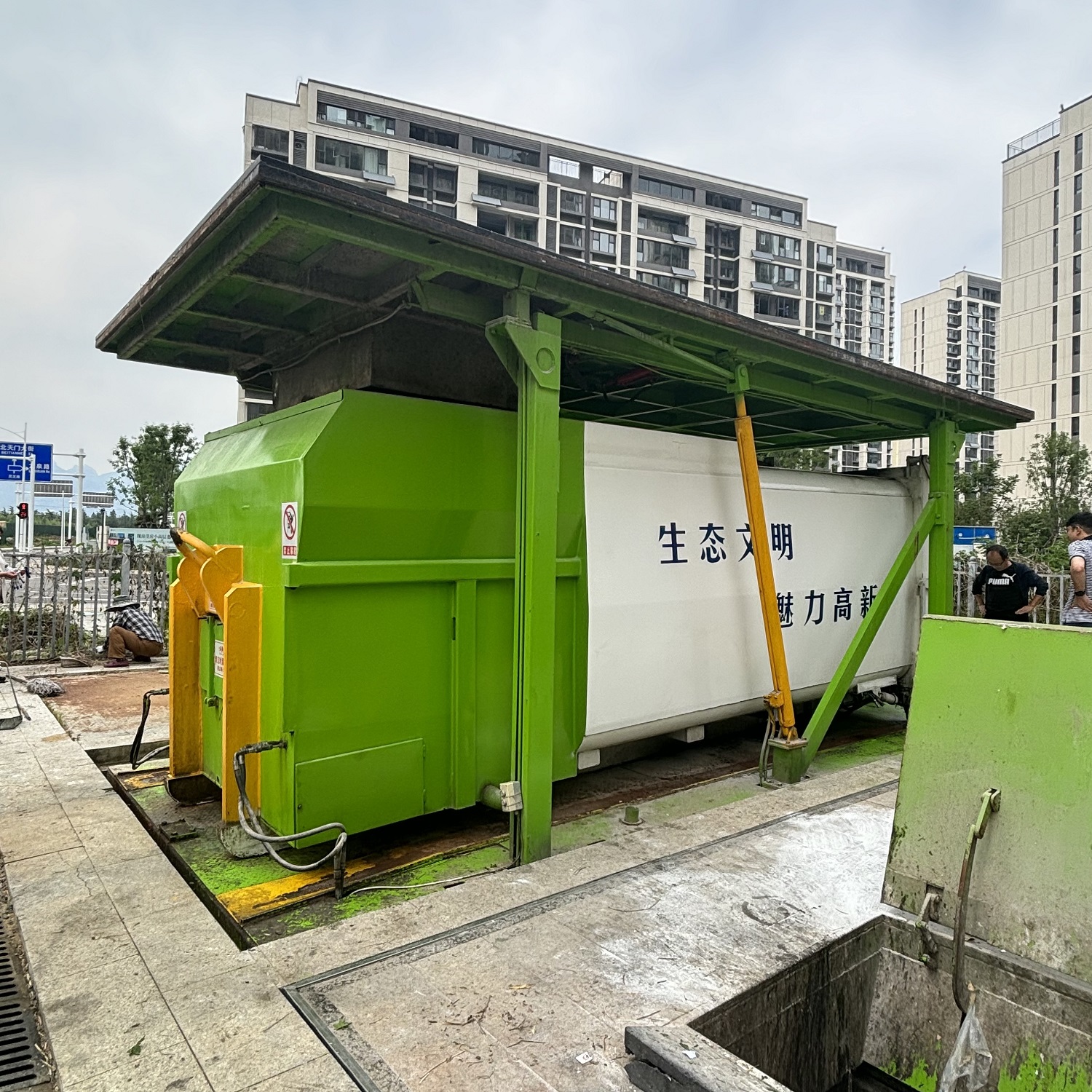

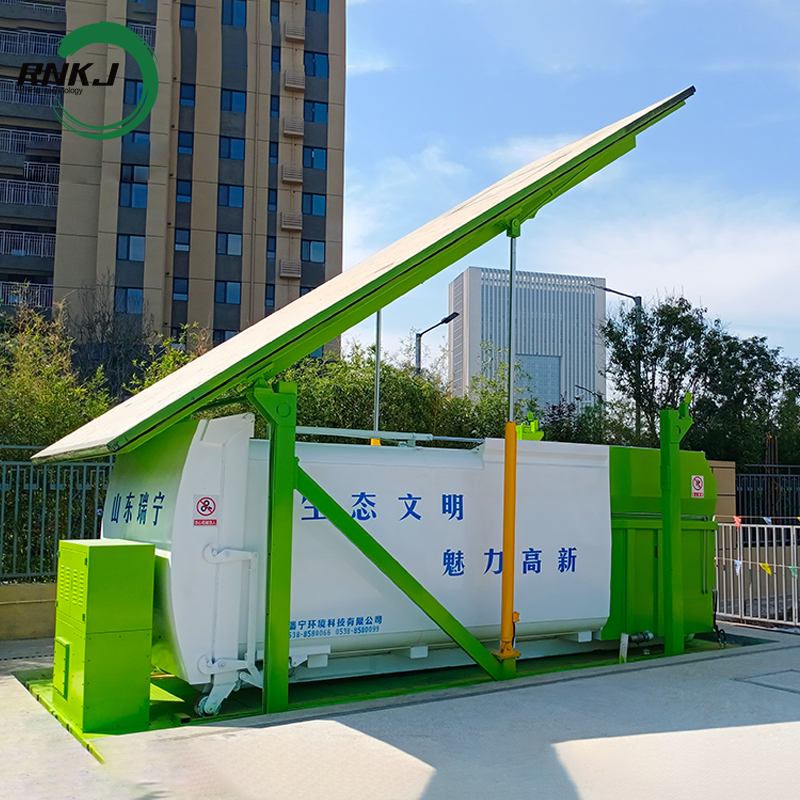

Lifting mode
Landing mode
Product Uses
City centers: Commercial streets, pedestrian areas, and other areas with limited ground space and high demands for aesthetics.
High-density residential areas: Dense populations lead to large volumes of waste, requiring efficient storage without disrupting residents' lives.
Commercial complexes and transportation hubs: Shopping malls, train stations, and airports, where waste is concentrated and requires timely compression to reduce transportation pressure.
Scenic spots and hospitals: Strict environmental hygiene requirements exist, and the sealed design prevents waste from impacting the environment and residents.
Operation Procedure
The underground trash compactor consists of four main components: a sealed underground chamber, a hydraulic compacting mechanism, a lifting system, and a control system.
1. Trash is poured into the underground chamber through a feed port on the ground, where the hydraulic system automatically compacts the trash to reduce its volume.
2. When the chamber is full, the lifting system raises the entire compacting mechanism or trash blocks to the surface for transport by a truck.
3. The equipment operates entirely underground, with only the feed port visible above ground, resulting in a cleaner appearance.
Custom Drop
According to customer needs, we can choose a variety of feeding port modes such as garbage sorting and dumping port, bucket tipping device, large garbage opening device, etc.,
Custom Floor Materials
The surface material can be arranged according to your surroundings, hiding the location of the compression station, ensuring smooth roads and achieving beautiful result.
Equipment Features
High Level of Automation: Equipped with an intelligent control system, it enables automatic compaction, full-bin alarm, and one-touch lifting and lowering, reducing manual operation.
Durable Structure: The bin is primarily constructed of stainless steel or high-strength steel, which resists corrosion and wear and withstands the harsh environment of long-term waste handling.
Complete Safety Features: Overload protection, an emergency stop button, and a fall prevention device ensure safe operation of the equipment and personnel.
Our Factory
As a manufacturer of environmental protection machinery, our company has efficiently operated production lines, a professional team of workers, perfect product quality system and global delivery capacity, and has passed the international ISO quality management system certification. We are serious and responsible for our products, and our company is committed to becoming a manufacturer for global users.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
When you purchase equipment from RNKJ. May wish you to start from a small transaction, experience the products and services from us.
FAQ
1. Who are we?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. How can we guarantee the quality?
Always have pre-production samples before mass production; Always have final inspection before shipment;
3.How long does it take to deliver the products after an order is placed?
The standard delivery time is within 8 weeks.For bulk orders ,we can negotiate a suitable deliver schedule.
4. Are your products certified to any international standards?
Yes,our products are certified to ISO, CE,and other relevant standards,ensuring safety and reliability.
5.Can you provide customized products to meet our specific requirements?
Absolutely,we offer customization services to tailor our products to the specific needs of our clients.
6.What kind of after-sales service do you provide?
We offer a comprehensive after-sales service including installation guidance,technical support,and a warranty period of up to 2 years.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
