The Hydraulic Underground Garbage Compactor is an environmentally friendly equipment that integrates the functions of garbage compression, storage and transportation. It is buried underground as a whole or its main body. It uses the hydraulic system to provide compression force, significantly reducing the volume of loose garbage. At the same time, through the underground sealed design, it ensures that there is no garbage leakage, the odor is controllable, and the sewage is centrally treated. It is an ideal choice for modern urban garbage transfer stations and large community garbage disposal.
Product Advantage
Hydraulic Underground Garbage Compactor have a high compression ratio and can significantly compress the volume of garbage, generally up to 3:1 or even higher. In the same storage space, more garbage can be accommodated, reducing the frequency of garbage removal and improving the efficiency of garbage disposal. Hydraulic Underground Garbage Compactor can achieve continuous garbage delivery and compression operations, without the need for frequent loading and unloading and cleaning like some ground garbage disposal equipment, and can handle large amounts of garbage more efficiently. The equipment is installed underground, and the operator operates on the ground, avoiding direct contact with the garbage and reducing the risk of injury to the operator. At the same time, the underground structure can also prevent unrelated personnel from contacting the equipment at will, improving the safety of the equipment. The underground installation method makes the equipment less affected by external environmental factors and can effectively extend the service life of the equipment.
Technical Parameters
Model | ZYM-6 | ZYM-9 | ZYM-12 | ZYM-15 | ZYM-18 |
Volume (m ⊃3;） | 6 | 9 | 12 | 15 | 18 |
Tank Dimensions （L*W*H）(mm) | 3980*2210*2200 | 4770*2210*2200 | 5080*2260*2250 | 5560*2300*2300 | 6150*2480*2410 |
Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Foundation measurement design Additional controls e.g. emergency stops Custom filling hopper Drainage system 2-phase discharge door opening mechanism Top hinged discharge door Ozone generator / cooler device (odor control) Bin lift (integrated / stationary) Lid opening system (hydraulic / electronic) Auto start system | ||||
Optional | Garbage Bins: 240L*4 / 660L*2 (Garbage bins can be used for sorting or storing garbage temporarily when the tank is transferred.) Pit Flushing: high-pressure large volume water flow flushing, 6 nozzles for one-time automatic flushing; 500L sewage collection tank; automatic sewage discharge by sewage pump. (This technology is protected by independent intellectual property rights.) Remote Monitoring | ||||
Functional UsageCompression and Volume Reduction: By applying strong pressure to the garbage, its volume is significantly reduced. The compression ratio is usually high, which greatly decreases the space occupied by the garbage. This means that within the same storage space, more garbage can be accommodated, reducing the frequency and cost of garbage removal.
Facilitates transportation: The compressed garbage becomes more compact and denser, making it easier to transport using garbage collection vehicles for centralized disposal. It reduces the scattering and flying of garbage during transportation, and minimizes the pollution to the surrounding environment along the transportation route.
Health and Environmental Protection: The underground sealed structure effectively isolates the garbage from the external environment, reducing the emission of garbage odors and the breeding of mosquitoes and flies, and minimizing pollution to the surrounding air and soil. At the same time, during the compression process, wastewater in the garbage can also be collected and treated, further protecting the environment.
Product Effects

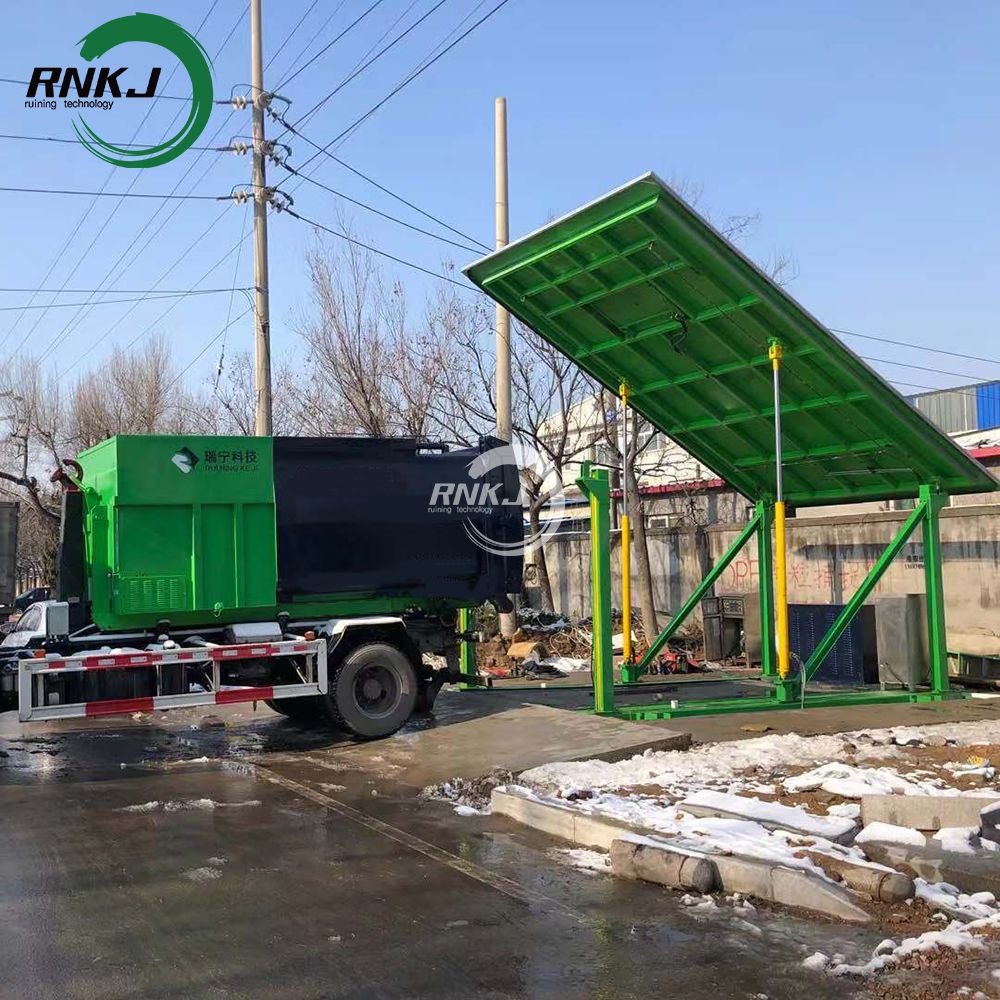

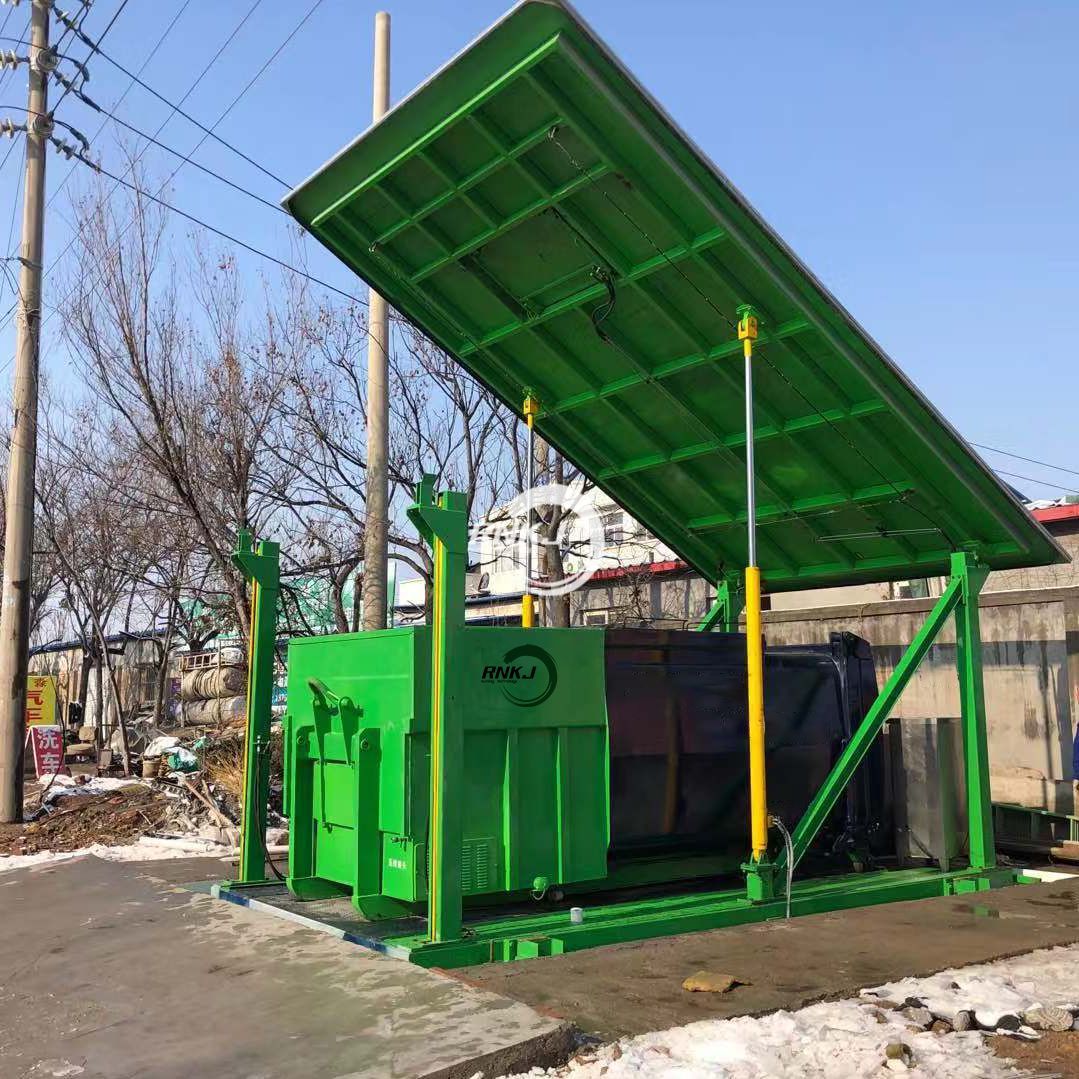

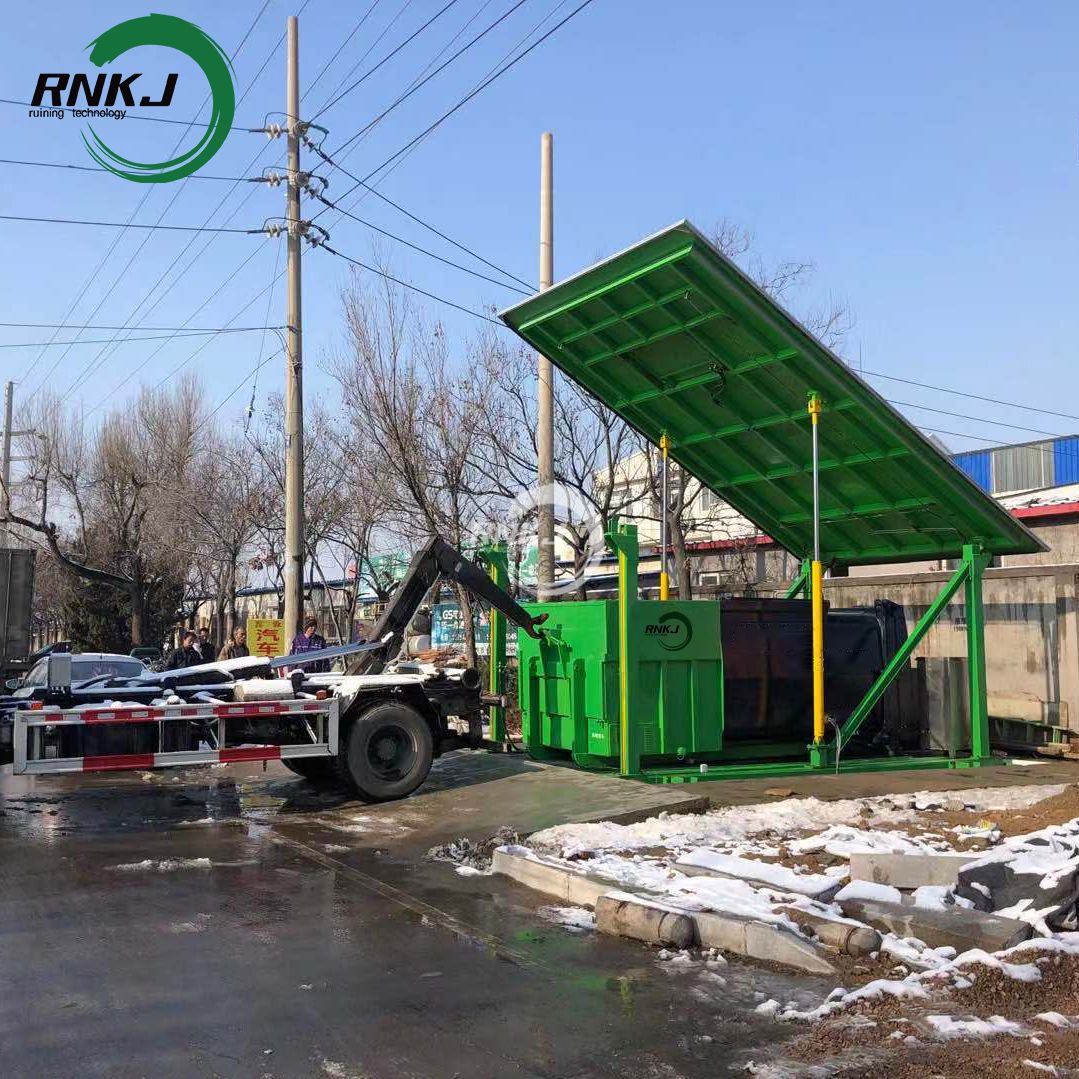

Lifting mode

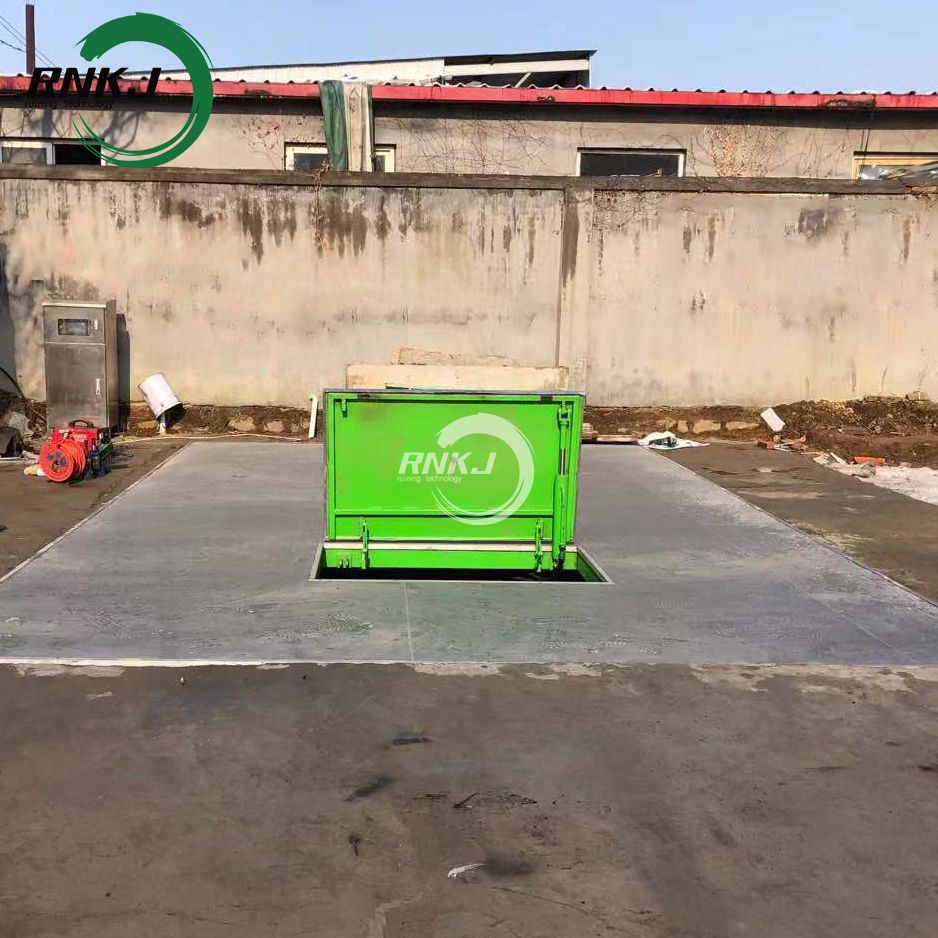

Landing mode
Product Video Garbage Disposal In Different ScenariosUrban Community: It can be installed near urban residential areas or apartment buildings. It collects various types of garbage generated by residents' daily lives, such as kitchen waste, waste paper, plastic bottles, etc. These garbage will be compressed and processed in time to reduce the space occupied by the garbage, lower the frequency of garbage collection, maintain the cleanliness and hygiene of the community, and avoid the accumulation of garbage causing odors and breeding bacteria.
Commercial Center: In densely populated commercial areas such as shopping malls, shopping centers, and commercial streets, a large amount of commercial waste is generated every day, including packaging materials and food residues. The underground garbage compactor can quickly handle this waste, preventing it from accumulating in the commercial area, and maintaining a good commercial environment and image.
Public institutions: Applicable to schools, hospitals, government agencies, etc. The large amount of waste paper produced by students in schools, food waste, medical waste from hospitals, and office waste from government agencies, etc., can all be effectively processed by underground garbage compaction machines, thereby improving the environmental hygiene level of public institutions.
Transportation hubs: Airports, railway stations, bus stations, etc., are areas with high foot traffic and large amounts of garbage production. Underground garbage compaction machines can promptly compress the various garbage discarded by passengers, maintaining the cleanliness and hygiene of transportation hubs and providing a good travel environment for passengers.
FeatureStructural Design Advantages
Underground Concealed Design: The main body is buried 3-5 meters underground, with only the discharge port and operation panel remaining on the ground, saving 80% of the ground space and not affecting the surrounding landscape.
Fully Sealed Structure: The box body adopts multiple sealing technologies to ensure no odor leakage or garbage scattering during compression.
High-strength Load-bearing Capacity: The box body is made by overall welding, and the key parts adopt a composite structure of wear-resistant plates and reinforcing ribs, with a service life of over 10 years.
Hydraulic System Performance
High compression efficiency: The main hydraulic cylinder has a high output pressure, and the garbage compression ratio remains stable at 4:1, which increases the storage capacity of each box of garbage and significantly reduces the frequency of transfer.
Energy-saving design: A variable piston pump and load-sensitive system are adopted. The flow is automatically adjusted according to the compression resistance, which is 30% more energy-efficient than the traditional fixed-volume pump system.
Stable and reliable: The hydraulic oil is controlled by a constant-temperature system and equipped with a precision filter, which effectively prolongs the lifespan of hydraulic components and has a fault downtime rate of less than 0.5%.
Intelligent Control Features
Multiple operation modes: Supports three modes - local manual operation, automatic cycle, and remote monitoring, catering to different scenarios.
Fault self-diagnosis: The PLC system conducts real-time monitoring. In case of an abnormality, it automatically stops the operation and displays the fault code, facilitating quick repair.
Environmental Performance Indicators
Zero discharge of wastewater: The generated leachate is collected 100% through sealed pipelines and discharged after meeting the standards of the wastewater treatment system, eliminating the risk of secondary pollution.
Low noise operation: Effective noise isolation is achieved through underground installation, with low noise levels on the ground, far superior to those of ground-based garbage stations.
Optional odor removal system: Equipped with a high-pressure spray odor removal device, using biodegradable agents, the odor removal efficiency is high, effectively improving the air quality in the surrounding area.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
