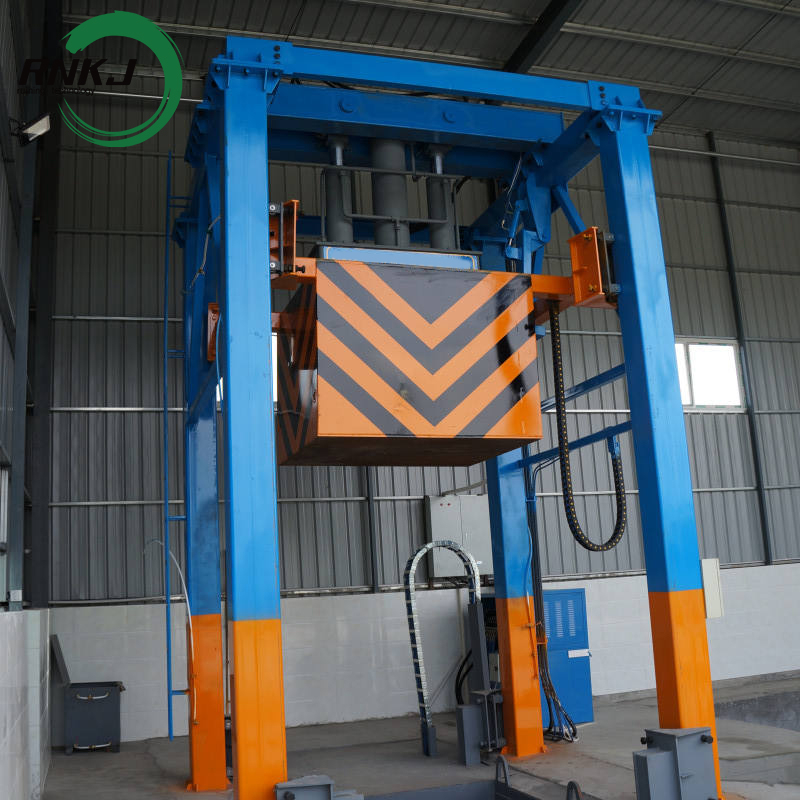

The Vertical Waste Compression Station is a waste transfer and processing equipment that adopts a vertical compression technology. It uses hydraulic drive to push the compression head from top to bottom to compress the waste forcefully, achieving volume reduction, dehydration, and shaping. It transforms loose waste into high-density garbage blocks, significantly improving the transfer efficiency and reducing secondary pollution.
Product AdvantageSmall footprint: Compared to horizontal compression stations, it saves space and is suitable for areas with limited land such as city centers, communities, and parks.
Vertical layout: The vertical compression method concentrates equipment height, with only an operation platform on the ground and a compression chamber underground, which does not affect ground traffic and landscape.
High compression ratio: Significantly reduces the volume of garbage and lowers transportation costs.
High-density shaping: The compressed garbage has a high density, facilitating sealed transportation and reducing the risk of spillage.
Efficient dehydration: The vertical compression is conducive to the natural descent of leachate, with a higher dehydration rate than horizontal compression, and reduces the difficulty of subsequent treatment.
Fully enclosed operation: The entire process of compression, storage, and packaging is enclosed, with no garbage leakage or sewage overflow.
Odor control: Dual systems of negative pressure deodorization and spray disinfection significantly reduce odors.
Leachate collection: Special anti-seepage design to prevent secondary pollution and comply with sewage discharge standards.
PLC automatic control: One-click start, automatically completing the entire process of loading, compression, and packaging, with less manual intervention.
Compatibility with multiple types of garbage: Suitable for household waste, food waste, commercial waste, and other materials.
Flexible transportation methods: Compatible with various transportation equipment such as telescopic trucks and compression garbage trucks.
Customized services: Parameters such as box volume, compression force, and control methods can be customized according to site conditions and treatment scale.
Working PrincipleGarbage loading stage
The garbage collection vehicle pours loose garbage into the top hopper
The feeding door automatically closes, creating a sealed compression environment to prevent odors from escaping
Vertical compression stage
The hydraulic system drives the press head to compress the garbage multiple times from top to bottom.
The compression force is gradually increased to the rated value, and air and filtrate are squeezed out.
The filtrate flows through the diversion channel into the dedicated collection box, and the dehydration rate can reach 30-40%.
The density of the garbage increases, and the compression ratio reaches 3:1.
Forming and storage stage
After compression, it forms a block-like shape
The garbage bags fall into the sealed storage bin below, which can temporarily store 1-2 work cycles' worth of contents
Transit stage
Push the garbage level onto the platform
The telescopic garbage transfer vehicle quickly aligns and completes the sealed transfer
Core Structure ComponentsLoad-bearing frame and columns: Support the entire equipment and provide compression stability
Compression box: The core area for garbage compression and storage, with a fully enclosed design
Compression mechanism: Achieve vertical compression action
Relay compression system: Reduce the equipment height and improve compression efficiency
Pushing mechanism: Push the compressed and shaped garbage blocks to the transfer vehicle
Hydraulic system: Provide the power source
Electrical control system: The central control hub of the equipment
Environmental protection treatment system: Control secondary pollution
Safety protection system: Ensure the safety of personnel and equipment
Technical ParametersCompression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Hydraulic four-post lifting |
Product Style
|
|
Applicable ScenariosUrban high-density areas: Areas with tight land use such as city centers, old residential areas, and commercial zones, replacing traditional open garbage stations
New communities and development zones: As supporting sanitation facilities, improving environmental quality
Large public facilities: Places generating a large amount of garbage such as airports, railway stations, sports venues, and theme parks
Urban-rural fringe areas: Balancing processing efficiency and environmental requirements, solving the problem of garbage transfer
Garbage classification stations: Suitable for compressing and processing different types of garbage after classification, supporting source reduction
Scenic spots and ecological protection areas: Regions with strict environmental requirements, achieving sealed and harmless garbage transfer
The Vertical Waste Compression Station is a modern core equipment for waste transfer that integrates efficient compression, closed environmental protection, and intelligent control. Through the vertical compression process, it achieves waste reduction, dehydration, and shaping, addressing the problems of large land area occupation, severe secondary pollution, and low transfer efficiency in traditional waste stations. It is an ideal choice for upgrading the urban sanitation system.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
