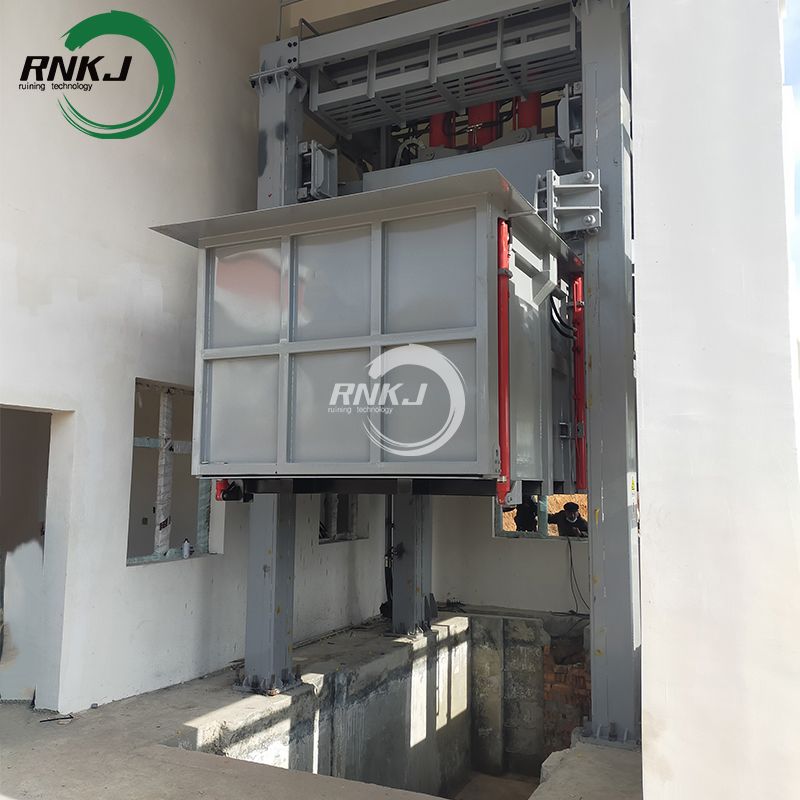

Vertical Waste Compaction Station is a type of waste treatment equipment specifically designed for domestic garbage. It uses a vertical compression process from top to bottom. The powerful vertical pressure provided by the hydraulic system compresses the loose garbage into high-density blocks, significantly reducing the volume of the garbage. This makes it easier for sealed transportation and subsequent processing. It is one of the core equipment in modern urban waste transfer stations.
Product AdvantageHigh compression ratio: The vertical compression method can achieve a high compression ratio, effectively reducing the volume of waste.
Small footprint: The equipment has a compact structure, making it suitable for installation in city centers or in small areas.
High automation level: It can realize automatic loading, compression and transportation of waste, reducing manual intervention.
Good environmental performance: Equipped with odor removal and wastewater collection systems, it effectively reduces secondary pollution.
Wide application range: It can handle various types of household waste, including kitchen waste and construction waste.
Core Structural Components
Compression device
Steel frame, guide column, compression head, compression cylinder: Provide vertical compression force to ensure a stable and efficient compression process
Hydraulic system
Hydraulic pump station, cylinders, pipes, control valves: Provide 16-32 MPa working pressure to drive the pressure head to move.
Electrical control system
PLC controller, touch screen, sensors, safety interlock device: Achieve automated operation and multiple safety protections
Waste discharge system
Collection tank, drainage pipe, sewage pump: Collect the leachate generated during the compression process to prevent secondary pollution
Environmental protection system
Spray dust suppression device, deodorization equipment, cleaning system: Improve working environment, reduce odor and dust spillage
Auxiliary devices
Loading hopper, container flipping mechanism, locking device: Facilitate the operation of garbage disposal and transfer containers
Technical Parameters
Compression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Hydraulic four-post lifting |
Core Working PrincipleThe vertical waste compression station operates based on a dual-action mechanism of gravity assistance and hydraulic drive. The working process is as follows:
Garbage Disposal: The collection vehicle will pour the bulk garbage from the top into the compression chamber or the vertically placed container.
Compression Process: The hydraulic system drives the press head to apply vertical pressure from top to bottom, generating a high pressure of 100-600 tons.
Dehydration Treatment: During compression, approximately 20% of the water in the garbage is squeezed out and collected and processed centrally through the bottom drainage system.
Circular Operation: The press head rises to reset, continues to receive new garbage, and repeats the compression process until the container is full.
Transport Preparation: After being filled, the container is turned to a horizontal position and transported in a sealed manner by a dedicated vehicle to the landfill, incineration plant, or treatment center.
Product Style
|
|
Why choose the Vertical Waste Compaction Station?
Highly efficient compression, significant capacity reduction
Compression ratio reaches 1:3 - 1:5, resulting in high density of compressed waste
Single compression requires only 3-4 cycles, improving processing efficiency and reducing energy consumption
Transportation efficiency is increased by approximately 50%, reducing transportation costs and carbon emissions
Small in area, high space utilization rate
The operation surface only needs to be equipped with compressors and pump stations, suitable for urban areas with scarce land resources
Some models adopt underground installation methods, and the ground space can be reused
The patented three-branch relay oil cylinder technology can reduce the equipment height and lower the construction cost
Excellent environmental protection performance, with little secondary pollution
The garbage is handled in a fully enclosed manner, without any garbage leakage or sewage spillage
The leachate is collected and treated centrally, and the odors are purified through the deodorization system
Equipped with spray dust suppression and automatic cleaning functions, improving the working environment
High degree of automation, safe operation
Program-controlled by PLC, enabling automation of processes such as compression, packaging, and storage
Multiple interlocking protection circuits to prevent safety accidents caused by improper operation
Equipped with full-load alarm, emergency stop, and fault diagnosis functions
The structure is sturdy and has a long service life.
The key parts are made of high-strength wear-resistant steel, capable of withstanding highly corrosive working environments.
Most of the hydraulic and electrical components adopt imported brands to ensure the stability of the equipment.
The maintenance is convenient and the replacement of easily worn parts is simple.
Choice Criterion
Choose the vertical type: focuses more on high compression ratio, excellent sealing and environmental protection, land conservation, and community integration.
Choose the horizontal type: focuses more on large-scale continuous processing capacity and transportation flexibility, often used in large regional transfer centers.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
