Vertical garbage compactor is a sanitation equipment that compresses garbage in a vertical direction. It integrates garbage collection, compression reduction, and closed transportation. It uses a hydraulic system to drive the press head to compact the garbage from top to bottom, achieving the processes of garbage reduction, harmless treatment, and closed transportation.
Product Advantage
The Vertical garbage compactor is an advanced sanitation device designed specifically for high-density urban areas. It integrates vertical compression technology, space utilization, and environmentally friendly operation. This equipment addresses the challenges of limited land use and stringent environmental standards, providing superior waste reduction performance for residential areas, commercial districts, and public facilities.
Technical Parameters
Compression Type | Vertical compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Hydraulic four-post lifting |
Features
Ultra-Compact Design: Covers only 15M2 of floor space, ideal for narrow urban sites
High Compression Efficiency: Compression ratio up to 3.5:1, waste density reaching 0.96t/m³ (30% higher than horizontal compactors)
Fully Sealed Operation: Eliminates odor leakage and sewage spillage, meeting strict environmental regulations
Intelligent Automation: PLC-controlled system with remote monitoring, reducing manual operation by 50%
Working Principle
Waste Feeding: Waste is loaded from the top hopper and falls into the compression chamber under gravity.
Vertical Compression: A hydraulically driven piston compresses the loose waste downwards, forming high-density blocks, and utilizes gravity to improve compression efficiency.
Storage and Transfer: The compressed waste blocks are pushed into a sealed storage bin. Once the bin is full, it rises to the ground, and a pusher plate transfers the waste to a sealed garbage truck.
Environmental Treatment: Wastewater generated during compression is collected through dedicated pipelines and discharged into the municipal sewage system. Simultaneously, spray deodorization technology is used to suppress odors.
Structural Composition
Main Structure: 16Mn high-strength steel frame (thickness ≥10mm), equipped with three hydraulic cylinders and four guide columns to ensure precision.
Hydraulic System: Employs industrial-grade oil pumps, cylinders, and valve assemblies to ensure stable pressure output.
Control System: PLC controller with a touchscreen interface, supporting remote fault diagnosis and data monitoring.
Environmental Protection System: Integrates wastewater collection, spray deodorization, and noise reduction (≤75dB) functions.
Safety System: Multiple interlocking protections and fall arrestors effectively prevent operational risks.
Run Process
Feeding: Garbage is dumped into the compression chamber inside the pit;
Compression: A hydraulic press head repeatedly compacts the garbage from top to bottom, simultaneously discharging leachate into the municipal sewage network;
Storage: After being compressed into high-density garbage blocks, the garbage is conveyed into a storage bin by a pushing mechanism;
Transfer: The storage bin connects to a garbage transfer truck, pushing the garbage blocks into the enclosed compartment to complete the transfer;
Cleaning: After the operation, automatic spray deodorization and equipment cleaning are performed, ensuring a completely sealed and leak-free process.

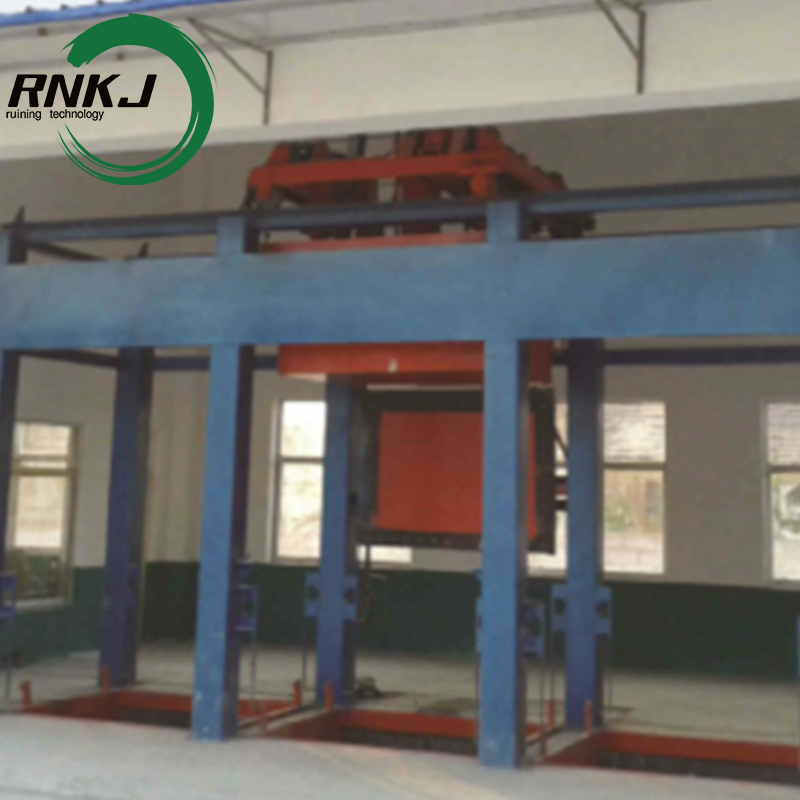

Product Style
|
|
Scope of Application
Urban Core Areas: Densely populated older residential communities and high-rise apartment complexes (land is scarce, requiring small-site, high-capacity processing equipment); Commercial centers, office buildings, and pedestrian streets (high foot traffic, concentrated waste generation, requiring enclosed, odor-free facilities).
Urban-Rural Fringe/Townships: Township-level centralized waste treatment points (replacing scattered small waste collection points, improving transfer efficiency); Township-level compression stations in the rural "village collection, town transfer" system.
Specific Locations: Factories and mines, industrial parks (centralized treatment of industrial solid waste/domestic waste); Medical institutions (requiring enclosed, leak-proof medical waste pretreatment); Schools, scenic areas, and transportation hubs (high foot traffic + high environmental protection requirements).
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
