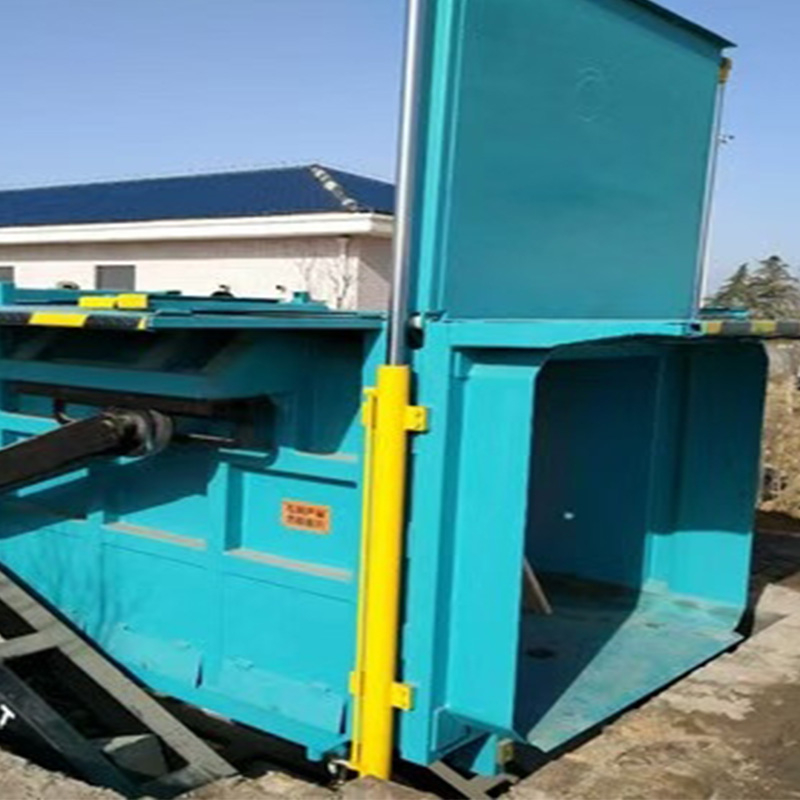

The Underground Horizontal Trash Compactor is a sanitation device buried underground, using horizontal compression technology to reduce the volume of waste for transfer. It integrates the functions of "waste collection - horizontal compression and volume reduction - closed transfer" and is a core supporting facility for waste transfer stations. It uses a hydraulic system to compress waste horizontally, and its lifting and unloading mechanisms facilitate docking with transfer vehicles. It is widely used in urban communities, towns, commercial venues, and rural areas, addressing issues such as land occupation, pollution, and efficiency in waste collection and transfer.
Product Advantage
1. Fully Enclosed Underground Operation
The Underground Horizontal Trash Compactor's main structure and power system are completely below ground, operating in a fully buried horizontal compression mode. This ensures an environmentally friendly and enclosed environment throughout the entire waste collection and transportation process, eliminating smoke, dust, and odorous gas emissions, wastewater pollution, and visual pollution, minimizing impact on the surrounding environment and ensuring excellent environmental performance.
2. Landscape: Visually Impressive Sanitation Equipment
The Underground Horizontal Trash Compactor is buried deep underground, allowing for landscaping and visual decoration on the site surface. An open system can be adopted, standardizing and integrating the waste collection and transportation system. This will change the public's perception of garbage stations as dirty, messy, and smelly.
3. Energy-Efficient, Contributing to a Lower Carbon World
The Underground Horizontal Trash Compactor uses electricity as its power source, a renewable energy source that achieves energy conservation. Its hydraulic system, featuring a constant-power variable-displacement piston pump from Virbac Hydraulics, rationally distributes energy to key functions. The efficient coordination of the entire system effectively reduces energy consumption in intermediate links, aligning with sustainable development strategies and promoting low-carbon living.
Technical Parameters
Compression Type | Horizontal compression |
Bin Capacity(m³) | 6m³-20m³ (Professional customization) |
Height of Hook (mm) | Customize height |
Density of Garbage Compactor(kg/m³) | 750kg/m³ |
Cycle Time of Compression(s) | 45s |
Operating Mode | Automatic; manual |
Color | Customizable colors |
Material | Corrosion-resistant manganese steel |
Power | Hydraulic/Chain (Customize) |
Lifting Mode | Ground gallows, side gallows, four pillars |
Run Process
The user puts the garbage into the feeding port of the garbage bin, the garbage is stored in a certain amount and then the compression mechanism compresses the garbage and repeats until the garbage is full, the sewage is discharged from the bottom of the sewage discharge system without power from the bin into the sewage collection tank to be discharged away.

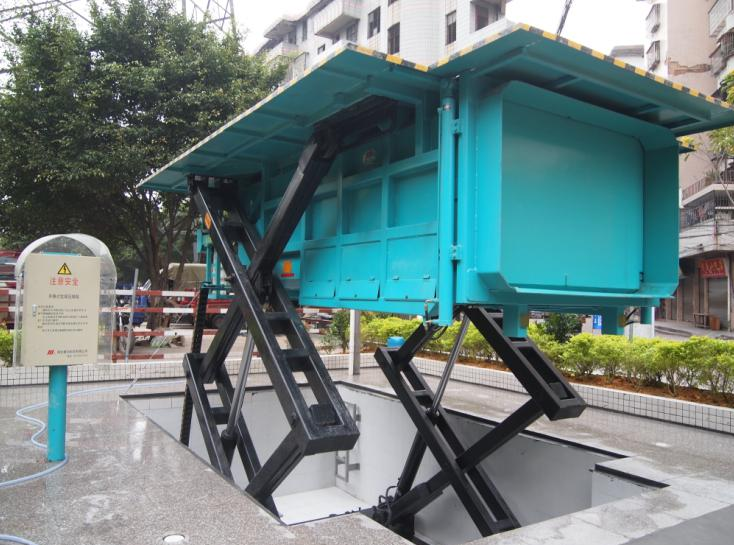

After the garbage is filled, the equipment is raised from the pit. Dock with the garbage truck and open the discharge door after docking. The garbage block is pushed into the garbage transportation vehicle through the compression mechanism.
After the garbage is unloaded, the garbage truck leaves the garbage bin, the push shovel is withdrawn, and the discharging door is closed and locked.
After making sure the door is closed tightly, the equipment is lowered into the ground and waits for re-inputting garbage.
Product Style
|
|
Features
Concealed Layout
The main body of the equipment is buried in an underground pit, with only the feed port or cover flush with the ground. This fully enclosed design effectively suppresses the spread of garbage odors, reduces mosquito and fly breeding, and reduces secondary pollution. Its appearance blends seamlessly with the surrounding landscape, alleviating the difficulty of selecting locations for urban and community waste stations.
Efficient Horizontal Compression
A hydraulic system achieves forced horizontal compression, achieving a compression ratio of up to 3:1. This significantly reduces the volume of garbage, improves loading efficiency for transfer vehicles, and reduces outbound hauls and hauling costs.
Automated Operation
Equipped with a PLC automatic control system or remote control, the entire process, from "garbage compression - box lifting - docking with transfer vehicles for unloading - equipment reset," is fully automated. Supporting dual modes of "fixed control cabinet + remote control," single-person operation is possible, significantly reducing the workload of sanitation workers.
Strong compatibility with sites and vehicles
The system requires minimal installation space, occupies a small footprint, and can be installed indoors or outdoors without the need for dedicated housing. It is compatible with a variety of waste collection vehicles, including tractors, tricycles, and small agricultural vehicles. It can be used with standard rear-loading compactor trucks for transport, eliminating the need for custom-built vehicles.
Complete environmental protection features and reliable hygiene.
Integrated sewage disposal, deodorization, and disinfection systems: Wastewater generated by compression is automatically drained to the municipal pipe network through the bottom of the pit. Optional features are available for some equipment, effectively improving the operating environment and making it particularly suitable for locations with high hygiene requirements, such as hospitals and schools.
Durable structure and easy maintenance.
Key components, such as the compression box, are welded with thickened steel plates and treated with corrosion protection, while the hydraulic system utilizes reliable components. The mechanical structure is stable with few potential failure points. Regular inspection of the hydraulic system and cleaning of leachate are required, resulting in low maintenance costs and a long service life.
Our Advantages
(1) More than 20 years professional manufacturer experience
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
FAQ
1. What is the quality of your products?
We provide unrivaled Quality - Very rigorous testing process for Incoming Quality Control, input Process Quality Control, and Final Quality Control for every piece.We follow QC test procedure, and do 100% FQC to ensure your satisfaction.
2. Can you put my brand name (logo) on these products?
Your logo and design can be created on the product.
3. What payment method do you accept?
We accept T/T, L/C at sight, Western Union, Paypal etc.
4. Do you have any After-Sales service?
Yes!lf you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.
5. Are you just trading company or factory?
We are a professional factory, we can offer you the most competitive price,unparalleled quality and service.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
